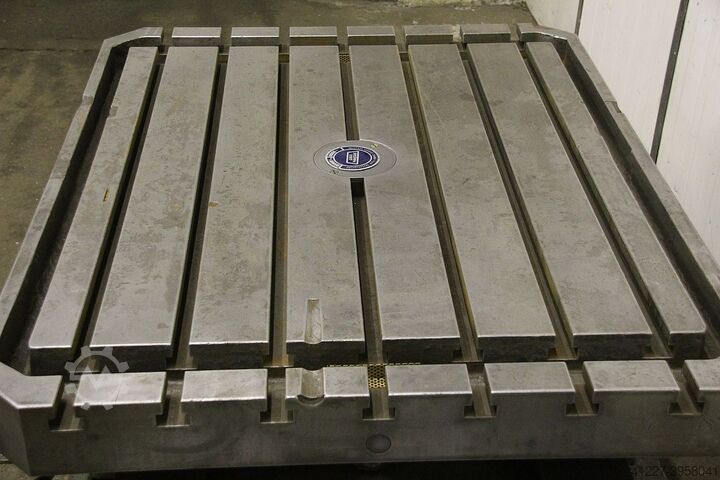

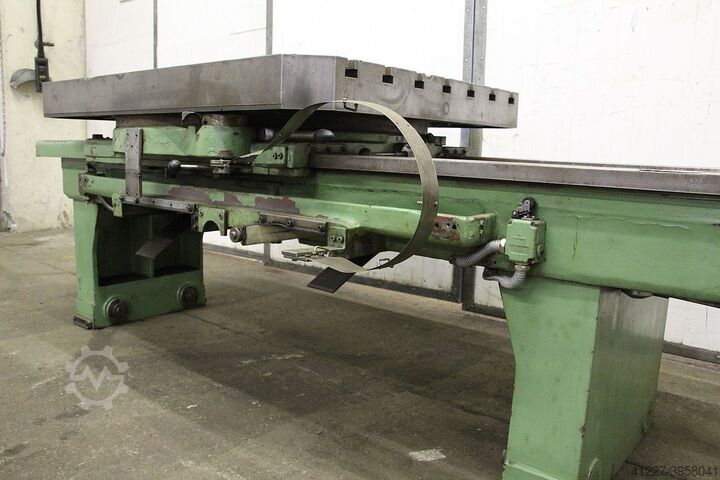

Clamping plate with T-slot

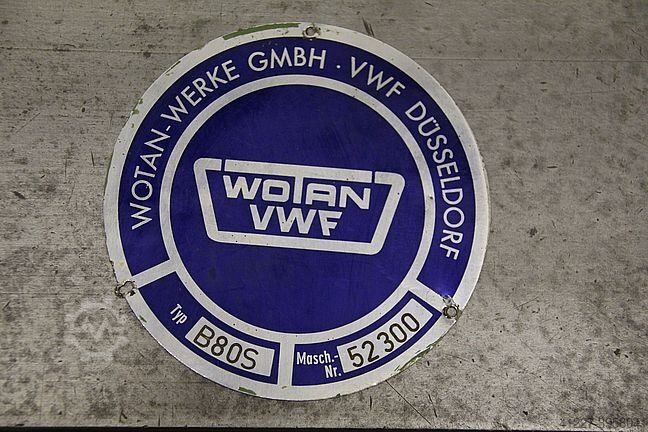

Wotan 1000 x 1260 mm

Condition: excellent (used), Year of construction: 2012, bore capacity in steel (diameter) 62 mm arm length 350-1600 mm workpiece height max. 1250 mm Dodpfx Adjyhq T Nswjcl distance spindle nose and table 350-1250 mm Boring depth max. 315 mm machine table 2400 x 1000 x 200 mm Turning speeds of the bor. spindle 38 - 2000 U / min spindle taper MT5 feed 0,06 - 1,00 mm/U engine output 4 kW stroke drive 1,5 kW oil pump 0,75 kW total power requirement 6 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2490 x 1050 x 2780 mm Steps of spindle speed: step-less Steps of spindle feed: 8 Speed of the arm up and down: 1.2 m/min Arm moving angle: ±180 degree Spindle moving distance of each dial revolution: 122 mm Max. spindle torque: 400 Nm Max. spindle feed resistance: 16000 N

Condition: used, Year of construction: 1979, functionality: fully functional, turning diameter: 640 mm, center height: 320 mm, turning length: 2,000 mm, Leadscrew and feedshaft lathe VDF with digital readout, powered top slide, 3-axis feed with rapid traverse, 3-jaw chuck, faceplate, Multifix toolholder with 5 inserts. Dedexz Edzjpfx Adwecl

Condition: used, Year of construction: 1970, table length 2200 mm table width 115 mm Dedpfx Adoudc Twewjcl table load 600 t weight 3 t 2

Condition: good (used), Year of construction: 1982, Drilling diameter: 50 mm, gray cast iron: 60 mm Maximum spindle-guide distance: 1600 mm Vertical arm travel: 875 mm Carriage travel on the arm: 1280 mm Arm rotation: 180° Morse 5 spindle taper Dcjdpfxowlh E So Adwjl Spindle stroke: 310 mm Number of spindle speeds: 16 Maximum spindle torque: 31,000 Nm Mounting surface: 1820 x 986 mm Dimensions: 3100 x 1120 x 3396 mm Weight: 4300 kg

Condition: new, bore capacity in steel (diameter) 50,0 mm arm length 350 - 1.590 mm workpiece height max. 645 - 1.240 mm turning speeds 25 - 2000 U/min spindle taper MT 5 MK base plate 980 x 1.600 mm threading 42 M quill stroke 320 mm total power requirement 4,0 kW weight of the machine ca. 3.500 kg. range L-W-H 2450 x 980 x 2840 mm Description : - Large-sized base plate Dcjdpfsxaad Tex Adwjl - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED machine light - First filling with Shell Tellus 46 - coolant device - lifting motor - hydraulic motor - operating tool - Height-adjustable protective cover

Year of construction: 1999, condition: used, Max. drilling diameter in steel, strength 600MPa: 50mm, max. drilling diameter in cast iron, strength 250MPa: 60mm, max. boring diameter (with guide) in steel, 600MPa: 200mm, max. thread in steel, 600MPa: M50x1.5, max. thread in cast iron, 250MPa: M60x2, spindle reach: 320-1250mm, pitch circle of holes: 1208-3039mm, distance from spindle axis to base plate: 320-1380mm, max. arm height adjustment: 750mm, max. drill carriage travel on arm: 930mm, arm swivel range: +/-180°, spindle head diameter: 75h6, spindle diameter at front bearing: 55mm, length: 2900mm, width: 1120mm, height: 3271mm, weight: 4.2t, with documentation. An on-site inspection is possible. Dedpfjzuzzisx Adwscl

Condition: used, functionality: fully functional, Bore: 50 mm Dodpfjrqwphex Adwjcl Centric mounting

Condition: used, Year of construction: 1990, Radial Drilling Machine KOLB KR 55 Year of construction: 1990 Dcsdpfszw Aqkex Adwsl Spindle Ø 80 mm Cone CM5 Spindle exit: 400 mm Rotation: from 18 to 2000 RPM Table size: 1800 x 1000 mm Arm travel: 1250 mm Auto descent Auto rise according to the 0 setting Maxi distance spindle nose/table: 1500 mm Mini distance spindle nose/table: 800 mm Column diameter: Ø 315 mm Drilling/tapping function Rotation at 360° Possibility of sensory drilling Automatic gearbox Lubrification Hydraulic locking Voltage: 380 V Dimensions (L x W x H): 2900 x 1100 x 3060 mm Weight: approx 5 T
