Clamping Table

KRUPS A 2,2

Condition: used, Year of construction: 1980, plate width 2.000 mm plate depth 3.000 mm plate height 600 mm weight of the machine ca. 6 t +++++ Nwodpfxofgpd Ao Agrsl Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: used, Year of construction: 1979, functionality: fully functional, turning diameter: 640 mm, center height: 320 mm, turning length: 2,000 mm, Leadscrew and feedshaft lathe VDF with digital readout, powered top slide, 3-axis feed with rapid traverse, 3-jaw chuck, faceplate, Multifix toolholder with 5 inserts. Nwedexz Edzjpfx Agrjl

Condition: used, Year of construction: 1988, plate width 2000 mm plate depth 3500 mm plate height 270 mm weight 5,5 t +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. Nwedpfx Aoiiii Sogrol +++++

Condition: good (used), Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring machine, T-slot plate -T-slot plate comes from: a WOTAN drilling machine -compatible with: Linear actuator ID 22786 Nsdsd E Hk Hepfx Agrjwl -Travel: 1110 mm -Clamping plate: 1000 x 1260 mm (rotatable) -Plate is: Solid -Groove width: 21 mm -Dimensions: 2470/1070/H885 mm -Weight: 2200 kg

Year of construction: 1999, condition: used, Max. drilling diameter in steel, strength 600MPa: 50mm, max. drilling diameter in cast iron, strength 250MPa: 60mm, max. boring diameter (with guide) in steel, 600MPa: 200mm, max. thread in steel, 600MPa: M50x1.5, max. thread in cast iron, 250MPa: M60x2, spindle reach: 320-1250mm, pitch circle of holes: 1208-3039mm, distance from spindle axis to base plate: 320-1380mm, max. arm height adjustment: 750mm, max. drill carriage travel on arm: 930mm, arm swivel range: +/-180°, spindle head diameter: 75h6, spindle diameter at front bearing: 55mm, length: 2900mm, width: 1120mm, height: 3271mm, weight: 4.2t, with documentation. An on-site inspection is possible. Njdozuzziepfx Agrewl

Condition: good (used), Year of construction: 1982, Drilling diameter: 50 mm, gray cast iron: 60 mm Maximum spindle-guide distance: 1600 mm Nodpewlh E Sjfx Agrswl Vertical arm travel: 875 mm Carriage travel on the arm: 1280 mm Arm rotation: 180° Morse 5 spindle taper Spindle stroke: 310 mm Number of spindle speeds: 16 Maximum spindle torque: 31,000 Nm Mounting surface: 1820 x 986 mm Dimensions: 3100 x 1120 x 3396 mm Weight: 4300 kg

Condition: new, bore capacity in steel (diameter) 50,0 mm arm length 350 - 1.590 mm workpiece height max. 645 - 1.240 mm turning speeds 25 - 2000 U/min spindle taper MT 5 MK base plate 980 x 1.600 mm threading 42 M quill stroke 320 mm total power requirement 4,0 kW weight of the machine ca. 3.500 kg. range L-W-H 2450 x 980 x 2840 mm Description : - Large-sized base plate - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED machine light - First filling with Shell Tellus 46 - coolant device - lifting motor - hydraulic motor Njdpfx Aoxaad Tsgrswl - operating tool - Height-adjustable protective cover

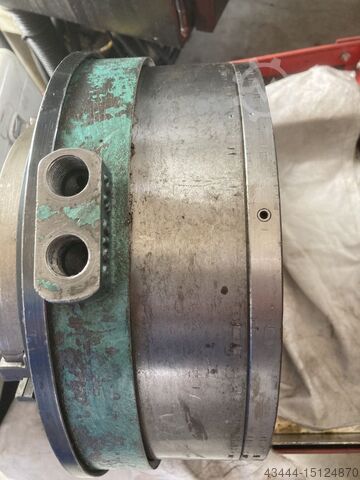

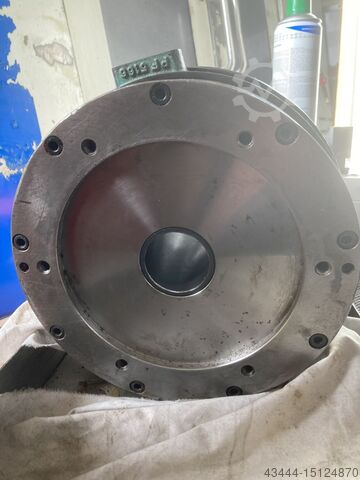

Condition: used, functionality: fully functional, Bore: 50 mm Nwedpfx Agerqwphjrol Centric mounting

Condition: used, Year of construction: 1990, Radial Drilling Machine KOLB KR 55 Year of construction: 1990 Spindle Ø 80 mm Cone CM5 Spindle exit: 400 mm Rotation: from 18 to 2000 RPM Table size: 1800 x 1000 mm Arm travel: 1250 mm Auto descent Auto rise according to the 0 setting Maxi distance spindle nose/table: 1500 mm Mini distance spindle nose/table: 800 mm Column diameter: Ø 315 mm Drilling/tapping function Rotation at 360° Possibility of sensory drilling Nwedpfx Agszw Aqkjrol Automatic gearbox Lubrification Hydraulic locking Voltage: 380 V Dimensions (L x W x H): 2900 x 1100 x 3060 mm Weight: approx 5 T

Condition: new, Unused centring points Nwsdpfozzvvzjx Agrol
