Robot

Yaskawa Motoman HP 20

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: S21K52-11-3, overall weight: 268 kg, arm reach: 1,717 mm, Equipment: documentation/manual, For sale is a powerful and precise 6-axis industrial robot, type Yaskawa Motoman HP20 (model: YR-HP20-B00), including the proven NX100 controller. This system is characterized by its extremely compact design, high speed, and versatility. It is ideally suited for applications such as material handling, machine loading, packaging, or arc welding. Todpfx Ahsz Euz Uomoc Technical data at a glance: Manufacturer: Yaskawa Motoman Model / Type: HP20 (YR-HP20-B00) Controller: NX100 Number of axes: 6 controlled axes Payload: 20 kg Max. reach: 1,717 mm Repeatability: ±0.06 mm Manipulator weight: approx. 268 kg Scope of supply: 1x Motoman HP20 robot arm (mounted on a stable steel base) 1x NX100 control cabinet 1x Handheld operating device 1x Complete hose set (robot and connecting cables) 1x Original technical documentation / manuals

Condition: reconditioned (used), Yaskawa MOTOMAN MH6 DX100 KOPPENDORFER Roboterservice has specialized in MOTOMAN robots for 25 years! Robots are checked and freshly serviced by us. Tsdpfx Ahjr D N Dajmoc There is the possibility of commissioning and programming We have various MOTOMAN robots and spare parts in stock: HP20 DX100 MH6 DX100 HP20 NX100 ES165 NX100 ES200 NX100 ES200 RD DX100 SP80 NX100 UP6 XRC UP50 XRC EA1400 NX100 EA1900 NX100 RM500 RM250 etc.

Condition: used, Year of construction: 2011, functionality: unexamined, machine/vehicle number: S16W80-11-4, load capacity: 20 kg, arm reach: 1,717 mm, controller manufacturer: Yaskawa, controller model: DX100, teach pendant manufacturer: Yaskawa, teach pendant model: JZRCR-YPP01-1, input voltage: 400 V, type of input current: three-phase, repeat accuracy: 0.06 mm, For sale is a Yaskawa Motoman HP20D 6-axis industrial robot with DX100 controller, teach pendant, connection cables, and a customer-specific pneumatic gripper/handling device. Technical data and specifications: - Model: Motoman HP20D - Robot type: YR-HP0020D-B00 - Year of manufacture: 07/2011 - Serial/order number: S16W80-11-4 - Axes: 6 - Payload: 20 kg - Horizontal reach: 1,717 mm - Repeatability: ±0.06 mm - Robot weight: 268 kg - Maximum pneumatic pressure: 490 kPa - Controller: Yaskawa DX100 - Controller type: ERDS-HP0020D-E02 - Power supply: 400/415/440 V, 3-phase, 50/60 Hz - Average connected power: 2.0 kVA - Full load current: 5.8 A - Teach pendant: JZRCR-YPP01-1 Visible scope of supply according to the images: - Robot arm on welded steel base - DX100 control cabinet - Teach pendant - Robot, operator device, and connection cables with CEE plug - Customer-specific pneumatic gripper/handling device Used condition with paint chips, scratches, and dirt. The robot has not been re-tested for functionality after disassembly; therefore, it is sold as untested. The function and suitability of the customer-specific gripper device have not been tested. Scope of supply according to the images. Todpfez Ebn Usx Ahmsc Price net, EXW Kirkel. Loading and organization of transport are possible for an additional charge and upon prior agreement. Transport costs depend on the destination and scope. Sale subject to prior sale.

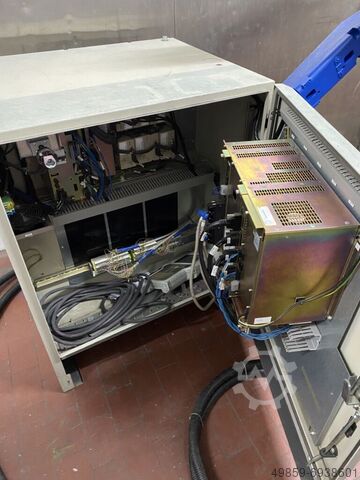

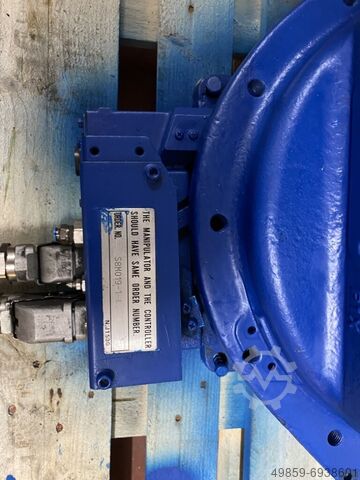

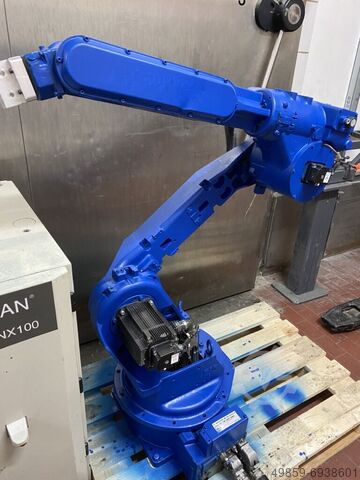

Condition: good (used), Used industrial robot HP20 Type: HP 20 Tedpohx D Ulsfx Ahmsc Controller: NX100 Year of manufacture: 2008.04 Payload: 20 kg The robot is already painted.

Condition: excellent (used), Epson G10-854SR Robot Assembly Station, Dispensing Station The assembly station is divided into the sub-stations 3.1 Dispensing Area, 3.2 Assembly Area Cooler + End Plate, and 3.3 Front Assembly Area. (Cooler = Heat Sink, End Plate = End Plate Angle) St. 3.1: Dispensing Area - A WT (Work Tray) with attached chassis and circuit boards enters the dispensing area via the transfer belt. - It is stopped at the lifting and positioning unit (HuPo), lifted from the belt, and fixed in place. - The x-y-z handling system then moves the dispensing head to the designated position and starts the dispensing process. - After successful dispensing, the handling system moves over the rest position, and the WT is placed back onto the belt. - Further transport to the assembly area Cooler + End Plate (condition: no WT in the assembly position). St. 3.2: Assembly Area Cooler + End Plate - A WT from the dispensing area enters the assembly area Cooler + End Plate via the transfer belt. - It is stopped at the lifting and positioning unit (HuPo), lifted from the belt, and fixed in place, while the side walls of the chassis of the partially assembled unit are aligned. - Simultaneously, the cooler tray and end plate tray are positioned. - A stack of cooler trays (12) and a stack of end plate trays (12) are manually placed on the respective infeed belt outside the protective enclosure. - The two safety gates are opened, and the loaded tray stacks move into the gripping position of the respective stacker. - The two safety gates are closed again. - The respective grippers grasp the corresponding tray. Todpfx Aeibx S Nshmec - The z-axis separates the trays and transports them upwards (above the actual picking height). - A centering support is pushed and positioned under the respective tray using x-axis movement for centering and tray stabilization. - The respective stacker's z-axis places the respective tray on the corresponding centering support. - The trays are ready for component removal. - The multi-gripper on the SCARA robot grips the cooler in the tray and places it in an intermediate position as an alignment aid (to compensate for inaccuracies when picking from the fixed gripping position for assembly). - The cooler is scanned, gripped again, and, if the scanner result is positive, mounted on the WT. - The non-conforming cooler is placed in a non-conforming box. - The multi-gripper on the SCARA robot then grips the end plate in the tray and places it in the alignment position. - The end plate is gripped again and mounted on the WT. - Continues with the front assembly area. Technical Data Design: SCARA (4-axis robot) Load capacity: nominal 5 kg, max. 10 kg Horizontal reach: 850 mm Vertical reach: Axis 3: 420 mm Orientation reach: J4: +/- 360° Horizontal repeatability: +/- 0.025 mm Vertical repeatability: J3: +/- 0.01 mm Orientation repeatability: J4: +/- 0.005° Max. operating range: Axis 1: +/- 152°, Axis 2: +/- 152.5°, Axis 3: 420 mm, Axis 4: +/- 360° Max. operating speed: J1, J2: +/- 11,000 mm/s, J3: +/- 2,350 mm/s, J4: +/- 2,400 °/s Permissible moment of inertia: nominal 0.02 kg*m², max. 0.25 kg*m² User cabling, electrical: 1x D-Sub 9 pin, 1x D-Sub 15 pin Z-axis: Outer diameter: 25 mm Pressing force: 250 N Weight: 48 kg Controller: EPSON RC180 Type of mounting: Ceiling IP protection class: IP20 Power and signal cable: 3m Financing through our bank is also possible. komplett-konzept.leasingo.de

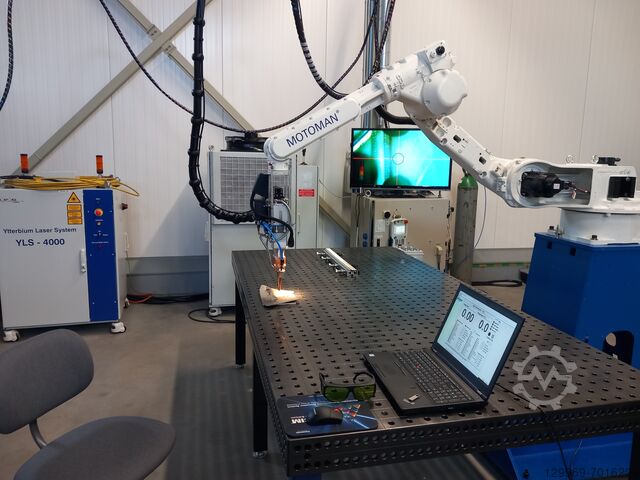

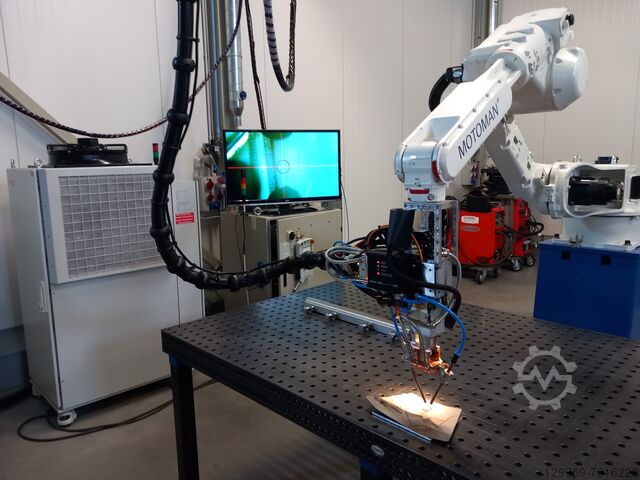

Condition: like new (used), Year of construction: 2018, Laser Welding Robotic system for welding steel, stainless steel. Scope of supply: 1 x YASKAWA 6-axis robot YASKAWA HP20RD.(Payload: 20kg, H-Reach: 2017mm, Robot Mass: 293kg, 2010.04) 1 x YASKAWA DX100 controller.(2010.05). 1 x IPG YLS-4000.(2017). 1 x IPG CHILLER.(2017). Todeh Ad E Uspfx Ahmec 1 x HIGHYAG BIMO LASER WELDING HEAD(S.N.:BIMO2W17013). Machine can be inspected. Very good condition. Connected, can be tested. Shipping to EU countries is our responsibility and the shipping cost is free.

Condition: like new (used), Year of construction: 2014, operating hours: 715 h, functionality: fully functional, machine/vehicle number: L62500, arm reach: 1,919 mm, total height: 3,200 mm, total width: 4,600 mm, total length: 5,200 mm, input voltage: 400 V, type of cooling: water, We are offering a Yaskawa TIG welding cell from October 2014 in as-new condition, with very few documented operating hours. The unit was used briefly and then decommissioned, as we no longer produce the components for which it was originally acquired. Tsdpfx Aex Exl Nehmoc The system features a rotary table with a maximum capacity of 1000 × 1500 mm, enabling the alternate machining of two parts to optimize cycle times and maximize productivity. It is also equipped with a push-wire (wire feeding) system, useful for overlay welding or areas lacking base material. The installed TIG technology is high-performance, designed for applications demanding high-quality and repeatable weld seams. Technical support is available via Roboteco S.p.A. (Yaskawa), offering reliable after-sales service and an international support network. The machine is immediately available and located in Tre Ville (TN), Italy. The asking price includes: - Professional dismantling - Loading onto the buyer’s transport vehicle Detailed photos and further technical specifications are available upon request.

Condition: used, Epson SCARA Robot G20-854S Control RC180 Robot Max payload 20kg Tedpfxjthcv Ro Ahmsc axis 1 750 w axis 2 600 w axis 3 400 w axis 4 150 w

Condition: reconditioned (used), Yaskawa MOTOMAN HP20 DX100 KOPPENDORFER Roboterservice has specialized in MOTOMAN robots for 25 years! Robots are tested and freshly serviced by us. Tjdper D Nmvefx Ahmsc There is the possibility of commissioning and programming We have various MOTOMAN robots and spare parts in stock: HP20 DX100 MH6 DX100 HP20 NX100 ES165 NX100 ES200 NX100 ES200 RD DX100 SP80 NX100 UP6 XRC UP50 XRC EA1400 NX100 EA1900 NX100 RM500 RM250 etc.
