Automation system, 6-axis robotYaskawa
MH50 YR-MH00050-B000
Machine data
- Machine type:
- Automation system, 6-axis robot
- Manufacturer:
- Yaskawa
- Model:
- MH50 YR-MH00050-B000
- Year of construction:
- 2013
- Condition:
- excellent (used)
Price & Location
- Location:
- Ansbacher Str. 19, 91595 Burgoberbach, Deutschland
Details about the offer
- Listing ID:
- A123-48620
- Update:
- 19.12.2024
Description

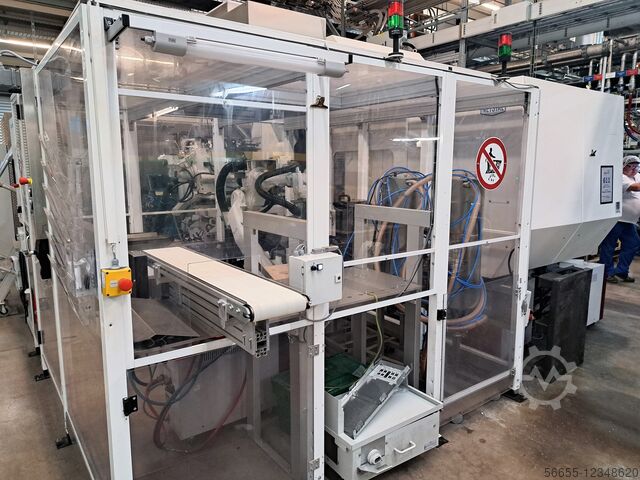

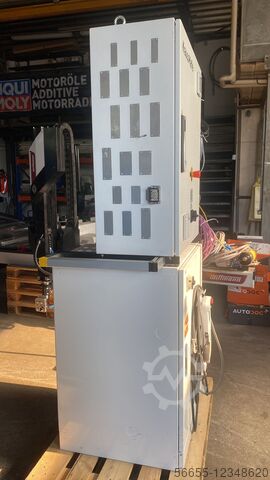

The system was built by Krauss Maffei and used on a Netstal injection molding machine to sort parts. Operating manuals for DX100 control and operating and maintenance manuals for MH50 Digital available

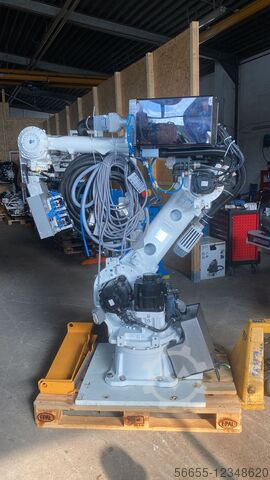

Technical data MH50:
Position Model YASKAWA-MH50
Operating hours: approx. 14.000
Year of construction: 2013
Body: Standing
Number of axles: 6
Load capacity: 50 kg
repeatability: ±0,07 mm
Working range
S-axis (rotation): ±180°
L-axis (lower arm): +135°, -90°
U-axis (upper arm): +251°, -170°
R-axis (hand roll): ±360°
B-axis (wrist rotation/bend): +125°
T-axis (hand rotation): ±360°
Maximum speed
S-axis: 3.14 rad/s, 180 °/s
Rcjdpfx Ajn E Nhpsgisk
L axis: 3.11 rad/s, 178 °/s
U axis: 3.11 rad/s, 178 °/s
R axis: 4.36 rad/s, 250 °/s
B axis: 4.36 rad/s, 250 °/s
T axis: 6.28 rad/s, 360 °/s
Permissible torque
R-axis: 216 Nm
B axis: 216 Nm
T axis: 147 Nm
Permissible moment of inertia (GD2/4)
R axis: 28 kgm2
B axis: 28 kgm2
T-axis: 11 kgm2
Weight approx. 550 kg

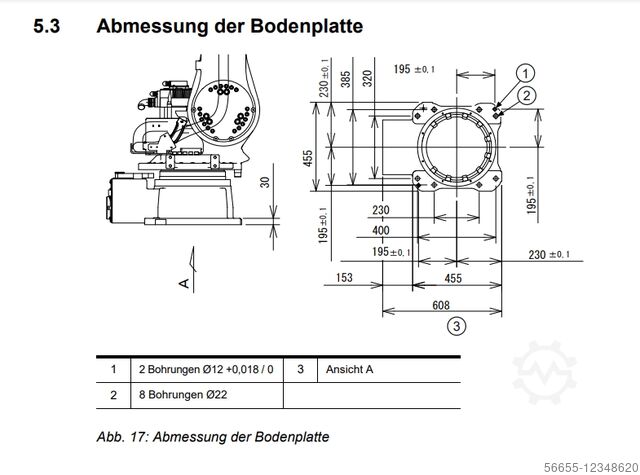

Dimensions: See pictures
On request, transport and loading can be organized throughout Europe for an additional charge.
Prices plus VAT
Viewing by appointment possible. Contact us, our team is happy to help you.
Trade-in or exchange possible!
