Microscope

Zeiss

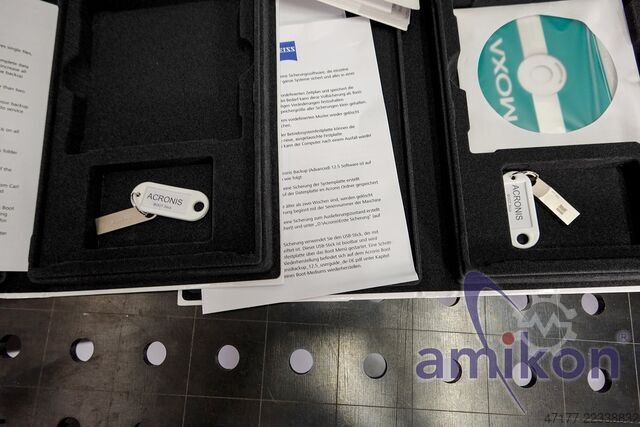

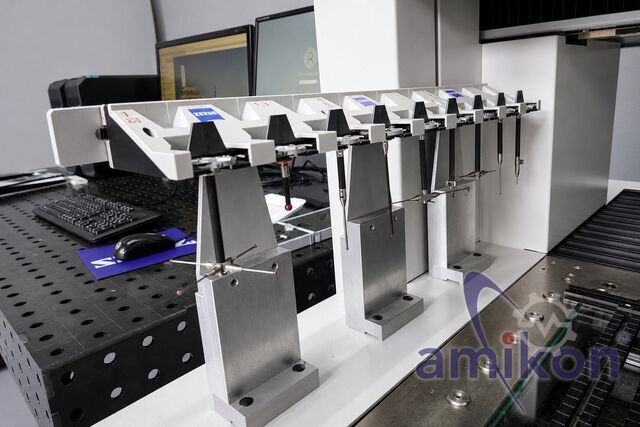

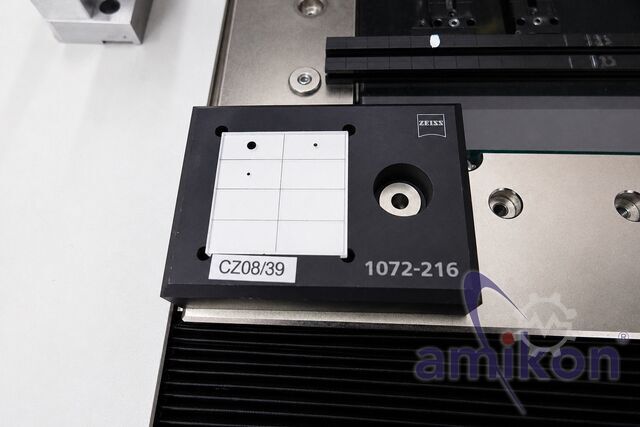

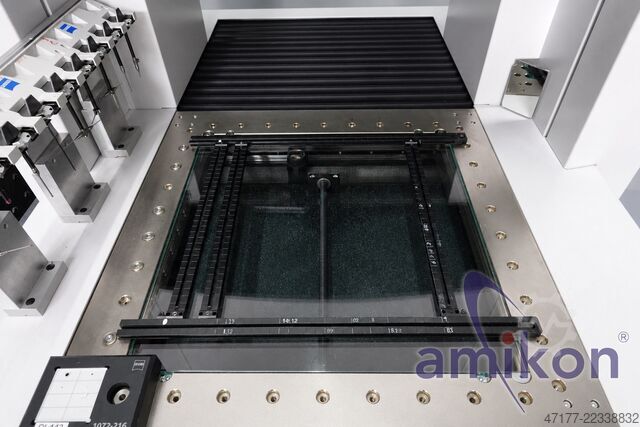

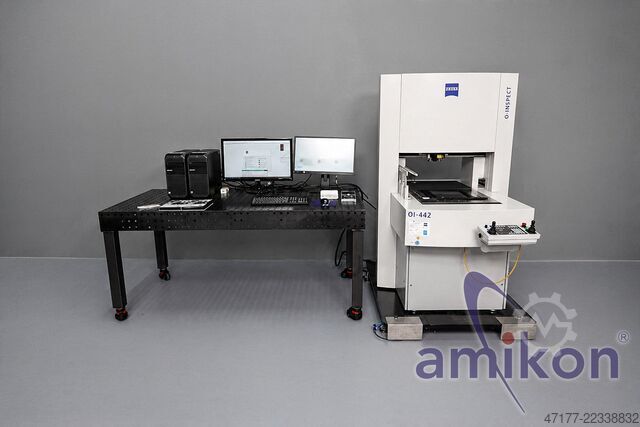

Condition: used, ZEISS Multisensory CNC Coordinate Measuring Machine O-INSPECT 442 Professional coordinate measuring machine for optical and tactile precision measurements in industry, research, and quality assurance. For sale is a used multisensory coordinate measuring machine from the manufacturer Carl Zeiss IMT GmbH. The ZEISS O-INSPECT 442 combines highly precise optical and tactile measurement technology in a CNC coordinate measuring machine. The installed ZEISS CALYPSO measurement software enables convenient evaluation of measurement data as well as the display of the actual state, target profile, and deviations. The system is ideal for quality assurance, toolmaking, precision engineering, medical technology, as well as research and development. Technical data: Manufacturer: Carl Zeiss IMT GmbH Model: O-INSPECT 442 Type: Coordinate measuring machine Measuring range X: 400 mm Measuring range Y: 400 mm Measuring range Z: 200 mm Max. workpiece weight: 20 kg Noise level: < 70 dBA Measurement system: Multisensory measurement system Optical and tactile measurement CFS measuring head system CALYPSO measurement software CNC-controlled measurement sequences Electrical data: Supply voltage: 100 / 110 / 120 / 125 / 230 / 240 V AC (±10 %) Current type: 1 / N / PE Frequency: 50–60 Hz (±3.5 %) Power consumption: max. 1500 VA Dimensions: Width: 1,055 mm Depth: 1,351 mm Height: 1,770 mm Weight: Coordinate measuring machine: approx. 800 kg Max. workpiece weight: 20 kg Equipment: Integrated control Control panel Computer with peripherals ZEISS CALYPSO Software 5.2 Documentation CFS measuring head system Reference probe Calibration standard Calibration template Applications: Coordinate measuring technology Optical measuring technology Iodpfxezii Dhs Apheih Tactile measuring technology Quality assurance Toolmaking Precision engineering Medical technology Research and development Scope of delivery: ZEISS O-INSPECT 442 coordinate measuring machine Integrated control Control panel Computer with peripherals ZEISS CALYPSO Software 5.2 Documentation Measuring head system Reference probe Calibration standard Calibration template Accessories as shown in the pictures Condition: Used Optical condition as shown in the pictures. Normal signs of wear and tear due to age. The table shown in the photos or other items not explicitly mentioned are not included in the sale. Due to its size and weight, shipping is possible via a freight forwarder. Subject to changes, errors and prior sale. We would be happy to answer any further questions by telephone.

Condition: used, FRT MicroSpy Device Designation: FRT MicroSpy Mobile Art. No. MSP 105 00 Device Number: MSP1033 FRT MicroSpy Mobile Portable Optical Profilometer for non-destructive 3D surface measurements directly on the component. Due to its portability, the MicroSpy Mobile is ideally suited for mobile use on large machines, vehicles, rollers, glass panes, or other large components. This enables high-resolution and non-destructive measurements on-site to determine important characteristics of surfaces, such as roughness, contour, topography, layer thickness, wear, load-bearing capacity, or volume. Smaller samples can be measured directly on the measuring table. Usable on large construction and machine parts Excellent resolution values Excellent reproducibility Non-destructive measurement Handles and adjustable support feet Low weight (approx. 5 kg) FRT Technical Specifications: Device: MicroSpy Mobile xy-travel range: 50 x 50 mm² xy-table Type: compact XY cross table with open frame Bearing: mechanical crossed roller guide Iiedezdnqcjpfx Aphsh Drive: DC motor with ball screw Travel range (XY measuring range): 50 x 50 mm² (or 20 x 20 mm² with CWL 3mm) Position measuring system: rotary encoder Measuring system resolution: 0.25 µm XY repeatability: < ± 1 µm Table height deviation (per axis): < 2 µm / 50 mm (of which is not reproducible): < 0.5 µm XY squareness: < 4 µm / 50 mm z-axis, motorized: Type Position Drive Travel range Position measuring system Measuring system resolution Axis straightness Gross adjustment, manual: Type: dovetail guide with fine drive Adjustment range: 25 mm Measurement: Minimum point spacing xy: 1 µm Sample size: - Sample weight: - Min. measuring speed: 1 µm / sec Max. measuring speed: 50 mm / sec Overall system: Total weight: approx. 150 kg of which measuring unit: approx. 5 kg Footprint measuring unit: approx. 0.3 x 0.3 m² Dimensions controller (W x D x H): approx. 0.65 x 0.65 x 1.0 (1.6) m³ Voltage supply EU version: 110 - 240V, 50 - 60Hz, z 16A Voltage supply US version: 110 - 240V, 50 - 60Hz, z 16A Power consumption: typ. 300-400 W Compressed air supply: - Ambient temperature: 22°C ± 5°C Temperature stability: < 0.5°C/h Environmental conditions: measuring room Scope of delivery: 1 x XY table with 50 x 50 mm² travel range 1 x Mobile base with electronics 1 x Chromatic sensor FRT CWL 600 µm 1 x Electronics for chromatic sensor 2 x Keys for computer 2 x Keys for rear door 1 x Power cord for power supply 1 x Mouse (PS/2) 1 x Keyboard 1 x 19'' TFT monitor Type: FRT MicroSpy Mobile Condition: used Scope of delivery: (See picture) (Changes and errors in the technical data are subject to change!) We will gladly answer any further questions you may have by telephone.

Condition: used, ZEISS Type: DSM 962 Iisdpfszdthysx Aphsh The DSM 962 is a digitized scanning electron microscope equipped with an integrated 4 MB image memory, a 40 MB internal hard drive for image storage, and drives for external data and image storage. This enables quick and easy acquisition of information about the composition and morphology of sample surfaces, even down to the sub-micrometer range. With a magnification range of 5x to 300,000x, both the examination of macrostructures and microstructures is possible. Through special add-ons, the range of applications can be significantly expanded, allowing for analytical investigations in micro-areas of the surface, for example. The device can be operated using conventional switches as well as via the keyboard or mouse (optional). The electron optics and vacuum control are conventional. Image memory functions are controlled via the keyboard or mouse (optional). Centrally located on the control panel is a separate information screen for displaying the menus. This user manual is intended to serve as a guide for the user to achieve the best possible results with the device. The explanations have been kept as simple as possible in order to provide even less experienced users with the necessary knowledge. Magnification range: 20x to 300,000x at a 7 mm working distance Steps in a sequence of 1-2-3-5-10 Minimum magnification: 5x at a 50 mm working distance Resolution: 4 nm - guaranteed with a tungsten cathode at 30 kV, 6 mm working distance, untilted sample 25 nm - guaranteed with a tungsten cathode at 1 kV, 6 mm working distance, untilted sample 3.5 nm - guaranteed with an optimized LaB6 cathode at 30 kV, 6 mm working distance, untilted sample Scope of delivery: (DSM 962 with accessories as shown) Condition: used (Changes and errors in the technical data are subject to change!) Please inquire about transport options before purchasing. We would be happy to answer any further questions you may have by telephone.

Condition: used, Year of construction: 1988, Zeiss WMM 850 Year of manufacture: 1988 Completely overhauled by Zeiss in 2008 • I purchased the machine in 2008 fully overhauled by the manufacturer. It has seen little use since then. • The machine is not operational, as a defect in the motherboard of the PC prevents the software from being reinstalled. • Furthermore, the software is discontinued by Zeiss and must be replaced with a current version. • The price for new software including hardware and training is €29,100 (as of March 2024). This offer was tailored to my needs and is provided for informational purposes. Iiedjxurcdepfx Aphsh • Since the machine has been used very little, there is virtually no wear on the bearings and drives. • A set of probes from the basic equipment is included; only a few of these have ever been used.

Condition: used, Year of construction: 2014, Measuring machine Zeiss CMM Pro T2 advance 16/21, year of manufacture 2014 – in very good condition • Standard numerical control panel • Base plate dimensions: Length: 4,000 mm Width: 2,000 mm Height: 640 mm Total system height approx. 4,500 mm • Measuring range: X-axis: 3,200 mm Iodpfx Apoxuq Tuohjih Y-axis: 1,600 mm Z-axis: 2,100 mm • Permissible workpiece weight: approx. 5,000 kg Software: Zeiss Caligo BASIS CNC, Zeiss Caligo QS-STAT • Length measurement deviation according to ISO 10360-2: MPE-E = (27 + L/80)μm

Condition: used, Year of construction: 2000, Zeiss Vista measuring machine, year of manufacture 2000 Iodpfxjzd Dhks Aphsih Includes Erowa UPC pallet/chuck mounted on the Vista.

Condition: used, Year of construction: 1997, Measuring Machine Zeiss Prismo7, Year 1997, Completely Refurbished in 2024 ZEISS Prismo7 CNC – COMPLETELY REFURBISHED!! USED MACHINE Iijdpfxjxuravj Aphoh Made in Germany Year of manufacture: 1997, modernized in 2024 with new control system, new probe system, and new user-friendly measuring software. Measuring volume: 1,500 x 900 x 700 mm Measurement accuracy according to ISO 10360-2: MPEe=(1.9+L/450)μm, MPEp=1.9μm Including base frame with integrated active vibration damping. Covered auxiliary support guide with additional scale to increase measuring accuracy. The scope of delivery also includes the following accessories: 1. Motorized rotary/swivel head PH10T Plus by Renishaw and interchangeable probe TP200 by Renishaw 2. Probe change magazine TW200. In total, 2 TP200 Standardforce probe modules are included. 3. Measuring software ThomControl CNC Basic Geometry. All geometric elements can be measured, graphically displayed, and documented. Evaluation of all form and positional tolerances. ISO tolerance database is integrated. Measurement programs can be created via teach-in. CNC measuring strategies are graphically displayed. 4. The MCU-Lite2 one-hand joystick from Renishaw features stepless speed control, emergency stop, and freely assignable function keys. 5. CNC control unit UCC2-2 Plus by Renishaw, housed in a separate control cabinet. 6. Powerful DELL PC with 8 GB RAM, 500 GB HDD, 2GB graphics card, WINDOWS 11 Professional 64-bit, sound card, network connection, 24" TFT monitor, including 3-year on-site service and an "ALL IN ONE" HP color printer. 7. Calibration sphere Ø25. 8. M2 stylus kit, 10 pieces.

Condition: used, Year of construction: 2014, Measuring machine Zeiss CMM Pro T2 advance 16/21, year of manufacture 2014 – in very good condition • Standard numerical control panel • Base plate dimensions: Length: 4,000 mm Width: 2,000 mm Height: 640 mm Total system height approx. 4,500 mm • Measuring range: X-axis: 3,200 mm Y-axis: 1,600 mm Z-axis: 2,100 mm • Permissible workpiece weight: approx. 5,000 kg Iiodpfx Asw D R Nqophjh Software: Zeiss Caligo BASIS CNC, Zeiss Caligo QS-STAT • Length measurement deviation according to ISO 10360-2: MPE-E = (27 + L/80)μm

Condition: used, Year of construction: 2000, Zeiss Vista measuring machine, manufactured in 2000. Ijdpfx Aezd Dkxophoih

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,800 mm, measuring range Z-axis: 700 mm, Equipment: type plate available, Zeiss CNC Coordinate Measuring Machine Prismo VAST GOLD Year of manufacture: 2001 Completely refurbished optically in 2024 and 2026 Last calibration: 11/2023 Measuring range: X = 900 mm, Y = 1800 mm, Z = 700 mm In excellent technical and optical condition Iodpfx Aezkhzhephjih Device features, equipment: C99 control unit with operating panel Automatic temperature compensation VAST GOLD sensor system Probe changer magazine, 17-position Probe changing plate, 20x Probe accessories Calibration sphere Reference probe HP Z4 workstation with WIN11 and monitor Calypso Basic 2024 software QS-Stat option Calypso upgrade and other options possible Further accessories and options possible Available on short notice
