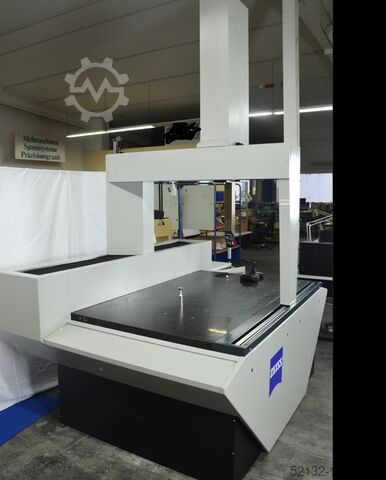

Coordinate measuring machine

Zeiss Prismo 7

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 111288, measuring range X-axis: 700 mm, measuring range Y-axis: 900 mm, measuring range Z-axis: 500 mm, workpiece weight (max.): 1,200 kg, total height: 2,930 mm, type of input current: AC, total width: 1,525 mm, total length: 1,740 mm, overall weight: 3,500 kg, table width: 925 mm, table height: 720 mm, table length: 1,195 mm, table load: 1,200 kg, compressed air connection: 6 bar, ambient temperature (max.): 35 °C, ambient temperature (min.): 10 °C, Equipment: type plate available, # Advertisement Description – ZEISS MPS PRISMO 7/9/5 For sale is a used ZEISS MPS PRISMO 7/9/5 3D coordinate measuring machine. The machine was manufactured in 2000 and has the serial number 111288. It is equipped with a ZEISS VAST probing system and a multi-probe changer. # Technical Data * Manufacturer: ZEISS * Model: MPS PRISMO 7/9/5 * Series: PRISMO * Year of Manufacture: 2000 * Serial Number: 111288 * Measuring Range X-axis: 700 mm * Measuring Range Y-axis: 900 mm * Measuring Range Z-axis: 500 mm * Probing System: ZEISS VAST * Multi-probe changer included * Machine-mounted operator console included * Condition: used Pjdpfx Aozwu Aljb Sjgr # Optional In addition to the machine, it is possible to purchase a separate cabinet with an extensive collection of ZEISS probes and accessories. The cabinet is not included in the stated machine price and can be offered separately if desired. Details regarding the content and scope of the probe collection can be provided upon request. # ZEISS Service and Test Label The machine has a label from the technical service department of Carl Zeiss IQS Deutschland GmbH, referring to a test performed according to DIN EN ISO 10360. The following values are indicated on the label: * MPE(E0): 1.40 + L/350 * P: 1.20 * THP: 1.40 * TAU: 29.00 * Type: PRISMO * Serial Number: 111288 * Label: 2025-10 The stated values are reproduced according to the ZEISS label on the machine. # Condition and Inspection The machine is in used condition. An inspection is possible by prior arrangement. Subject to errors, changes, and prior sale. HOLZHÄUER Hydraulik & Maschinenbau GmbH

Condition: like new (used), Year of construction: 2022, operating hours: 521 h, functionality: fully functional, machine/vehicle number: L3M0474, turning length: 500 mm, turning diameter: 300 mm, total height: 2,210 mm, total length: 3,950 mm, total width: 2,260 mm, overall weight: 5,680 kg, Equipment: documentation/manual, used Okuma lathe As-new, well-maintained condition Pgedjy Rx Tdjpfx Ab Ser 521 operating hours 347 spindle hours

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,500 mm, measuring range Z-axis: 700 mm, Equipment: type plate available, Zeiss CNC coordinate measuring machine Prismo 9/15/7 VAST GOLD Year of manufacture: 2000 Podozq U Rcepfx Ab Sjgr Retrofit 2024, last DAkkS calibration 12/2021 Measuring range: X = 900 mm, Y = 1500 mm, Z = 700 mm In excellent technical and optical condition Device features, equipment: C99 control system with BP26 operating panel Automatic temperature compensation VAST GOLD sensor system Probe changer magazine MSR, 10-position VAST Probe changer plate, 8x VAST Reference probe Temperature probe Probe accessories Calibration sphere HP Z4 workstation with WIN11 and monitor Calypso Basic 2024 software Options: Curve and QS-Stat Calypso upgrade and other options possible Further accessories and options available Available for immediate delivery

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,500 mm, measuring range Z-axis: 700 mm, Equipment: type plate available, Zeiss CNC Coordinate Measuring Machine Prismo 9/15/7 MASS VAST GOLD - RDS+VAST XXT Year of manufacture: 2004 Retrofit 2024, last calibration 01/2025 Measuring range: X = 900 mm, Y = 1500 mm, Z = 700 mm In excellent technical and optical condition. Device features, equipment: C99 control system with BP26_SE control panel Automatic temperature compensation VAST GOLD sensor system RDS sensor system with VAST XXT Probe changer magazine MSR 10-position VAST Gold Probe changer magazine 3-position VAST XXT Probe changer plate 8x VAST Gold Probe changer plate 3x VAST XXT Reference probe Pgedpfx Abjzk Id Ao Ssr Temperature probe Probe accessories Calibration sphere HP Z4 workstation WIN11 with monitor Calypso Basic 2024 software Curve and QS-Stat options Calypso upgrade and other options possible Further accessories and options possible Available for short-term delivery.

Condition: used, Year of construction: 2009, machine/vehicle number: V445C3-00236, Zoller Venturion 450 Psdpfx Ajy D D T Aeb Ssgr Precise measurement regardless of operator High degree of automation with CNC axes, autofocus, and rotary encoder Power-operated and universal tool clamping High-precision “ace” spindle clamps tools at the push of a button ZOLLER image processing “pilot 4.0” and large 24" monitor Industrial high-resolution camera Next to the CNC machine, in the workshop, in manufacturing cells User-friendly

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,800 mm, measuring range Z-axis: 700 mm, Equipment: type plate available, Zeiss CNC coordinate measuring machine Prismo VAST GOLD Year of manufacture: 2001 Retrofit in 2024 and 2026, last calibration 11/2023 Measuring range: X = 900 mm, Y = 1800 mm, Z = 700 mm In excellent technical and optical condition. Device features, equipment: C99 control system with control panel Automatic temperature compensation VAST GOLD sensor Probe changer magazine, 17-position Podpfozkhzhex Ab Segr Probe changer, 20 positions Probe accessories Calibration sphere Reference probe HP Z4 workstation with WIN11 and monitor Calypso Basic 2024 software QS-Stat option Calypso upgrade and other options available Further accessories and options possible Available on short notice

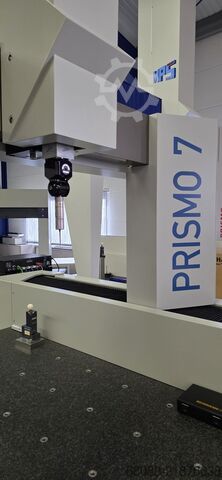

Condition: used, Used 3D CNC coordinate measuring machine. ZEISS Prismo 7 – upgraded in 2016 with UCC control, PH10M rotary-head-system, joystick box, SP25 scanning probe, and a PC with RationaDMIS 3D software. Further details available upon request Pgsdpfxjy Nzk As Ab Ser Measuring range X = 900 mm - Y = 1200 mm - Z = 700 mm Price: upon request ᐳᐳᐳ One-of-a-kind item - while available ᐸᐸᐸ Request our detailed quote. Of course, we provide all services such as installation, maintenance, service, training, programming, etc.

Year of construction: 2005, condition: ready for operation (used), travel distance X-axis: 285 mm, travel distance Z-axis: 1,150 mm, controller manufacturer: FANUC, controller model: 21i-TB, spindle motor power: 7,500 W, spindle speed (max.): 3,200 rpm, number of axes: 3, This 3-axis STUDER S33 CNC cylindrical grinding machine was manufactured in 2005 and completely overhauled in 2026, with 0 operating hours post-overhaul. It features a center height of 175 mm and a center distance of 1000 mm. The machine is equipped with a powerful 7.5 kW motor spindle and a control system with a 10.4" color touch screen. If you are looking to get high-quality grinding capabilities, consider the STUDER S33 CNC machine we have for sale. Contact us for further details. Pgodpfozwd Hgex Ab Sor - completely overhauled in 2026- Operating Hours: 0h after overhaul- Center Height: 175 mm- Center Distance: 1000 mm- Machine Base: Mineral cast Granitan S103- Strokes: 285 mm (X-axis) x 1150 mm (Z-axis)- X-axis Drive: AC Servomotor and ball screw, 0° angle, feed rate 0.001–5.000 mm/min- Z-axis Drive: AC Servomotor and ball screw, feed rate 0.001–10.000 mm/min- Measuring System: Incremental scale for X and Z axes, resolution 0.0001 mm- Grinding Headstock: Universal for external and internal grinding, Hirth serration 1° (-15° to +195°)- Motor Spindle (Pos. 2): 7.5 kW, 1400 to 3200 rpm, programmable cutting speed max. 50 m/s- External Grinding Guard: Wheel size D. 500x63mm F1 (80mm F5) with automatic contact protection- Internal Grinding Spindle (Pos. 3): Studer belt-driven internal grinding spindle (180°) with frequency inverter- Workhead Stock: Universal, roller bearing mounted, taper MK5, cylindrical outer nose D. 70mm, spindle bore D. 28mm, manual spindle lock- Workhead Drive: 1.8 kW AC Servomotor, speed range 1–1500 rpm, jog speed 1–50 rpm- Workpiece Weight: Max. 80 kg between centers- Tailstock: Taper MK4, 35 mm stroke, quill diameter 50 mm, hydraulic quill retraction with monitoring, manual fine adjustment +/- 0.04 mm- Pneumatic Lifters: Pneumatic lift-off for easy shifting of workhead and tailstock- Control System: Fanuc 21i-TB with 10.4" color touch screen, integrated PLC, 32KB user memory, 400 program storage slots- Power Supply: 400V +/- 10%, 50 Hz +/- 1Hz, 24V DC control voltage Optional Equipment: - Dittel Sensitron 6 contact detection with magnetic sensor (1 pc)- Movomatic C25 LP active probe- 3 pcs levelling elements- Air conditioning unit for electrical cabinet- Euchner hand-held control unit- Swiveling dresser for internal grinding- Park position for tailstock- 3 pcs Studer belt-driven internal grinding spindles (24,000 rpm / 40,000 rpm / 60,000 rpm)- Foot pedal for C-axis override with open doors- Foot pedal for clamping device actuation (tailstock)- Electrical interface for rotary dressing (spindle optional)- Movomatic in-process gauge control ES 124 control (measuring head optional)- 8 pcs used grinding wheel flanges for external grinding- Various new MK4 centers- Various dressers Additional Capabilities: - Capable of thread and form grinding (software must be requested directly from Fritz Studer AG)

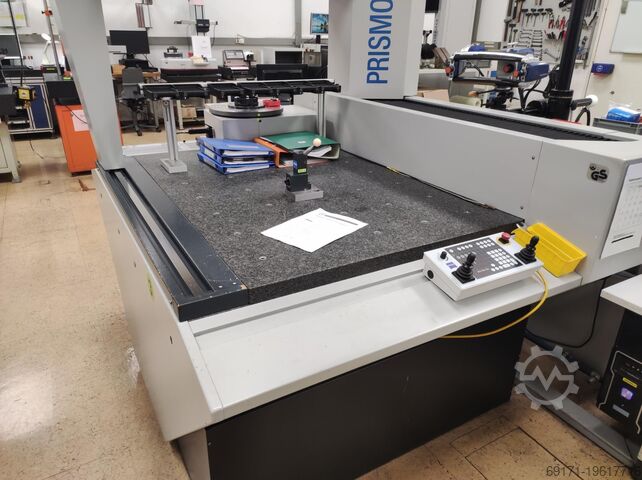

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 700 mm, controller model: C98 mit Bedienpult, The machine was retrofitted in 2019 and equipped with a new computer running Calypso software and the VAST Gold probe head! The last calibration was performed in June 2021! TECHNICAL DETAILS Measuring range X-axis: 900 mm Pgsdpfx Abjya Hfxe Ssr Measuring range Y-axis: 1,200 mm Measuring range Z-axis: 700 mm MACHINE DETAILS Control: C98 with control panel EQUIPMENT VAST Gold probe head 7-position probe change magazine Probe change rack Probe accessories Calibration sphere Technical documentation Workstation with monitor Calypso Basic software

Condition: used, Year of construction: 2003, machine/vehicle number: V420D2-0038, Zoller Venturion 500, Tool presetting device. Versatile: Flexible turret table configuration to suit your requirements. Universal: A single measuring device for almost all different tool holders. Simple: Comfortable controls and user-friendly software. Time-saving: Turret table equipped with frequently used holders. Stable: Special alloy and robust construction. Economical: Consistent use of branded components and excellent price-performance ratio. Pgedpfx Ajy D D Utob Sor
