3 x 53 m³ Aluminium silos ø 2.400 mm

Zeppelin

Year of construction: 2001, condition: good (used), Manufacturer: Zeppelin Silo- und Apparatetechnik GmbH Fgjdpfezqkfpsx Akhof Type: Stainless steel silo Year of manufacture: 2001 Volume: 70 m³ per silo Material: Stainless steel Filling material: PA/PP granules Bulk density: 0.6 kg/dm³ Silo height: 12,500 mm Silo diameter: 3,000 mm Max. operating overpressure: 45 mbar Permissible underpressure: 5 mbar Max. operating temperature: 50 °C Max. insertion depth: 11,000 mm Wall friction coefficient: 0.3–0.4 Horizontal load ratio λ: 0.5–0.7 Bottom load factor cb: 1.5 Discharge factor eh: 1.2 Bulk material coefficient βG: 0.4 μH: 0.2–0.4 Available quantity: 3 silos

Condition: used, functionality: fully functional, Aluminum flour/sugar silo with a tall support ring (used), designed for a bulk density of 0.95 kg/dm³ Volume: 70,000 liters Available quantity: 1 Diameter: approx. 2,400 mm Fjdeyhzm Repfx Akhegf Cylindrical height: approx. 17,500 mm Overall height: approx. 19,200 mm (including roof edge railing) Material: AlMg3 Bulk density: 1.0 kg/dm³ Equipment and connections: In the upper section: 1 x access opening DN 600 with cover 1 x over/underpressure valve 1 x top-mounted ventilation filter (ø 1000 x 5 mm) 1 x flange DN 125 for filling pipe 1 x flange DN 50 for pressure transmitter 1 x roof edge railing with handrail 2 x crane eyelets On the shell: 1 x access door 850 x 1800 mm 8 x pipe support ø 108 mm for filling pipe 1 x filling pipe DN 100, ending in a TW connection at the bottom 1 x cable protection conduit DN 50 1 x block flange for level indicator 1 x rupture disc Various pipe penetrations in the area of the lower support ring The silo has a 40° cone at the bottom, which ends in a flange DN 1500 for mounting a vibratory base. At the bottom/cone: 1 x vibratory base VB 1400 with motor, manufacturer AZO 1 x block flange for empty level indicator The currently connected measuring and control technology is included in the above offer. However, no guarantee is given for its function! Please note that the connections and equipment of the four silos may differ slightly. Otherwise, as per the images and drawings.

Condition: excellent (used), functionality: fully functional, total height: 16,250 mm, outer diameter: 3,550 mm, 5 x 125 m³ aluminum storage silo with a wide base (plastic granulate silo) Technical data / Dimensions Available quantity: 5 Volume: approx. 125,000 liters Container type: Silo Condition: used Food grade: no Design: vertical Internal diameter: approx. 3,500 mm External diameter: approx. 3,550 mm Cylindrical height: approx. 15,000 mm Overall height: approx. 16,250 mm Weight: approx. 2,500 kg Specific gravity of the medium: 1 ton/m³ Operating pressure: non-pressurized Wall thickness, bottom: approx. 5.5 mm Wall thickness, top: approx. 5.0 mm Wall thickness, shell / cylinder: approx. 3.5 - 5.5 mm Ground clearance: approx. 500 mm Material / Properties Material, inner shell: Aluminum Internal welds ground smooth Notes: Material: AlMg3 / AlSi Equipment Base design: base ring/wide base Quantity: 1 Fgsdpfx Aksznn Ntohjf Mounting: fixed Bottom type, top: conical bottom Bottom type, bottom: cone Cone angle: 90 degrees Top: 1 x roof edge railing, height: approx. 1,200 mm 1 x walkway with platform 2 x crane eye 1 x manhole DN 500 with safety grid 1 x flange DN 100 (filling line) 1 x flange DN 300 (level measurement) 1 x threaded socket for Max sensor 1 x flange DN 100 (filling) 1 x vent DN 200 with hood Shell: 1 x service access door (approx. 1,800 x 850 mm) 1 x cable protection conduit 1 x filling line DN 100, ending in a TW connection 1 x threaded socket 1 1/2" for empty indicator Bottom: The silos end at the bottom in a 90° cone with a flange DN 150 with emergency shut-off valve and suction box. Fittings available Notes: A matching access ladder (two-section) can be optionally purchased (additional cost: €1,500 plus VAT). The measuring and control technology installed on the silo will be supplied free of charge. However, no guarantee can be given for its perfect functioning.

Condition: excellent (used), 5 x aluminum silos standing on a foot ring (plastic granulate silos) - second-hand - designed for a bulk density of 0.6 kg/dm³ Technical data / dimensions Available quantity: 5 Volume: approx. 100,000 liters Container type: Silo Condition: used Design: upright External diameter: approx. 3,000 mm Cylindrical height: approx. 16,250 mm Total height: approx. 17,500 mm Specific weight of the medium: 0.6 to/m³ Material / composition Jacket material: Aluminum Features Fgjdpfxetq A Eme Akhof Stand form: Foot ring/stand frame Top base type: Conical base Gradient: approx. 15% Bottom shelf type: Cone Cone inclination: 90 degrees Top floor: 1 x DN 600 access dome with hinged lid and safety grille 1 x NW 200 ventilation nozzle with rain hood 1 x flange nozzle for Silopilot (level measurement) 1 x Block flange for full detector 1 x Roof edge railing with handrail 2 x crane eyes Jacket: 1 x access door 850 x 2025 mm 1 x filling pipe NW 80 with tangential entry into the silo, ending at the bottom in B-coupling at the bottom 1 x cable protection conduit (19 mm) 1 x connection piece for full detector Various openings in the frame shell for the passage of pipes The silo ends at the bottom in a 90° cone with an outlet flange DN 500 (outlet height: approx. 500 mm). Remarks: The currently connected measurement and control technology is included (if available). However, no warranty is given for their function! One of the silos has a two-pass access ladder with back protection and dwelling platform (surcharge: € 1,500 plus VAT). Otherwise according to pictures and drawing

Year of construction: 2004, condition: used, functionality: fully functional, Silo Manufacturer: ZEPPELIN - Capacity: 10 m³ - Total height: approx. 5.00 m - Diameter: 2.0 m - Year of manufacture: 2004 - Inspection opening There are 3 units available, 1 of which is equipped with an internal rotary mixer Subject to prior sale. Please make inquiries by email only. Note: The machine/unit is still installed and can be inspected on site. The buyer is responsible for dismantling and transport. Fgedpfx Aoualkkekhef This is not included in the offer price.

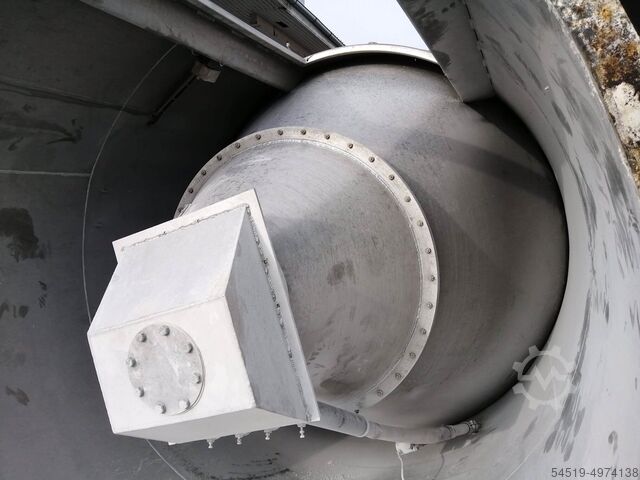

Condition: good (used), 3 x 65 m³ aluminum silo (granulate storage silos) with long frame (used) Contents approx. 65,000 liters Diameter (inside) approx. 3,000 mm Total height approx. 12,000 mm Bulk density: 0.6 kg/dm³ Cone inclination: 90 degrees Connections in the topsoil: Fgedpovmidyefx Akhof 1 vent nozzle with hood DN 200 1 flange nozzle DN 100 In the shell: 1 folding dome DN 450 1 filling pipe pulled downwards DN 80 Cone: The cone ends in a flange DN 150 with suction box otherwise as per sketch and photos

Condition: used, Backhoe bucket, excavator bucket, demolition bucket, trenching bucket -Execution: very stable -Width: 850 mm -Height: 1060 mm -Depth. 1600 mm -Zeppelin quick change adapter NADO -ripping teeth -Number: 2x excavator buckets available -Price: per piece Fedpfsckuz Isx Akhegf -The mounting on the spoon can be changed by us at an additional cost -Dimensions: 850/1600/H1060 mm -Own weight: 600 kg

Year of construction: 2000, condition: used, functionality: fully functional, Aluminum storage silo with a sturdy base ring Technical data / Dimensions Available quantity: 4 Volume: approx. 174,000 liters Container type: Silo Condition: used Food grade: no Design: vertical Internal diameter: approx. 4,200 mm External diameter: approx. 4,260 mm Cylindrical height: approx. 15,000 mm Overall height: approx. 16,250 mm Weight: approx. 3,500 kg Specific gravity of the medium: 1 ton/m³ Operating pressure: non-pressurized Notes: A new access ladder for the silo system can be offered as an option. Material / Properties Material, inner shell: Aluminum Internal welds ground smooth Notes: Material AlMg3 / AlSi Fgodpfx Aoy Ufigskhjf Equipment Base design: Foot ring / base ring Quantity: 1 Mounting: fixed Top bottom type: Conical bottom Bottom type: Cone Cone angle: 90 degrees Top: 1 x roof edge railing, height: approx. 1,200 mm 1 x walkway with platform 2 x crane eye 1 x manhole DN 500 1 x connection flange for level measurement 1 x threaded socket for max. sensor 1 x flange DN 100 (filling) 1 x vent with hood Shell: 1 x operating room door (approx. 1,800 x 850 mm) 1 x cable protection conduit 1 x filling line DN 100 (insulated) ending in a TW connection 1 x welded adapter for empty message Bottom: The silos end at the bottom in a 90° cone with a flange DN 200 and an emergency shut-off valve. Fittings: The measuring and control technology installed on the silo will be supplied free of charge. However, no guarantee can be given for its proper functioning. Documentation Drawing

Year of construction: 1987, condition: used, functionality: fully functional, machine/vehicle number: 17526, For sale: aluminium silo suitable for storing granulate, 4 units available. The price is per unit. Fodexx Nnlepfx Akhsgf

Condition: excellent (used), Aluminum silo (plastic granulate silo) standing on a base ring – used – designed for a bulk density of 1.0 kg/dm³ Volume: 105,000 liters Manufacturer: Zeppelin Available quantity: 1 Diameter: approx. 3,000 mm Cylindrical height: approx. 17,500 mm Overall height: approx. 15,000 mm (including 1,250 mm roof edge railing) Material: AlMg3 Bulk density: 1.0 kg/dm³ Inclination of the upper floor: 15° Inclination of the cone: 60° Equipment and connections: In the upper floor: 1 x access dome DN 500 with hinged cover 1 x ventilation opening with hood 2 x flange DN 100 PN 10 (filling + level indicator) 1 x stub for full-level indicator 1 x roof edge railing with handrail 2 x crane eyes Fjdpfx Ajlg Dcfskhogf On the shell: 1 x access door 850 x 2000 8 x pipe support for filling pipe DN 100 1 x filling pipe DN 100 1 x cable duct 1 x stub for full-level indicator The silo ends at the bottom in a 60° cone with a flange DN 200 (discharge height: approx. 500 mm) and a suction box. The currently connected measuring and control technology is included. However, no guarantee is given for its function! Additional cost: The silo has a two-part ladder with back protection and a landing platform (additional cost: €950 plus VAT). Otherwise, as shown in the pictures and drawing.
