Side mills

ZERMA GSL 180

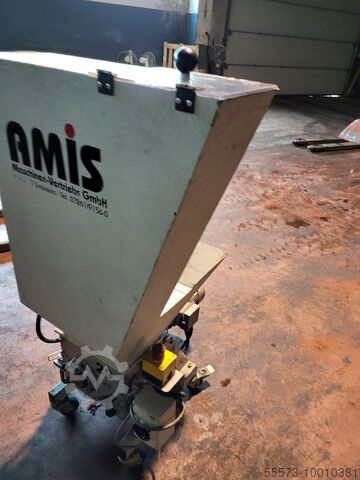

Condition: excellent (used), Side mills Zerma Year of manufacture 2005 Type: GSL -18AMIS) Kodpfx Ahelvt Eqeusdg

Year of construction: 2016, condition: reconditioned (used), functionality: fully functional, overhauled, delivery time by end of January 2026, 12-month warranty - Max. temperature 200°C; temperature can be increased to 250°C upon request - Internal dimensions: W 1000 x D 1000 x H 1500 mm - External dimensions: W 1765 x D 1425 x H 2300 mm - Equipped with Jumo Dicon Touch controller - Loading rails for charging the oven - Heating capacity: 36 kW - Net weight: 780 kg - Exhaust nozzle; exhaust fan and electric damper can be retrofitted upon request - Charging trolley available on request (see photo) - Documentation, CE declaration Kdedpfx Aevk Navshuog We are happy to offer installation and commissioning as an additional service. Inspection by appointment in our warehouse. Oven, ovens, drying oven, kiln, heat oven, heating cabinet, industrial oven, tempering oven, pre-heating oven, tempering oven, drying cabinet, chamber kiln, curing oven, recirculating drying cabinet, recirculating oven

Condition: used, machine/vehicle number: 4966, Rotor diameter: 200 mm Rotor width: 180 mm Rotor blade: 3x4 Kdodpfsxyax Djx Ahuog Stator knives: 2 Inlet cross-section approx. 200 x 180 Drive motor: 3 kW

Condition: new, Year of construction: 2025, Slow-running mill for storage Rotor diameter (mm) 180 Rotor width (mm) 300 Rotor speed (rpm) 150 Drive (kW) 4 Number of rotor blades 30 Number of stator blades 2 Screen perforation (mm) >5 Approx. weight (kg) 180 The slow-running mills of the GSL 180 series have a rotor diameter of 180 mm and working widths from 120 to 430 mm. The rotor is driven directly by a gear motor. The low rotor speed ensures a pleasant noise level and a high-quality product. Kdedst Aam Hspfx Ahueg The special rotor blades can be resharpened several times, eliminating the need for complex adjustment work. The mills are fed via a noise-reducing sandwich-type hopper. Depending on the task, the machines can be equipped with various hopper variants. Low and high base frames are available as options. The ground material is either vacuumed or filled into bags or a plastic container. Good accessibility for simple and quick maintenance work is ensured by the Quick Snap locking system.

Condition: used, ELIOG industrial oven Kdjdpfx Aherdvdlsujg Drying oven Heating oven DU 200/04-03-09 up to 200°C

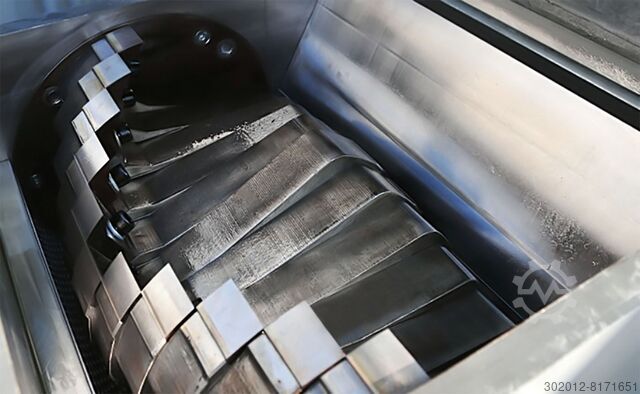

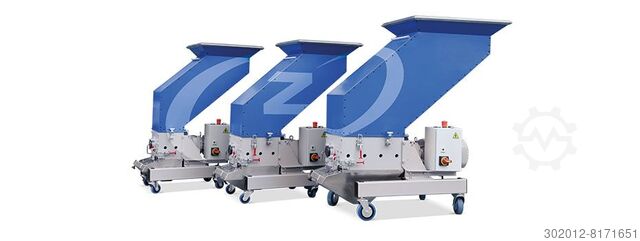

Year of construction: 2025, condition: new, Beside the press granulator Rotor diameter (mm) 180 Rotor width (mm) 430 Rotor speed (rpm) 150 Kjdpsi Hpfdsfx Ahuedg Drive capacity (kW) 4 Rotor knives (pcs) 45 Stator blades (rows) 2 Screen size (mm) >5 Weight approx. (kg) 250 The slow speed granulators in the GSL range are mainly used in injection and blow molding processes as beside the press machines to grind runners and sprues. The machines can be used for rejected products in the inline recycling process as well. Different hopper and base frame designs make it possible to integrate the machine with most types of injection molding machines and robots. Driven by gear motor Unique knife design eliminates adjustment after resharpening. Simple tool less access for maintenance and cleaning Customizable hopper and base frame

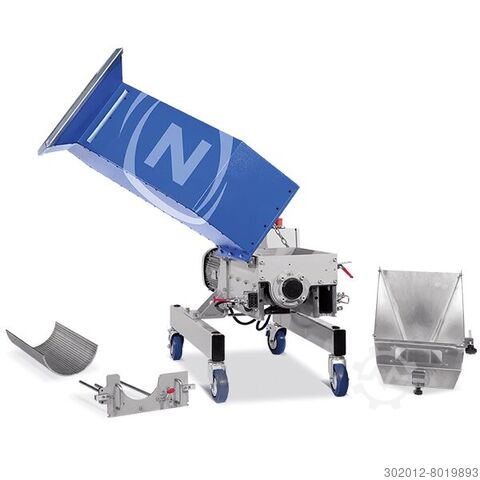

Year of construction: 2024, condition: new, Slow-speed, side-by-side granulator Rotor diameter (mm) 180 Rotor width (mm) 180 Rotor speed (rpm) 150 Drive (kW) 3 Number of rotor blades 18 Number of stator blades 2 Screen perforation (mm) >5 Approx. weight (kg) 140 The slow-speed side-by-side granulators of the GSL series are primarily used in injection molding and blow molding for the inline reduction of sprues and defective parts. Various hopper and extraction systems allow the machines to be flexibly integrated into existing installations. GSL 180 For the comminution of sprues from injection molding and blow molding Highlights of the GSL series: Low noise thanks to the low rotor speed, angled cut, and soundproof hopper in a multi-layer sandwich design. Powerful and efficient drive thanks to a brand-name gearbox. Kdedpeqmik Iofx Ahuog Easy maintenance, cleaning, and knife replacement. The slow-running, stand-alone granulators of the GSL 180 series feature a closed rotor with a diameter of 180 mm. The machines are available in working widths from 120 mm to 430 mm. The rotor consists of individual discs directly connected to the spur gear unit via an oversized drive shaft. This enables efficient and low-maintenance power transmission. The material to be crushed can be fed by hand, by conveyor belt, or by robot via a generously dimensioned, soundproof hopper in a sandwich design. The granulator is mounted on a low base frame on casters as standard. The mill is emptied via an extraction tray inserted beneath the screen with a pipe connection for a suction conveyor. Applications The slow-running, stand-alone mills of the GSL 180 series were specifically developed for the size reduction of sprues from injection molding and blow molding. Easy accessibility allows for quick color and material changes. The low rotor speed also allows for the processing of both soft and hard materials, ensuring good material quality with low dust content.

Year of construction: 2015, condition: ready for operation (used), A total of seven identical Tria S.p.A. plastic granulators are available. Rotor knives: 3, stator knives: 2, rotor diameter: 260mm, motor power: 7.5kW, throughput: 150kg-220kg/h, hopper opening: 350mm/300mm, hopper capacity: 30l, discharge hopper capacity: 15l. Machine dimensions X/Y/Z: approx. 1200mm/800mm/1750mm, weight: approx. 650kg. Documentation available. On-site inspection is possible. Kdedswxd Upopfx Ahuog

Year of construction: 2024, condition: new, Beside the press granulator Kedpfx Asiy D Szohusdg Rotor diameter (mm) 180 Rotor width (mm) 180 Rotor speed (rpm) 150 Drive capacity (kW) 3 Rotor knives (pcs) 18 Stator blades (rows) 2 Screen size (mm) >5 Weight approx. (kg) 140 The slow speed granulators in the GSL range are mainly used in injection and blow molding processes as beside the press machines to grind runners and sprues. The machines can be used for rejected products in the inline recycling process as well. Different hopper and base frame designs make it possible to integrate the machine with most types of injection molding machines and robots. Driven by gear motor or V-belt Unique knife design eliminates adjustment after resharpening. Simple tool less access for maintenance and cleaning Customizable hopper and base frame

Year of construction: 2022, condition: like new (used), Immediately available, like new, 12-month warranty - For solvent-based materials according to DIN EN 1539 - Max temperature 150°C (can be increased upon request) - Useful volume 1,875 liters - Internal dimensions: W 1250 x D 1000 x H 1500 mm - External dimensions: W 1765 x D 1425 x H 2300 mm - Drive-in rails for loading the oven - Maximum allowable quantity of combustible materials at 150°C: 83.9 g - Minimum exhaust air volume flow at 20°C: 360 m³/h Kodpfxoxbtvfe Ahusdg - Connection: 30 kVA, 3 x 400 V, 57 A, 50 Hz - Heating power: 36 kW - Net weight: 820 kg - Loading trolley with 12 trays and 24 stainless steel shelf levels available separately; 4 units included in the offer - Documentation, CE Declaration Inspection at our warehouse by appointment. Oven, ovens, drying oven, firing oven, heating oven, heating cabinet, industrial oven, solvent oven, tempering oven, preheating oven, conditioning oven, drying cabinet, chamber oven, baking oven, circulating air drying cabinet, circulating air oven, paint dryer
