Single Column Press - Hydraulic

ZEULENRODA PYE 160 S1M

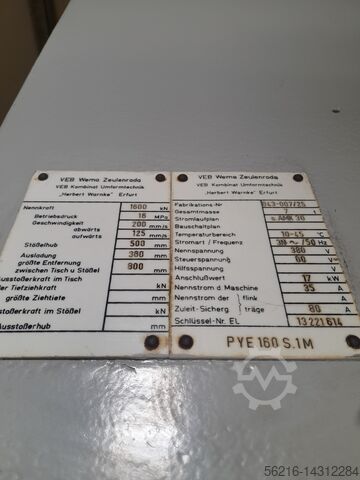

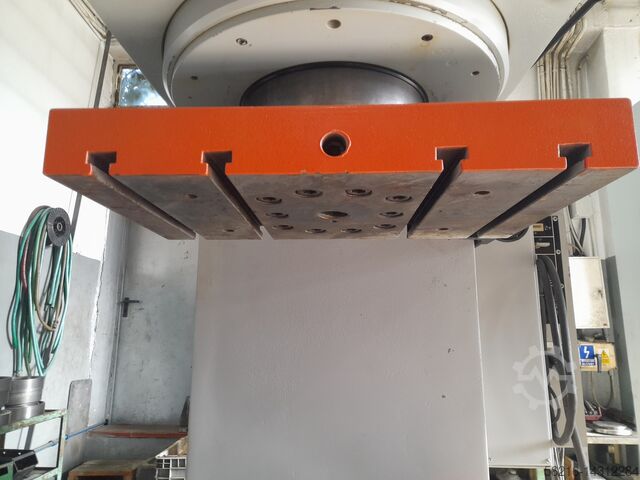

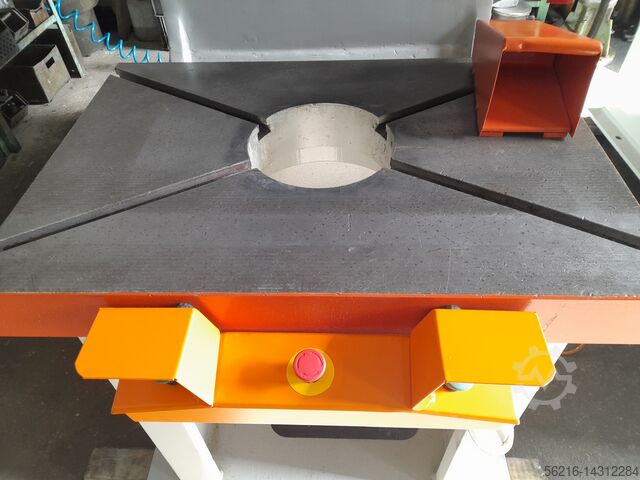

Condition: excellent (used), Year of construction: 1984, power: 17 kW (23.11 HP), type of input current: three-phase, pressing force: 160 t, stroke length: 500 mm, operating speed: 200 mm/s, reverse speed: 125 mm/s, table width: 900 mm, table length: 630 mm, throat depth: 800 mm, ram plate width: 700 mm, ram plate length: 450 mm, oil tank capacity: 500 l, total length: 22,000 mm, total width: 12,500 mm, total height: 34,500 mm, overall weight: 7,000 kg, operating pressure: 160 bar, installation height: 800 mm, pressure: 250 bar, Hydraulic press PYE 160 S/1M. Year of manufacture: 1984. Manufacturer: VEB Wema Zeulenroda (Germany). The machine has undergone a general overhaul. Specifications: Maximum pressing force: 160 tons. Operating pressure: 16 MPa. Upper table: 700 x 450 mm. Lower table: 900 x 630 mm. Daylight opening: 800 mm. Cylinder stroke: 500 mm. Downward speed: 200 mm/sec. Upward speed: 125 mm/sec. Power requirement: 17 kW. Oil tank capacity: 500 l. Weight: 7000 kg. Height: 3450 mm, Length: 2200 mm, Width: 1250 mm. Machine in very good condition. Inspection and test under power possible. Dedpsqy E I Rsfx Ad Nokl

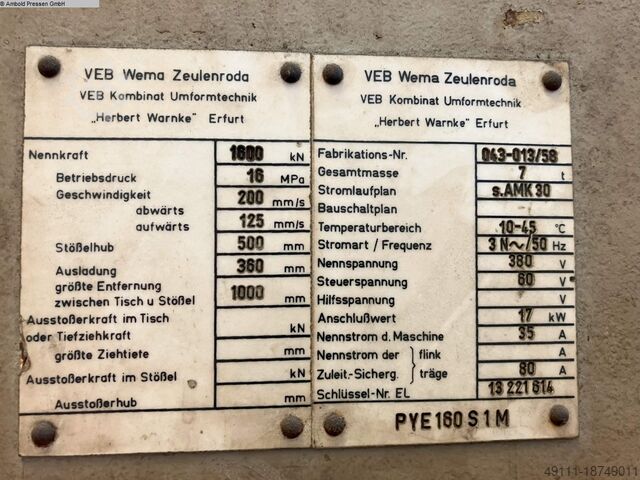

Condition: used, Year of construction: 1983, Technical details: Pressure: 160 t throat: 360 mm max. ram stroke: 500 mm distance table/ram: 800 mm clamping plate on table: 1250x630x100 mm passage opening in table: 4x Ø 62mm mm ram speed - forward: 200 mm/s Dksdpsu Nfvujfx Ad Nsl ram speed - reverse: 125 mm/S ram surface area: 450 x 850 mm mortise hole in ram: Ø 49 mm height over floor: 810 mm total power requirement: 17 kW weight of the machine ca.: 7200 kg dimension machine xH: 2,1 x 1,4 x 3,4 m manual counter *

Condition: refurbished (used), Single-column hydraulic press (completely overhauled) PYE 250 S1M with drawing cushion - Pressing force: 2500 kN - Installation height: 800 mm - Stroke: 500 mm - Speed: downwards 200 mm/s - Drawing cushion: 1000 kN, stroke: 200 mm - Drive: 20.5 kW - Dimensions: 3500 x 2000 x 1200 mm - new control system, new control cabinet, light curtain (single stroke, double stroke, safety), new hydraulics, Dkedpfx Adjycl Evj Nel - new seals - new UVV safety inspection

Condition: new, Year of construction: 2025, functionality: fully functional, pressing force: 125 t, Single-column press – Manufacturer: Durendus – 125 t servo press – Table 2200 × 750 mm For sale is a hydraulic C-frame servo press from Durendus with an adjustable pressing force of up to 125 t and integrated 50 t ejector. Thanks to modern servo-hydraulics, this machine offers up to 40% reduced energy consumption compared to conventional systems and is ideal for demanding assembly, forming, and production processes. ===== Technical data & information: Hydraulic servo press – C-frame – 125 t ==== General Specifications - Manufacturer: Durendus Dkedpfx Aex Aqtqod Nel - Model: Single-column press / servo press - Design: C-frame press - Pressing force: 20 – 125 t (adjustable) - Machine weight: approx. 8,700 kg - Dimensions (W × D × H): approx. 2,400 × 2,000 × 3,300 mm - Table height: 870 mm - Installation height: max. 1,000 mm ==== Table & Ram - Table area: 2,200 × 750 mm - Ram area: 980 × 750 mm - Guidance: 4 guide columns Ø 100 mm - Tool centering: 50 mm receptacle - Preparation: Vibration damping plates (30 mm) - Preparation: Robot interface ==== Ejector - Ejector force: 50 t - Ejector stroke: 200 mm ==== Hydraulic Cylinder - Stroke: 0 – 700 mm (adjustable) - Working pressure: max. 245 bar - Return speed: 300 mm/s - Idle speed: 300 mm/s - Pressing speed: - up to 25% load: 25 mm/s - up to 50% load: 14 mm/s - up to 80% load: 7 mm/s - up to 100% load: 6 mm/s ==== Hydraulic Unit - Servo hydraulic pump: Duplomatic, 143 l/min - Servo motor power: 15 kW - Pressure accuracy: ± 5 bar - Pre-fill valve: NG-160 ===== Assembly, forming technology, series production, automated manufacturing, toolmaking, energy-optimized pressing processes Servo press, single-column press, C-frame press, hydraulic press, industrial press, production press, energy-efficient press, die spotting press, tryout press, tool try-out press Are you looking for a hydraulic press tailored to your specific application? Contact us for a custom quote. Our hydraulic presses are manufactured in accordance with both German and European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed Canadian and European safety requirements as they fully comply with the Brazilian national safety standard NR 12, which builds upon those regulations. Our core expertise lies in special-purpose machine construction and press automation. We offer customized hydraulic presses at surprisingly competitive prices. We primarily use components from leading European manufacturers for the press hydraulics.
