Surface grinding machine 600 x 220 x 540 mmZIERSCH
ZT 24
Surface grinding machine 600 x 220 x 540 mm
ZIERSCH
ZT 24
Year of construction
2010
Condition
Used
Location
Babberich

Show images
Show map
Machine data
- Machine type:
- Surface grinding machine 600 x 220 x 540 mm
- Manufacturer:
- ZIERSCH
- Model:
- ZT 24
- Year of construction:
- 2010
- Condition:
- good (used)
Price & Location
- Location:
- Transito 21, 6909 DA Babberich, NL
Call
Technical details
- Grinding length:
- 600 mm
- Grinding width:
- 220 mm
Details about the offer
- Listing ID:
- A183-48381
- Reference number:
- 8964
- Update:
- 04.02.2025
Description
Manufacturer: Ziersch
Type: ZT 24
Control: Mitsubishi TOUCH panel
Year of construction: 2010
Sturdy, cast iron execution of all machine components
High machine weight for maximum rigidity
Preloaded precision linear guideways in the vertical and cross axis (Bosch Rexroth) for highest accuracy
Scraped and turcite coated slideways in the longitudinal axis provide excellent vibration absorption and a high-quality grinding surface pattern.
Hydraulic longitudinal motion with return cooling unit to achieve good surfaces
Electro-mechanical cross and vertical motion
Measuring systems in vertical axis (Heidenhain) for precise positioning
Maintenance-free paper band filtration unit with up to 500 l tank and 2-bar pressure pump for effective cooling and rinsing
Integrated rinsing channel
Magnetic separator for prefiltration of the paper band filtration unit
Infinitely variable grinding spindle motor
Machine lamp
Table-mounted dressing device for high precision and surface finish

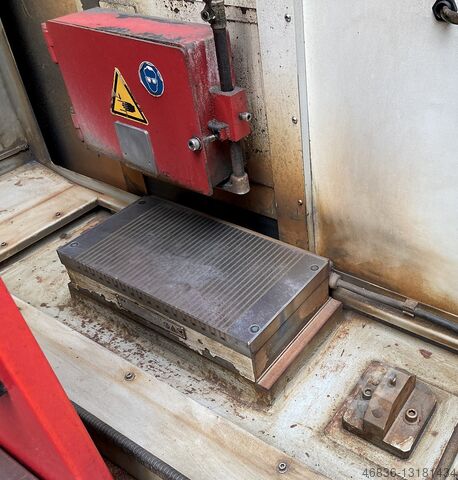

Electro-permanent magnetic chuck (SAV) with integrated pole changing unit and traction regulation
Partial encapsulation of the machine with sliding door and a service door
Effective splash guard and excellent accessibility
Preparation of the machine for installation of a coolant mist exhaust unit

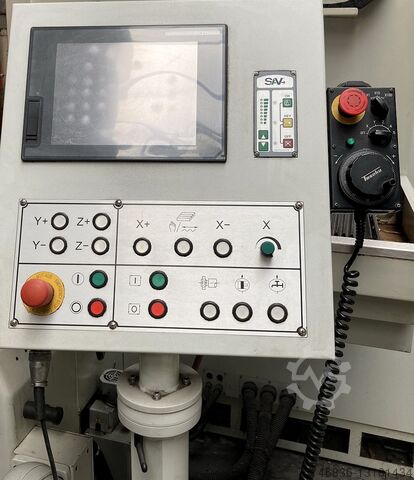

Control system features:
Very comfortable and easy to operate Z-control
Automatic vertical infeed with dressing amount compensation
Fully automatic grinding cycle with dressing cycles
Crjdpfxevt Tm So Abwoh
Easy operation via touchscreen
Large and clear colour screen (10.4")
Electronic handwheel, usable in vertical- and cross axis
Specifications
Metric US Standard
X - axis
600 mm
Y - axis
220 mm
Z - axis
540 mm
Table length
400 mm
Table width
250 mm
Load more specifications
Dimensions ( Estimate)
Length
3050 mm
Width
2050 mm
Height
2510 mm
Weight
2900 kg
Please note: The information on this page has been obtained to the best of our knowledge and belief from the manufacturer. The information is given in good faith but the accuracy cannot be guaranteed. Accordingly, they will not constitute a representation and contractual terms. We recommend that you review all important details.
The listing was translated automatically. Translation errors are possible.
Type: ZT 24
Control: Mitsubishi TOUCH panel
Year of construction: 2010
Sturdy, cast iron execution of all machine components
High machine weight for maximum rigidity
Preloaded precision linear guideways in the vertical and cross axis (Bosch Rexroth) for highest accuracy
Scraped and turcite coated slideways in the longitudinal axis provide excellent vibration absorption and a high-quality grinding surface pattern.
Hydraulic longitudinal motion with return cooling unit to achieve good surfaces
Electro-mechanical cross and vertical motion
Measuring systems in vertical axis (Heidenhain) for precise positioning
Maintenance-free paper band filtration unit with up to 500 l tank and 2-bar pressure pump for effective cooling and rinsing
Integrated rinsing channel
Magnetic separator for prefiltration of the paper band filtration unit
Infinitely variable grinding spindle motor
Machine lamp
Table-mounted dressing device for high precision and surface finish
Electro-permanent magnetic chuck (SAV) with integrated pole changing unit and traction regulation
Partial encapsulation of the machine with sliding door and a service door
Effective splash guard and excellent accessibility
Preparation of the machine for installation of a coolant mist exhaust unit
Control system features:
Very comfortable and easy to operate Z-control
Automatic vertical infeed with dressing amount compensation
Fully automatic grinding cycle with dressing cycles
Crjdpfxevt Tm So Abwoh
Easy operation via touchscreen
Large and clear colour screen (10.4")
Electronic handwheel, usable in vertical- and cross axis
Specifications
Metric US Standard
X - axis
600 mm
Y - axis
220 mm
Z - axis
540 mm
Table length
400 mm
Table width
250 mm
Load more specifications
Dimensions ( Estimate)
Length
3050 mm
Width
2050 mm
Height
2510 mm
Weight
2900 kg
Please note: The information on this page has been obtained to the best of our knowledge and belief from the manufacturer. The information is given in good faith but the accuracy cannot be guaranteed. Accordingly, they will not constitute a representation and contractual terms. We recommend that you review all important details.
The listing was translated automatically. Translation errors are possible.
