Zimmer & Kreim Genius 700

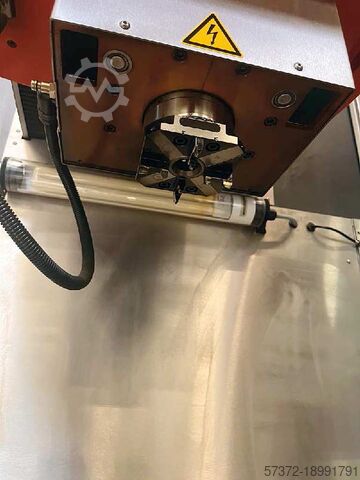

Year of construction: 2019, condition: ready for operation (used), An eroding island consisting of two die-sinking EDM machines and an automation system is available. 1) Zimmer & Kreim ZK Genius 700, year of manufacture: 2015, travel X/Y/Z: 400mm/350mm/350mm, table dimensions X/Y: 575mm/500mm, max. workpiece weight: 700kg, generator output: 96A, path eroding: CIMCO, operating hours: 22056h. 2) Zimmer & Kreim ZK Genius 700, year of manufacture: 2019, travel X/Y/Z: 400mm/350mm/350mm, table dimensions X/Y: 575mm/500mm, max. workpiece weight: 700kg, generator power: 96A, path eroding: CIMCO, operating hours: 8255h. 3) Automation Zimmer & Kreim Chameleon Quad, year of construction: 2015, electrode positions: 176, pallet positions with loading drawer: 9, double rotary gripper for Erowa ITS and single gripper for UPC pallets. Overall system dimensions X/Y: approx. 3000mm/6200mm. Including a Kraft & Bauer fire extinguishing system with suction device. Documentation available. On-site inspection is possible. Bsdewdwztjpfx Afcjcw

Condition: refurbished (used), Year of construction: 2026, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 350 mm, workpiece weight (max.): 700 kg, total height: 2,530 mm, total width: 1,213 mm, total length: 2,326 mm, table width: 500 mm, table length: 575 mm, warranty duration: 12 months, With the genius 700, a new dimension of die-sinking EDM begins for you. High rapid traverse speeds and reduced non-productive times ensure the genius 700 processes your jobs exceptionally quickly. The ratio of table size to travel distance is unique in its class, enabling you to make optimal use of the table surface. Within its category, the machine offers by far the greatest dielectric fluid height above the table. Adjusting the dielectric with the infinitely adjustable tank is quick and simple. The machine features high rigidity thanks to preloaded roller guides. The C-axis moment of inertia is comparatively high at 0.6 kg/m². In addition, it is equipped with a high-precision measuring system. Even demanding EDM processes can be handled on the genius 700 efficiently and with maximum precision. On-the-fly filter changes prevent downtime, and the centralized lubrication unit shortens maintenance times. The genius 700 can be connected from two sides, offering flexible positioning. The height-adjustable control panel is ergonomically designed and allows for seated operation. Travel X – Y: 400 x 350 mm Travel Z: 350 mm Table size (L x W): 575 x 500 mm Distance, table – quill or chuck max./min.: 550/200 mm Dielectric fluid above table: 420 mm Dimensions (W x D x H): 1213 x 2326 x 2530 mm Total weight (without fluids): 3200 kg Workpiece weight: 700 kg Bcsdpfx Aeyh Nfbofcow Electrode weight with rotary: 15 kg Electrode weight without rotary: 50 kg with manual securing Resolution X – Y – Z: 0.001 mm (optionally 0.0001 mm) Resolution C: 0.001° Dielectric tank capacity: 330 liters Generator: IPMtec (integrated) Work current: 52 A total; optionally 100 A total (+ 48 A) Booster: 196 A total (+ 96 A) Extraction capacity: 200 m³/h (55 l/sec) Required cooling output: 2.5 kW Floor load: approx. 2.1 N/mm² Number of support feet: 3 Load per foot: 2 t Foot plate diameter: ø 110 mm Air flow rate: 10 l/min Required air pressure: min. 6 bar T-slots: Number / width / spacing: 4 slots / 10 mm / 3 x 100 mm Paper star filter: 1 piece Flushing unit: 1 pressure connection, 1 suction connection, 1 fine volumetric pressure connection Flushing flow regulator: infinitely adjustable Programming software: PROGmodEDM

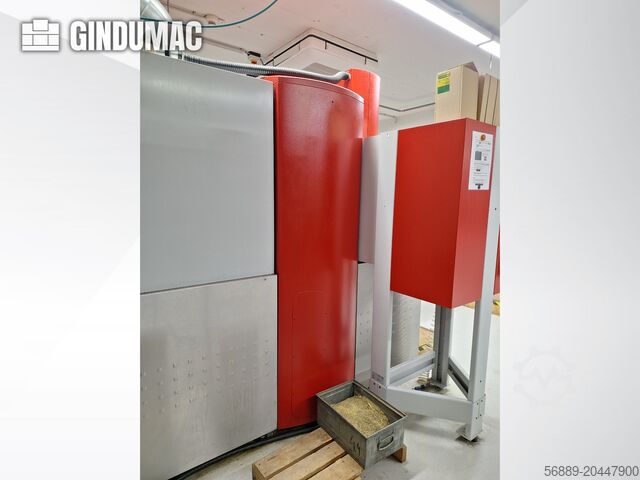

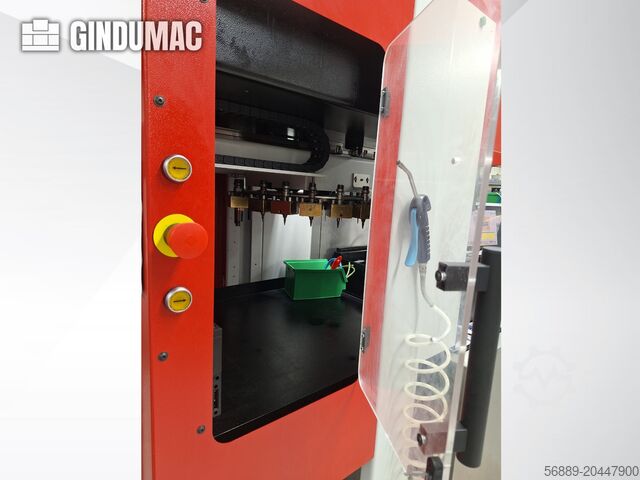

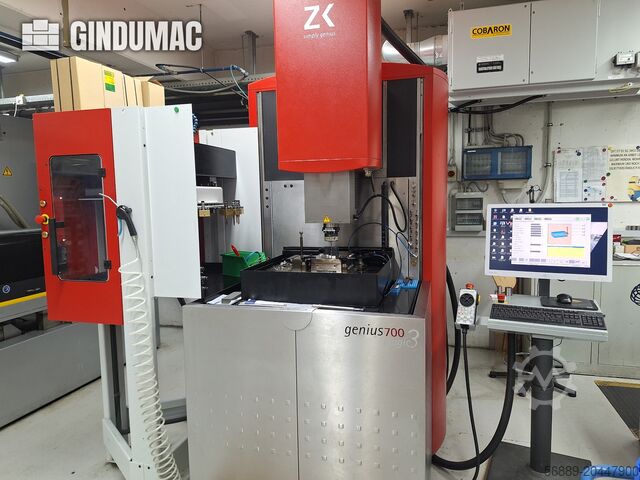

Year of construction: 2009, operating hours: 40,500 h, condition: ready for operation (used), Movement X-Axis Movement 400 Y-Axis Movement 350 Z-Axis Movement 350 Bedpox D Hr Sofx Afcocw This 3-axis Zimmer+Kreim Genius 700 Magic 3 was manufactured in 2009. It features a table with T-slots, dimensions of 575 x 500 mm, and a 24-position electrode changer. The machine can handle a maximum workpiece weight of 700 kg and offers a travel range of 400 x 350 x 350 mm. Consider the opportunity to buy this Zimmer+Kreim Genius 700 Magic 3 die-sinking EDM machine. Contact us for more information about this machine. Application Types EDM

Condition: good (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 350 mm, No reserve price - guaranteed sale at the highest bid! Submitting a bid obliges you to pick up the item on time by March 31, 2025! Bodpfx Ajv Iayzofcjcw TECHNICAL DETAILS X-axis: 400 mm Y-axis: 350 mm Z-axis: 350 mm Tool changer: 24-way electrode changer Year of manufacture of electrode changer: 2017 Cooling unit Manufacturer: RIEDEL Year of manufacture: 2016 Model: WKS 51.2-M5... Area of application: Air conditioning of the CNC die-sinking EDM system
