Cavity Sinking EDM - Machine
ZIMMER & KREIM PEC 850

Name: ZIMMER & KREIM PEC 850
Brand: ZIMMER & KREIM
Availability: InStock

Year of construction

1994

Condition

Used

Location

Monheim am Rhein Germany

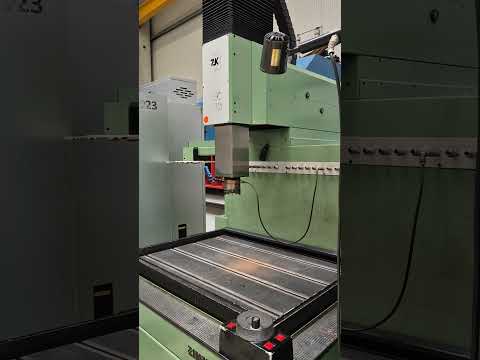

Cavity Sinking EDM - Machine ZIMMER & KREIM PEC 850

Show map

Machine data

Machine type:: Cavity Sinking EDM - Machine

Manufacturer:: ZIMMER & KREIM

Model:: PEC 850

Year of construction:: 1994

Condition:: good (used)

Functionality:: fully functional

Price & Location

Location:: An der Spielbank 4, 40789 Monheim am Rhein, Deutschland

Call

Details about the offer

Listing ID:: A206-27395

Reference number:: 1022-2397

Update:: 27.11.2025

Description

Technical details
table length 840 mm
table width 600 mm
ampere 60-120 A
total power requirement 15-23 kVA
weight of the machine ca. 2,75 t
dimensions of the machine ca. 2760 x 1110 x 1840 m
Additional information
With controlled C-axis and 16-position tool changer.

WORKTABLE
Nlsdexzt Tdopfx Ah Dei
Table size: 840 x 600 mm
Dielectric above table: 360 mm
Maximum workpiece weight: 1000 kg
T-slots: 4 x 10 mm
Distance table to quill without chuck (max / min): 595 / 180 mm

WORKHEAD
X - Y travel: 565 x 400 mm
Z travel: 415 mm
X - Y - Z resolution: 0.001 mm
C-axis resolution: 0.001 deg.
Rapid traverse speed: 800 mm/min
Max. electrode weight without rotation: 100 kg
Max. electrode weight with rotation: 15 kg

DIELECTRIC SUPPLY
Tank volume: 400 liters
Paper candle filters: 4 pieces

GENERATOR
Dimensions (height x width x depth): 1800 x 600 x 920 mm
Weight: 300 kg
Rated current: 60 120 A
Power rating: 15 23 kVA

Dimensions (height x width x depth): 2760 x 1110 x 1840 mm
Weight: 2750 kg

Seller

Last online: Today

Registered since: 2003

28 listings online

Call

Send inquiry

Telephone & Fax

+49 2173 ... show

Fax:
