Zig Zag Separator

Zlomiarze Recycling Technology

Year of construction: 2024, condition: new, WPS Eddy Current Separator, Magnetic Series. Eddy Current separators from the Magnetic Series are mainly used in the waste recycling industry. The use of eddy currents allows for the recovery of non-ferrous (non-magnetic) metals from loose waste such as aluminium, copper, brass etc. The WPS separators are characterized by high separation accuracy due to the original solutions by ZŁOMIARZE, which guarantees high profitability of waste recycling. WPS Separators are used in the recovery of: • non-ferrous metals from the recycling of electronic waste • non-ferrous metals from car recycling • metals from foundry waste • aluminium in glass recycling processes • non-ferrous metals from steel waste • non-ferrous metals from municipal waste To ensure the longevity of the equipment, the ZŁOMIARZE, as one of few companies, has introduced an improvement in the form of the central cooling of the bearings of the magnetic rotor, thanks to which the service life of the machine has been extended even several times. Technical Specification: • Magnetic field source – NdFeB magnets • Smooth adjustment of magnetic rotor speed – 0-3000 rpm • Belt speed adjustment • Belt position control system • Magnetic rotor cleaning cleats • Belt cleaning scraper • Material divider adjustable in two levels • Bearing cooling system (greatly extends bearing life) Kdjdpoiqxtbofx Ahuog • Control panel with safety check For our non-ferrous metal separator we offer additional devices to make you separation process easier: • vibratory feeder • belt conveyors • magnetic drum/belt separators For more information please download our catalog. If you're interested in our products, please contact us!

Year of construction: 2024, condition: new, functionality: fully functional, Description of Use: Overband Magnetic Separator (MAGNETIC series) is applied to loose materials to automatic removal of ferrous impurities in the process of waste recycling. Apart from metal recovery the Separator has a protective function for equipment in further steps of recycling process. They are usually installed on top of transport conveyors. Belt separators are used in many fields: -scrap removal from coal and aggregate -wood and plastic purification -iron particles recovery from cable shredding -iron rejection from WEEE recycling process -municipal waste purification Ksdpfsh D H Rcox Ahusdg Contact us for more information

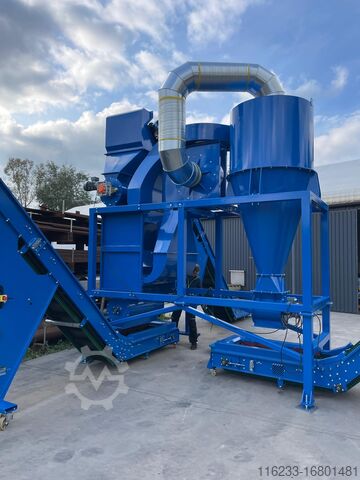

Year of construction: 2022, condition: new, ZLOMIARZE Recycling Technology - LRK Recycling line The Mini Line is a high quality set of devices designed for the recycling process. Shredding and separation are essentials in this business, that’s why Mills from TORNADO series was designed for rapid reaction on feeding materials with being in a chamber for short time. Suitable sieves placement and balanced cutting rotor RPM provide uniform material fraction. Innovated implementation of water system with adjustable pressure in the Wet Separators GOLD RIVER series provides highly accurate separation of difficult materials. ❖LRK - 50 The set consists: • 11kW Grinding Mill – Tornado 400 • Compact Dust collector • Transport Conveyor • Wet Separator – Gold River 300/1250 Technical Specification: • Complete Set Power – 13 kW • Supply – 400 V ; 50 Hz • Performance – 50 kg/h (this is a real value, checked on basic materials). • Dimensions – 3500 × 600 × 1950 mm • Weight – 950 kg ----- ❖LRK - 100 The set consists: • 15kW Grinding Mill – Tornado 500 • Compact Dust collector • Belt Conveyor • Wet Separator – Gold River 500/1250 Technical Specification: • Complete Set Power – 20,2 kW Ksdshix Daopfx Ahujdg • Supply – 400V ; 50Hz • Performance – 100 kg/h (this is a real value, verified on basic materials). • Dimensions – 5000 × 4000 × 2000 mm • Weight – 1300 kg ----- ❖LRK - 200 The set consists: • 15 kW Grinding Mill – Tornado 500 • Dual dust collector • 1st line belt conveyor • 18,5 kW Grinding Mill – Tornado 500 • 2nd line belt conveyor • Wet Separator Gold River 500/2500 Technical Specification: • Complete Set Power – 40kW • Supply – 400V ; 50Hz • Performance – 200 kg/h (this is a real value, checked on basic materials). • Dimensions – 5000 × 4000 × 2000 mm • Weight – 1300 kg ✔Spare parts included. Recyclable resources: ✔ Any kind of Aluminium cables ✔ Automotive cables with adhesive tape ✔ Cords and network cables ✔ Coax cables, Christmas lights ✔ Copper cables lined with gel or silicone ✔ Winding coil of a thickness 15 microns, contaminated with adhesive paper or plastic Contact us for more information!

Condition: new, Year of construction: 2024, ZŁOMIARZE Recycling Technology MCW 52/76 Shredder The MCW series quad shaft shredder is based on many years of experience in the plastics and scrap industry. MCW Shredder is a highly reliable, universal pre-shredder for shredding a wide range of materials such as plastics, materials, rubber, wires, electronic scrap, post-production waste as well as slight magnetic materials. Types of MCW Shredders: MCW-52 Technical Specification: • Motor output – 22 kW • Cutting Chamber – 510 × 760 mm • Performance – approx. 400 kg/h (depending of material type) • Weight – approx. 1400 kg Kodpjhix Hrjfx Ahuodg MCW-76 Technical Specification: • Motor output – 37 kW • Cutting Chamber – 965 × 780 mm • Performance – approx. 800 kg/h (depending of material type) Additional equipment: • Loading belt conveyor • Dust Extraction • Magnetic Plate with Quick Clean System • Magnetic Separator SM-370 • Unloading Belt Conveyor Contact us for more information!
