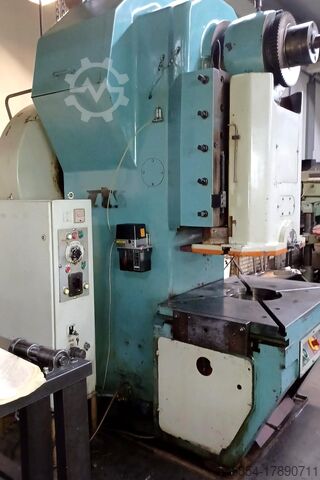

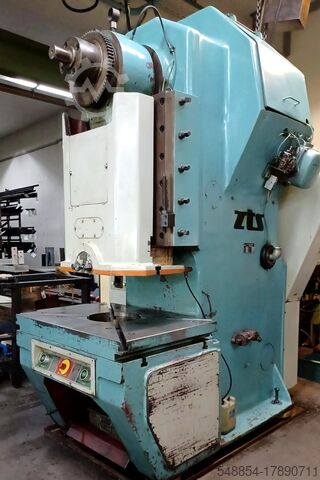

Eccentric press

ZTS Kosice LE 250C

Condition: good (used), Year of construction: 1988, functionality: fully functional, total height: 29,750 mm, table width: 1,120 mm, table length: 800 mm, stroke adjustment: 140 mm, total width: 13,500 mm, total length: 25,800 mm, overall weight: 12,800 kg, pressing force: 250 t, height adjustment type: mechanical, Equipment: documentation/manual, Eccentric press LE 250C. Year prod. 1988(ZTS - SLOVAKIA). Max. pressure 250ton. Stroke 30-140mm. Max. number of strokes per minute 45. Adjustment of the slider 110mm. Maximum distance of the slider from the table 450mm. Clamping area of the slider 800 x 475mm. Mounting area of the table 1120 x 800mm. Motor power 20kW. Overall dimensions (Height x Width x Length) 2975 x 1350 x 2580mm. Weight 12800kg. Ksdpfstq Eqxex Acujdw

Condition: ready for operation (used), Year of construction: 1988, functionality: fully functional, machine/vehicle number: 230958, ram adjustment: 110 mm, table width: 1,120 mm, table length: 805 mm, pressing force: 250 t, stroke length: 140 mm, General condition: Used, good, fully functional Usage information: No dealers, machine ran on average less than 4 hours per day Delivery: the machine can also be dismantled and loaded - the additional costs are approx. € 1,450 TECHNICAL DETAILS Nominal forming force: 2,500 kN Clamping: 360 mm Stroke (changeable within the range): 30 - 140 mm Adjustability of the ram downwards: 110 mm Max. stroke rate: 45 rpm Usable stroke rate: 25 rpm Working path: 2.6 mm Clamping surfaces Clamping surface table: 1,120 x 805 mm Table top thickness: 110 mm Clamping surface ram: 800 x 475 mm Opening in the table top: ø320 mm Clamping opening in the Ram: ø410 x 560/320 mm Through hole in the table: ø65H7 / 105 mm Flywheel and motor Dimensions of the flywheel ring: ø1,300 x 280 mm Flywheel revolutions: 228/min Kodpovb Up Dsfx Acuedw Motor power: 22 kW Electric motor revolutions: 1,450 rpm MACHINE DETAILS Working voltage: 3 x 380 V Mains frequency: 50 Hz Compressed air connection: 0.4 – 0.6 MPa Air consumption per engagement of the clutch: 28 dm³ Machine dimensions (L x W x H): 2,660 x 1,350 x 2,975 mm Machine weight: 12,800 kg
