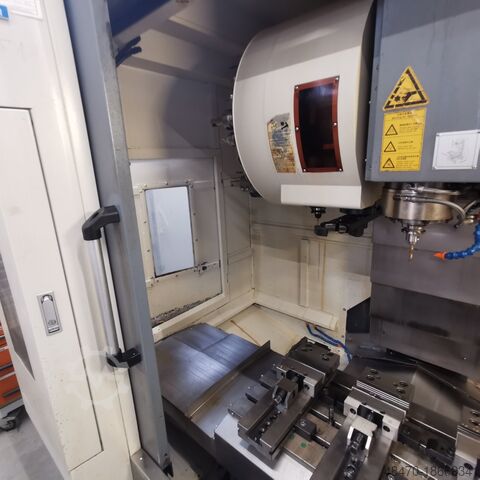

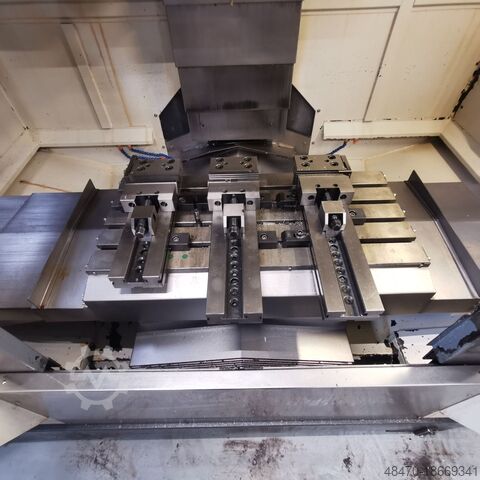

3 axis vertical machining center

AKIRA SEIKI V2.5XP

Condition: used, CNC cylindrical grinding machine STUDER S31 CNC LeanPro with "Pictogramming" Distance between centers: 1000mm Center heigh 175mm Grinding Wheel head rotation (B) 360° (1°) 2 ext Grinding Wheels 1 int Grinding Wheel Ext Grinding wheel 400 mm x 40 mm x 127 mm Codewim U Hspfx Ah Ijpw overhauled spindle > see photos Workhead CM 4 0-1000 RPM CNC Fanuc Programming: Pictogramming Heidenhain linear encoders This machine can be inspected under power in our warehouse in Gussago BS Italy

Condition: used, Year of construction: 2010, 2 Csdpfjqn A Rkox Ah Iepw Number of axles 4 St. tool taper HSK 63 toll turrets 60 weight 9600 kg

Condition: used, TECHNICAL DETAILS - Number of axes : 4 Cpodpfx Ahow Ephbe Iew MILLING SPINDLE - Tool holder type : BT50 - Spindle power : 40 [kW] - Spindle speeds : 12000 [rpm] - Gearbox - Speed ranges : 2 LINEAR AXES - Travels on X/Y/Z axes : 2400/1650/1750 [mm] - Rapid traverses rates (X/Y/Z) : 42 [m/min] - Cutting feed rates (X/Y/Z) : 20 [m/min] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0.001 [°] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 116 - Tool exchange time : 3.8 [sec] PALLET CHANGER - Pallet changing device type : Rotopalette - Pallet size : 1600 x 1250 [mm] - Pallets number : 2 - Maximum weight upon pallet : 5000 [kg] - Distance table center / spindle nose (min./max.) : 100 - 1750 [mm] - Maximum workpiece diameter : 2500 [mm] - Maximum workpiece height : 1850 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 86 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 9.485 x 6.155 [mm] - Machine height : 4.370 [mm] - Machine weight : 50000 [kg] MACHINE HOURS - Number of working hours : 15446 [h] EQUIPMENT - CNC : Fanuc 31i-model B5 Interface : Ethernet / RS232 / USB / PCMCIA - SOFT SCALE II - Electronic handwheel - Rigid tapping - 3 colors status lamp - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle * with paper filtering unit * with cooling unit for coolant * With washing gun * With cabin washing - Chips conveyor - Spindle cooling unit - Tool probe - Workpiece probe : Renishaw RMP60 - Tool breakage detection : SOFT AC - Pallets number : 2 - Milling vice - Tool-holders

Condition: good (used), Year of construction: 2003, functionality: fully functional, workpiece weight (max.): 12,000 kg, feed length Y-axis: 300 mm, feed length Z-axis: 1,080 mm, table diameter: 1,200 mm, feed rate X-axis: 3 m/min, feed rate Y-axis: 500 m/min, feed rate Z-axis: 3 m/min, input current: 195 A, workpiece diameter (max.): 1,600 mm, milling spindle length: 450 mm, table bore: 400 mm, spindle speed (min.): 250 rpm, overall weight: 51,000 kg, power: 115 kW (156.36 HP), Equipment: documentation/manual, Liebherr high-performance gear hobbing machine LC1502 in good condition Controller Liebherr LH90 V4, Bosch Rexroth drives Extensive accessories such as BHG, cooling unit for lubrication and coolant, extractor, cutter arbors, various software packages/limit value extensions, and complete documentation. Cedpfx Ajwqm A Toh Iepw We can also assist with setup and commissioning up to production, depending on effort!

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, rotary table diameter: 1,000 mm, grinding height: 500 mm, table diameter: 1,000 mm, CNC rotary table grinding machine with 1000 mm magnetic chuck, turret carrier with 3 grinding spindles (external, face, and internal grinding spindle). CNC control Sinumerik 840C, Simodrive 611 drives, coolant tank, currently still in operation, now being dismantled. Delivery also possible as overhauled and with new electrics upon agreement. Total weight 20,000 kg. Cpjdpfx Ahewv Sc As Ijw

Condition: good (used), Year of construction: 2003, machine/vehicle number: 129-41, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, number of slots in tool magazine: 48, controller manufacturer: Siemens, table width: 260 mm, controller model: 840D, table height: 540 mm, Equipment: chip conveyor, - Spindle 12,000 1/min Cpodjtyx Npepfx Ah Ijw - 48 tool positions in chain magazine (chain and guides replaced in 2021) - HSK A63 tool holder

Condition: like new (used), Year of construction: 2009, functionality: fully functional, We are selling this grinding machine, which is connected and available for testing. Machine parameters: - Grinding of rotational parts clamped between centers with an accuracy of 0.001 mm - Max. swing diameter: 0–1,450 mm - Max. turning length: 6,000 mm - Max. workpiece weight: 20,000 kg (25,000 kg with steady rests) - Grinding wheel diameter: 915 mm - Wheel width: 100 mm - Non-contact measurement of dimensions, tolerances, and workpiece geometry, including printout of measurement protocol - 100% ultrasonic measurement possible - CNC control with capability for profile grinding (taper, concave and convex, CVC) - Grinding of ceramic and metallic coatings using diamond and ceramic grinding wheels The machine is currently completing an order. Cpsdpsxxrzzsfx Ah Ijw

Condition: used, machine/vehicle number: 109369/109370, Technical data Manufacturer: ZEISS Serial No. 109369/109370 Plate is divided in the middle Measuring plate Length = 6000 mm width = 3000 mm Height = 350 mm The machine can be upgraded with new software according to customer requirements. Cedpjdbi Nlefx Ah Iopw Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer! Please note: Our offer is directed exclusively to professional customers! (Changes and errors in the technical data, information and prices and subject to prior sale)

Condition: used, Year of construction: 2012, machine/vehicle number: MB0001-000031, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 12 m/min, feed length Y-axis: 6 mm, feed rate X-axis: 6 m/min, feed rate Y-axis: 6 m/min, feed rate Z-axis: 6 m/min, controller manufacturer: FANUC, controller model: 32i Model A, workpiece diameter (max.): 2,550 mm, workpiece weight (max.): 7,000 kg, total height: 4,200 mm, total length: 5,540 mm, total width: 5,930 mm, table width: 1,400 mm, table length: 1,600 mm, overall weight: 29,000 kg, spindle speed (max.): 3,000 rpm, distance table center to spindle nose: 1,750 mm, spindle motor power: 26 W, spindle nose: BT50, number of slots in tool magazine: 60, tool length: 600 mm, tool diameter: 250 mm, tool weight: 30 g, B Axis: 1 degree Control: FANUC 32i-Model A Distance from Spindle Nose to Table Top: 0 - 1500mm Distance from Spindle Nose to Table Centre: 550 - 1750mm Machine Dimensions: 5540 x 5930 x 4200mm Machine Weight: 29000kg Maximum Cutting Feedrate: 6m/minute Maximum Tool Diameter: 250mm Maximum Tool Length: 600mm Maximum Tool Weight: 30kg Maximum workpiece weight: 7000kg Rapid Feedrates: WXYZ: 6 x 12 x 12 x 12m/minute Spindle Diameter: 110mm Spindle Motor Power: 26/22kW Spindle Speed: 3000rpm Swing: 2550mm Table Size: 1400 x 1600mm Csdpfx Ahjxm Sxve Ijpw Tool Change Capacity: 60 Station Tool Size: BT50 Traverses XYZ: 2000 x 1500 x 1200mm W Axis: 500mm Coolant, Low Volt Light, Swarf Conveyor, Long Reach Right Angled Milling Head, Tool Length Measurement Probe, Renishaw Work Probe, Fully Enclosed machine guards.

Condition: excellent (used), Year of construction: 2014, operating hours: 39,000 h, functionality: fully functional, machine/vehicle number: 3325, Model S-191FTL-PRM Ø 50 mm Axis travel Milling vertical axis Z = 200 mm Milling transverse axis Y = 200 mm Milling longitudinal axis X = 410 mm Power / Thrust Z-Y 2.5 kW / 550 daN X 4.5 kW / > 550 daN X-Y-Z Traversing speed: 40 m/min Acceleration: 10 m/s² Resolution X-Y-Z: 0.0001 mm Measuring system: glass scale MAIN SPINDLE C (Horizontal turning axis) Power: 15 kW Torque / peak: 22 / 28 Nm Measuring system: direct Resolution: 0.0001° Accuracy: 0.001° Bar capacity: Ø 32 mm (option 50 mm) Turning spindle speed: 72,000°/min Clamping force, turning: 4,900 N at 6 bar B-AXIS SPINDLE INCLINATION (machining) Power: 4.3 kW Torque: 119 / 226 Nm Angular travel: -25° / +115° Measuring system: direct Resolution: 0.0001° Accuracy: 0.001° Rotational speed: 36,000°/min Locking torque: 200 Nm MACHINING SPINDLE Power: 8 kW Torque: S1 = 9.5 Nm / S6 = 11.5 Nm Max speed: 30,000 min-1 (option 40,000 min-1) Tool clamping force: 1,000 N Locking torque: mechanical locking with straight toothing Tool holder taper: HSK-40 (A or E) Through-spindle lubrication: 30 to 100 bar (optional) TOOL CHANGER Number of tools: 30 (option 60) Number of indexed tools: all Tool change time: 1.2 sec. Chip-to-chip time: 4.4 sec. Max tool diameter: Ø 40 mm (80 mm if adjacent station empty) Max tool length: 130 mm Max tool weight: 1.5 kg MISCELLANEOUS Installed power: 25 kVA Operating voltage: 3/N/PE/400V/230V 50 Hz Pneumatics: 6 bar (dry air) CNC CONTROL: Fanuc 31i Screen: 15'' color Keyboard: alphanumeric Control panel features: - 1 key switch for functions - 1 feedrate potentiometer 0–120% - 1 spindle speed potentiometer 50–120% - 1 quick-selection button for machine functions Cpodew T Sl Depfx Ah Ijw - 1 integrated electronic handwheel CNC Options - Data server with ATA Flash, 1GB memory capacity - J947 1 MB RAM memory - S677 TCPC (tool center point control for 5-axis machining) - S808 Al nano HPCC (Al high precision contour control II) - J930 tool tip radius compensation - J893 coordinate system rotation - J819 Helix (cylindrical) interpolation - J953 memory capacity for 1,000 programs - J828 tapping without compensation chuck - S615 insertion of radii and chamfers - J894 workpiece coordinate system - S993 part setup error - R522 inclined machining plane control with guidance Interfaces - Bumotec-specific programming to minimize collisions - Simplified tool management to prevent input errors - Tool management by threshold value, change according to part count or tool life - Automatic tool setting on machine for easier tool handling - Part counter and production management Y-AXIS (horizontal cross milling axis) Travel: 200 mm Power / thrust: 4.8 kW / 240 daN Resolution: 0.0001 mm Max travel, V1: 50 m/min Max travel, V2: 20 m/min Measuring system: glass scale Z-AXIS (horizontal longitudinal milling axis) Travel: 400 mm Resolution: 0.0001 mm Max travel, V1: 50 m/min Max travel, V2: 20 m/min Measuring system: glass scale Includes 8kW cooling unit Emergency braking system integrated Subject to errors and omissions, technical specifications are provided without obligation.
