Coordinate measuring machine

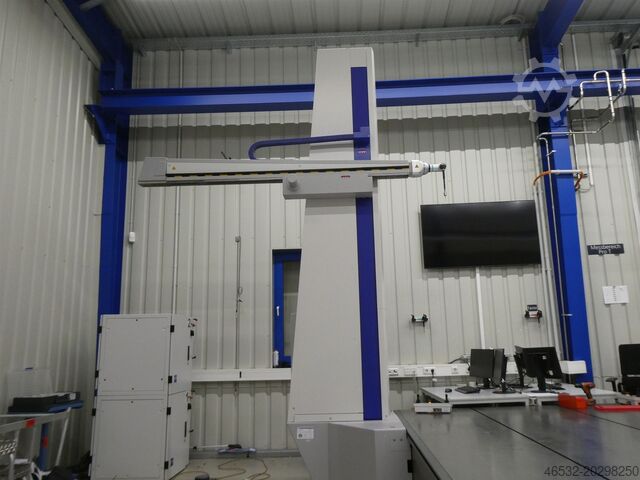

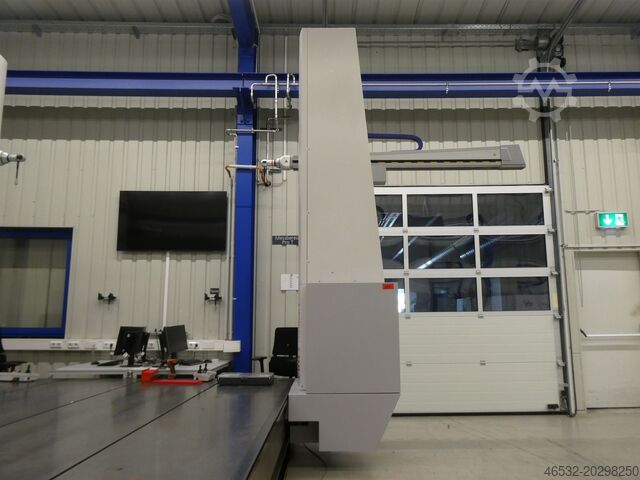

Zeiss Pro

Condition: good (used), Year of construction: 2008, machine/vehicle number: 149616, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 2,500 mm, Equipment: type plate available, Technical Data Manufacturer: Zeiss Model: Pro T Compact S/N: 149616 Year of manufacture: 2008 2 measuring arms Measuring table Width: 3,000 mm Depth: 6,000 mm Travel ranges Y-axis: 1,600 mm Z-axis: 2,500 mm Equipment 2 x control PCs (FTSD0026; FTSD0029) Dkedpfx Ajxnrumoh Sog 4 x 24" monitors, make Eizo 2 x keyboard 2 x mouse Misc. accessories Price: on request! Note: Our offer is directed exclusively at professional customers. (Modifications and errors in the technical data, information and prices as well as prior sale remain reserved!)

Condition: like new (used), Year of construction: 2010, Machine Type: CNC Cylindrical Grinding Machine Manufacturer: Fritz Studer AG Model: S22 Year of Manufacture: 2010 Control System: FANUC 31i-A CNC Machine Base: Granitan® S103 mineral casting Configuration: Fixed straight wheelhead for external (OD) grinding Automation: Automatic loading system with FANUC robot integration Distance Between Centers: 650 mm (25.6”) Center Height: 175 mm (6.9”) Max. Workpiece Weight: 150 kg (330 lbs) Max. Workpiece Length: 700 mm Max. Workpiece Diameter: 449 mm Grinding Wheel Diameter: 610 mm Grinding Wheel Width: 160 mm Djdpfxswl Uvkj Ah Sokg Grinding Wheel Speed: Up to 3,200 rpm Spindle Power: 15 kW (20.5 hp) Wheelhead Type: Fixed straight X-Axis Travel: 310 mm Z-Axis Travel: 850 mm X-Axis Max. Speed: 15,000 mm/min Z-Axis Max. Speed: 30,000 mm/min C-Axis: Full rotation capability for workhead Programming Interface: StuderWIN with FANUC 31i-A Additional Software: StuderGRIND Automation Interfaces: Standard interfaces for loaders and peripherals Other Equipment: Rotary dresser, Heidenhain scales, various clamping fixtures

Condition: used, Year of construction: 2014, Measuring machine Zeiss CMM Pro T2 advance 16/21, year of manufacture 2014 – in very good condition • Standard numerical control panel • Base plate dimensions: Length: 4,000 mm Width: 2,000 mm Height: 640 mm Total system height approx. 4,500 mm • Measuring range: X-axis: 3,200 mm Y-axis: 1,600 mm Z-axis: 2,100 mm Dkodpfx Ajxuq Tueh Sog • Permissible workpiece weight: approx. 5,000 kg Software: Zeiss Caligo BASIS CNC, Zeiss Caligo QS-STAT • Length measurement deviation according to ISO 10360-2: MPE-E = (27 + L/80)μm

Condition: used, Year of construction: 2014, Measuring machine Zeiss CMM Pro T2 advance 16/21, year of manufacture 2014 – in very good condition • Standard numerical control panel • Base plate dimensions: Length: 4,000 mm Width: 2,000 mm Height: 640 mm Total system height approx. 4,500 mm • Measuring range: X-axis: 3,200 mm Dkjdpfx Asw D R Nqjh Sog Y-axis: 1,600 mm Z-axis: 2,100 mm • Permissible workpiece weight: approx. 5,000 kg Software: Zeiss Caligo BASIS CNC, Zeiss Caligo QS-STAT • Length measurement deviation according to ISO 10360-2: MPE-E = (27 + L/80)μm

Condition: excellent (used), Year of construction: 2015, CNC tool grinding machine Walter Helitronic Power FH, with pallet loader (cylindrical), 8-position disc changer, electrostatic fume extractor, fire extinguishing system, oil supply pump, software Walter-Window-Mode and Toolstudio. Djdpfx Ahsx E Dfbo Sjkg Software packages: 001, 002, 003, 016, 017, 026, 090, 091, 098, 099, 032, Helicone, Helidrill, Heliflute, NC-Mode, Power-IMS, Toolstudio_Standard. Equipped with hydraulic interface (preparation for steady rest - Lynette). The grinding spindle (single spindle) is direct-drive and features an oil cooler. The hollow-shaft motor for the A-axis has a speed range of 0–750 rpm. Axes C, X, Z, and A were overhauled in 2022.

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 18355, Area: Measuring plate:7,38m (L) x 3,06m (B) x 0,63m (H) Required area (room):7,80m (L) x 8,15m (B) x 3,70m (H) maschine data PRO T 1: Dkedpjuiyl Ujfx Ah Ssg -Zeiss Pro-T-Select Serial number: 181355 -Range: X7000, Y1600, Z2100 -System: Zeiss CSC with probe or optional Eagle Eye Navigator -Max. speed: axial < 150mm/s, 3D < 260mm/s tactile mode Software: Holos / Caligo (version 3.2.4 - 64Bit) maschine data PRO T 2: -Zeiss Pro-T-compact Serial number: 181354 -Range: X7000, Y1600, Z2100 -Sensor: Zeiss RDS-CAA without Eagle Eye option -Max. speed: axial < 150mm/s, 3D < 260mm/s tactile mode Software: Holos / Caligo (version 3.2.4 - 64Bit)

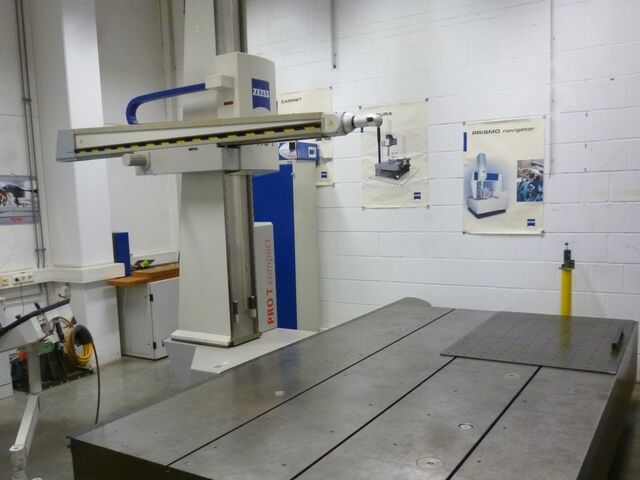

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 133084, measuring range X-axis: 3,000 mm, measuring range Y-axis: 1,600 mm, measuring range Z-axis: 2,100 mm, Carl Zeiss Pro T compact 3D coordinate measuring machine Dkjdpfx Aev Uaa Ieh Ssg TECHNICAL DETAILS Control: C99S / FW: 19:05 Measuring head: RDS CAA No. 165: TP20 Measuring software: CMM-OS 5.4.12 Calibration sphere: 13320 r=15.00000 Measuring range: 3,000 x 1,600 x 2,100 mm CMM expansion coefficient X: 11.9 x 10-6 K-1 CMM expansion coefficient Y: 11.9 x 10-6 K-1 CMM expansion coefficient Z: 10.4 x 10-6 K-1 Holos software version: Holos 2.10 SP23 Rev. 3712 CMM-OS software version: CMM-OS 5.4 MACHINE DETAILS Length: 3,500 mm Width: 2,030 mm Height: 3,600 mm Calibration certificate and maintenance schedule from 2022 available

Condition: used, Year of construction: 2010, longitudinal traverse (z-axis) 6870 mm cross movement. (x-axis) 920 mm centre distance 6500 mm swing diameter over slide rest 900 mm Control Siemens Sinumerik 840D tool taper CAPTO C8 7352 mm max. workpiece weight 9000 kg tools in tool magazin 72 total power requirement 145 kW weight of the machine ca. 47 t dimensions of the machine ca. 11 x 3,2 x 3,5 m Rotary spindle -Spindle diameter - 320 mm -Spindle bore - 245 mm Dedpfxjxzuvte Ah Sjkg Main drive: -Max. spindle speed - 1600 rpm -Max. torque at the spindle - 4472 Nm C-axis servo-controlled main spindle: -Max. speed - 20 rpm -Max. torque at the spindle - 3000 Nm -Holding torque of the disc brake - 6000 Nm Tailstock: -Quill diameter - 180 mm -Quill stroke - 200 mm -Quill force (adjustable) - 5400 to 40000 N Tool holder: -AC drive power - 30 kW -Max. spindle speed - 6000 rpm -Max. torque at the spindle - 315 Nm -Travel perpendicular to the X/Z plane (y-axis) - 500 mm [-200/+300]mm -Milling spindle diameter in the front bearing - 100 mm Equipment/accessories: -with internal coolant supply -chip conveyor -paper belt filter system -boring bar with device -measuring equipment -clamping sleeves -tool holders -spare parts -technical documentation

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, measuring range X-axis: 2,200 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 1,500 mm, TECHNICAL DETAILS Effective measuring range: approx. 2,200 x 1,200 x 1,500 mm Measurement uncertainty: from 25 + 15 x L/1,000 µm Probe: Zeiss RDS with Renishaw TP20 Drive & Control Drive technology: DC motors with friction wheel Dkjdpov Naw Aefx Ah Sjg Control: Zeiss C99 Operation: Handset with controller Machine is sold without a PC and without software

Year of construction: 2004, condition: good (used), Technical data Type: Pro Select Manufacturer: Zeiss Year of manufacture: 2004 Dksdpfxsb Twi No Ah Sog The machine can be equipped with new software and control system according to customer requirements. Measuring range X = 14000 mm Y = 3080 mm Z = 3000 mm Measurement inaccuracy U3 Duplex=(68+L/35)µm <= 150µm Probe Probe: Renishaw MIH Renishaw TP 6 probe Software - Equipment Holos NT 2.4.22 On customer request the machine can be equipped with new software Other Double-ender system Installation and commissioning by our service partners possible. Price: on request We will be happy to provide you with a detailed offer. Note: Our offer is aimed exclusively at professional customers. (Changes and errors in the technical data, specifications and and prices as well as subject to prior sale)

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales Dsdpfouhampsx Ah Sskg - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Bar puller

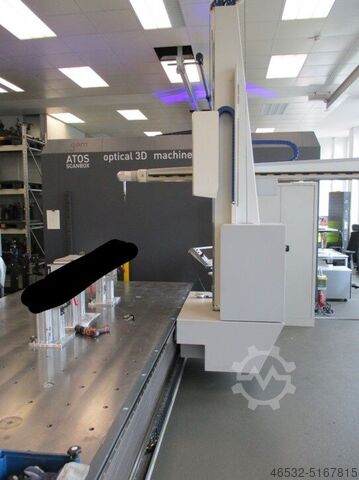

Year of construction: 2008, condition: excellent (used), machine/vehicle number: 149720, Technical data Manufacturer: ZEISS Type: Per T-Premium Year of construction: 2008 Single State CMM Serial number: 149720 Dodpfof S A Aiex Ah Sekg Measuring range X = 3000 mm Y = 1800 mm Z = 2100 mm Equipment Tactile buttons Control C99 Software CMMOS, Caligo Holos 3.0, DMIS The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)
