Circular sawing machines

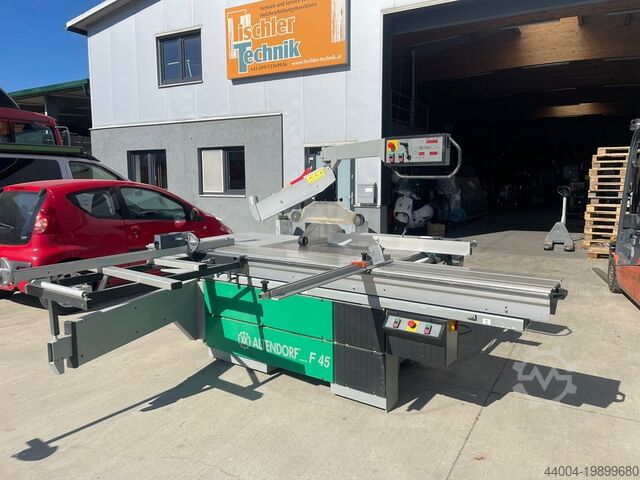

Altendorf F 45 Elmo

Condition: good (used), Year of construction: 2003, Tilting panel saw Altendorf F45 with ELMO IV-plus package, featuring 2-axis scoring unit, 3m table, and Control-Plus control system Sliding table length 3000mm Saw blade tilting from 0 to 45 degrees Speeds: 3000, 4000, 5000, and 6000 rpm, with electronic speed display Drive motor 5.5kW with automatic motor brake Hfjdjxw Ii Sopfx Ad Hef Control panel at eye level with Control-Plus control 4-axis CNC controlled Cutting of chain dimensions and grooves using both rip fence and crosscut fence Cut width correction at rip fence and crosscut fence when the saw blade is tilted 600 cutting programs Calculator function with direct result transfer to the respective axis Tool management Saw blade diameter up to 450mm Max. cutting height 150mm Cutting width electrically adjustable up to 1040mm Tilting angle and height adjustment electrically adjustable Crosscut stop rail electrically adjustable up to approx. 3210mm, with automatic coupling of second stop flap for large cutting sizes Rip fence foldable Extraction nozzles 120 + 80mm Sliding carriage can be locked Additional angle stop rail 2 used saw blades and a scorer included 2 riving knives 2-axis scoring unit, can be adjusted electrically while the machine is running 2 blade guards 3 emergency stop switches Clipboard at the control panel CE marking Machine shows signs of use. No cuts in the sliding table. Original paint (special color), touched up in parts. Machine has 18,985 operating hours. Comes from a furniture factory and was clearly regularly maintained and well cared for. Condition as shown in the original photos. A video of the machine in operation can be provided upon request. Dimensions approx. 3150 x 3750 x 1900mm (LxWxH). Weight approx. 1400kg. The machine can be demonstrated at our facility by appointment. We only offer machines that are ready for demonstration in our warehouse—see “more offers from this seller.”

Condition: used, Year of construction: 1996, Sliding carriage length: 3200 mm Cutting width at rip fence: 1300 mm Cutting width at crosscut fence: 3200 mm Cutting depth: 145 mm Scoring unit: no Saw blade height adjustment: electric Saw blade tilt adjustment: electric Rip fence adjustment: electric Crosscut fence adjustment: manual Saw blade angle display: digital readout Cutting height display: - Rip fence display: digital readout Crosscut rule display: scale Saw blade diameter: 450 mm Speeds: 4 Hsdpfx Adjyq Rz Ss Heff Motor power: 5.5 kW Extraction connection: 80 and 120 mm Machine length: 4000 mm Machine width: 2200 mm Weight: 1200 kg

Condition: excellent (used), Year of construction: 1998, machine/vehicle number: 98-11-85, functionality: fully functional, power: 5.5 kW (7.48 HP), input voltage: 400 V, input current: 13 A, input frequency: 50 Hz, type of input current: AC, cutting height (max.): 100 mm, cutting width (max.): 1,300 mm, saw blade diameter: 350 mm, tilt adjustment saw blade: 46 °, height adjustment type: electric, saw blade bore: 30 mm, rotational speed (max.): 5,500 rpm, rotational speed (min.): 3,500 rpm, total length: 3,200 mm, total width: 1,800 mm, total height: 1,850 mm, overall weight: 1,150 kg, table height: 920 mm, Equipment: CE marking, documentation/manual, scorer, - Year of manufacture: 1998 - 2 servo scoring axes with Rapido - Sliding carriage: 3,000 mm - Main motor: 5.5 kW - Maximum saw blade height: 100 mm - Servo parallel fence: 1300 mm - Electronic height adjustment - Electrically tiltable up to 45 degrees Hfodpfsyt Saujx Ad Hef - CE-certified machine - Test run possible - Delivery possible - Company sale – with invoice

Condition: excellent (used), Altendorf F45 elmo panel saw 280 cm sliding table, cuts full-size panels Duplex mitre guide included Blade tilt and height electrically adjustable Right-hand fence motorized, adjustable up to 1340 mm 2-axis scorer, electrically adjustable 5.5 kW motor 4 cutting speeds adjustable via belt Hfedpjyq E Iyefx Ad Hjf Max. blade diameter 350 mm Used machine in very good condition

Condition: excellent (used), Sawblade tiltable 45 ° Length of the rolling table 3.200 mm cutting width 1.250 mm Motor output 5,5 kW Saw blade diameter 350 mm Scoring unit 0,75 kW Hjdpeyq Ab Dofx Ad Heff Altendorf type F45 Elmo sliding table saw for precise rip, cross and mitre cuts in solid wood, panel materials and coated materials. The machine enables precise and repeatable cuts thanks to the smooth-running sliding carriage, motorized adjustment (Elmo), scoring unit and stable cast construction. Ideal for joineries, furniture construction and interior fittings.

Condition: used, Year of construction: 2023, machine/vehicle number: Werksüberarbeitungsnummer: WÜA23051204239033, functionality: fully functional, power: 5 kW (6.80 HP), cutting width at rip fence: 1,300 mm, main saw diameter: 550 mm, section length (max.): 3,200 mm, table length: 840 mm, F45 Elmo Drive Hodpfx Asymdh Ded Heff GM010.0407 Machine height: 910 mm Eye-level control panel Double-sided tilting Max. blade diameter: 550 mm Motor: 5.0 kW (6.8 HP) Vario 2-axis scoring unit with double-sided tilt LED lighting Table extension: 840 mm Double roller carriage: 3200 mm Mitre/fence stop DIGIT LD CNC parallel fence: 1300 mm Front support roller DUPLEX 1350 mm (2019)
