Milling Machine

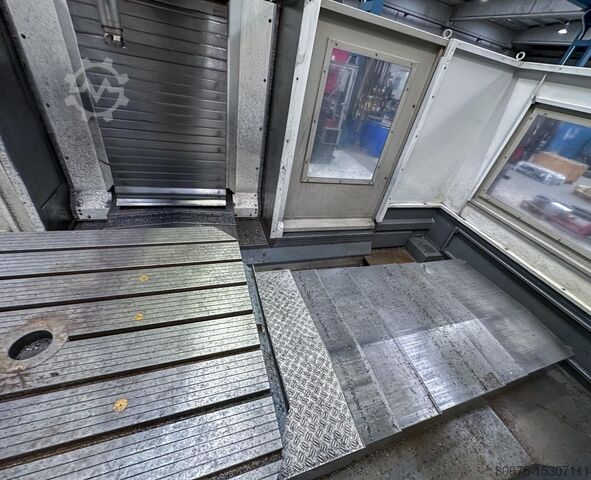

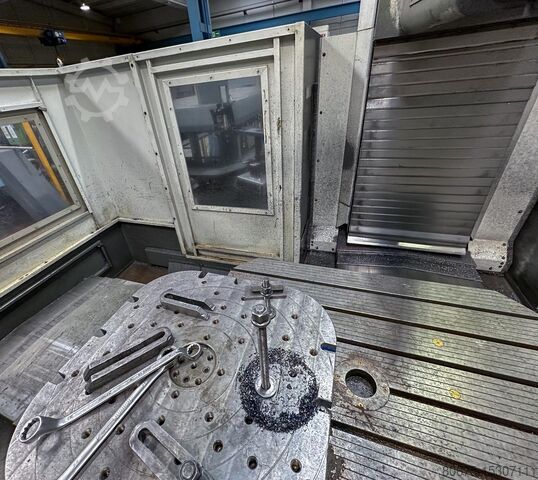

ANAYAK PERFORMER 2000 MG

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,100 mm, Rotary table 1,250 x 1,400 mm (interference circle 1,700 mm) Heidenhain 530 Diagonal milling head with 1° x 1° indexing Speed up to 5,000 rpm Tool holder SK50 Tool changer with 40 positions Internal coolant supply with 19 bar Chip conveyor in longitudinal direction Nwsdpjx Iuccofx Afcec

Condition: used, Year of construction: 2007, x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm Control Sinumerik 840 D Siemens distance between columns max. 3.000 mm passage max. 1.950 mm distance spindle center to table max. 1.800 mm distance spindle nose and table 1.350 / 1.500 mm type P 8005020/00-4 turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 20 kW max. Torque 48 Nm tool taper HSK-A63 DIN 69063 Spindle Extension 450 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° type P 8002320/00-4 turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 40 kW max. Torque 1.100 Nm tool taper HSK-A100 DIN 69063 Spindle Extension 300 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° table surface area 4.000 x 2.200 (2x) mm max. table load 12 / 20 t height over floor 700 mm number of T-slots 11 + 19 T-slot - width 28H7 mm T-slot - distance 200 mm number of toolpositions 327 pos. number of toolpositions HSK A63: 156 pos. number of toolpositions HSK A100: 171 pos. Nwodpfx Ajvy Ihdofcsc max. tool diameter HSK A63: 52 mm max. tool length HSK A63: 250 / 500 mm max. tool weight HSK A63: 5,0 kg max. tool diameter HSK A100: 315 mm max. tool length HSK A100: 500 / 800 mm max. tool weight HSK A100: 40,0 kg feed speeds X: max. 30.000 mm/min feed speeds Y/Z: max. 40.000 mm/min feed speeds B: 3.600 °/min feed speeds C: 2.160 °/min Accelaration X: max. 1,5 m/s² Accelaration Y/Z: max. 3,2 m/s² x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm b-axis +110° / -10 ° c-axis +/- 200 ° total power requirement 150 kVA dimensions of the machine ca. 25,0 x 12,0 x 7,0 m 5-Axis Gantry-Big-Machining-Center DROOP + REIN - TFS 22 40 DT D40 P - two Milling-Heads - ca. 4.000 Power On Hours - X-Achse 10.000mm (coupled) / 2x 5.000mm (single-table) - 3 axes simultaneously (X, Y, Z) - 2 positioning axes (B, C) - tools upon request

Condition: used, Year of construction: 1990, Technical details: tube diameter: 42 mm wall strength: 25 mm round bar steel: max. Ø 20 mm square material: Rohr 25 x 25 mm Nwsdju Ibvuopfx Afcjc bending radius max.: innen max: Ø 20 und außen max: Ø 170 mm bending speed: keine Angaben °/s tube pipe draw up length: 3000 mm control: Software RC 7000 weight of the machine ca.: 2,8 t dimensions electric cabinet: 800 x 700 x 2000 mm dimension machine xH: 5,1 x 0,7 x 2,0 m Application: Machining of deformable tubes, rectangular tubes and round bars and square tubes. Description of the software RC7000, programming manual rectangular tube 42 x 20 x 2,5mm bending direction to the left Operation via control panel with monitor Accessories: -div. bending tools for tube Ø 25mm -12 div. collets -div. auxiliary and clamping devices *

Condition: used, Year of construction: 2001, Technical details: tube diameter: 74 mm wall strength: 5 mm tube diameter min.: 10 mm tube diameter max.: 74 mm round material: Stahl max: 40 mm control: Trumpf-Rohrtechnik IsoBend 2.0 bending radius max.: max: 300 / min: 65 mm bending angle max.: max: 195 / min: 0,1 ° bending speed: (°/s): 90 / (°/s²): 190 °/s tube pipe draw up length: 3000 mm work pressure of hydraulic: Betriebsdruck max: 300 bar total power requirement: 43 kVA weight of the machine ca.: 8,5 t dimension machine xH: 6,5 x 1,6 x 1,6 m dimension control panel: 0,8 x 0,6 x 1,4 m It is a multi radius bending machine with bending head and swivel arm. (Cold bending machine) Possible applications: only for processing pipes, round steels and wires made of steel, stainless steel and non-ferrous metals. Nsdpfx Afsu Ibvhecowc Due to the cross slide of the bending head, the following advantages can be listed: -free programmable X and Y axes -level change cross slide: tical travel = 300mm (vert. position freely programmable) and max. horizontal movement 350mm -Bending forms of different sizes within a stack of bending forms can be approached as required. The bending direction is to the right. Control software Trumpf-Rohrtechnik IsoBend 2.0 Hydraulic unit with high-pressure multi-flow pump Mandrel retraction unit Slide rail (speed max. 362mm/sec. and acceleration max. 1100 mm/sec.) i.D. *

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 for gear cutting of cylindrical and worm gears as well as all other regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): Nwodpfx Afowzyp Iococ --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm --> Min. internal diameter at 0° bevel angle: 800 mm+) --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Condition: used, Year of construction: 2001, Technical details: x-travel: 2500 mm y-travel: 1000 mm z-travel: 750 mm table surface area: 3220 x 1000 mm Workpiece weight approx.: 3000 kg spindle taper ISO: 50 milling spindle turning speeds: 20 - 5000 U/min feed speeds: 1- 30000 mm/min rapid traverse: 30 m/min total power requirement: 40 kW dimensions of the machine ca.: 6,9 x 4,1 x 3,7 m weight of the machine ca.: 21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders Nodpfx Afovptmwocewc *

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 6,800 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, 5-axis gantry machining center CYPORT CP 6830 Travels X/Y/Z: 6,800 / 3,000 / 1,200 mm Gantry passage Y/Z: 3,276 / 1,405 mm Nodpfxoigrikj Afcswc Rapid Traverse X/Y/Z 30/30/30m/min 2-axis-NC-swivel head M-Series of German manufacturer Cytec: Swivel range A-axis : +/-110° Swivel range C-axis +/- 360° Powerful milling spindle of German manufacturer Cytec: Tool taper: HSK-A100 Speed: 8,000 rpm Power: 50/64 kW (100%/40% DC) Torque: 240/300 Nm (100%/40% DC) Control: HEIDENHAIN TNC 530 (Heidenhain TNC 640 / 7 possible) 5-axis path control DXF-converter CAD-Viewer KinematicsOPT Energy efficiency certificate Remote Service Tool magazine: Number of pockets: 39 pcs. HSK-A63 max. tool diameter: 125/175 mm max. tool length: 300 mm max. tool weight: 15 kg Coolant system Manufacturer: KNOLL Tank volume: 1,600 L external coolant supply: 20 bar internal coolant supply: 50 bar Paper band filter, Spray gun Chip conveyor Coolant-airblast-changeover Work piece measuring system: Touch probe BLUM TC 60 - radio controlled Working area coverage Safety light sensors Documentation CE-certification Made in Germany

Condition: good (used), Year of construction: 2000, machine/vehicle number: 7853, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 2,000 mm, table length: 6,000 mm, table width: 2,000 mm, table load: 17,000 kg, Travelling column milling machine | FPT Sirio-M50 Nwedpfjxzzlhex Afcjc - Heidenhain control system - 60-position automatic tool changer - Coolant treatment and filtration unit - Chip conveyor - Cooling unit, manufacturer Deerosdassi (Italy) - Electrical cabinet - Full machine enclosure (protective housing) An inspection is possible at any time by appointment.

Condition: excellent (used), Year of construction: 2014, operating hours: 11,200 h, functionality: fully functional, spindle motor power: 28 W, spindle speed (max.): 4,000 rpm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 25 m/min, rapid traverse Z-axis: 25 m/min, type of input current: three-phase, torque: 479 Nm, workpiece weight (max.): 5,700 kg, total height: 3,155 mm, total length: 6,760 mm, total width: 4,060 mm, overall weight: 15,500 kg, tool length: 250 mm, Equipment: documentation/manual, Soraluce TAA25 milling machine from 2014 with HEIDENHAIN TNC530 CNC. In 2024: hydraulic unit replaced and complete retrofit of head and spindle. Travels X/Y/Z [mm]: 2,500 x 1,000 x 1,000. Table [mm]: 2,700 x 850. Head indexing [°]: 2.5 x 2.5. Spindle speed [rpm]: 4,000. Power and torque [kW - Nm] S1: 28 - 479. Tool magazine: 20 positions – ISO 50. Nodoxwna Repfx Afcswc

Condition: ready for operation (used), Year of construction: 2009, turning diameter over cross slide: 925 mm, turning length: 2,800 mm, turning diameter: 1,200 mm, spindle bore: 132 mm, spindle speed (max.): 2,000 rpm, CNC Siemens 840D 48-tool changer, Capto C8 tools chip conveyor Forkardt 400MM chuck, 2 hydraulic steady rests SMW Autoblok capacity 2800x1250MM, spindle bore 132MM Nwsdpfxewzyn Re Afcec weight 23,500 kg
