Screening machine

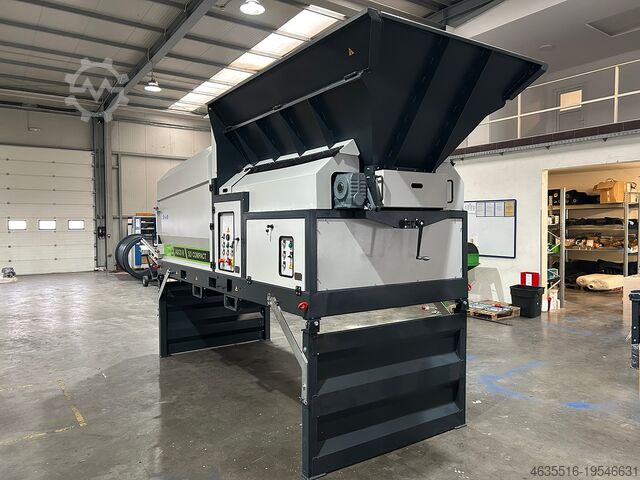

ASCO SD Compact With The Bunker

The ASCO SD Compact with the Bunker is a robust, foldable semi-mobile screening machine designed to deliver impressive throughput and continuous material feeding for reliable performance in the recycling industry and material processing applications.

The integrated Bunker provides a wider opening for material input and ensures smoother transportation. Its modular design combines variable drum control, adjustable rotation speed, interchangeable screening technology, vibration support, a cleaning brush, and a modular baffle system for efficient, precise screening of up to three fractions within one drum segment.

The optional bunker expansion boosts input capacity by up to 50%, while the adjustable screen inclination and variable support plate make setup adaptable to any location. Built for a long service life, the ASCO SD Compact with the Bunker is a flexible, powerful solution for coarse materials like soil, gravel, wood chips, chip bundles, and various waste, meeting diverse demands with innovative technology and high flexibility.

Technical details:
- Drum length: 2.1 m
- Usable drum length: 1.7 m
- Outer drum diameter: 1.3 m
- Usable screening area: 7 m²
- System capacity: 20 – 60 t/h
- Mesh size: Ø6 – Ø100 mm
- Hopper opening: 2.47 m x 1.57 m
- Speed (adjustable): 5 – 20 rpm
- Drive power: 400V – SD Compact 5.5 kW, with bunker 2.2 kW – Required current 14 A (optional SD Compact 7.5 kW, with bunker 2.2 kW – Required current 18 A)
- Filling height: 1.81 m or 2.91 m (with support)
- Weight: 2,250 kg
- Length: 4.82 m
- Width: 1.71 m
- Height: 1.81 m or 2.91 m (with support)

Highlights:
Hedpfx Afswyuuiepefn
- Bunker with a conveyor belt
- Faster transport of the material
- Drum rotation in both directions
- Different drum variants
- Cleaning brush
- Easy drum replacement
- Hourcounter
