Creasing and perforating machine

BACCIOTTINI GROUP SRL D2H HIGH SPEED

NEW machine, end-of-series

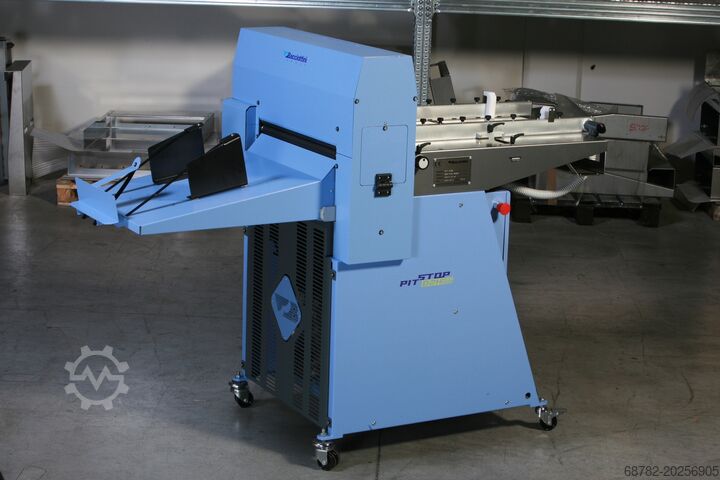

Pit Stop D2H HIGH SPEED double-head creasing and perforating machine, equipped with 2 standard creasing kits (for Head A and Head B) and mobile wheels.

The second head, unlike the first, operates from bottom to top. All creasing and perforating tools can be installed on this second head. This allows creasing and perforating to be performed in a single pass; or, by fitting two creasing tools, it is possible to perform creases from both the top and the bottom in one pass, ensuring the correct crease orientation for zig-zag folding.
Fsdpfsxmhflox Afpegh

High-performance creasing machine with a maximum output of up to 14,000 sheets per hour. Easy-to-use controls allow for up to 100 creases or perforations per sheet and a memory capacity of up to 200 jobs.

The machine can crease, perforate, and punch, making it ideal for WIRE-O binding and calendar production.

This end-of-series machine can be equipped with the following optional tools:
- Digital creasing kit (for both Head A and Head B)
- Perforation kit 2/1-3/1-4/1 (for both Head A and Head B)
- Micro-perforation kit (for both Head A and Head B)
- 100 cm extension
- Punching kit in various sizes

Technical data:
Min./max. sheet size: 8×10 cm / 50×70 cm (with optional extension 50×100 cm)
Paper weight: 80 to 600 g/m²
Programming: 200 programs (100 operations per program)
Minimum crease distance: 0.1 mm
Production speed in A4: 14,000 sheets/hour (with 1 crease)
Power supply: 400 Volt three-phase + neutral, 50 Hz
