Bandsaw - Horizontal

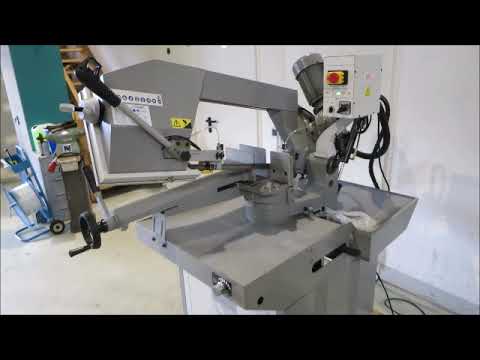

BERG & SCHMID GBS 240 AutoCut

Condition: new, cutting diameter 240 mm Gtedpjd Iip Sofx Aa Iet dimensions of saw-band 2730 x 27 x 0,9 mm table height 920 mm cutting speed 35 + 70 m/min 240 mm stroke back stop 230 mm cross-slide 270x230 210 Impact energy 200 Air consume per blow 200x210 130 mm 130 mm 130x160 mm total power requirement 1,2 kW weight of the machine ca. 0,26 t dimensions of the machine ca. 0,9 x 1,6 x 1,74 m • miter left 60° • Quick-release vise with quick-release device a. • Quick release lever for easy handling • Frame and gear made from one piece, very quiet cut and very low vibration • Electrical monitoring of band tension and band breakage, saw band cover. • Carbide saw band guide • Large machine bed • Machine base (disassembled) with automatic cooling The AutoCut system consists of: Hydraulic cylinder, feed control, spring assembly, limit switch Automatic saw frame lowering via the hydraulic Cylinder, continuously adjustable feed, with limit switch at the end of the cut. Rapid lowering of the saw frame from the rest position to the workpiece, then toggle to normal saw feed (e.g. for scribing). Manual operation: The hydraulic cylinder works as a brake cylinder (e.g. for notching). Through the brake cylinder the saw can be positioned in any position during the return stroke.

Condition: new, Year of construction: 2024, cutting range round steel at 45°: 108 mm, cutting range round steel at 90°: 108 mm, cutting height (max.): 150 mm, BERG+SCHMID GBS 218 Eco AutoCut double mitre bandsaw Speed: 25-80 m/min - Mitre left 60° - For cutting steel, stainless steel and aluminum profiles - Quick-clamping vice with quick-clamping device a. - Built-in blade tension control b. - Saw blade guide made of carbide c. - Electric automatic cooling system - Machine base (supplied disassembled) The AutoCut system consists of: - Hydraulic cylinder, feed control, spring assembly, limit switch and enables three work sequences: 1. automatic lowering of the saw frame via hydraulic cylinder with infinitely adjustable feed control valve and limit switch at the end of the cut Gtedpjt I R Edsfx Aa Ist 2. high-speed lowering of the saw frame from the rest position up to the workpiece, then switching to normal saw feed 3. manual operation - hydraulic cylinder works as a brake cylinder Saw blade dimensions: 2455x27x0.9mm Further accessories such as saw bands, roller conveyors, measuring stops, minimum quantity lubrication etc. available on request! Delivery time: ex stock Waiblingen Beinstein

Condition: new, cutting diameter 240 mm saw band length 2730 mm cutting width 270 mm cutting speed 37 + 74 m/min dimensions of saw-band 2730 x 27 x 0,90 mm 240 mm 230 mm 270 x 230 mm 210 mm 200 mm 200 x 210 mm 130 mm 130 mm 130 x 160 mm total power requirement 1,2 kW weight of the machine ca. 0,3 t dimensions of the machine ca. 1,6 x 1 x 1,7 m high-quality processed metal band saw with 2 band speeds, miter up to 60°, automatic cooling and AutoCut feed system - for sawing solid material and profiles execution * High-quality processed and equipped metal band saw for saw cuts best quality * For sawing solid material and profiles made of steel, stainless steel and aluminium * Miter cuts up to 60 degrees left * Saw band speed adjustable in 2 stages Gedshhzl Hepfx Aa Istt * Frame and gearbox made from one piece, very quiet and low-vibration cut * Easy, clear miter adjustment with scale * Quick release vice with quick release lever for easy handling * Length stop * Carbide saw band guide * Electrical monitoring of band tension, band breakage and saw band cover. The saw only runs if there is no fault in the monitoring system. * Ergonomic industrial handle * Electric automatic coolant control * AutoCut system with hydraulic cylinder, feed control, spring pack and limit switch * Large machine bed * Machine base in sheet steel construction with front door AutoCut system * Automatic saw frame lowering via the hydraulic cylinder continuously adjustable feed and limit switch at the end of the cut. * High-speed lowering of the saw frame from the rest position to the workpiece, then switch to normal saw feed (e.g. for scribing). * Manual operation: The hydraulic cylinder works as a brake cylinder (e.g. for release). Due to the brake cylinder, the saw can be moved in any Position to be positioned.

Condition: new, Cutting range at 90 degrees: round 220 mm Cutting range at 90 degrees: square 210x210 mm Cutting range at 90 degrees: flat 230x185 mm Cutting range at 45 degrees left: around 150 mm Cutting range at 45 degrees left: square 150x150 mm Gtodshcw S Sjpfx Aa Iot Cutting area at 45 degrees left: flat 150x210 mm Cutting range at 60 degrees left: around 90 mm Cutting area at 60 degrees left: square 90x90 mm Cutting range at 60 degrees left: flat 90x100 mm Saw blade dimensions 2450x27x0,9 mm cutting speed 35/70 m/min working height 915 mm vice opening 265 mm total power requirement 1,2 kW Machine weight approx. 240 kg Space requirement approx. 1550x870x1740 mm The Zimmer Z241/R is a self lowering saw for mitre cuts from 0° - 60° left. After the cut the machine stops by a safety limit switch. The lowering is infinitely variable via a hydraulic system. The manual lifting of the saw arm after the cut can be done at any position. The saw arm remains in the desired position. Standard equipment: - with ICS lowering - Saw arm can be swivelled up to 60° to the right - Quick-action vice - Band guide made of carbide - hydraulic saw blade tensioning, tensioning pressure indicator, blade breakage switch-off - incl. coolant device - incl. machine base cabinet - hydraulic cylinder - emulsion pump - eccentric clamp - saw band - 400 V plug 16 A

Condition: new, capacity 90 degrees: round 255 mm Gtsdpfx Aeurc S Rja Ist capacity 90 degrees: square 240 mm 300 x 180 saw band length 2.765 x 27 x 0,9 mm mm table height 950 mm band speed 35 + 70 m/min total power requirement 1,5/1,8 kW weight of the machine ca. 0,42 t dimensions of the machine ca. 1,23 x 1,7 x 1,75 m Double miter metal band saw, GBS 250 Super AutoCut (20413) - Miter cuts up to 60° left and 45° right - Ball bearing rotary table Quick clamping device Solid, large material support Automatic cooling

Condition: good (used), 4 x eccentric press Gtjdsq Rdr Tjpfx Aa Ist Ebu / Weingarten consisting of the following types: 1 x Ebu 15 1 x Ebu 25 2 x Ebu 35 1 x Weingarten A 40 The machines can be inspected on site.

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm capacity 45 degrees: flat 220 x 200 mm capacity 45 degrees: round 230 mm capacity 45 degrees: square 200 x 200 mm capacity 60 degrees: flat 140 x 100 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: round 150 mm vice 285 mm turning speed range: 36/72 m/min dimensions of saw-band 2950x27x0,9 mm total power requirement 1,5 / 1,8 kW weight of the machine ca. 460 kg dimensions of the machine ca. 1150 x 1970 mm Equipment: - robust electro-hydraulic semi-automatic band saw machine (INDUSTRY) - with miter cuts from 45° right to 60° left * Miter adjustment via large turntable - MEP microprocessor control EVO to control all functions * front right, rotatable - optional manual or automatic lowering of the saw bow * stepless adjustment of the saw bow lowering - saw band guide made of hard metal plates Gtodjxaatbepfx Aa Ist - hydraulic saw band tension - including digital value display - 2x saw band speeds - 1x BI-metal saw band - coolant device - 1x angle stop - chip removal brush - machine base frame with forklift pockets - operating instructions in German Functioning of semi-automatic operation: - electro-hydraulic clamping of the vice - electro-hydraulic lowering of the saw bow - electro-hydraulic raising of the saw bow - electro-hydraulic opening of the vice
