Milling machine

Bernardo UWF 110 Servo -1000

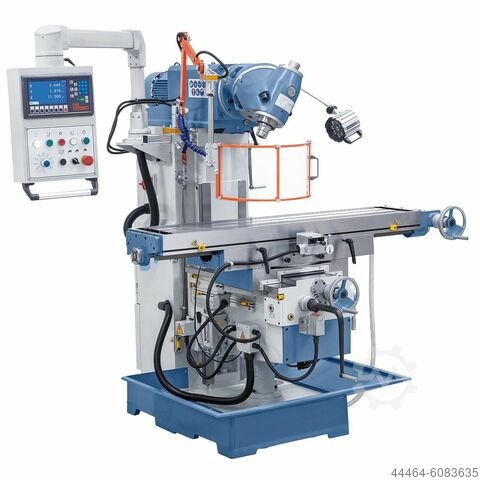

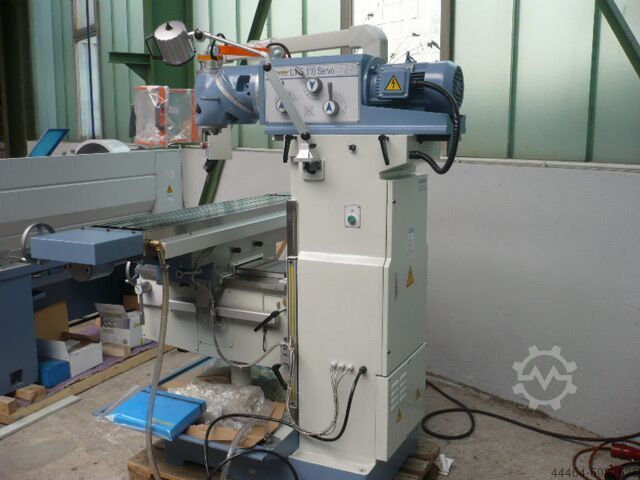

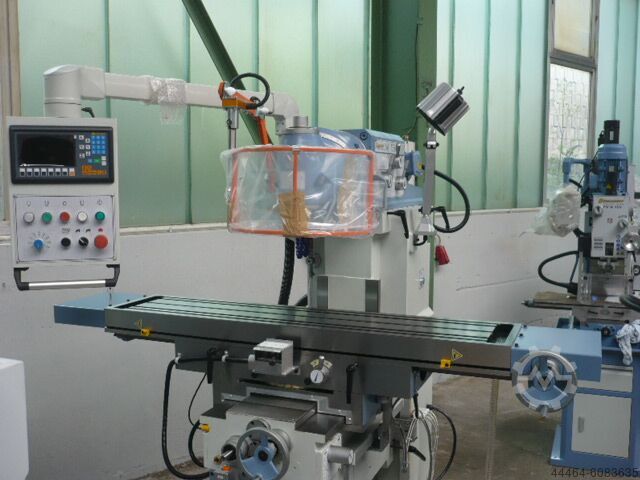

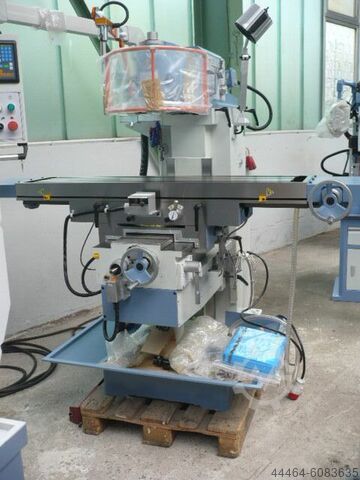

Bernardo Universal Milling Machine UWF 110 Servo -1000
Technical Specifications

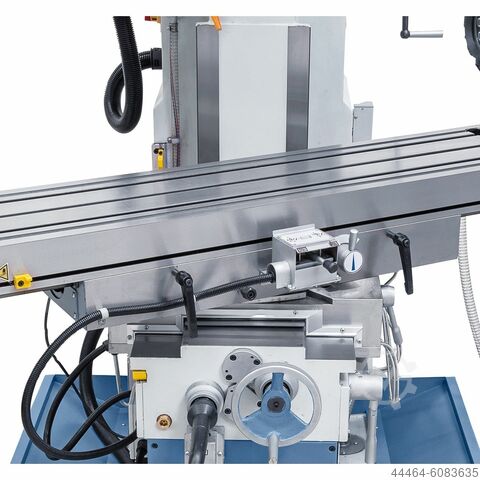

Table size 1370 x 300 mm

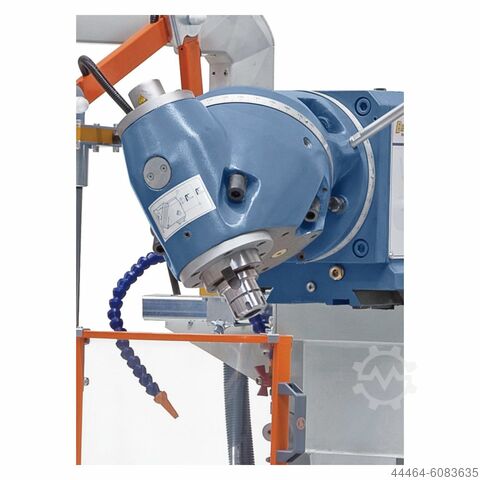

Spindle mount ISO 40 mm
Spindle speed (11) 45 - 1660 rpm
Travel in longitudinal direction (x) 1000 mm
Travel in transverse direction (y) 360 mm
Travel in vertical direction (z) 400 mm
Distance spindle / table 60 - 460 mm
Overhang 95 - 575 mm
Table swiveling -45° to +45°
Max. workpiece weight 250 kg
Feed range longitudinal / transverse (8) 30 - 830 mm/min
Feed range vertical (8) 23 - 625 mm/min
Rapid traverse x, y and z axis 1000 / 1000 / 750 mm/min
T-slots (number / width / spacing) 3 / 14 mm / 80 mm
Main motor 3.0 kW
Servo motor (torque / power) 10 Nm / 1.5 kW
Coolant pump output 60 W
Coolant pump flow rate 12 l/min
Machine dimensions (W x D x H) 1740 x 1860 x 1900 mm
Weight approx. 1505 kg
Scope of delivery
• 3-axis digital display ES-12 H with LCD display
• Draw-in spindle M16
• LED machine lamp
• Feed for x, y and z axis
• Coolant system
• Support bearing
Podpfx Aog Hzbxjflogp
• Long milling arbor ISO 40 / 27 mm
• Combination milling arbor ISO 40 / 27 mm
• Coolant tray

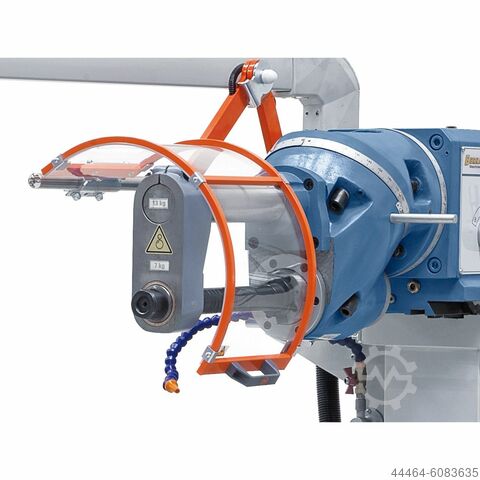

• Adjustable safety device
• Central lubrication for x, y and z axis
• Operating tool
