Eccentric Press - Single Column

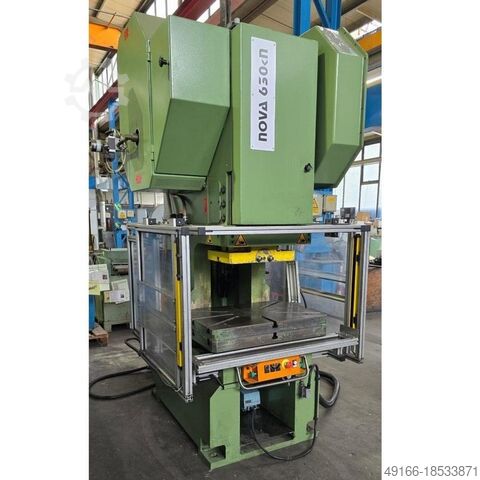

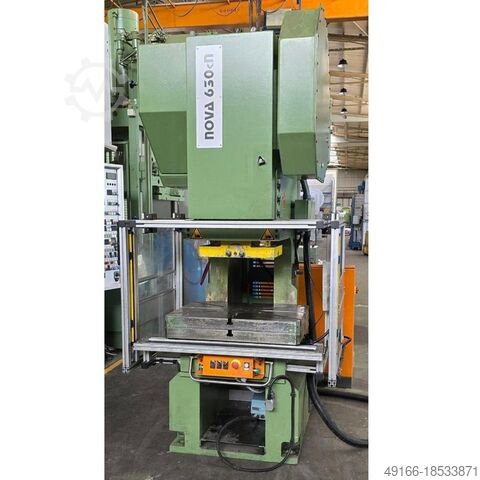

BEUTLER NOVA C 630 kN

Condition: used, Year of construction: 2007, pressure 63 t stroke 8 - 120 mm no. of strokes 40 - 120 /min throat 280 mm passage to the back 325 mm dayligth 440 mm table surface area 820 x 580 mm hole in the table 200 mm table height over floor 830 mm ram surface 470 x 340 mm ram adjustment 100 mm Dljdpjwc U Inofx Admea power requirement 4,0 kW Weight 5,2 t dimensions (WxDxH) 1,3 x 1,8 x 2,8 m permitted for manual loading according to the CE-norm with infinitely variable drive, pneumatic clutch/brake combination, light guard (make Sick), hydraulic overload protection in ram, pneumatic counterbalance on ram, manual stroke adjustment, manual ram adjustment, central lubrication, two-hand and foot operation

Condition: used, Year of construction: 1970, pressure:63 t throat:250 mm stroke:8-100 mm table depth:710 mm table width:500 mm ram head dimension:450x280 mm ram adjustment:63 mm no. of strokes:140 Hub/min total power requirement:7 kW weight of the machine ca.:3,5 t Dljdpfx Aocxxx Hjdmja

Year of construction: 2002, condition: used, pressure 63 t throat 315 mm stroke 8-100 mm no. of strokes 140 Hub/min ram - range of adjustment 63 mm table surface area 1200x630 mm ram surface 800x315 mm hole in the table Ø 110 mm Dledslp U D Tjpfx Admsa table height 820 mm tool hole in ram Ø 50 mm dayligth 335 mm total power requirement 7,5 kW weight of the machine ca. 5 t

Condition: used, Year of construction: 2003, pressure 250 t stroke 20 - 190 mm no. of strokes 25 - 140 /min throat 460 mm passage to the back 590 mm Dsdpfxevuun Te Admsla dayligth 690 mm table surface area 1500 x 880 mm hole in the table 950 x 250 mm table height over floor 900 mm ram surface 870 x 725 mm ram adjustment 120 mm power requirement 30,0 kW Weight 32,0 t dimensions of the machine ca. 2,34 x 2,38 x 3,99 m x m x m permitted for manual loading and automatic mode according to the CE-norm with infinitely variable drive, light guard (make Sick), hydraulic clutch/brake combination, hydraulic overload protection in ram, automatic stroke adjustment, motoric ram adjustment, pneumatic counterbalance in ram, fix table, drawing cushion in table (20 t), motoric centralized lubrication, operator's console with two-hand operation Width between the tie rods in front 940 mm Side passage 900 mm

Condition: used, Single-column eccentric press WEINGARTEN type EV 63 Machine. No. 738 / 61 Year of construction 1962 Pressure capacity 63 ton. throat 260 mm Table surface 630 x 530 mm Table opening Ø 210 mm ram surface 315 x 260 mm Plunger stroke adjustable 8-100 mm Plunger adjustment 63 mm Installation height max 450 mm Stroke rate 115 strokes / min. Compressed air requirement min. 4.5 bar Motor power 4 kW Mains connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electric lift release via foot switch or two-hand operation - Overload protection by breaker plate - Clutch/brake combination with WEINGARTEN friction threaded clutch with TDC overrun protection - Front crankshaft support bearing - Press table height-adjustable via 2 threaded spindles - Manual central grease lubrication - Control cabinet adjacent - UVV for manual insertion work Space requirement L x W x H 1750 x 1600 x 2430 mm Dlodpfx Adok S Htxemsa Weight 4.5 tons good condition

Condition: used, Year of construction: 1959, pressure 063 t throat 280 mm stroke 8 - 100 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 550 mm table surface area 630 x 500 mm hole in the table 230 mm Dlsdpfx Adevuk Rwjmoa table height over floor 740 mm table adjustable 200 mm ram surface 320 x 260 mm ram adjustment 63 mm power capacity 5,5 kW weight 4,6 t Dimensions (WxDxH) 1,4 x 1,8 x 2,4 m permitted for manual loading according to the German Safety Regulations (UVV) with motor, friction clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual centralized lubrication, two-hand operation Press is currently under revision

Condition: used, Year of construction: 1985, Pressure 080 t throat 345 mm stroke 20 - 160 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 495 mm table surface area 920 x 610 mm table height over floor 800 mm Hole in the table 280 mm passage to the back 670 mm ram surface 650 x 400 mm ram adjustment 50 mm power capacity 10,0 kW weight 7,7 t Dimensions (WxDxH) 1,5 x 2,2 x 3,15 m permitted for manual put-in according to the German Safety Regulations (UVV) Dodpfevuug Njx Admsla with motor, pneumatic clutch, hydraulic overload protection in ram, manual stroke adjustment, motoric ram adjustment, motoric centralized lubrication, two-hand operation Press is at the moment being overhauled electrically and mechanically - video is from before starting the overhaul WITH mechanical partly overhaul, WITH new electrical control Pilz

Condition: excellent (used), pressure 50 t throat 245 mm stroke 14 / 90 mm ram adjustment 75 mm table height adjustment 150 mm strokes per minute 42/85 table surface area 700 x 490 mm ram surface 400 x 230 mm tool hole in ram 40 mm total power requirement 4 kW weight of the machine ca. 3,41 t dimensions of the machine ca. 0,8 x 1,75 x 2,1 m Machine was partially overhauled in our house as follows: - disassembly, cleaning and inspection - table milled over - new paintwork of the machine - shaft crack test carried out - disassemble Ortlinghaus clutch and additional brake, clean, check, replaceseals - additional air storage tanks - new control cabinet with safety control and touchscreen display - new wiring of the machine - new Vogel central lubrication system with piping - new Herion press safety valve + maintenance unit Dljdpfxjtrhf Ao Admea - new Balluff cam swith - new 2-hand control panel - new footswitch - Current UVV test with braking time measurement - Machine safe for hand inlay work

Condition: good (used), pressing force: 50 t, stroke length: 320 mm, Capacity 50 Ton Throat 225 mm Adjustable stroke 8 - 100 mm Number of strokes 320 p/min Ram size 300 x 280 mm Table size 500 x 800 mm Machine LxWxH: 160 x 120 x 260 cm Dsdpfx Adett A T Tomela Machine weight: 6 Ton

Year of construction: 1970, condition: used, pressure 63 t throat 440 mm stroke 8-100 mm no. of strokes 65 Hub/min ram - range of adjustment 63 mm table surface area 720x750 mm Dlsdpfx Adjlp U Eqjmsa ram surface 440x280 mm hole in the table Ø 240 mm table height 830 mm tool hole in ram Ø 40 mm weight of the machine ca. ca. 5,0 t
