BIESSE 6 SPINDLE DRILLING HEAD

BIESSE

Condition: ready for operation (used), Year of construction: 2022, functionality: fully functional, TECHNICAL DETAILS Maximum edge banding thickness: 12 mm Maximum panel thickness: 60 mm Maximum roller material thickness: 3 mm Minimum workpiece length: 140 mm Minimum workpiece width: 50 mm Feed rate: 12 - 18 m/min Feed rate: Infinitely adjustable Height adjustment: motorized Gluing system: Granulate Glue reservoir: Top Cross-cutting unit: 2 motors Edge copying unit: 2 motors Flush/radius/chamfer stations: 1 Design: Left-hand machine MACHINE DETAILS Control system: BIESSE SMART TOUCH 23" Total power consumption: 13 kW Dimensions & Weight Machine length: 5,610 mm Weight: approx. 2,250 kg EQUIPMENT Belt overpressure Kodpfx Aezktqueh Aslw Quick-change glue reservoir Suitable for PUR adhesives Strip magazine Spraying system Joint milling unit Preheating zone Pressure zone: NC-controlled Profile drawing blade, flat drawing blade Swivel unit Nesting equipment NC axis(es) Profile change: automatic Conformity marking: CE mark, EAC mark

Condition: excellent (used), Year of construction: 2014, I sell the BIESSE line consisting of: Biesse Winner WRT loading infeed device 1-channel Biesse control station for failure elements Biesse Edge 1 shaped elements edge banding and element working station Biesse Edge 2 shaped elements edge banding station Biesse Edge 3 shaped elements working station Biesse Edge 4 shaped elements working station with drilling and inserting Wandres cleaning device Biesse Winner WRT unloading outfeed device 1-channel Manufacture year 2014. Available immediately. Possible to see at work. Kljdsznfd Uopfx Ah Ajw Possible to adjust for certain product. For more photos and details please send the request.

Condition: ready for operation (used), Year of construction: 2010, travel distance X-axis: 3,060 mm, travel distance Y-axis: 1,320 mm, travel distance Z-axis: 150 mm, number of axes: 5, This 5-axis BIESSE Rover A4.30 was manufactured in 2010. It features a working field of 3,060 mm in the X-axis and 1,320 mm in the Y-axis, along with a powerful 12 kW air-cooled electrospindle. The machine includes advanced programming with BIESSEWORKS and a revolving tool changer with 10 positions. If you are looking to get high-quality CNC wood machining capabilities, consider the BIESSE Rover A4.30 machine we have for sale. Contact us for further details. • Worktables and positioning: • 6 ATS panel supports, L 1,280 mm • 18 sliding bases • 6 stops with 115 mm stroke • 6 stops with 115 mm stroke positioned at 1,050 mm • 4 side stops with 115 mm stroke (2 LH + 2 RH) • 4 bar supports • 12 clamping units for narrow workpieces • 12 vacuum modules (132 × 146 × H48 mm) • 6 vacuum modules (132 × 75 × H48 mm) • Vacuum system divided into 2 work areas in X • Pneumatic system for bar supports with 2 independent work areas in X • Spindle and aggregates: • 12 kW (16.1 HP) air‑cooled electrospindle, ISO 30 tool holder • Flange for assembly of aggregates • Preparation for 360° operating unit (C‑axis) • ISO 30 aggregate with 1 spindle, manual rotation, adjustable inclination (extra equipment installed) • Tooling and drilling: • Revolving tool changer with 10 positions on X‑carriage side • Boring head BH 21 L: • 7 + 7 vertical spindles • 4 horizontal spindles in X • 2 horizontal spindles in Y • 1 saw blade in X (Ø120 mm) • BH 21 L boring head with quick‑change connections (extra equipment installed) • Drill bit holders for quick‑connection boring head spindles (extra equipment installed) • Automation and preparation: • Automatic lubrication system • Preparation for belt conveyor for chip and off‑cut removal • Preparation for multifunctional unit or horizontal routing unit Kodpfx Ahjzndf Ds Aelw • C‑axis operating device with 360° rotation and gear transmission (extra equipment installed; for machines with preparation) • Vacuum, pneumatics, electrics: • 90 m³/h vacuum pump • Auxiliary vacuum system • Blower • Inverter • Air conditioner for electrical cabinet • Control and software: • PC‑based numerical control • 19" LCD monitor • Advanced remote keyboard • BIESSEWORKS advanced programming system • RVA SLOT 1 (extra equipment) • Safety: • Safety devices with 2 front safety mats and rear/side protection • Safety devices in conformity with Regulation 2006/42/CE (Rover A 4.30) (extra equipment) Additional equipment • Manual laser barcode reader (not suitable for 2D/QR codes)

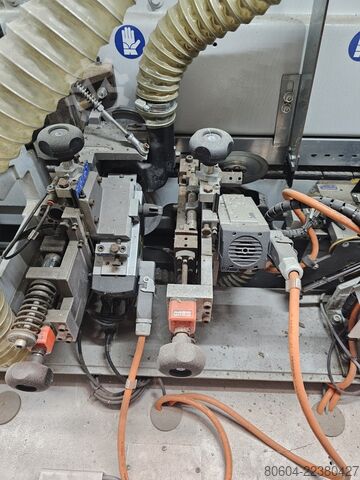

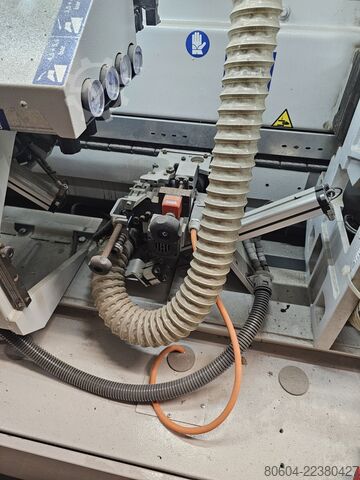

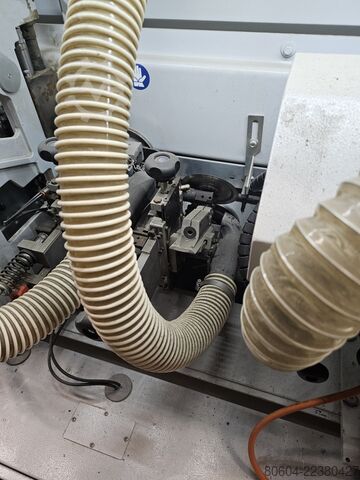

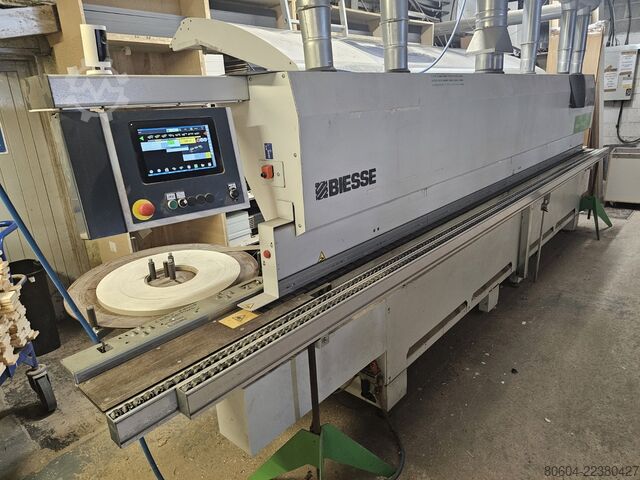

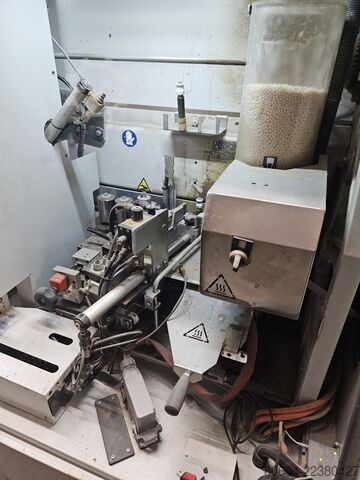

Condition: used, Biesse Akron 1440 A - Manual setting - 2017. £16750 + VAT (Ex-Works). Manual setting edgebander with multi profile cutters for thin tape and 2mm tape. Can also apply 8mm Lippings. Kledpfezm U Rnex Ah Asw PLC Control unit. EVA Glue, Pre-Melting unit. Pressure zone. End Trimming Saws. Top & Bottom Profile trimming. 2 x Motor Corner Rounding. Profile scraping. Glue line scraper Buffing. Machine still powered and comes with extraction manifold.

Condition: ready for operation (used), Year of construction: 2017, travel distance X-axis: 3,260 mm, travel distance Y-axis: 1,260 mm, travel distance Z-axis: 165 mm, number of axes: 4, This 4-axis BIESSE Rover K1232 was manufactured in 2017. It features an extensive X-axis working range of 3,260 mm and a Y-axis working range of 1,260 mm. The machine is equipped with a tool magazine capacity of 16 positions and an electrospindle power of 19 kW. If you are looking to get high-quality CNC machining capabilities, consider the BIESSE Rover K1232 CNC processing center we have for sale. Contact us for further details. • Machine design: Gantry • Tool magazine capacity: 16 positions • Electrospindle power: 19 kW • Total power: 20 kW Kodpfx Ajzm Uqheh Aolw

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, Working area X: 3200 mm Kedpfozm Nbhex Ah Aelw Working area Y: 1450 mm 4-axis electrospindle Drilling units for vertical drilling: 10 Drilling units for horizontal drilling X: 4 Drilling units for horizontal drilling Y: 2 Blade for grooving in the X direction Fixedly installed horizontal lock case boring unit with two outlets Circular tool changer with approx. 16 positions Work table with 6 stops Software: Biesse bSolid Becker Picchio 2200 vacuum pump, 90 m3/h Safety mats Lateral safety guards Weight approx. 3420 kg. Only 3763 electrospindle operating hours 38 drilling hours and 1100 horizontal motor hours for door mortising Available at the end of 2026.

Condition: used, Year of construction: 2013, power: 17.1 kW (23.25 HP), number of axes: 4, working width: 1,320 mm, milling spindle speed (max.): 24,000 rpm, working length: 2,500 mm, TECHNICAL DETAILS Working area, X-axis: 2,500 mm Working area, Y-axis: 1,320 mm Travel, Y-axis: 1,900 mm Max. panel thickness: 170 mm Work table: Cantilever and rail table Number of controlled axes: 4 Travel speed, X-axis: 80 m/min Travel speed, Y-axis: 80 m/min Travel speed, Z-axis: 20 m/min Drilling unit Number of drilling units: 1 Position of drilling unit: top Vertical drilling spindles: 10 Horizontal drilling spindles, X-direction: 4 Horizontal drilling spindles, Y-direction: 2 Total number of drilling spindles: 16 Milling spindle Number of milling spindles: 1 Position of milling spindle: top Controlled axes: 4 Automatic tool changer: yes Motor power: 13 kW Speed: 24,000 rpm Grooving unit Number of grooving units: 1 Position of grooving unit: top Design: fixed, for grooving in the X-direction Max. tool diameter: 120 mm Motor power: 1.7 kW Speed: 7,500 rpm Number of tool magazines: 2 Tool magazine, rear: 12 slots Tool magazine, side: 10 slots Total number of tool change slots: 22 MACHINE DETAILS Machine programming software: BiesseWorks Number of vacuum pumps: 1 Suction capacity per pump: 90 m³/h Total connected load: 17.1 kW Kledpszmtlkjfx Ah Asw EQUIPMENT CE marking Protective structure for machining units with safety sensors Safety system: front safety mats 4 consoles with suction cups for workpiece clamping 1 drilling unit, top 1 milling spindle, top 1 fixed grooving unit, top, for grooves in the X-direction 1 rear tool magazine with 12 slots 1 side tool magazine with 10 slots 1 vacuum pump Front safety mats The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photographic documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8359

Condition: good (used), Year of construction: 2006, I sell the 3-axis CNC working centre Biesse Rover A 3.30 with beam table, year 2006. Configuration: 3-axis main spindle HSD Tool magazine 14 positions ISO30 on working head 1 grooving saw X-direction Drilling head 14+4+2 spindles Useful working area 3130x1250mm. 2 working fields, 4 clamping areas Automatic central system of lubrication. Uniclamp System included Total power 17kW Biesse Works software controller with full instructions. Ksdpfxjzmnzmo Ah Aslw Pump Becker 110 m3/h. 2,4KW. Additional vacuum outputs for raster works or connection of additional clamping devices. Good condition. Available immediately. Repair needed: Handles on beam table, rotation of the ISO30 magazine on working head

Condition: used, functionality: unexamined, Ferwood Code: AGG0053 - Manufacturer Code: 9405A0566 - Condition: Used - Functionality: Not tested - Compatible Machine: CNC BIESSE - If interested, we offer a refurbishment service; please contact us. Kodpjzmicxofx Ah Ajlw

Condition: ready for operation (used), Year of construction: 2022, number of axes: 4, This 4-axis BIESSE Brema EKO 2.2 was manufactured in 2022. It is a vertical CNC processing center designed for precision and efficiency. If you are looking to get high-quality CNC processing capabilities, consider the BIESSE Brema EKO 2.2 machine we have for sale. Contact us for further details. Kledpfezmhidsx Ah Asw
