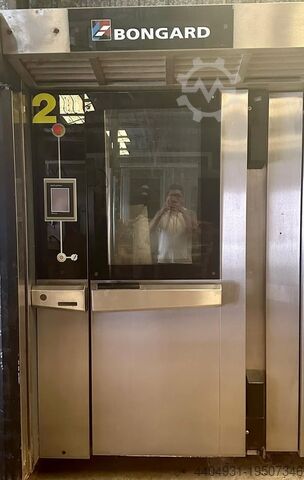

Electric rotary oven 8.64, Series 4 used BONGARD

BONGARD 8.64

Condition: used, - Bongard 8.64 MG Series 4 - External dimensions: W 1440 x D 2700 x H 2600 mm - Baking chamber: W 680 x H 1900 mm - Rotating rack: 600 x 800 mm, 19 levels - Baking capacity: Up to 152 baguettes per batch - Rack rotation diameter: 1120 mm - Total baking surface: 9.1 m² - Heating capacity: 70 kW - Connection power: 0.18 kW - Maximum temperature: 280°C - Lifting mechanism: Rack with automatic lifting - Gas burner included for fast and even baking - Opticom electronic controls for precise baking parameter management - Pulsed steam injection, ideal for crispy and golden breads - Ergonomic handles and controls positioned on the right for easy operation - Fresh air intake at burner for optimal performance - Voltage: 400 V / 3-phase - Weight: 1390 kg Gedpfx Aewr T Edsfuebu - Serial number: 930000015837 - Year of manufacture: 2014 Bongard 8.64 Series 4 Rotary Rack Oven – Gas or Oil Fired – Used A Compact Solution for Efficient and Uniform Baking Lrjy Tdewr T Edjxugsr Discover the Bongard 8.64 Series 4 Rotary Rack Oven, an outstanding second-hand solution offering both compactness and high performance. Designed to meet the needs of demanding professionals, this oven is ideal for maximizing production efficiency while optimizing your bakery space. Superior Performance for Even Baking The Bongard Series 4 Oven stands out thanks to advanced technologies that ensure uniform and top-quality baking: - Soft Flow Ventilation: This technology provides gentle, uniform air circulation, perfect for baking delicate goods such as fine pastries and rolls. Thanks to even heat distribution, your creations will remain intact and achieve ideal baking results. - Efficient Steam System: Equipped with structured cast iron gutters, the oven produces high-quality steam to improve the development of your bakery goods. For greater needs, optional ESG steam units can boost steam production capacity, ensuring optimal performance. Durable and Practical Design The Bongard 8.64 Series 4 Oven is built to withstand the rigors of intensive production environments while providing excellent user comfort: - Robustness and Longevity: Fitted with a high-performance refractory stainless steel heat exchanger and a reinforced base, this oven is engineered for outstanding durability. Electric elements are rigorously selected for maximum service life. - Simplified Maintenance: The seamless stainless steel baking chamber facilitates cleaning. Features such as the raised-edged floor and retractable steam units minimize residue accumulation. The listing was translated automatically. Translation errors are possible.

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Gbsdetu U Ebspfx Afusu

Condition: excellent (used), -Dimensions: 1440x2700x2600mm -Chariot 600x800 -N°série:9300041424 -Modèle:E8.64 -Année:06/2016 -Surface au sol: 2,71 m2 -Température max: 280°C -Passage de porte: 830 mm -Puissance de chauffe: 57kW Gsdpfjwxmfwjx Afusbu -Tension:400V

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION Godpfx Afouhaycoujbu - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000 Gbedoh T Dzqjpfx Afuju

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: Godpfohknbrex Afuebu - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.

Condition: like new (used), Year of construction: 2016, overall weight: 8,200 kg, fuel type: electric, color: white, Type HX426 Blade diameter (mm) 650 Number of hammers (pcs) 30 Gjdpsqmi Irefx Afujbu Inlet size (mm) 1250 x 250 Screen mesh size (millimeter) 80 Length of chips (mm) 50 -80 Capacity (t / h) 8- 10 Main power (kW) 132 Feeder motor (kw) 7.5 +5.5 Discharge motor (kw) 5.5 +5.5 Oil pump motor (kw) 1.5 Length of conveyor (mm) 4000 Conveyor length (mm) 10000 Weight (t) 8.2 Note: capacity depends on the physical characteristics of the raw material, feeding method, feeding speed and production volume.

Condition: not inspected (used), Year of construction: 1995, functionality: fully functional, Lisec sealing robot for second seal type VL-1/25-2, for maximum unit size 3500 x 2500 mm, running direction right to left, consisting of following: RTV-11/25VE, inlet conveyor with width measuring device for glass and frame thickness VL-1/25-2, sealing robot for double glazing units Gjdperrvkbefx Afuebu DOS-1TH, 2k metering station for Thiokol The machine will be completed and tested in simulation mode prior delivery

Condition: ready for operation (used), Year of construction: 2007, Brand: Holz Her Model: PRO-MASTER 7123K Serial no: 527/0-705 5010147 Year of manufacture: 2007 - 2 HSK cones included + various drills for drill box - Comes with a number of suction cups and some spare parts Tech. info: 4-axis (c-axis) 6 beams Motor-controlled adjustment of beams Number of vertical boring bits: 24 Number of vertical boring bits in X axis: 10 Number of vertical boring bits in Y axis: 8 Centres distance: 32 mm Horizontal double spindle in X axis: 2 Horizontal double spindle in Y axis: 1 Centres distance: 64 mm Working area: 3200x1260 mm Maximum travel path: X= 3866 mm Y= 1650 mm Z= 325 mm Workpeice pass height for tool change spindle with HSK 63F tool connection: 345 mm Gjdpforz Irrex Afusbu Max. machining thickness/ feed-in height (rear stop): 175 mm Max. workpiece size for vertical bores: X=3730R/ 3460L mm Y=1570 mm Max. workpiece size for horizontal bores X: X=3450R/ 3370L mm Y= 1315 mm Max. workpiece size for horizontal bores Y: X=4760R/ 3300L mm Y= 1385 mm Max. workpiece size for edge milling, less cutter radius (tool 25 mmdiameter x 125 mm, HSK): X=3510R/ 3525L mm Y=1445 mm Z=280 mm Max. workpiece size for grooving in X (dim. centre grooving tool approx. 120 mm): X=3300R/ 3760L mm Y=1585 mm Max. workpiece size for grooving in Y (dim. centre grooving tool approx. 120 mm): X=3200R/3860L mm Y=1485 mm Max. travel speed X axis: 100 m/min Max. travel speed Y axis: 100 m/min Max. travel speed Z axis: 25 m/min Max. travel speed C axis: 60 m/min Motor power of boring unit: 3 kW Motor power of saw: 1,5 kW Motor power of electro spindle unit with clamping system: 6 kW Speed electro spindle 1000-18000rpm Power: 22 kW, 50 Hz, 400 V, 3-phase Compressed air: operating pressure 6,0 bar permissible limit pressure 8,0 bar Air requirement: 300 l/min Extraction capacity: approx. 5300 m3/h Dust nozzle diameter: 250 mm Size: Length with control cabinet: 6420 mm Overall width: 3760 mm Height with extractor hood: 2475 mm Weight: 4200 kg Program Campus NC-HOPS Operating system Microsoft Windows Graphic variants system with HOP and CAD/CAM properties For the creation of parts variants with macro technology Program operation Windows-conform surface configuration and operator guidance Macro / variant programming Indication and simulation modes Export and import facility to the various branch programs Interaction possibilities with a variety of branch programs Stock no: 2002061BXA with reservation for incorrectly presented technical data

Condition: excellent (used), ELOPAK SHIKOKU ASEPTIC FILLING LINE Model S-PS80HA YOM 2008 Working hours - 9,000 hours. Line capacity for 3 streams - 8100 pcs./h, for two 7100 pcs./h for one 6000 pcs./h Carton format: 500ml, 750ml, 1000ml The line includes: - Elopak filler S-PS80HA for Pure Pak classic packaging material - 3 units of PURE-PACK PLA-S30 cap applicators for Pure-Twist 2U cap - WA-Flex-30 packer - Conveyor system. Gjdpjxdbwisfx Afusbu - Conveyor lubrication station. - Spare parts a total of 4,000 dollars.
