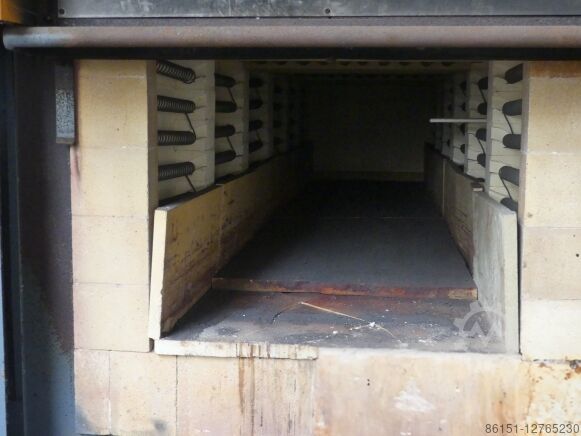

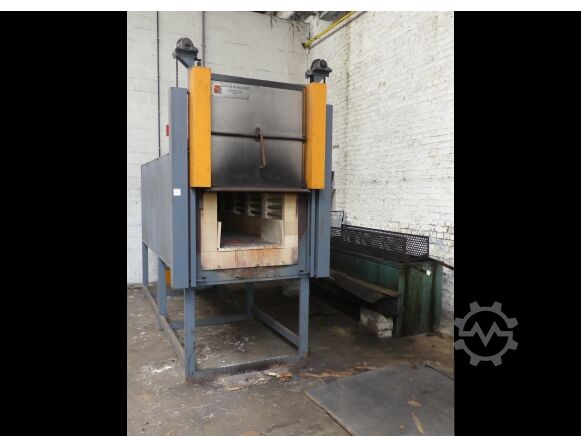

Oven

Bouvier 3000

Condition: excellent (used), Year of construction: 1995, Combination Unit: Manufacturer: GSG Feeder: Type: 840.02-027 Crusher Descaler: Type: 663.02-017 Wire Range: Ø5.5-16mm For wire rod with approx. 40-60 daN/mm² strength Crushing and Bending Rollers: Carbide Inserts Adjustment with 0.37 kW - 1.15 A gear motor Brush Drive with 0.25 kW gear motor, n=293 rpm Connection Voltage: 380-420 V 50 Hz Dry Coating Unit: Type: BSG/T Filling: Calcium Stearate (e.g., Traxit Type: D S 51 E) Stearate Consumption: approx. 350 g per t of wire Drawing Speed: max. 15 m/s Electrical Power: 2x 0.55 kW gear motors Cassette: 2 slots (supplied with 1x roller block + 1x cassette) Type: PKG/T (TS) Fpedpfx Aer Nfvmegmsb Cleaned rolled wire Wire strength approx. 40–60 daN/mm² Wire range max. inlet diameter 9.5mm, finished diameter 3.5–8.5mm Roll dimensions min. Ø115mm, max. Ø125mm, Bore diameter Ø82mm, width 15–25mm Cooling pin diameter 25mm Cooling water consumption approx. 600 l/h Drawing machine: Manufacturer: Koch Type: KHZ 5000 Year of manufacture: 1993 Serial number: 13.821 Number of draws: 1 draw per block Drawing drum: Ø700mm Tensile force: mechanical 5000 N Wire material: mild steel wires Run-in strength: approx. 40 – 45 daN/mm² Maximum drawing range: Inlet diameter 5.0 – 8.5mm Cross-section reduction: 20 x 25% (mechanical gradation) Drawing speed: up to max. 7.0 m/s Brake: Twiflex, type: MRB Drive: AC motor/frequency converter, Siemens PN=110 kW, n=1485 rpm Spooler: Manufacturer: Koch Type: KHS 1250 Year of manufacture: 1993 Factory No.: 13741 Wire diameter: 5 – 8.5 mm Strength: approx. 55 – 70 daN/mm² Winding speed: V=7 m/s, adapted to the drawing machine Filling weight: approx. 3000 kg Spool drive motor: Three-phase motor with external fan Type: 1 PQ 6253 – 6 AA 70- Z A 15 + K 20 + C 14 + H 46 P=37 kW, n=1000-2000 rpm, IP54, design B3 Laying drive motor: 66-671U, 1.5 kW, 170 V, 9.8 A, 1680 rpm, IP 44, B5-200 With Attached tachometer generator TG 20, 20 V / 1000 rpm With attached spur gear SK 32, i=57.53, design B6 Hydraulics: Hydraulic excavator type: H13 AK Pneumatics: Twiflex disc brake type: MRB Pneumatic cylinder type: SPWG 28032-25mm stroke Dimensions: 3100 x 3000 x 1700 mm (L x W x H) without counterweight

Condition: used, functionality: fully functional, machine/vehicle number: D20E/7694, Offer Number: D20E/7694 Machinetype: multiple wire drawing machine - dry Make: SKET / MILL Type: 8 BLOCK Constr. year: inlet wire diameter: 6,5 mm finished wire diamter: 1,6 mm number of drafts: 8 Fpedpfx Agewi S Ixsmeb diameter of capstan: 550 mm and 650 mm speed -meters/sek: 8-12 Location: Europe

Condition: used, functionality: fully functional, machine/vehicle number: D20E/8022, Offer Number: D20E/8022 Machinetype: multiple wire drawing machine - dry Info: straight through Fpjdpfjwi Tidex Agmeb Make: VEB Type: 8 Block Constr. year: inlet wire diameter: 2,5 mm finished wire diamter: 0,8 mm number of drafts: 8 diameter of capstan: 400 mm speed -meters/sek: 15 m Location: Europe
