N.C. DRILLING & Dowels Inserting LINE

BREMA (BIESSE Group) 2 x Vektor (GLR-X 30-13 + XK 40-13) + ID

Condition: excellent (used), Year of construction: 1996, Technical data: maximum cutting width: 3100 mm maximum cutting performance for steel St40: 15.0 mm motorized adjustable parallel stop: 1500 mm motorized adjustable cutting gap adjustment cutting angle adjustment working height: 860 mm motor power: 22 kW side protective grille with light barrier on the back dimensions (length x width x height): approx. 4650 x 3600 x 2050 mm Itjdpfxoummw Ts Ad Dsp weight: approx. 13.5 tons We can only show a small part of our current range of used machines here. Please also visit our homepage! The seller is not liable for typing or data transmission errors. The machine's appearance, technology and wear and tear are in keeping with its age; used machines are sold without any warranty.

Condition: new, Year of construction: 2025, Swing cut guillotine shear Itedpfxelac Dro Ad Dep Cutting length 3100mm Material thickness steel 10mm Knife for stainless steel Touch control Cybelec backgauge 1000mm Cutting gap adjustable via control Delivery time 3 months

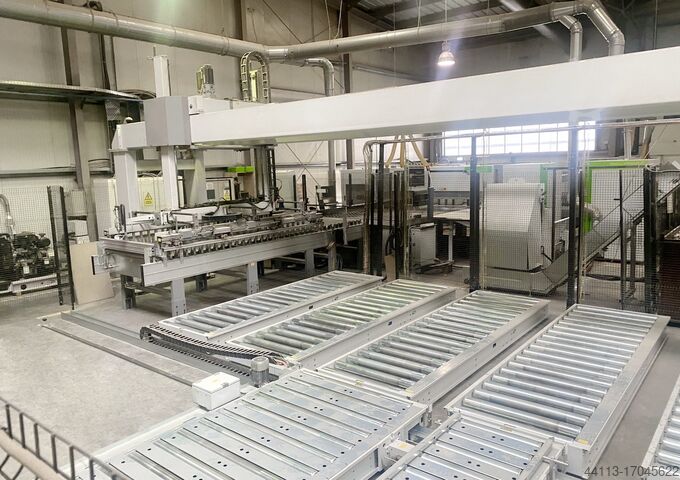

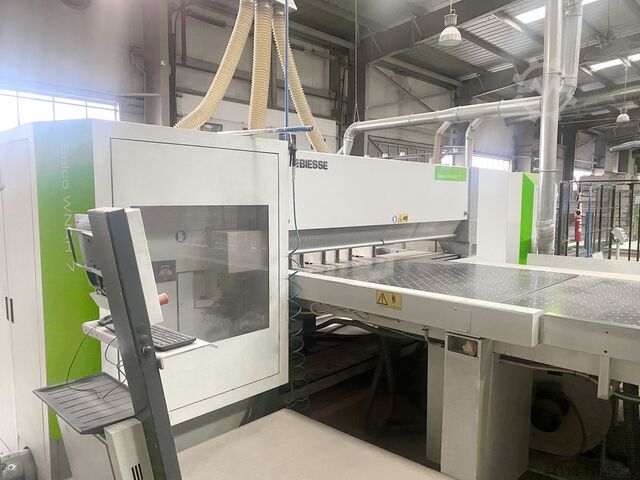

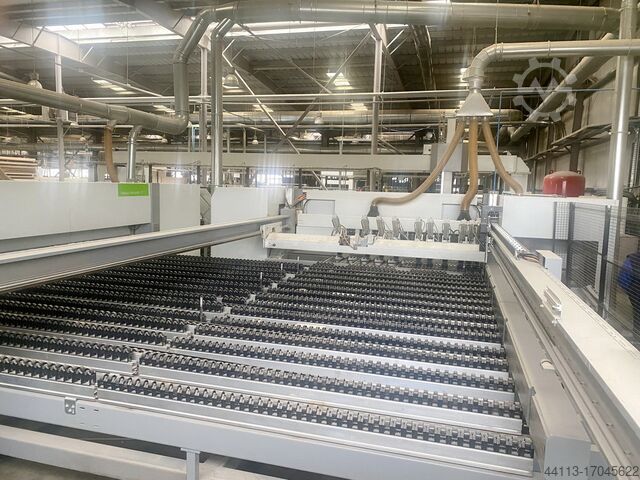

Condition: excellent (used), Angular sawing plant Numerical Control OSI Plus - Software Optiplanning N. 2 Pre-loading roller tables (mm) approx. 4500 x 2200 each Lifting table (mm) 4500 x 2200 1° Rear-pusher, with No. 5 clamps/grippers Turning device (rotating unit) at 90° 1° Panel saw (longitudinal) max. cutting width (mm) 4500 Max blade projection (mm) 152 Scoring Unit (max. diameter saw) mm approx. 215 Itjdpfeukhd Aex Ad Dsp Main Sawing Unit (max. diameter saw / power) mm 530 ( Kw 30) Adjustable speed of the saw carriage (m/min) 1 - 170 m/min Cutter for shredding trimmings 2° Rear-pusher, with No. 10 clamps/grippers 2° Panel Saw - Max cutting width mm 2200 Max blade projection (mm) 152 Scoring Unit (max. diameter saw) mm approx. 215 Main Sawing Unit (max. diameter saw / power) mm 530 (Kw 30) Adjustable speed of the saw carriage (m/min) 1 - 170 m/min No. 2 Front supporting tables with Air blowing system mm 2200 x 1500 Automatic unloader (bridge) for cut panels "RBO (BIESSE)" Mod. Lifter with 6 stacking stations

Condition: new, CNC Hydraulic guillotine shear New machine Manufacturer:UMS Type : PRO. 3100 x 13 CNC Technical data: Cutting length 3100 mm sheet thickness (42 kgf/mm) 13 mm sheet thickness (70 kgf/mm) 8 mm cutting angle: 0,5 - 3 mm 15 pcs. blank holder Cybelec Cybtouch 8 monoblock: steel welded construction Isdpfx Aonl D Tfsd Detp Automatic cutting gap adjustment Table with ball rollers High quality, hardened and ground upper and lower knives Light sensor for front side (sheet guide) Adjustable cutting stroke 1 m support arm with scale 1 m support arms ( 2 pieces ) Rear light sensor ( 10-16 mm sensor distance) Cutting line illumination Motor 30 kW throat 180 mm Cutting speed 7/13 Original Rexroth valves Rexroth hydraulic system Rexroth pump, original Eckerle Electrical parts from Siemens Operating instructions German Table height 900 mm Overall dimensions 3840x2830x2180 (WxLxH) Total weight 11.000 kg plus commissioning, training and transport Delivery time from order approx. 70 days

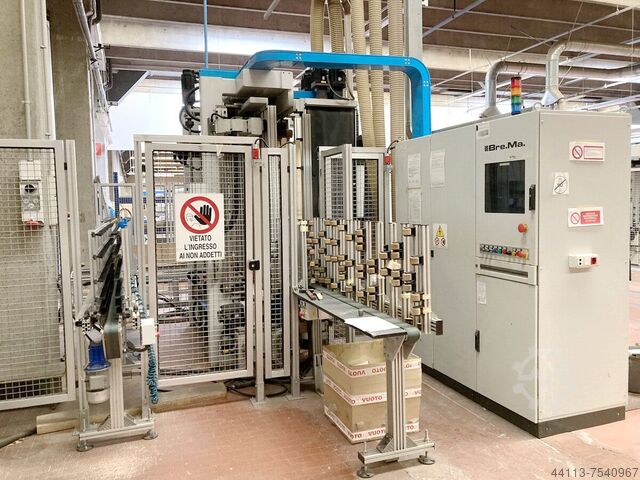

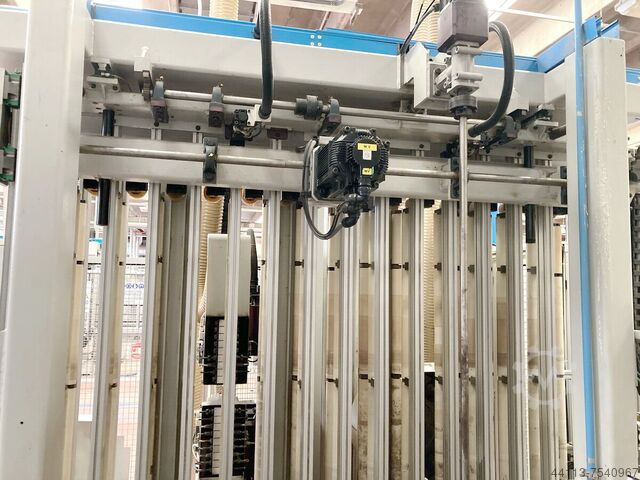

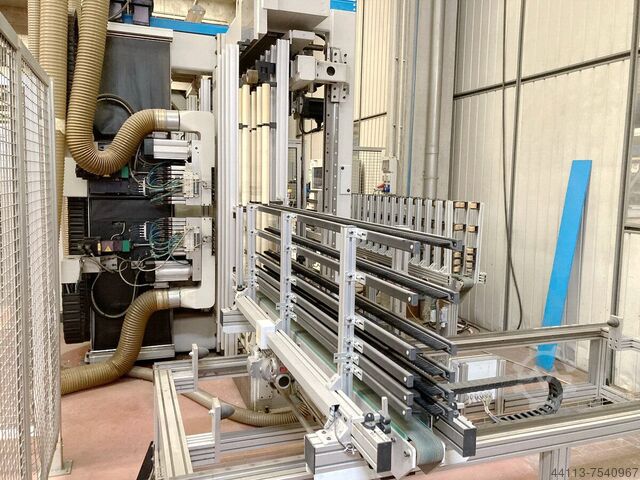

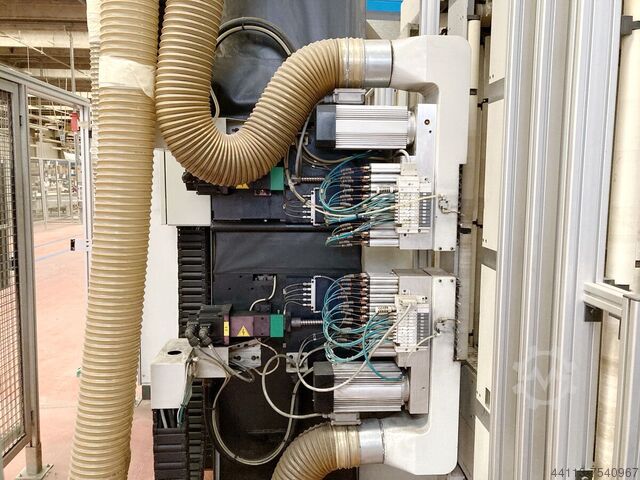

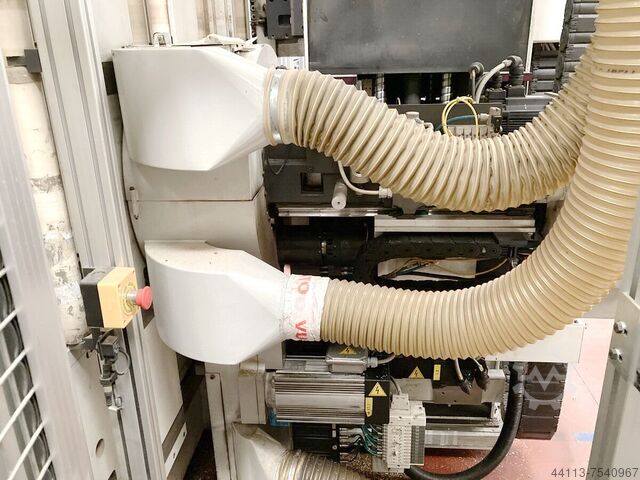

Condition: excellent (used), C.N.C. WORKING CENTER 3 axes (X-Y-Z) Movable panel (workpiece), movable working head. Vertical position of the panel (workpiece) Numerical Control TPA - Software Albatros Safety cabin (enclosure) of the working head Panels feeding by motorized chain/track Rubber-coated vertical rollers as fence and feeders during workpieces process In-feeding table (with motorized belts) - Out-feeding table (with motorized belts) With workpiece return system to the operator (180°) Min. useful working area (X - Y - Z) mm 260 x 40 x 10 (ca.) Max. useful working area (X - Y - Z) mm infinite x 1300 x 80 (ca.) Separate electric and command cabinet Total installed power (Kw) 35 WORKING GROUPS: Drilling heads with vertical spindles (No.) 1 Independent vertical boring spindles (No.) 24 (7 in X + 17 in Y) Drilling heads with horizontal spindles (No.) 2 Itodpfxjihfiis Ad Djp Independent horizontal boring spindles (No.) 36 (9 LEFT + 9 RIGHT = 18 x 2) Drilling head motor-power (Kw) 3 x 3 (ca.) Vertical electro-spindle (No.) 1. Vertical electro-spindle motor power (Kw) 7,5 (ca.) Automatic Tools Changing System Revolver, with Tools storage plate (No. of folds-positions) 10

Condition: excellent (used), Flexible N.C. line for drilling, routing and "hardware" insertion. Numerical Control "TPA" Albatros. Composed by: 1) Hedgehog loader, with 12 positions (for 12 panels), vertical panel introduction. 2) CNC Drilling and routering machine Mod. Over 25.13 with inserter (for bushes, shelf support and base). Itsdpohvagkofx Ad Dep - N. 1 operating head (estimated KW 5,5) with tool storing revolver (10 positions) - N. 1 boring head with 24 independent spindles (X axis) - N. 1 boring head with 2 independent spindles (Y axis) - N. 1 boring head with 5 independent spindles (Z axis) - N. 1 insertion unit (bushing screwing) - N. 1 insertion unit (shelf support pressure) - N. 1 storage and feeding tank 3) Unloader (90° side-deplacement), with motorized conveyor for vertical outfeed of the panel. 4) Unloader - tilting (0°-90) moves the panel from vertical to horizontal, with motorized conveyor

Condition: new, sheet thickness: 8bending length: 2600upper roll diameter: 210 Technical specifications: - Hardened and polished rolls - Complete body made of ST-52 Steel - Machine have 4 rolls and designed for symmetrical working principle - Hydraulic powered cover for easy material extracting - Digital readout for side rolls (2 digital readout) Itedod Ab Sfepfx Ad Djp - Side rolls are free for rotation and upwards downwards movements are hydraulic powered - Top and bottom rolls are driven by hydraulic and gearbox. Bottom roll’s vertical movements are hydraulic powered - Separate control panel form machine - Conic bending device - In accordance for CE norms Options: - variable speed of rotation EURO 4.681,-- - metarial feeding table EURO 3.400,-- - oil coiler EURO 1.040,-- - center support EURO 8.250,-- - side supports EURO 6.600,-- - Automatic material extractor - PLC control - CNC control - Automatic material loading system - Changeable top roll - Adjustable bottom roll support system (for customer’s special requests) We have many references!
