Milling machine

BRIDGEPORT VMC 1000-XP2

Condition: used, Year of construction: 2008, Swing over bed 923,8 mm Swing over cross slide 755 mm Max. turning diameter 356 mm Max. turning length 510 mm Guodsu Sn Hzjpfx Adrei X/Z-axis movement 260/590 mm Turret w/12 stations Spindle speeds 5000 rpm Spindle bore 73 mm Control: MSX-850 III Equipped with: Collet chuck w/collets Chip conveyor 3 standard tool holders No Gantry loader incl.

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, table width: 600 mm, table height: 560 mm, table length: 1,200 mm, table load: 900 kg, spindle speed (max.): 12,000 rpm, Machine with just revised spindle, never used after Connected to power and available for inspections and tests Lubrication through spindle Gusdorb Amlepfx Adrei 30 Tools Heidenhain 530

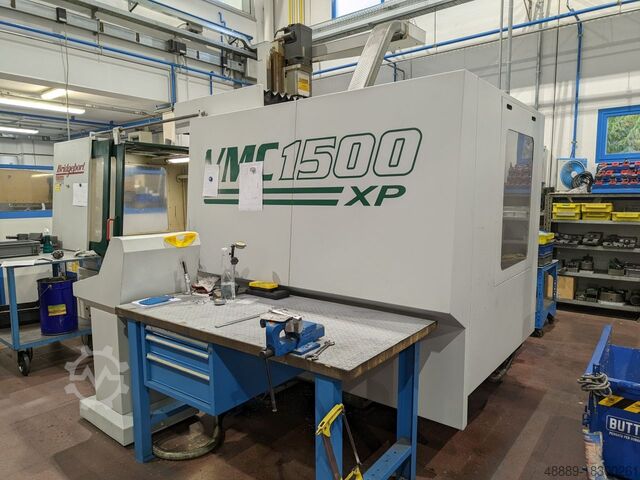

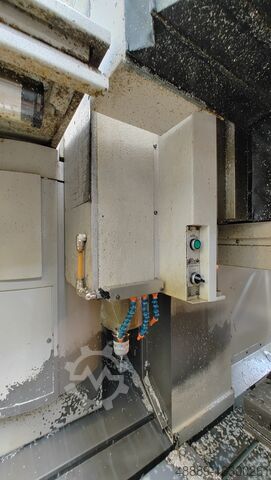

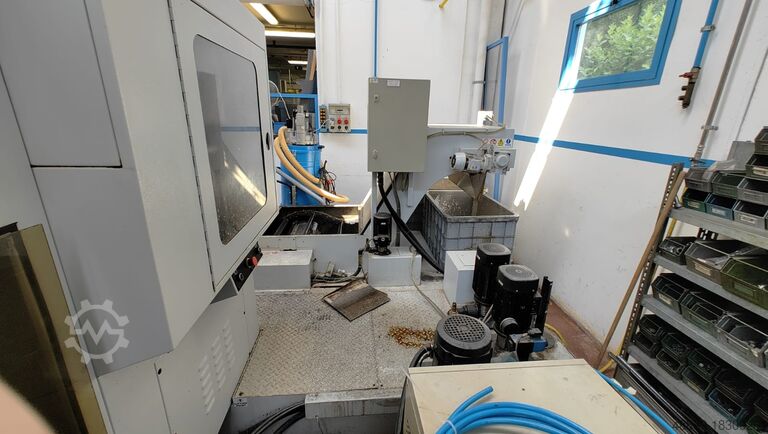

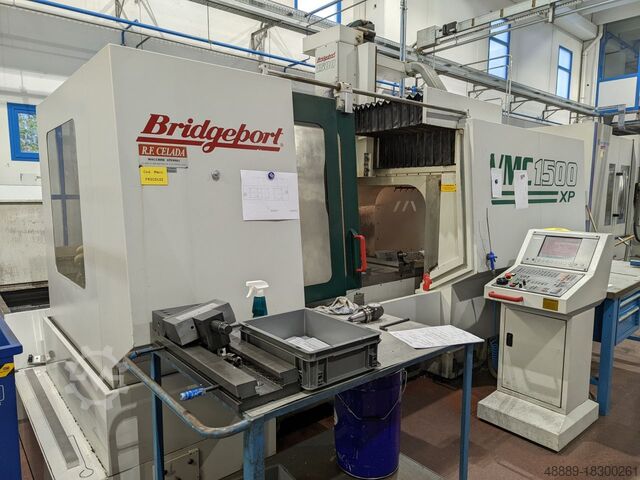

Condition: excellent (used), Year of construction: 2001, BRIDGEPORT VMC 1500 vertical machining center Year 2001 Highly rigid bridge structure CNC Heidenhain 426 Strokes X axis 1500 mm Y axis 800 mm Gjdovrtngspfx Adroui Z axis 500mm Rapid X/Y/Z 28/28/20 m/min Table dimensions 1800 x 650 mm Spindle speed 40 – 15000 rpm Spindle power 13.5 kW Max torque 117 Nm BT40 spindle attachment Tool magazine 22 positions High pressure through the spindle Rigid tapping Chip conveyor Completely overhauled electrospindle

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Manufacturer QUASER Model MV204IIU / 10 Year 12/2002 CNC HEIDENHAIN ITNC530 3 Working Tables / Pallets Table 1 Size Ø280 mm. Table 2 Size Ø 500 mm. Table 3 Size 600×400 mm. Max weight allowed on table 265 kg Min-max distance over table 150-760 mm. Axis Longitudinal Traverse (X Axis) 700 mm Cross Traverse (Y Axis 590 mm Vertical Traverse (Z Axis) 480 mm Titling spindle head range (A Axis) ±110º A Axis positioning 0.001º Table turning (C Axis) 360º C Axis positioning 0.001º Rapid Feed (X/Y/Z Axis) 32.000 mm/min Working Feed (X/Y/Z Axis) 15.000 mm./min. Spindle Spindle Speed 10.000 r.p.m. Taper BT-40 Power 15/33 kW Torque 192/189 Nm. ATC Godpsu T Hhwsfx Adroui ATC Positions 32 ATC system RANDOM Max Tool length 280 mm. Max Tool weight 7 kg Other Equipment Chip Conveyor INCLUDED Internal Coolant 20 Bar INCLUDED Coolnat tank capacity 280 l. Electrical cabinet coolant INCLUDED Flushing Gun INCLUDED Portable Handwheel HEIDENHAIN HR 310 Full guarding INCLUDED Running hours Power on 13.975 h. Spindle 6.258 h. Other Total Power 30 KVA Machine Dimensions (LxWxH) 2.220×2.650×2.855 mm. Machine Weight 8.200 kg.
