Continuous cleaning system made of stainless steel

BVL Oberflächentechnik DAD-2BL

BVL Oberflächentechnik DAD 2BL (YUKON) Year of manufacture: 2014
For consistently clean components in continuous operation

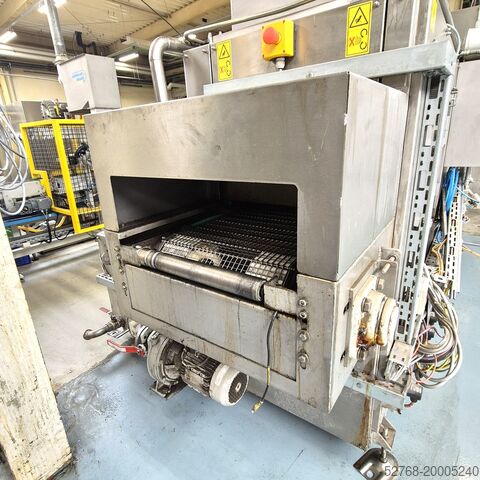

Continuous flow cleaning system made of stainless steel with oil separator for uninterrupted material throughput. The parts to be cleaned pass continuously—or, if needed, in cycles—through successive treatment zones. Cleaning is carried out by passing the parts by fixed nozzle systems.
Designed for components with dimensions approx. 400 x 100 x 200 mm
Wire link conveyor transports the components lying flat or standing upright through the cleaning system
• Surrounding nozzle frame – the offset nozzle arrangement enables all-round cleaning
• Separation of treatment zones reduces cross-contamination
• Nozzle and frame adjustment to suit component
• Customizable useful dimensions, load capacity, and pump output
Process steps occur in successive treatment zones:
• Spray cleaning – series connection of various wet treatment zones (washing, degreasing, phosphating, rinsing, passivation)
• Drying

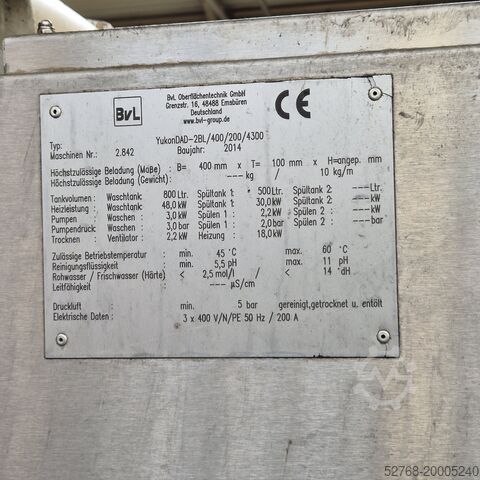

Tank capacities:
Washing tank: 800 liters
Rinsing tank: 500 liters
Heating capacity:
Washing tank: 48.0 kW
Rinsing tank: 30.0 kW
Washing tank pumps: 3.0 kW
Rinsing tank pumps: 2.2 kW
Washing pump pressure: 3 bar
Rinsing pump pressure: 2 bar
Drying fan: 2.2 kW
Drying heater: 18 kW
Lrsdpfx Aaoxcun Ejqeh
Operating temperature: min. 45°C to max. 60°C
Each machine includes stainless steel drip trays for leakage protection—these are included in the price and will be delivered with the machines.
WE HAVE 2 IDENTICAL MACHINES AVAILABLE
