Laser Cutting Machines - Fiber laser cutting

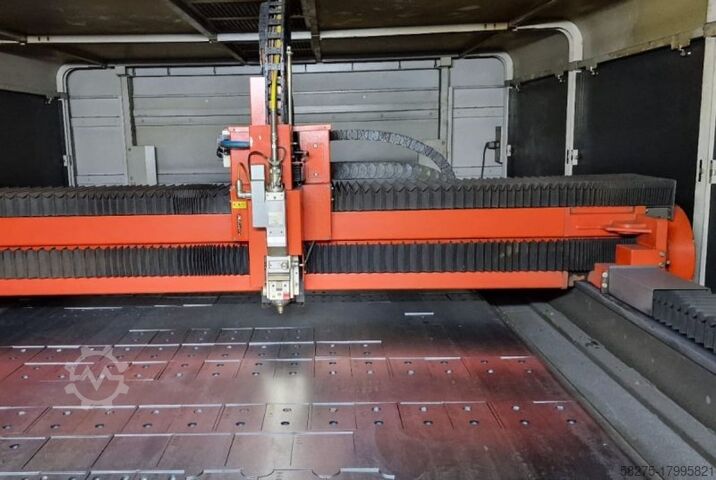

BYSTRONIC BYSPRINT FIBER 4020

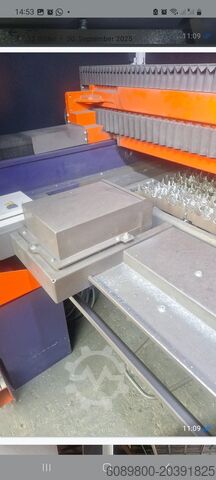

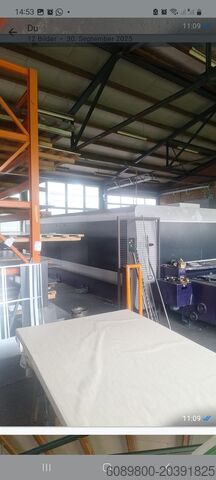

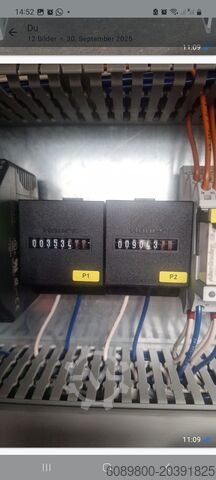

Condition: ready for operation (used), Year of construction: 2014, operating hours: 40,236 h, overall weight: 15,000 kg, total height: 2,500 mm, product length (max.): 12,900 mm, This Bystronic Bysprint Fiber 4020 was manufactured in 2014. It features a large cutting area with dimensions up to 4064 mm by 2032 mm and a maximum cutting thickness of 20 mm for steel. The machine supports a fiber laser source with 6000 W power, ensuring precise and efficient cutting. Consider the opportunity to buy this Bystronic Bysprint Fiber 4020 fiber laser cutting machine. Contact us for more information. • The machine was commissioned in January 2015. • The machine is from the first owner. • Regularly serviced under a maintenance contract by Bystronic. • Cutting head replaced in November 2025. • Automatic nozzle changer. Scrap cart inside the machine and under the transfer table. • Good to very good condition. No outstanding repairs. • Sheet size: X 4000 mm; Y 2000 mm • Cutting range: X 4064 mm; Y 2032 mm; Z 70 mm • Maximum simultaneous positioning speed: 140 m/min Hnsdsx D Dxcopfx Aacsh • Maximum parallel positioning speed (X/Y): 100 m/min • Maximum axis acceleration: 12 m/s² • Positioning variation Ps (VDI/DGQ 3441): 0.05 mm • Positioning deviation Pa (VDI/DGQ 3441): 0.1 mm • Edge detection accuracy: 0.5 mm • Maximum workpiece weight: 1270 kg • Table changeover time: 35 s • Laser source: Fiber, 6000 W • Pulse frequency: 1–2500 Hz • Control range: 600–6000 W • Wavelength: 1 µm • Max cutting thickness: steel 20 mm; stainless steel 15 mm; aluminum 15 mm; brass 10 mm; copper 10 mm • Electrical consumption (with extraction, cooling unit): 31 kW

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, working width: 600 mm, input voltage: 400 V, overall weight: 3,560 kg, workpiece height (max.): 170 mm, The fast deburring machine for deburring, rounding and finishing steel cut parts up to 600 mm wide. This Q-Fin deburring and finishing machine was developed especially for applying a large radius of up to 2 mm on steel sheet. With the SER600 Super Edge Rounder from Q-Fin it is possible to deburr, grind, edge break, round off, remove slag, remove oxide skin or apply a line finish to sheet metal up to 600 mm wide. A combination of these operations is also possible. The throughput of the SER600 is 3 to 5 times higher than comparable machines. This new 2024 machine is equipped with magnetic support, making it suitable for processing steel cut parts and other magnetic materials. This machine is equipped with as many as 5 machining stations. Easy operation through an HMI touch screen on the front of the machine. The first station of the SER600 consists of a grinding unit. The grinding belt of this unit removes burrs and/or burn-in points from the product surface. If you have no burrs, you can leave the grinding belt off or remove them. It is also possible to apply a line finish to your product with a finer grinding belt or finish with a scotch-brite belt. The second and the third station consists of the disc brush unit containing 4 oscillating disc brushes. The fourth and the fifth station consists of 2 round brushes, rotating counterclockwise and clockwise. With the brushes you remove the sharp edges of the product by breaking the edges or, by the unique combination of two brush systems, edge round them with a radius up to R=3 mm. The installation of special brushes makes this SER600 with magnetic system also very suitable to remove the oxide skin of steel products or slag from plasma cut products. Hnsdpfol Dw D Ejx Aaceh We sell the combination with a WES6000 wet working grinding dust extraction system as 'SER600 Set'. The WES6000 was developed by Q-Fin to extract grinding dust safely and without pressure loss. This fully stainless steel extraction system is a wet-acting system that extracts grinding dust from stainless steel, steel and aluminum, eliminating the risk of fire and explosion. According to Q-Fin, it is the safest, easiest and most durable way to extract grinding dust. No more grinding dust in the air and/or work environment with the WES6000. At this moment we have two SER600 machines in stock: 1x new (built year 2025) 1x used for only a few months; as new. built year 2024. Both machines can be viewed by appointment in Bergeijk. Both machines have a 1 year warranty on construction and all non-wearing parts. We can also provide on-site installation of the SER600 + WES6000) including training for the operators. - Connected load SER600 machine: 400 V, 50 Hz, 32 A, 16 kW - Dimensions: 3640 x 1585 x 2085 mm (L x W x H) - Weight: 3560 kg

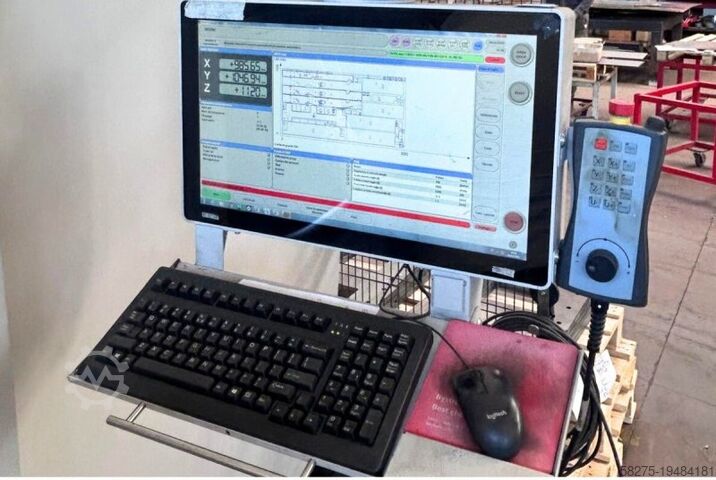

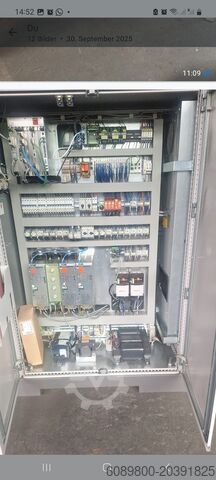

Condition: good (used), functionality: fully functional, Year of construction: 2015, operating hours: 4,000 h, machine/vehicle number: 10059806/30023735, laser type: fiber laser, laser power: 6,000 W, laser wavelength: 10,601,080 nm, sheet thickness (max.): 30 mm, sheet thickness steel (max.): 25 mm, sheet thickness stainless steel (max.): 30 mm, sheet thickness aluminum (max.): 30 mm, sheet thickness brass (max.): 15 mm, sheet thickness copper (max.): 12 mm, table length: 4,030 mm, table width: 2,020 mm, working length: 4,000 mm, working width: 2,000 mm, travel distance X-axis: 4,030 mm, travel distance Y-axis: 2,020 mm, travel distance Z-axis: 70 mm, cutting speed: 55,000 mm/min, power: 6 kW (8.16 HP), input voltage: 400 V, type of input current: AC, type of cooling: water, compressed air connection: 10 bar, overall weight: 14,250 kg, Equipment: centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, nozzle changer, safety light barrier, Excellent laser cutting machine. Very little maintenance and repairs. Hedpfoxrl Rvox Aacenh

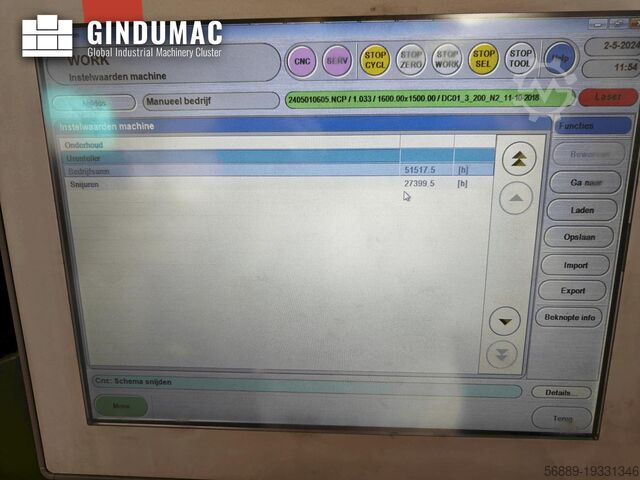

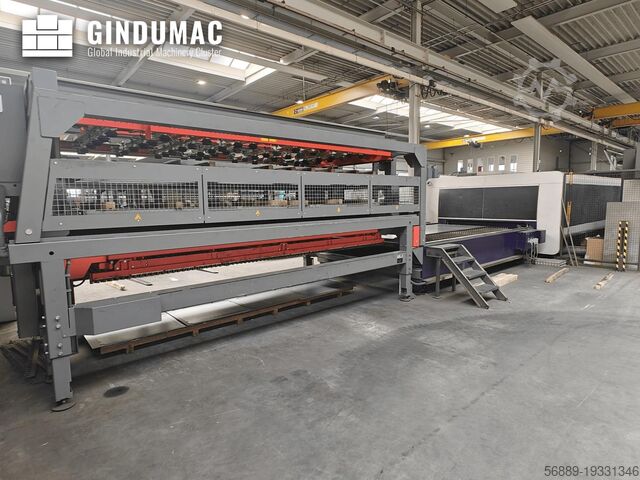

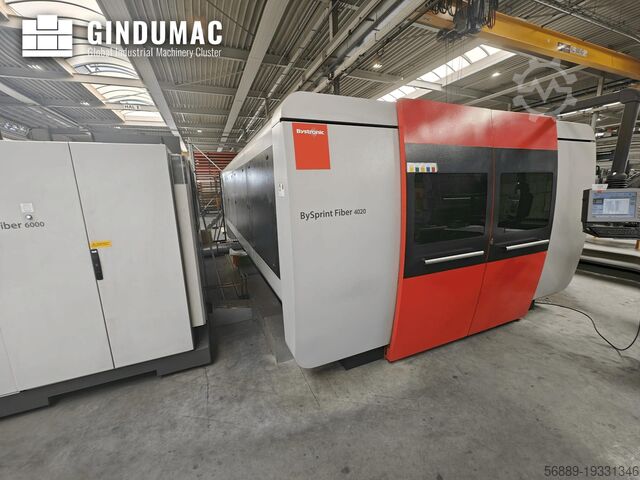

Year of construction: 2014, condition: ready for operation (used), General Data Machine weight 14250 kg Control Unit Brand BYSTRONIC Main Drive Laser power 6000watt IPG Number of axis 3 Additional Equipment Incl ByTrans Extended This 3-axis Bystronic BySprint Fiber 4020 + ByTrans Extended 4020 was manufactured in 2014. Ideal for precision fiber laser cutting, this machine ensures efficient operation and consistent performance. Consider the opportunity to buy this Bystronic BySprint Fiber 4020 + ByTrans Extended 4020 fiber laser cutting machine. Contact us for more information. Application Types Hjdpfx Aasx D Eivecenh Cutting

Condition: new, Year of construction: 2025, operating hours: 1 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: STYLE CNC Machines, number of slots in tool magazine: 24, motor manufacturer: FANUC, Delivery after consultation Ref: 24F048 Year of construction: 2025 Condition: Showroom Hsdpfx Aajw Ty S Ssconh Specifications: - X-axis: 4000 mm - Y-axis: 1000 mm - Z-axis: 1000 mm - 26 kW (S6) main motor - 8000 rpm - BT-40 - Automatic tool changer (24 positions) - Remote service (IXON) + network connection - Stronger coolant pump incl. spray gun - Upgraded to the latest STYLE software available

Year of construction: 2012, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER X-AXIS TRAVEL: 4064 mm Y-AXIS TRAVEL: 2032 mm Hnedpjvghbqefx Aacsh Z-AXIS TRAVEL: 70 mm WORKING AREA: 4000 x 2000 mm ADMITTED LOAD ON TABLE: 1270 Kg SOURCE: FIBER 4000 ; 4000 W CONTROL UNIT: ByVISION WEIGHT: 15000 Kg OVERALL DIMENSIONS: 12900 x 6750 x 2500 mm ACCESSORIES: FUME EXHAUSTER NOTE: AUTOMATIC NOZZLE CHANGE

Year of construction: 2013, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER and LOADING/UNLOADING SYSTEM X-AXIS TRAVEL: 3270 mm Y-AXIS TRAVEL: 1550 mm Z-AXIS TRAVEL: 100 mm WORKING AREA: 3070 x 1550 mm ADMITTED LOAD ON TABLE: 920 Kg SOURCE: AJ2000 Fiber ; 2000 W Hnsdpfsvhc S Hex Aacsh CONTROL UNIT: AMADA AMNC3i WEIGHT: 11200 Kg OVERALL DIMENSIONS: 10028 x 2900 x 2000 mm NOTE: WITH LOADING/UNLOADING SYSTEM LKI 3015FLC-AJ YOM 2013; AUTOMATIC NOZZLE CHANGE

Year of construction: 2015, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER and LOADING/UNLOADING SYSTEM X-AXIS TRAVEL: 4000 mm Y-AXIS TRAVEL: 2000 mm Hnodjxqtx Sspfx Aaceh Z-AXIS TRAVEL: 115 mm RAPID FEEDS X-Y-Z: 245 m/min WORKING AREA: 4000 x 2000 mm ADMITTED LOAD ON TABLE: 1250 Kg SOURCE: TRUDISK 5001 ; 5000 W WEIGHT: 15000 Kg OVERALL DIMENSIONS: 10900 x 5700 x 2400 mm NOTE: LIFT MASTER COMPACT LOADING/UNLOADING SYSTEM

Condition: used, Year of construction: 1996, total height: 3,200 mm, total width: 3,200 mm, total length: 8,000 mm, Empty weight: 26.000 kg Price: On request Bed Milling machine Bed Miller Model: CNC Manufacturer: Anayak Type: FBZ-HV-4000 CNC: Heidenhain Year: 1996 Bed-dimensions: 4500x800mm X-travel: 4000mm Y-travel: 935mm Z-travel: 1000mm Rotatable Fräsekopf Spindle-speed: 3000rpm Spindle-take: ISO 50 Incl. peripherals and documents Dismantled for transport Video available! Machine-dimensions: 8000x3200x3000mm Machine-weight: 26000kg - Year: 1996 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 11676-FBZ - Number of axes: 3 - Travel X [mm]: 4000 - Travel Y [mm]: 935 - Travel Z [mm]: 1000 - Spindle speed max. [rpm]: 3000 - Tool holder: ISO50 - Table size length [mm]: 4500 - Table size width [mm]: 800 - Control type: Heidenhain - Control: CNC - Transport dimensions: 8000mm x 3200mm x 3200mm (l x w x h) Hnsdpfxjwnhnfo Aacoh - Transport weight [kg]: 26000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Bram van Summeren

Condition: new, functionality: fully functional, Year of construction: 2026, laser power: 20,000 W, Description BAISON H13 (12 meters) (20 kW) H-BEAM AND PLATES HEAVY DUTY FIBER LASER CUTTING MACHINE GANTRY TYPE WITH ±90° BEVEL HEAD This machine is also for plates, H, U profiles and different shape + inclined cutting. Technical specifications Laser Power 20.000 W (Raycus) Max. work area (L*W*H) 12.000* strait 2.000* bevel 1.200*600 mm Min. work area(W*H) 150*150 mm Max. Speed 40m/min Max Acceleration 0.4 G X-axis (straight cuts) 2.000 mm X-axis (bevel cuts) 1.200 mm Y-axis 15.000 mm Z-axis 1.000 mm Positioning Accuracy (X/Y) ±0.1 mm/m Repeated Positioning Accuracy (X/Y) ±0.1 mm Power Data 94kw / 151A Power supply 380V/50Hz/3Phases Power Protection Level IP54 Machine Size 20.741*4.373*3.576 mm Machine Weight 8.450kg (Excludes platform) ACCESSORIES INCLUDED IN THE OFFER Laser source RAYCUS 20 kW Special Bevel head ±90° system for cutting H-beams and plates – BOCI Controller system – FSCUT 9200-P Servo motors – VEICHI Reducer – TECHMECH High precision X/Y transmission mode with rack and rails – JT Guide rail – SHAC Industrial cooling/heating system of the laser head and laser source - Dual cooling system – HANLI Proportional valve – AVENTICS Electronic Components – SCHNEIDER / PHOENIX Welded and heat-treated machine bed – BAISON Wireless remote controller Computer with Windows 11 interface, Internet & WIFI Centralized automatic lubrication system Exhaust smoke system with centrifugal fan Operation, maintenance and programming manuals Voltage stabilizer & regulator unit CE mark with safety light barriers Why CNC Top Ten bv - Cnc Top Ten company have over 50 year experience in CNC machines. - And we have more service and sales locations in west and east Europe Hnodevcb Aajpfx Aacoh - our service team know from beginning how to respect service, installation and training. - for this machine the installation and training is 3 weeks. Not included in machine price. - we can offer cost also depend on end-user place and country. - Machines for cutting H-beams profiles and plates - Fiber laser is the green laser technology for the future - (Saving of at least 50% energy costs) - Components / therefore very low-maintenance - Save up to 50% per part through more efficient production - In addition, precise cuts and smooth surface quality - Heavy-duty constructed frame - equipped with world-famous, durable, high-quality components - Complete CE standard Official Seller CNC Top Ten bv Coevorden Netherlands
