Laser cutting machine

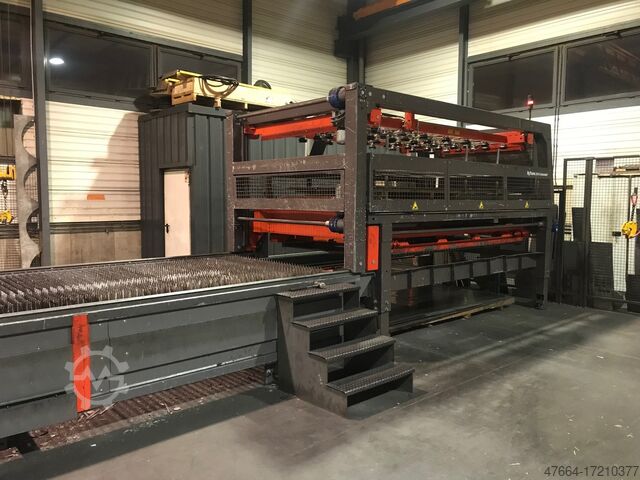

Bystronic ByStar Fiber 3015 - 6 kW

Condition: excellent (used), Year of construction: 2014, operating hours: 33,000 h, The automatic sheet metal processing laser system comprises two each of the following: - Bystronic BySprint Fiber 3015 laser cutting machines - Bystronic Fiber 4000 laser sources - Bystronic Bytrans 3015 loading/unloading systems - Donaldson extraction units and one - Bystronic storage system Max. sheet length: 3000 mm Max. sheet width: 1500 mm Cutting area: 3048 mm (x), 1524 mm (y), 70 mm (z) Max. positioning speed: 100 m/min Max. workpiece weight: 890 kg Laser power: 4000 Watts Max. mild steel: 20 mm Max. stainless steel: 15 mm Max. aluminium: 15 mm Location: Zweibrücken Pjdpoun U Rkjfx Ac Hjha Professional dismantling is included in the offer. The machine was regularly serviced by a renowned company, and thanks to a ‘24-hour maintenance contract’, it received more comprehensive parts replacements than strictly required.

Year of construction: 2021, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER and LOADING/UNLOADING SYSTEM X-AXIS TRAVEL: 4064 mm Y-AXIS TRAVEL: 2032 mm Podpfjwwxuzjx Ac Hsha Z-AXIS TRAVEL: 70 mm WORKING AREA: 4000 x 2000 mm ADMITTED LOAD ON TABLE: 1270 Kg SOURCE: FIBER 6000 ; 6000 W CONTROL UNIT: ByVISION ACCESSORIES: FUME EXHAUSTER ; PORTABLE HANDWHEEL NOTE: WITH SYSTEM ANTIL SPA 4020 yom 2021

Condition: used, Year of construction: 2005, Processing size: 3000 x 1600 x 180 mm High-pressure pump 60 HP / 45 kW Model E-60 Operating pressure 4,130 BAR Water consumption 4.69 liters/min. Software: Watercad-CAM Automatic cutting optimization Storage location: customer Pedpjxgfbqefx Ac Hoha

Condition: new, functionality: fully functional, Year of construction: 2024, laser power: 20,000 W, Description BAISON H13 (12 meters) (20 kW) H-BEAM AND PLATES HEAVY DUTY FIBER LASER CUTTING MACHINE GANTRY TYPE WITH ±90° BEVEL HEAD This machine is also for plates, H, U profiles and different shape + inclined cutting. Technical specifications Laser Power 20.000 W (Raycus) Max. work area (L*W*H) 12.000*1.200*600 mm Min. work area(W*H) 150*150 mm Max. Speed 40m/min Max Acceleration 0.4 G X-axis (straight cuts) 2.000 mm X-axis (bevel cuts) 1.200 mm Y-axis 15.000 mm Z-axis 1.000 mm Positioning Accuracy (X/Y) ±0.1 mm/m Repeated Positioning Accuracy (X/Y) ±0.1 mm Power Data 94kw / 151A Power supply 380V/50Hz/3Phases Power Protection Level IP54 Machine Size 20.741*4.373*3.576 mm Machine Weight 8.450kg (Excludes platform) ACCESSORIES INCLUDED IN THE OFFER Laser source RAYCUS 20 kW Special Bevel head ±90° system for cutting H-beams and plates – BOCI Controller system – FSCUT 9200-P Servo motors – VEICHI Reducer – TECHMECH High precision X/Y transmission mode with rack and rails – JT Guide rail – SHAC Industrial cooling/heating system of the laser head and laser source - Dual cooling system – HANLI Proportional valve – AVENTICS Electronic Components – SCHNEIDER / PHOENIX Welded and heat-treated machine bed – BAISON Wireless remote controller Computer with Windows 11 interface, Internet & WIFI Centralized automatic lubrication system Exhaust smoke system with centrifugal fan Operation, maintenance and programming manuals Voltage stabilizer & regulator unit CE mark with safety light barriers Why CNC Top Ten bv - Cnc Top Ten company have over 50 year experience in CNC machines. - And we have more service and sales locations in west and east Europe - our service team know from beginning how to respect service, installation and training. - for this machine the installation and training is 3 weeks. Not included in machine price. - we can offer cost also depend on end-user place and country. - Machines for cutting H-beams profiles and plates - Fiber laser is the green laser technology for the future - (Saving of at least 50% energy costs) - Components / therefore very low-maintenance - Save up to 50% per part through more efficient production - In addition, precise cuts and smooth surface quality - Heavy-duty constructed frame - equipped with world-famous, durable, high-quality components - Complete CE standard Official Seller Phedpfx Acjvcb Aas Hea CNC Top Ten bv Coevorden Netherlands

Condition: new, functionality: fully functional, Year of construction: 2025, laser type: fiber laser, laser source manufacturer: Raycus, laser source model: -, laser power: 12,000 W, sheet thickness (max.): 50 mm, sheet thickness steel (max.): 50 mm, sheet thickness stainless steel (max.): 50 mm, sheet thickness aluminum (max.): 40 mm, sheet thickness brass (max.): 40 mm, sheet thickness copper (max.): 40 mm, table length: 4,000 mm, table width: 2,000 mm, working length: 4,000 mm, working width: 2,000 mm, travel distance X-axis: 2,050 mm, travel distance Y-axis: 4,050 mm, feed rate X-axis: 280 m/min, feed rate Y-axis: 280 m/min, positioning accuracy: 0.05 mm, repeat accuracy: 0.03 mm, workpiece weight (max.): 1,800 kg, power: 6,000 kW (8,157.72 HP), type of input current: three-phase, type of cooling: water, overall weight: 9,500 kg, total length: 10,880 mm, total width: 3,380 mm, total height: 2,280 mm, warranty duration: 12 months, space requirement height: 3,000 mm, space requirement length: 11,500 mm, space requirement width: 4,500 mm, Equipment: cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, DNE D-Power – The High-Performance Laser Cutting Machine for Your Production Pjdpfx Acewzv E Ss Heha The D-Power laser cutting machine with exchange table is the ideal solution for beginners. With a generous table size of 1500 x 3000 mm and extended options ranging from 2000 x 4000 mm to 2500 x 6000 mm, 2500 x 8000 mm, and 2500 x 12000 mm, and laser power of 3,000, 4,000, and 12,000 watts, this machine covers a wide variety of applications. The value for money of the D-Power laser cutting machine will surprise you. You receive high-quality technology and performance at an attractive price, making it an excellent choice for companies and craftsmen who want to enter the world of laser cutting. Take advantage of the latest technologies and increase the efficiency of your production processes with this powerful and versatile machine.

Condition: new, Year of construction: 2024, Fiber laser cutting machine FLV-3015-C2 12kW / VF1530-12000W Specifications - Maximum sheet size: 3000x1500mm - Positioning accuracy of the X and Y axes:: ±0.05mm/m - Repeatable positioning accuracy of the X and Y axes: ±0.03mm - Maximum speed: 120000mm/min - Maximum acceleration: 1.5G - Nominal power: 12.0kW - Energy requirements: 73.0kW - Source brand: Raycus or MAX Photonics (You can choose) - Feed voltage: 3x400V50Hz - International Protection Rating: IP54 Cutting thickness - Carbon steel: Recommended thickness 35.0mm, maximum thickness 35.0mm - Stainless steel: Recommended thickness 25.0mm, maximum thickness 25.0mm - Aluminum: Recommended thickness 18.0mm, maximum thickness 18.0mm - Brass: recommended thickness 18.0mm, maximum thickness 18.0mm Structure parts The machine is very stable thanks to its welded construction based on massive legs. The high speed of head movements while maintaining high precision is ensured by Japanese Fuji servo motors. ABLS - automatically replenishes grease in guides. RayTools cutting head with autofocus Optional extra - Otinus Protect to guarantee your peace of mind This product ensures protection for the source of your laser. With this service you will ensure that the continuity of your business is protected. We will secure your business so that you can complete your orders on schedule. Optional extra - Voltage stabilizer Control panel Operation of the fiber laser cutter is run by the control panel, which consists of a screen, mouse and keyboard. The computer runs Windows 10 and CypCut software. All installed software has lifetime licenses. Wireless controller included. Assistance by a specialist We are committed to staying in continuous contact with our customers; therefore, we meet this challenge by offering a time-package of hours to be used for the Otinus Professional Assistance to each machine purchased. Otinus Academy By purchasing this machine you will gain a year's access to online courses that will allow you to effortlessly train a new employee or refresh your knowledge from training! Technical consulting We have specialists who, before the purchase, will select the right machine and accessories based on technical drawings of the parts you plan to make. Price-included 2-day training including installation of the machine - 1 day up to 8 hours - installation of the machine and learning to use the controller. - 2 days up to 8 hours - independent work under the supervision of our technician - possibility of programming specific details that are made by the Client. Consultation with a specialist - Telephone: 7.30 a.m. to 9 p.m. (Mon-Sat) - time package of 8 hours to be used within 12 months. Online: from 7.30 a.m. to 2.30 p.m. (Mon-Fri) - time package of 8 hours to be used within 12 months. Access to Otinus Academy courses - LibreCad - 12-month access Phodpfx Asphpf Nsc Hja In addition, you will receive - CAD drawing package

Condition: new, Year of construction: 2025, Laser power: 12000 Watt Working range laser: 4000 x 2000 x 270 mm positioning speed X/Y/Z: 200 m / min simultanious: 280 m / min Max. workpiece weight: 3000 kg Phodev Uz Tiepfx Ac Hsa Max. steel: 30 mm Max. stainless steel: 30 mm Max. aluminium: 25 mm Max. copper: 10 mm Max. brass: 20 mm Length: 12500 mm Width: 3650 mm Height: 2620 mm Machine weight: 18000 kg

Condition: like new (used), functionality: fully functional, Year of construction: 2018, operating hours: 5,666 h, laser hours: 5,666 h, laser power: 6,000 W, sheet thickness (max.): 25 mm, sheet thickness steel (max.): 25 mm, sheet thickness aluminum (max.): 30 mm, sheet thickness brass (max.): 15 mm, sheet thickness copper (max.): 12 mm, positioning speed: 100 m/min, positioning accuracy: 0.05 mm, repeat accuracy: 0.05 mm, workpiece weight (max.): 3,280 kg, power: 6,000 kW (8,157.72 HP), overall weight: 27,700 kg, total length: 22,450 mm, total width: 6,670 mm, total height: 2,565 mm, working range: 20,248,100 mm, Equipment: cooling unit, It is a machine with few working hours and no faults. All parts are original and its maintenance has been done by the authorized service. Pjdpowpii Tofx Ac Hoha
