Band saw

Centauro

Condition: like new (used), Year of construction: 2022, functionality: fully functional, Net weight: 410 kg Maximum blade width: 35 × 0.6 mm Table height from the floor: 900 mm Wheel rotation speed: 715 rpm Worktable dimensions: 810 × 580 mm Wheel diameter: 600 mm Motor power: 2.9 kW Maximum cutting height: 600 mm Nwedpfx Afeymw Nnocec Extraction port diameter: 100 mm Blade length: 4880–4980 mm Machine dimensions (L × W × H): 2324 × 1168 × 762 mm Table tilt range: 0–20° Gross weight: 450 kg Maximum cutting width: 580 mm

Condition: used, Year of construction: 2007, Fully programmable 3 axis horizontal CNC swing chisel mortiser suitable for general joinery and furniture production. By a combination of automatic movement of the mortisting head in the x axis and an automatic gripper that positions the timber no manual movement or handling of the component is required other than loading and positioning the timber against the pneumatic reference stop and then unloading when the mortising cycle is finished. The complete movement, clamping and, mortising cycle is fully automatic. X, Y and, Z axis movements are all via re-circulating ball and screw drives and using linear slideways to give maximum positioning accuracy. Thanks to the programmable Z axis it is possible to produce off line mortises, double mortises or produce thicker mortise slots with the same chisel. Programming is very simple thanks to the 'user friendly' graphic touch screen controller were programs can be memorised and stored under a number or specific name up to 8 characters. The swing chisel cutter itself produces a very clean mortise slot and if required for deep mortises up to 3 depths of cut can be programmed to give a 'woodpecker' type cutting operation. Other programming options include working off either the face of the timber or the thickness and the possibility to produce mirror image components (left/right hand) in one program. Year - 2007 CE X axis stroke 1100mm. Y axis stroke 250mm. Max. depth of cut 120mm (depending on chisel size) Z axis stroke 100mm Max. workpiece height of 120mm. All movements on re-circulating ball and screw drive with brushless motor Max. workpiece width 200mm Max. swing chisel thickness 20mm. Min . slot length 25mm approx (with swing chisel) Min. slot thickness 6mm. Nwodpeymnbnofx Afcoc 3 vertical pneumatic clamps. 3 horizontal pneumatic clamps. 4 hp main motor. 'Power 1000' touch screen graphic controller with 99 programs each with 50 lines. USB key facility. Programmable speed for cutting depth. Anti splinter guards with air blowers and dust extraction points. Working table dimensions 1210mm x 215mm Air supply 6 bar / 470 l/min consumption. Fitted with separate dedicated programmable hollow chisel head for producing the small mortises for glazing bars

Condition: used, Motor 4.0 kW Roller diameter: 800 mm Max. cutting height: 440 mm Max. cutting width: 785 mm Table height: 970 mm Table dimensions: 1170 x 800 mm Blade width: 40 x 7/10 mm Blade length: 5630 mm Extraction port diameter: 120 mm Dimensions: 1625 x 940 x 2516 mm Weight: 650 kg Stock location: Nattheim Nwjdpfxswayzbe Afcec

Condition: new, Year of construction: 2026, Diameter of saw wheels 700 mm Max. cutting height 460 mm Max. cutting width 680 mm Nodpfx Ajgyd Skjfcowc Table height from floor 940 mm Table size 1030x710 mm Tilting table 20° (45 NO CE) Max.-min. lengthof blade max/min 5180/5040 mm Max. width of blade 40 x 0,6 mm Motor power 3kW (HP 4) R.P.M. of wheels 736 R.P.M Dust extrac. outlet 2 x Ø 100 mm Overall dimensions 2300x1415x880 mm Net weight 400 Kg Gross weight (crate) 490 Kg Gross weight (case) 520 Kg Shipping volume 2,30 m3 Sound power level 88,9 db

Condition: new, Year of construction: 2026, A versatile saw for cutting wood for veneers, lamellas and the like. Height of workpieces up to 400 mm. The powerful feed rate gives a very high performance. The R800 is a solid saw. In the R800, it is possible to use tapes of different widths. It is equipped with a mechanical feed of the workpiece. It is designed so as to easily cope with work in conditions of high load of the main engine and high processing speed (up to 30 m / min). It is possible to use a tape with a width of 80mm. The sturdy frame of the machine is made of welded sheet steel. Massive flywheels made of cast iron ensure maximum efficiency, and the wheels are mounted on dustproof ball bearings. The lower part of the saw blade is specially reinforced, which allows a higher degree of inertia (inertia) to be achieved without excessive starting and braking loads. To further improve the evenness of work, the guides are specially ground so that they remain carefully balanced. Diameter of saw wheels 800 mm Max. cutting height 400 mm Max.cutting width 770 mm Height of table from 960 mm Table size 1060 x 800 mm Max. and min. blade length 5530/5380 mm Width of blade 80 x 0,8 mm Motor power 11 (HP 15) kW R.P.M. of wheels 680 R.P. M. Sawblade speed 28,5 mt./sec. Sawdust hoods 1 Ø 100 mm. 2 Ø 120 mm. Required capacity for extraction system (for air speed 20 mt./sec.) 3840 m3/h Compressed air consumption 60 Lt./min. Working pressure of pneumatic brake 6 - 8 bar Net weight 880 kg RVP210 Height of feeding roller 50 mm Feeding roller diameter 200 nm Standard feeding rollers 2 nr. Height of standard rollers fence 300 mm Length of Rollers fence 600 mm Rollers fence tilt 0-45° Max. Roller-blade clearance 200 mt/sec Max. fence-blade clearance 420 mm Motor power 0,37 kW Nwjdjgp I U Nepfx Afcsc Variable feed speed rate 0-30 mt./min Compressed air consumption 30 Lt/min. Working pressure 3 - 6 bar Net weight 180 Kg

Condition: used, Technical data: Max. cutting height: 340 mm Max. cutting width: 680 mm Wheel diameter: 700 mm Blade adjustment range: 4870–4970 mm Max. blade width: 40 mm Min. blade width: 20 mm Worktable dimensions: 650x700 mm Worktable tilt: Extraction port diameter: Motor power: 2.2 kW Voltage: 400 V Brake Emergency stop switch Manufacturer: Centauro Overall dimensions: Length: 830 mm Nsdpfxeyhnlce Afcjwc Width: 1200 mm Height: 2230 mm

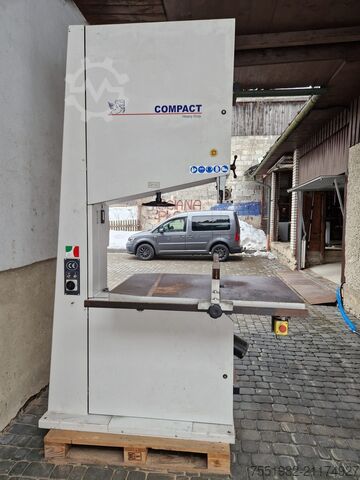

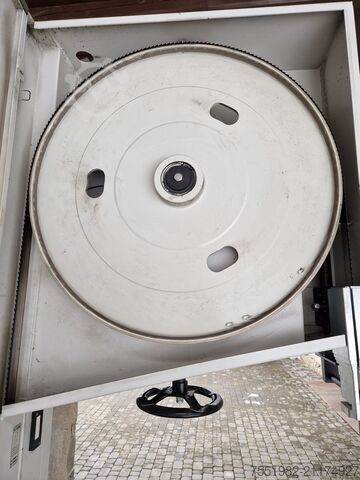

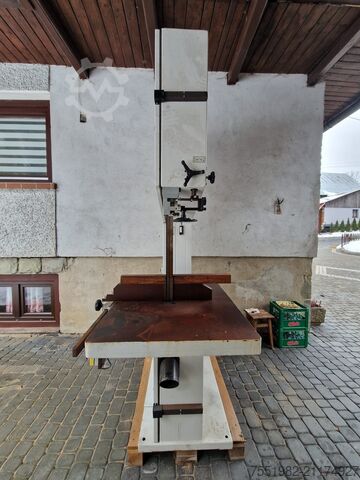

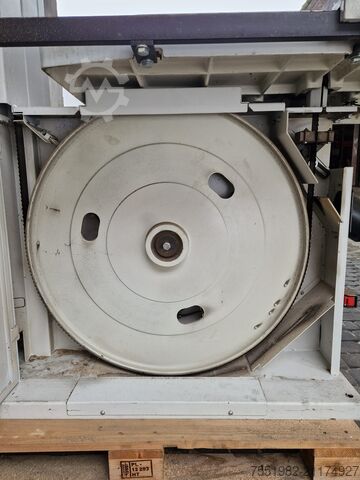

Condition: used, Year of construction: 2020, machine/vehicle number: 31213, functionality: fully functional, input voltage: 400 V, cutting height (max.): 570 mm, cutting width (max.): 880 mm, overall weight: 700 kg, table height: 950 mm, saw band length: 6,400 mm, table length: 1,030 mm, table width: 770 mm, For sale: Professional Centauro CO900 band saw, purchased new in 2020, very lightly used and in excellent technical condition. The machine was used occasionally, not for serial production, making it ideal for a joinery workshop or manufacturing plant. Key technical specifications: • Wheel diameter: 900 mm • Max. cutting height: 570 mm • Max. cutting width: 880 mm • Blade length: 6400 mm Nedjyhhytopfx Afcowc • Motor power: 5.5 kW (7.5 HP) • Table dimensions: 1030 × 770 mm • Table height: 950 mm • Weight: approx. 700–750 kg • Voltage: 400V / 50Hz • Mechanical/foot brake • Blade tension indicator • Extraction connection: 2 × Ø120 mm The machine is in full working order and ready for immediate use. The only drawback is the good but not perfect visual condition, as a result of slight surface rust, mainly on the worktable. This is due to the machine standing unused in an unheated room for the past several months. Delivery available at an additional cost. 23% VAT invoice issued. Net price, negotiable. A set of several saw blades included with the machine.

Condition: new, Technische Daten: fly wheel DM 800 mm Max. cutting height 400 mm Max. max cutting width 780 mm tabel dimensions 580 x 810 mm tildable table 15 Grad Max. saw blade dimension 80 x 0,8 mm saw blade length 5380 - 5530 mm motor 11,0 kW, 400 V, 50 Hz suction 2 x 100 mm fly wheel speed 680 U/ min suction DM 1 x DM 100 mm & 2 x DM 120 mm compressed air 6 - 8 bar machine weight: ca. 850 kg machine dimensions L x B X H 1550 x 950 x 2500 mm welded steel structure, fully closed pneumatic brake table in cast iron upper & lower saw blade guide star triangle switch emergency push button telescopic saw blade guard/ guide work table tillable 20 deg. saw blade cooling/ cleaning device with diesel tank saw blade tension indicator cleaning brush for fly wheels solid work piece fence cast iron fly wheels motor circuit protection switch CE CENTAURO Model RVP200 feeder roller height 160 mm work piece fence with rollers height 160 mm var. feed speed 1 - 21 m/ min pneumatic opening / closing of feeder Max distance saw blade - feeder approx 220 mm Max. distance saw blade - work piece fenceapprox . 200 mm CE Nwsdpoby U Dpefx Afcsc

Condition: new, Thin layer from 2 mm thickness Maximum cutting accuracy up to ± 0.15 mm Minimal kerf, cutting thickness from 1.3 mm Ideal for the cutting of dried and wet wood or alternative materials Surface of the thin layer ready for gluing without need of further processing steps Friendly user electronic control Two programmable speeds of the carpet (0-30 m/min) for the best cutting quality and to safeguard the blade life Optical sensor to start cutting cycle and speed change Ground table “Flexam” belt feeding for the best performance 6 rubber idler rollers adjustable in height, for opening/closing to ensure the best pneumatic pressure on the workpiece during feeding and cutting Oleo-pneumatic tensioning of the blade for better cutting performance Top and bottom ‘’Chaco’’ blade-guides which guarantee the best stability blade during cutting Internal/external lubrication of the blade to remove residues of resins and chips 4 dust extraction to optimize the suction of dust and chips Cutting height of 400 mm (500 mm optional) Cutting width up to 400 mm High quality powerful motor kW 15 (HP 20) Ethernet connection for on line service Carbide or stellite blades for best cutting performance DM of saw wheels mm 800 Max. cutting height mm 400 fixed working table mm 1290 x 800 Max. saw blade width mm 54 x 0,9 Max. & min. saw blade length mm 5530 / 5380 motor Kw 15 (HP 20) Nsdpfodcd Dlox Afcewc suction connection nr 2x Ø 120 & 1 x Ø 100 compressed air requirement bar 6/ 27 ltd machine weight Kg 880 feed speed m/min 0 - 30 height of feeder belt mm 300 length of feeder mm 750 feeder roller DM mm 160 Max. feeder opening mm 200 Max. fence opening mm 200 feeder speed var. mt/ min 0-30

Condition: new, Year of construction: 2025, Diameter of saw wheels mm 800 Max. cutting height mm 400 Stationary working table mm 1290 x 800 Max. blade width mm 54 x 0,9 Njdsglfv Dopfx Afcswc Max. and min. blade length mm 5530 / 5380 Motor power Kw 15 (HP 20) Sawdust hoods nr Nr. 2 Ø 120 Nr. 1 Ø 100 Compressed air consumption (wheels braking and feeder opening) bar 6 Net weight Kg 880 Feeder Height of feeding carpet mm 300 Length of carpet fence mm 750 Idle rollers dia. mm 160 Max. rollers-blade clearance mm 200 Max. fence-blade clearance mm 200 Variable feed speed rate mt/min 0-30
