Tool milling machine

CNC 5 AXIS MILLING - HERMLE C40U DYNAMIC C40U DYNAMIC

Condition: used, Year of construction: 2018, functionality: fully functional, travel distance X-axis: 460 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 400 mm, spindle speed (min.): 30,000 rpm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, overall weight: 7,000 kg, workpiece weight (max.): 500 kg, controller manufacturer: Heidenhain, controller model: TNC 640, rotary table diameter: 320 mm, tool weight: 4,000 g, Equipment: chip conveyor, ALZMETALL 5-axis CNC vertical machining center Type: GS600 E/5 Year of manufacture: 2018 Control: Heidenhain TNC640 XYZ travel: 460 x 600 x 400 mm Spindle speed: 30,000 rpm Spindle cooling 3D probe Roll-up roof cover Blum laser measurement Erowa Robot Easy zero-point clamping system with 10 pallets Max. workpiece weight: 500 kg Machine weight: approx. 7 tons Rotary table diameter: 320 mm Fedpfx Aew Rldbedvjpc Spindle hours: 19,450 hours Oil-air lubrication for the high-frequency spindle

Condition: used, Year of construction: 1984, x-travel 2500 mm y-travel 750 mm Fpodpfxetqqnws Advoc z-travel 1000 mm table surface area 2550 x 800 mm spindle taper SK 50 control HEIDENHAIN, TNC 150 B weight of the machine ca. 16 t

Condition: good (used), Year of construction: 1992, Indoor crane, crane, electric wire rope hoist, hoist, motor winch, motor winch, tackle, traction winch, block and tackle -Manufacturer: steel, crane chassis with electric cable pull -Crane chassis: Type GO 24 20 16 -Traveling speed: 20 m/min -Roller pitch: 800mm Fpedpfjl Tuvdex Advoc -Cable: Type AS 2010 -Traction: 1000 kg / load capacity 4000 kg -Drum speed: 16 m/min / stroke 4 m/min -Lifting height: mm -Transport dimension: 1250/1180/H400 mm -Own weight: 356 kg

Condition: excellent (used), Motor-driven NC rotary table Stepless rotary table (pitch 0.001°) Attached pallet station: pallet changing table (2 pallets) Manufacturer: Rückle Type: PKTF 1200 Table size: 1200 mm x 1200 mm Total height: 660 mm Centring hole: 100 H6 mm Clamping grooves: 7 pieces Slot dimension: 22 H7 mm Slot distance: 160 mm The displacement is measured via a ROD 250 rotary encoder. Condition: Very good (used) Optionally with machine bed (travel = 2000 mm ) Fsdpsfk R Tdofx Advspc About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH, is a free specialist for SHW machine tools. Our main focus lies in the field of tool milling machines. Our services include the supply of spare parts, on-site customer service, machine overhauls and control modernization. Services: - Used machines - spare parts - after-sales service - machine service - machine overhauls - control modernization

Condition: excellent (used), Year of construction: 2009, operating hours: 12,959 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 12,000 rpm, total height: 2,450 mm, total width: 2,400 mm, total length: 3,100 mm, table width: 630 mm, table length: 630 mm, table load: 350 kg, overall weight: 6,800 kg, Kunzmann WF 650 5-Axis Simultaneous Machining Center (2009) Manufacturer: Kunzmann Type: WF 650 5-Axis Simultaneous Machining Center Year of manufacture: 2007 Commissioned: 2009 Condition: Used, very good Machine ON: 46,181 h Spindle hours: 12,959 h Control: Heidenhain iTNC 530 Software Package 1 for iTNC 530 X-axis 650 mm Y-axis 500 mm Z-axis 450 mm Vertical milling head tilting range: -5° + 95° NC built-in rotary table Ø 630 mm Table load: 350 kg Spindle speed: 12,000 rpm Tool holder: SK40 Tool changer with 20 spindles Tools Internal coolant supply: Tool clamp with coolant supply and blow-out device through the spindle. Flow rate 25 l/min at 40 bar Optional water/air through the spindle Paper belt filter Fpsdpoxwl T Ujfx Advoc Controlled CNC milling head (B-axis) Mounting kit for TS 640 probe head 3D probe with infrared transmission Dimensions LxWxH approx.: 3.1 x 2.4 x 2.45 m Weight approx. 6,800 kg Coolant system LxWxH approx.: 1.6 x 2.00 x 0.50 m Scope of delivery: – Documentation – Machine feet – Machine light

Condition: used, Year of construction: 1990, x-travel 2800 mm y-travel 1000 mm z-travel 1200 mm table surface area 2000 x 800 mm rotary table dia. 800 mm spindle taper SK 50 Fpedpfx Adjtqqmgevec spindle turning speed - stepless 50 - 2000 U/min max. torque on the spindle 3000 Nm spindle drive 30 kW feeds longditudinal/cross/vertical 2 - 2000 mm/min rapid motion -longitudinal/cross/vertical 7 m/min control SIEMENS control SINUMERIK 850 M no. of tools in magazin 56 workpiece diameter at full load 114 mm wotkpiece diameter with 2 vacant positions 200 mm workpiece length 400 mm weight of tools max. 16 kg tool changing time ca. 8 - 9 sec internal coolant system feed ja / yes total power requirement kW weight of the machine ca. 25,4 t dimensions of the machine ca. 6,6 x 3,15 x 2,98 m = 5-axis CNC-bed-type milling machine with integrated NC-rotary table and NC-swivelling milling head - Acc.: tool pre-setting device, various tool fixtures, chip conveyor, coolant with high pressure pump and filtration device, electron. handwheel, fixators

Year of construction: 2003, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE WITH ROTATING TABLE LONGITUDINAL TRAVEL: 2700 mm TRANSVERSAL TRAVEL: 1100 mm VERTICAL TRAVEL: 1400 mm Fpsdswmxnmjpfx Advsc RAPID FEEDS L-T-V: 24 m/min TABLE SIZE: 1800 x 1800 mm MAX ADMITTED LOAD: 15000 Kg SPINDLE: 240-24000 rpm; 34 kW HEAD: CONTINUOUS A/B AXIS AUTOMATIC ; A-axis -110°+95° C-axis ±200° TOOL MAGAZINE: CHAIN-TYPE ; 42 POS CONTROL UNIT: FIDIA C20 DISTANCE SPINDLE NOSE-TABLE: 1600 mm WEIGHT: 21500 Kg OVERALL DIMENSIONS: 5950 x 5430 x 5220 mm ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL

Condition: used, Accessories for e.g. a bench drill BFT 130: The spindle head and swivel angle can be swivelled 360° around their own axes. Two swivel planes The set angles can be read off on circumferential scales Fpedju Nlgyjpfx Advsc Speed max. 600 rpm. Spindle taper ISO 50 Weight approx. 270kg incl. connecting piece to the drive SK 50 pinoler/head *

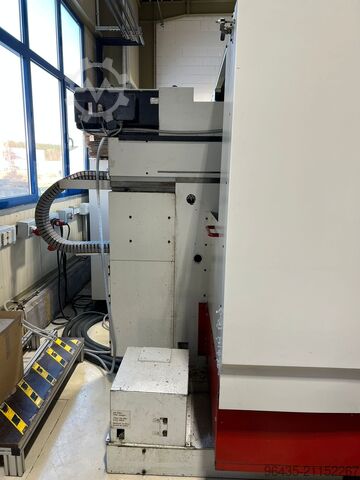

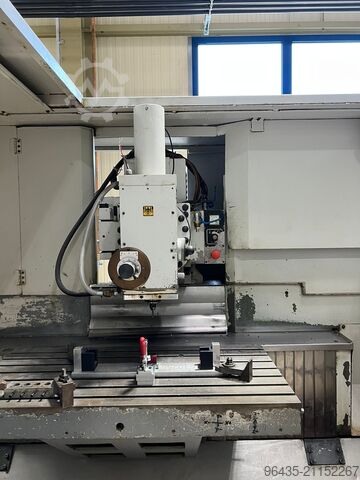

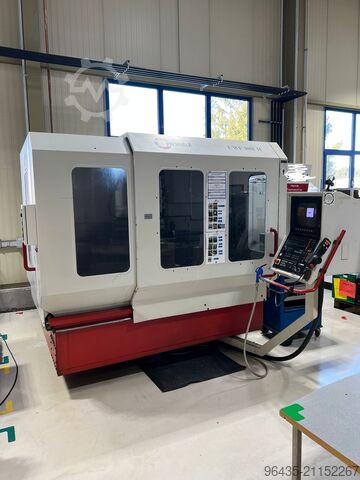

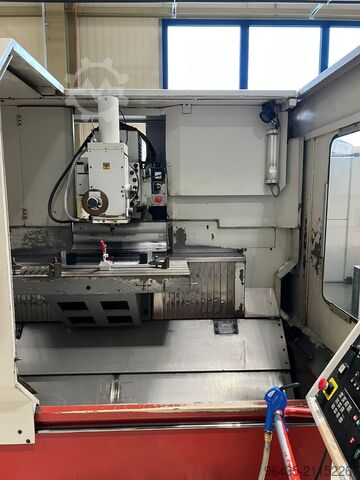

Condition: used, Year of construction: 1990, Milling machine Hermle UWF 1001H, year of manufacture 1990 Fpedpfx Aoyguunsdvec

Condition: used, Year of construction: 1990, Milling machine Hermle UWF 1001H, year of manufacture 1990 Fsdpfx Adeyc R Agjvopc
