Fully overhauled Hot Radial Forging

CNC GFM SX-13

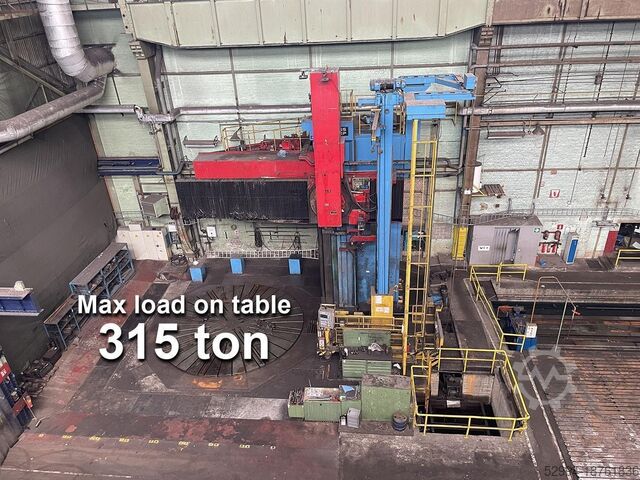

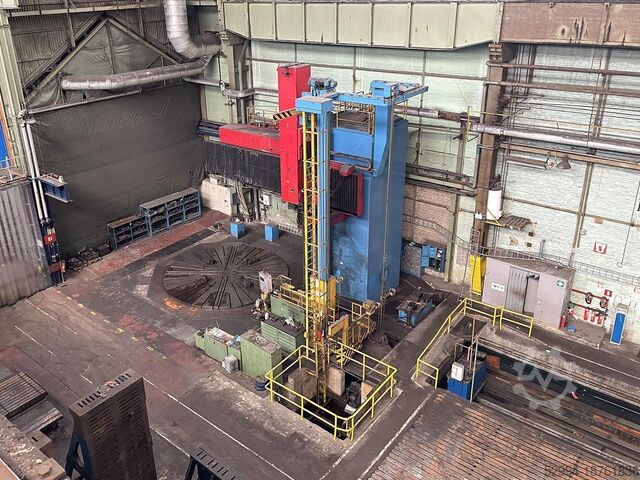

Condition: ready for operation (used), Schiess 80 DF Type: 80 DF 700/900-550/280 Originele CNC-machine van Schiess (geen ombouw van conventioneel naar CNC) Volledig hydrostatische machine Gelaste kolom Siemens-motor Uitgerust met een controlelift om de bovenkant van het werkstuk te bekijken Machine met zeer hoge tolerantie Tafeldiameter: 7000 mm Maximale diameter van het werkstuk: 9000 mm Maximale belasting: 315 ton Snelheid: 0,25 25 tpm Maximaal rotatiekoppel: 63.000 kgm Maximale snijkracht met uitgeschoven ram tot 900 mm: 12.500 kg Gereedschapskop kan -40° tot +40° kantelen Vermogen: 125 kW gewicht van de tafel: 71 ton Ramsectie: 380 x 380 mm Horizontale verplaatsing van de ram vanaf het midden van de tafel: 5640 mm Verticale slag van de ram: 2800 mm Maximale hoogte onder dwarsbalk: 5547 mm Horizontale verplaatsing van de dwarsbalk: 4700 mm Uitgerust met 3-positie automatische gereedschapswisselaar Fedpfxsv Rwdps Aa Nogi Totaalgewicht van de machine: 260 ton! Unieke eigenschap er zijn 3 mogelijke configuraties van de hoofdkolom: 1 - voor maximale zwenking 9000 mm (zoals momenteel ingesteld) 2 - voor max. zwenkbereik 10.500 mm 3 - voor maximale swing 13 100 mm Dit kan worden bereikt door de hoofdkolom opnieuw op het fundament te positioneren.

Condition: ready for operation (used), empty load weight: 22,000 kg, Type FTC75 Distance between centers: 8000 mm Swing over bed: 1500 mm Swing over cross-slide: 1100 mm Diametre of main spindle bore: 130 mm Number of speeds: 3,6 > 720 rpm Total power needed: 29,5 kW / 40 hp Fedpfjwkw Umsx Aa Negi Max weight between centers: 11 ton

Condition: good (used), turning diameter: 5,000 mm, travel distance Z-axis: 2,000 mm, turning length: 2,500 mm, The machine is in good technical condition, fully functional, modernized in 2008. It is equipped with a Siemens Sinumerik 802 D control system, a maximum turning diameter of 5000 mm and a clamping plate diameter of 2500 mm. The workpiece weight is 40 tons and the height is 2000 mm. Fgjdpfjv Dkykjx Aa Nei

Condition: excellent (used), TECHNICAL CHARACTERISTICS Capacity: Chuck diameter: 3.000 mm Maximum turning diameter: 3.110 mm Maximum piece weight: 20 Tn Revolutions: 1,5-39,5 Rpm Main motor power: 45 Kw Movable crossbeam: 1.200 mm Height under crossbeam: 1.800 mm Vertical lathe with two arms: Right carriage pentagonal turret 5 positions with automatic rotation X travel: 1,500 mm Z travel: 965 mm Left slide with RAM Travel X: 1.500 mm Travel Z: 1,200 mm Remarks: Independent control panel 2 x CNC Fagor 8055 for the control of the 2 slides from the same screen. Fjdpsr Ddu Dsfx Aa Nsgi Grinding head (optional) Year of manufacture/reconstruction: 1975/2001

Year of construction: 1974, condition: refurbished (used), functionality: fully functional, machine/vehicle number: 1293, CNC Radial Forging Machine GFM mod. SX-16 Manufacture: GFM (Austria) YOM: 1974 / 2022 Model: SXL-16 Machine number: 1293 PLC: Siemens S7 - Technology V4.2 with CNC Bosch Rexroth XM Numbers of Hammers: 4 Forging force: 800 Ton (200 t per Hammer) Fgodpfoq U Sa Sjx Aa Nji Strokes per minute: 580 Hammer length: 320 mm Maximum hammer setting scope - calculated by diameter: 100 mm Maximum diameter of forging regarding: - structural steel: circular cross section – Ø 160 mm square cross section – 130 mm - high alloy steel: circular cross section – Ø 120 mm square cross section – 100 mm Extreme quadrangle: 12 x 120 mm Maximum length of forging: 6000 mm Min and Max diameter of mounting in manipulator: 30 - 160 mm Feed of manipulator A: 6800 mm Feed of manipulator B: 7200 mm Passage through manipulator: Ø 130 mm Manipulators speed in fast move: 400 mm/s Feed speed of manipulators (stepless adjustment): 10 ÷ 115 mm/s Cooling water pressure: 3 ÷ 5 bar Temperature of inlet water: max. 30˚C Cooling water consumption: 34m3/h Pipe diameter for cooling water: 2” Compressed air pressure: min. 5 bar Pipe diameter for compressed air: Ø20 mm Consumption of compressed air: 1,5 Nm3/h Power supply (nominal power): 350 kW Motor voltage: 500 V Control voltage 220 V Power of main engine: 200 kW Power of pump motors: 185 kW Power of manipulators motors: 2 x 22 kW Dimensions of the machine Axis height of forging above the hall level: 750 mm Maximum height of machine above the hall level: 2.050 mm Maximum length of machine on the hall level: 33.740 mm Foundation length: 34.200 mm Maximum width of machine on hall level without loading equipment: 4350mm Foundation width: 15.600mm Machine net weight: 124.490 kg

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, Vertical Turret Lathe - Double Column with 5 controlled axes - Brand: CKD Blansko / SKD / YOM: 2008 Overhaul and renewals were carried out on the machine in 2019 (completion January 2020), further work was carried out/followed ... Fgodpfoww H Ivex Aa Nsi The machine can be inspected by appointment under power. TECHNICAL SPECIFICATIONS: Workspace: - Faceplate diameter: 4.000 mm - Swing diameter max.: 5.000 mm - Workpiece height max.: 2.500 mm - Faceplate load max.: 50 tons C-axis: - Speed of the C-axis: 0,01 - 2 rpm - Torque on the faceplate max.: 35.000 Nm Machine: - Total power requirement: 160 kVA - Machine weight: approx. 74 tons EQUIPMENT: - Control: SIEMENS SINUMERIK 840D - Automatic tool changer - Pick-up magazine: 1 Angular head - Angular milling head - Oil coolant equipment - Coolant system with paper filter - AC drive for rotary tools - AC drives for X/Z/C/U/W-axis - Full enclosure - Chip conveyor - Slat-band chain conveyor - Documentation - CE marking There is no guarantee for correctness and completeness of the technical details and accessories. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

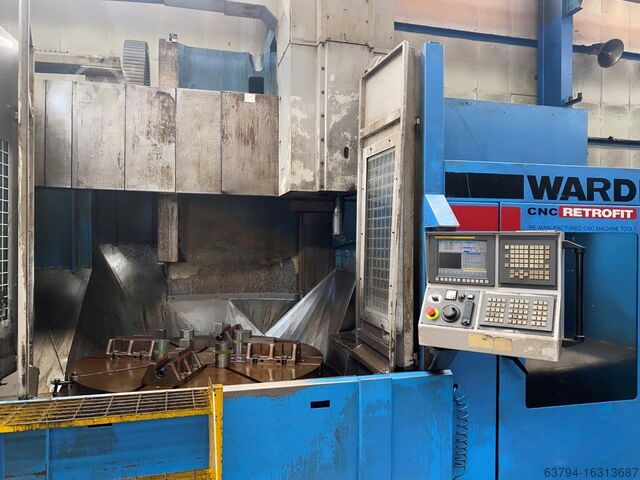

Condition: good (used), Webster & Bennett CNC Ram Type VTL Year 1986/2005 Table 1500mm dia. 10 Station Automatic Tool Changer Max Turning Dia 54” Fanuc Oi-TC Control Fully Enclosed Guards Automatic Tool changer Tooling Table Jaws Swarf Conveyer Fgsdpfetv Nm Djx Aa Nji

Year of construction: 1998, condition: good (used), CHIRON FZ 18L 1998year Sinumerik 810 with 4 Axis Nikken Travels X 2000 mm Y 400 mm Z 425 mm table2280 x 450 mm spindle max 8000 Fodpfx Ajhpq U Uea Njgi Toolchanger ATC: 20 pos tools SK 40 weight 6,70 T manual books dimensions lenght 3,9m width 2,45m height 2,8m free loaded on truck EXW 01360 LOYETTES

Condition: used, Year of construction: 1981, machine/vehicle number: 78.977, Equipment: documentation/manual, Year of manufacture: 1981 / Year of conversion: 1996/1997 Control: Siemens 840 C Siemens control for X/Y/Z/W/U/B/V axes Spindle diameter: 200 mm Main motor: Siemens: 68 kW Spindle speed: Step 1: 3 - 202 rpm Step 2: 180 - 808 rpm Fgsdpsqc Umgofx Aa Nei X travel: 12,000 mm Y travel: 4,500 mm Z travel: 2,400 mm (support sleeve □ 520 mm / travel 1,200 mm + W axis 1,200 mm) Adapter: SK60 (SK50) Face slide: yes Milling head: 2 pieces Prepared for CNC rotary table (4th axis) Without rotary table and plate field (sold separately) Full documentation Self-weight: approx. 140 tons Video available!

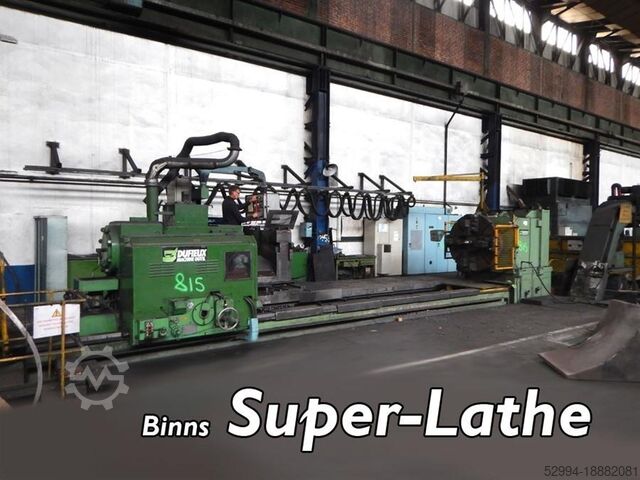

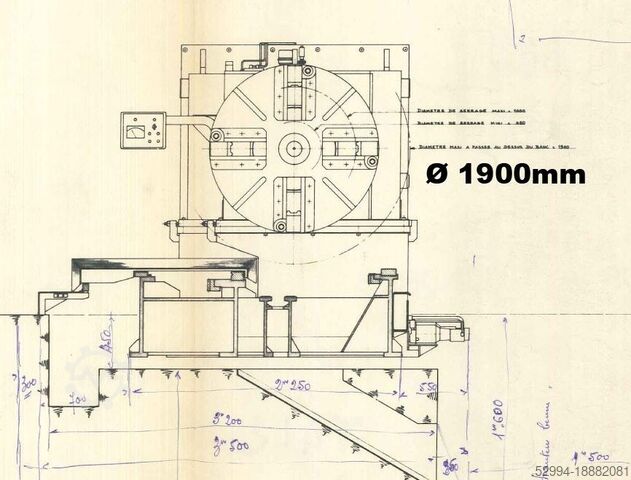

Condition: ready for operation (used), controller model: Num 1040, swing diameter over cross slide: 7,500 mm, Robuuste draaibank met 4 geharde lineaire geleidingen Fjdpfx Aewaivbja Nsgi Maximaal werkstukgewicht: 60 ton Hydraulisch contrapunt = automatische compensatie Dwarsslede voorzien van twee CNC gestuurde gereedschapshouders Siemens aandrijvingen en motoren Heidenhain-linialen en encoders Super Lathe-principe/licentie van Binns Machinery (VS). De ultieme prestatie voor zware draaibanken, bedoeld voor staalfabrieken, walsgieterijen en smederijen, voor de productie van producten zoals turbinerotoren, grote assen en staafproductie. Meest opvallende verschillen met een normale draaibank: veel breder bed = zeer hoge stijfheid = geen trillingen meer zwaar en omvangrijk vervoer ook voor stijfheidsdoeleinden zware werkstukken kunnen tussen de centers worden geplaatst het totale gewicht van de roldraaibank is erg hoog Swing over bed: 2000 mm Swing over cross-slide: 1700 mm Power on the spindle: 110 kW Number of speeds: 0,7 > 70 rpm
