CNC LATHE - INDEX ABC 42 ABC 42

Description

WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE

TWIN SPINDLE TWIN TURRET

INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS
MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER

FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL

Machine Category CNC Turning- and Milling Center

Make INDEX

Type ABC 42 (*934)

Year 2004

Control C200-4 / 840C Siemens

Country of origin Germany



Other information CNC

- Turning- and MillingCenter INDEX

- ABC 42

- two turrets

- live tool stations

- subspindle on upper turret

- 1x back drilling device

- with percussion unit

- many accessories

Technical Details
Backside processing: C-Axis 0,001 °

change-time tool to tool 0,2 sec

clamping diameter max. 42 mm

clamping length max. 38 mm

control C200-4 / 840C Siemens

dimensions of the machine ca. 7,0 x 3,0 x 2,5 m

Driven Tool Positions: 8

Feed force X: 8,3 / Z: 5,5 kN

Fixed tools max. 5 pos

Main spindle:

max. Torque 7,5 Nm

number of toolpositions 6 pos.

power capacity - driven tools 3,3 kW

power capacity - main spindel 13 / 21 kW

rapid traverse X: 16 / Z: 24 m/min

shaft cross cut 25 x 48 DIN 69880

spindle bore 15,5 mm

spindle diameter in front bearing 85 mm

spindle hollow 36 mm

spindle passage 36 (42) mm

Spindle speed - driven tools 6.000 min -1

Spindle speed range subspindle max. 4.500 min/-1

Subspindel: total power requirement ca. 30 kW

travel -x axis 81 mm

Isdjvk E Nmopfx Afpjih
travel -z axis 80 mm

turning length max. 280 mm

turning speed range - main spindle max. 6.300 min/-1

Turret 1: Turret 2:

weight of the machine ca. 3,0 t

Accessories
bar feeder Index LM 3200

Chip conveyor

Coolantsystem

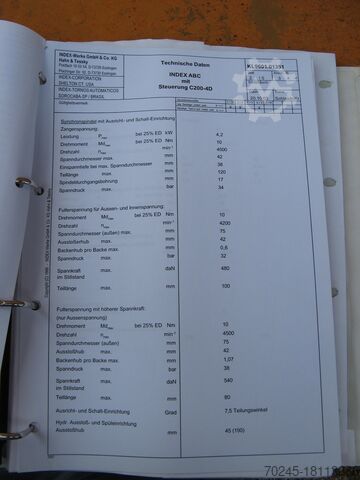

Documents

driven tool stations

hydraulic system

parts catcher

Subspindle

Turret 2x
