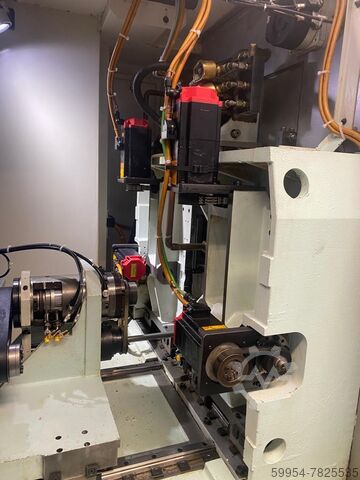

MANURHIN K'MX SWING 1020 REBUILD

1020

Condition: good (used), Year of construction: 1993, - TRAUB control TX 8F - spindle passage 42 mm - Working spindle speed: 40 - 4.000 1/min - 4 grooving slides: stroke 60 mm - 8-fold turret - high pressure pump 25 bar - backworking (2 spindles) - bar feeder (3 m) - chip conveyor Bdsdpfx Aoldd Iqof Hek

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, The positions of the rotating tools are: T01-02-03-04 / T22-23 / T34-35 - equipped with Iemca Boss 332E/32 new in 2006 - lot of collets / guide bushes - MSC-501 Control - the machine has always worked with oil. Bedpfx Aswpu Etef Hjdk

Condition: good (used), Year of construction: 2008, - Control FANUC Series 18i-TB - max. bar Ø: 16 mm Bdodpfx Ajtmu Rgjf Hok - max. speed - main spindle: 12 000 min-1 - max. speed - pick-up spindle: 12 000 min-1 - Headstock stroke: 130 mm - 3x rotating tools - Turning tools 4 + 4 - Bar feeder FMB minimag 18/3200 A

Condition: new, Year of construction: 2023, The K’MX 920 CLEVER sliding headstock automatic lathe is designed for machining complex workpieces up to Ø 20 mm. The lathe is equipped as standard with two electrospindles with a maximum speed of 12.000 rpm each. With its nine axes, comb + turret on three axes and independent end unit, this machine is capable of having four tools in the material for an optimised cycle time. Bdsdpok Dz Disfx Af Hek 9 linear axis 1 independent rack with 10 positions Cross-section of outer tools 12 x 12 mm Turret number of stations 12

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] Bdedpfx Aeuhbdiof Hek - Spindle speeds : 12000 [rpm] - Spindle power : 3,7/5,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 3,7 / 5,5 [kW] - C axis indexing precision : 0,001 [°] - Number of turrets : 1 LOWER TURRET - Number of positions : 12 - X/Z stroke : 90x65 [mm] - Y stroke : 50 [mm] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 - X/Y stroke : 90 / 319 [mm] END ATTACHMENT - Number of positions : 12 - X/Z stroke : 215x305 [mm] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2000x1280 [mm] - Machine height : 1720 [mm] - Machine weight : 3600 [kg] MACHINE HOURS - Number of hours under power : 23167 [h] EQUIPMENT - CNC : Fanuc 31i-B - Interface : Ethernet / RS232 / USB / PCMCIA - 3 colors status lamp - Rotating guide bush - Parts catcher - Ejection of workpiece - Coolant tank - Bar loader : Iemca Elite 220 (2010) - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: not inspected (used), Year of construction: 1999, Long lathe Hanwaha 12 with magazine, year 1999 Control: Fanuc O-T Number of simultaneous axes: 4 (Z1, X1, Y1, Z2) Number of simultaneous axes according to export control: 3 (Z1, X1, Y1) Linear axes: 3 (Z1, X1 & Y1) Circular axes: 0 Bdsdov Irp Uspfx Af Hsk Parallel axes: 1 (Z2) Accuracy / repeatability X, Z & Y: 0.03 / 0.02 mm TD Maximum speed of the main spindle: 12,000 rpm Power of the main spindle: 2.2 kW Maximum bar diameter: 14 mm Number of spindles: 2 Tool holder: 5 tools 12x12 Counter spindle power: 0.4 kW Maximum speed of the Counter spindle: 6,000 rpm Accessories: Transformer, various Habegger pliers, Iemca CH112/32 bar magazine, transformer & documentation Machine condition: Used in production until recently

Condition: used, Year of construction: 1990, Technical details: spindle passage: 23 mm z-axis: 150 mm turning length: 150 mm stroke: x+z Achse / Axis/eje/eixo/os = 30 mm facing movement (x-axis): 30 mm longitudinal traverse (z-axis): 30 mm control: Num 760T spindle turning speed - continuous: U/min feed speed: x/y: 5 mm/min feed speed: z: 10 mm/min tool turret: 2 Stück/pcs mit je/each 6 tools Bdsdpfx Aju Iwyvsf Hjk operating pressure: max. 45 bar total power requirement: 8,0 kW weight of the machine ca.: 2,2 t dimension machine xH: 2,45x1,3x2,2 m dimensions of the bar loader L-W-H: 4,65x0,5x1,3 m techn. details: - bar clamping hydraulic -automatic workpiece discharge (via catch basket) - 2 turrets with each 6 tool tapers - coolant device - control NUM 760 (size: L:1,0xW0,8mxH:1,56m) Zubehör: - bar loader magazine make IEMCA type CS 112/31 accessories: -24 div. tool tapers - device tool Sylvac system ( size:L:0,58xW:0,5xH:0,43m) *

Condition: used, Year of construction: 2001, Technical details: turning diameter: 33 mm turning length: 330 mm control: 840 total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 3850,2000,2100 m Bodpfow D Hh Ajx Af Hjdk 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours *

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC Bdsdjvk E Nmspfx Af Hok - Turning- and MillingCenter INDEX - ABC 42 - two turrets - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Accessories bar feeder Index LM 3200 Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, WE OFFER AN VERY NICE CONDITION INDEX WITH FULL EQUIPMENT AND TOOLINGS. MACHINE IS IN FULLY WORKING CONDITION. WE OFFER AN NICE CONDITION INDEX WITH Control FANUC 21i-TA DRIVEN TOOLS AND EQUIPMENT Max. turning diameter 310 mm max. turning length 1,470 mm Hollow clamping cylinder diameter 80 mm HOLE TROUGH SPINDEL 95mm Rapid traverse 12 m/min Bdsdpfxjvkx Nys Af Hok Tool positions 16-way turret / 4 driven C-axis division 1-locking bolt 2.5 degrees 2-locking bolt 0.5 degrees Speed range level 1: 20-2000 rpm level 2: 40-4000 rpm Total power requirement 40 kW Machine weight approx. 6 t Dimensions 5,350 with chip conveyor x 2,000 x 2,500 mm Control FANUC 21i-TA Year of manufacture 2002 Incl. chip conveyor Incl. tailstock Incl. steady rest Incl. documentation FOR CUSTOMER WE CAN ORGANIZE AS WELL TRANSPORT TO THEIR COMPANY..WORLDWIDE DELIVERY TO LOAD MACHINE NEED 7 LOADING METERS ON TRUCK.
