VERTICAL BANDSAW

CORMAK HBS700

CORMAK HBS700 Band Saw

The CORMAK HBS700 is a high-performance band saw designed for professional cutting of metal, wood, aluminium, and plastic materials. Thanks to its large guide wheel diameter, powerful 4 kW motor, and robust construction, the HBS700 band saw is an ideal solution for production plants, metalworking workshops, woodworking facilities, and industrial applications.

Main Advantages of the Machine
Large working capacity – maximum cutting height of 430 mm and cutting width of up to 700 mm allow machining of large and heavy workpieces.
High-quality work table – a cast iron, ground, and polished table ensures stable material support and precise cutting.
Quick blade tensioning lever – reduces setup time and simplifies blade replacement and maintenance.

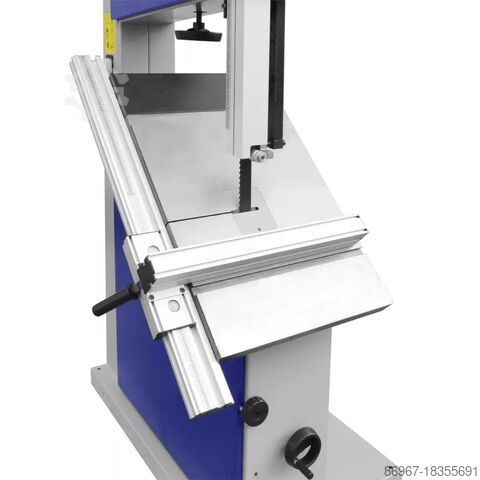

Wide table tilting range – adjustment from -5° to +45° enables precise angled cuts.
Blade tension inspection window – allows continuous monitoring of blade tension without stopping the machine.
Constant blade speed of 18 m/s – optimized for cutting materials with different hardness levels.
Construction and Technology

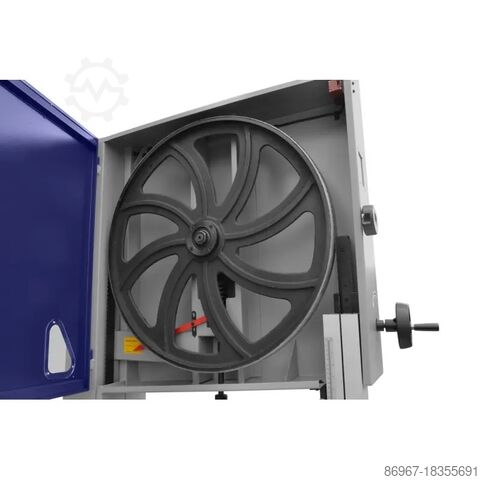

The CORMAK HBS700 is an industrial-class band saw based on a rigid steel structure and a heavy-duty machine frame, ensuring long service life and resistance to deformation. The large band wheels with a diameter of 680 mm provide smooth operation and stable blade guidance.

The machine is powered by a three-phase motor with a power rating of 4.0 kW (S1) / 5.6 kW (S6), allowing efficient operation even when cutting thick and demanding materials.

Integrated dust extraction outlets 2 × 100 mm enable effective connection to extraction systems for sawdust and chips, significantly improving workplace cleanliness and safety.

Precision and Working Efficiency

The large work table measuring 790 × 500 mm, combined with a wide cutting blade (up to 40 mm) and a rigid guide system, ensures high-quality and repeatable cuts even in demanding applications.

The operator has full control over cutting direction, angle, and depth. The well-balanced construction minimizes vibration and reduces the risk of cutting errors, ensuring smooth and accurate operation.

Applications

The CORMAK HBS700 band saw is suitable for:

Cutting non-ferrous metals and structural steel,
Processing solid wood and laminated timber,
Prototype and production work in industrial facilities,
Cutting technical plastics and composite materials,
Use in technical workshops, tool rooms, and metalworking facilities.
Standard Equipment
High-voltage release safety switch
Precision rip fence
Cutting blade 5020 × 25 mm, 10 TPI
Optional Equipment
Extraction hose Ø100 mm
Clamps for dust extraction connection
Transport trolley or mobile base
Technical Specifications
Parameter Specification
Wheel diameter 680 mm
Maximum cutting height 430 mm
Maximum cutting width 700 mm
Work table dimensions 790 × 500 mm
Table tilt range -5° to +45°
Blade width range 19 – 40 mm
Blade length 5020 mm
Blade speed 18 m/s
Overall dimensions 1090 × 700 × 2430 mm
Hnodovugtnjpfx Ac Ast
Weight 308 kg
Motor power S1 / S6 4.0 / 5.6 kW
Dust extraction outlets 2 × 100 mm
Power supply 3-phase, 400 V
Operating manual (DTR) Included
CE declaration Yes
