Bench drill

CORMAK WS32

Condition: new, Year of construction: 2026, The CORMAK WS32BC bench drill press is a precision column drill for metal, equipped with automatic spindle feed and a cooling system, designed for demanding drilling and tapping operations. With its 8-speed gearbox, rigid construction, and extensive equipment, it is perfectly suited for intensive industrial use. Key Advantages Automatic spindle feed with adjustable speed up to 110 mm/min – improves ease of operation and ensures repeatable machining results Integrated cooling system – protects tools from overheating and enhances machining quality Tapping function – automatic spindle reverse enables efficient thread cutting up to M24 High structural rigidity – 100 mm diameter column and heavy-duty base effectively reduce vibration 150 mm spindle stroke – allows deep drilling without interrupting the cycle 8-speed gearbox – range of 140–1960 rpm for precise parameter adjustment Enhanced safety – spindle and belt guards with limit switches, CE compliant Design and Technology The CORMAK WS32BC bench drill press is built from seasoned, precision-machined cast iron components. The spindle and transmission shafts are made of hardened steel to ensure durability and wear resistance. The MK3 Morse taper allows quick tool changes and compatibility with a wide range of drills and taps. The stable worktable, rotatable 360°, facilitates machining of workpieces with various shapes and dimensions. Precision and Performance Thanks to the automatic feed system and integrated cooling, the WS32BC ensures high hole quality and significantly reduces machining cycle times. The 1.1 kW main motor and 0.12 kW feed motor provide efficient operation even under heavy loads. The machine is ideal for drilling, reaming, and tapping in steel, cast iron, and alloy materials. Bwjdpfx Aorigaqeh Iji Applications The CORMAK WS32BC automatic feed drill press is an excellent solution for: tool rooms and metal fabrication workshops maintenance departments manufacturing plants technical schools and training centers Standard Equipment Keyed drill chuck Drift key for taper removal Cooling system U-type spindle guard with limit switch Belt drive cover with safety switch Technical Specifications Parameter Value Max. drilling diameter (steel) 32 mm Max. tapping diameter (steel) M24 Column diameter 100 mm Column wall thickness 12.7 mm Spindle stroke 150 mm Feed speed 0–110 mm/min Spindle–column distance 265 mm Spindle–table distance 390 mm Spindle–base distance 745 mm Spindle taper MK3 Speed range 140, 250, 380, 500, 580, 850, 1250, 1960 rpm Number of speeds 8 Table dimensions 380 × 400 mm Base dimensions 645 × 470 mm Machine height 1370 mm Main motor power 1.1 kW Feed motor power 0.12 kW Power supply 400 V Net weight 230 kg Machine dimensions 900 × 500 × 1400 mm

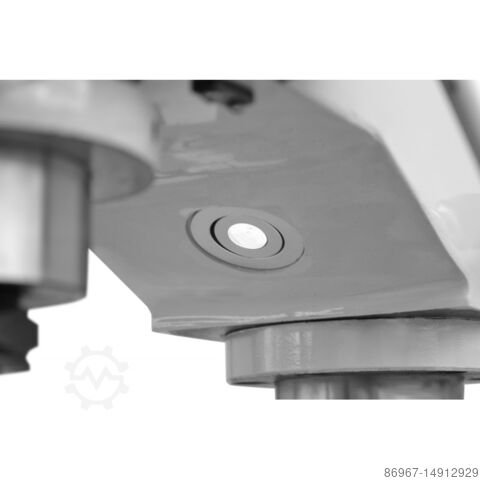

Condition: new, Year of construction: 2026, The CORMAK WS32BGP column drill press is a professional metal drilling machine designed for intensive use in production plants, toolrooms, and maintenance workshops. Thanks to its precision-engineered construction, powerful motor, and integrated automatic feed and cooling systems, it ensures efficient and safe drilling and tapping of holes in steel up to 32 mm in diameter. Key Advantages Automatic spindle feed – enables precise tool guidance without operator fatigue, increasing productivity Tapping function with automatic reverse rotation – allows efficient thread cutting up to M20 in steel Large spindle stroke – 150 mm – permits deep-hole machining without interrupting the process High structural rigidity – body and column made of seasoned cast iron ensure stability even under maximum load Eight spindle speeds – wide range (140–1960 rpm) for optimal parameter selection depending on the material Bjdpfxjridqbs Ah Iowi Integrated cooling system – extends tool life and improves machining quality Design and Technology The CORMAK WS32BGP column drill press is built around a solid 100 mm diameter column and a heavy base, ensuring excellent rigidity and operational stability. The head, column, and table are made of high-grade cast iron. The spindle runs on precision bearings and is equipped with an MK3 Morse taper. Transmission shafts are made of hardened, heat-treated steel, ensuring durability of the drive mechanism. Operator safety is enhanced by a U-type spindle guard with limit switch and a belt drive cover with safety switch, both compliant with CE standards. Precision and Performance Thanks to the automatic feed system and wide spindle speed range, the machine delivers exceptional drilling accuracy and repeatability. The high-quality control panel and integrated LED work light provide intuitive operation and comfortable working conditions, even in low-light environments. The 360° rotating table with manual height adjustment increases operational flexibility. Applications The CORMAK WS32BGP column drill press is designed for industrial metalworking applications and is suitable for: metal fabrication workshops maintenance departments toolrooms small and medium-sized manufacturing companies technical schools and training centers Standard Equipment Keyed drill chuck (MK3 Morse taper) Cooling system Drift key for taper removal Integrated LED work light CE-compliant safety guards Technical Specifications Parameter Value Max. drilling diameter in steel 32 mm Max. tapping diameter in steel M20 Column diameter 100 mm Column wall thickness 12.7 mm Spindle stroke 150 mm Spindle–column distance 265 mm Table lifting range 820 mm Table rotation 360° Max. spindle–base distance 1235 mm Spindle taper MK3 Speed range 140–1960 rpm Number of speeds 8 Table dimensions 380 × 400 mm Base dimensions 380 × 400 mm Machine height 1900 mm Main motor power 1.5 kW Feed motor power 0.12 kW Power supply 400 V Net weight 310 kg Packaging dimensions 1040 × 640 × 2050 mm

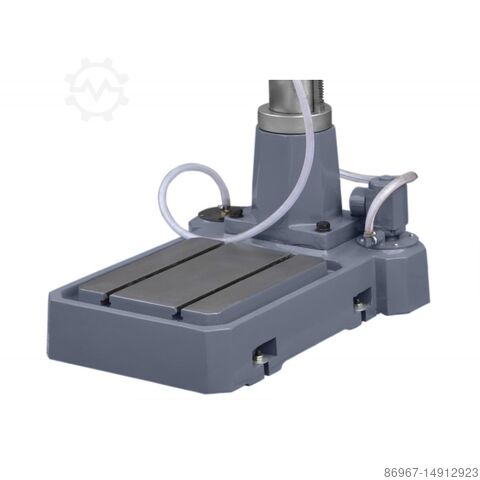

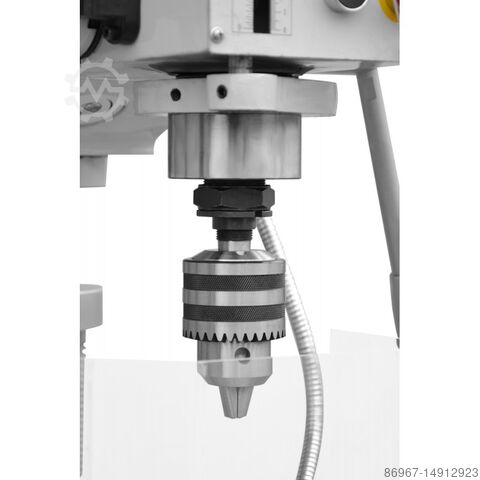

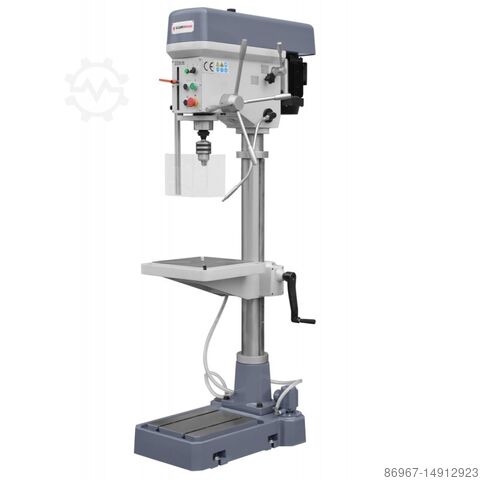

Condition: new, Year of construction: 2026, The CORMAK WS32GP column drill press is an advanced metal drilling machine designed for industrial environments where high precision, reliability, and tapping capability are essential. Equipped with a cooling system, safety guards, and a 400 V drive, the machine performs exceptionally well in both serial production and toolroom applications. Key Advantages Tapping capability up to M20 – automatic spindle reverse enables efficient and safe thread cutting High torque output – 1.5 kW (400 V) motor ensures effective machining of structural and tool steel 150 mm spindle stroke – allows deep-hole drilling without repositioning the workpiece Heavy-duty construction – made of seasoned cast iron for long-term rigidity and durability 8 spindle speeds – 140–1960 rpm range enables optimal cutting parameter selection Height-adjustable 360° rotating table – flexible workpiece positioning and full accessibility Integrated gravity-fed cooling system – extends tool life and improves surface finish quality Enhanced safety features – spindle and belt drive guards with limit switches, CE compliant Design and Technology – Built for Continuous Industrial Operation The CORMAK WS32GP is manufactured from high-quality components. The head, column, table, and base are made of seasoned cast iron, ensuring resistance to vibration and deformation. The MK3 spindle and transmission components are produced from hardened and heat-treated steel for increased durability and precision. A clear control panel and ergonomic feed lever provide intuitive operation, even during extended working hours. The integrated LED work light enhances visibility in low-light working environments. Precision and Performance – Optimized for Metal Machining With a 150 mm spindle travel and a highly rigid structure, the CORMAK WS32GP ensures excellent dimensional accuracy and repeatability. Smooth motor operation and a precision gearbox enable reliable drilling and tapping performance. The large table lifting range (820 mm) and maximum spindle-to-base distance of 1235 mm allow machining of both small and large workpieces. Applications – Heavy-Duty Industrial Machine The CORMAK WS32GP is a heavy-class industrial drill press intended for: Bwedpjridp Nofx Ah Isi manufacturing plants performing serial metal machining toolrooms and metal fabrication workshops maintenance departments in machinery and energy industries training centers and technical schools Standard Equipment 1.5 kW three-phase motor Forward/reverse rotation with tapping function Integrated gravity cooling system MK3 spindle with drill chuck Spindle and belt drive guards with safety limit switches Drift key for taper removal LED work light Operation manual (Polish language) CE Declaration of Conformity Technical Specifications Parameter Value Max. drilling diameter in steel 32 mm Max. tapping diameter in steel M20 Column diameter 100 mm Column wall thickness 12.7 mm Spindle stroke 150 mm Spindle–column distance 265 mm Table lifting range 820 mm Table rotation 360° Max. spindle–base distance 1235 mm Spindle taper MK3 Speed range 140–1960 rpm Number of speeds 8 Table dimensions 380 × 400 mm Base dimensions 380 × 400 mm Machine height 1900 mm Motor power 1.5 kW Power supply 400 V Net weight 310 kg Packaging dimensions 1040 × 640 × 2050 mm
