NCorrea FP40-40S Gantry Milling Machine

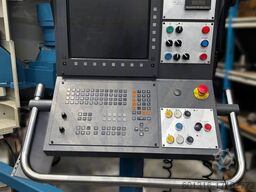

Correa FP-40/40S

Condition: reconditioned (used), functionality: fully functional, turning diameter over cross slide: 690 mm, spindle bore: 150 mm, turning diameter: 1,040 mm, turning diameter over top slide: 690 mm, center height: 500 mm, center width: 2,000 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 160 mm, travel distance Z-axis: 380 mm, bar passage: 55 mm, Center height: 500 mm Distance between centers: 2.000 mm Maximum turning diameter: Over cross slide: 690 mm Over bed: 1.040 mm Over gap: 1.070 mm Bed width (hardened guides): 670 mm Gap length: 480 mm Gap length in front of the faceplate: 320 mm CARRIAGE Length of bed guideways: 1.020 mm Cross slide travel: 640 mm Compound slide travel: 360 mm SPINDLE Spindle nose: ASA 15’’ Spindle bore diameter: 150 mm Front bearing size (NN): 200 / 310 / 82 mm Rear bearing size (NNU): 190 / 260 / 69 mm Internal Morse taper reduction sleeve: No. 6 Number of spindle speeds: 24 Speed range: 4 ÷ 800 rpm THREADING Total number of threads: 398 Metric threads: 0.5 ÷ 224 mm Module threads: mod. 0.25 ÷ 11 Bdodsyhhuwepfx Ad Ajb Whitworth threads: 56 ÷ 1/8 TPI Diametral pitch threads: 112 ÷ 1/4 DP FEEDS Number of feeds: 108 Longitudinal, cross and compound feeds: 0.05 ÷ 22.4 mm/rev RAPID TRAVERSES Longitudinal, cross and compound: 2.500 mm/min Longitudinal return: 5.000 mm/min TAILSTOCK Quill diameter: 130 mm Quill Morse taper: No. 6 Quill travel: 420 mm STEADY RESTS Bed steady rest capacity: 140 ÷ 500 mm Carriage steady rest capacity: 40 ÷ 350 mm PERMISSIBLE LOAD Cantilever load: approx. 1.500 kg Between centers, without steady rest: approx. 5.000 kg Between centers, with steady rest: approx. 6.000 kg Machine weight: approx. 7.800 kg

Year of construction: 1981, condition: excellent (used), faceplate diam 1300mm max turning diam 1100mm range of turning diam 460-1250mm Bdedpfxek Dz N Is Ad Aob

Condition: excellent (used), spindle bore: 84 mm, turning diameter: 1,000 mm, turning length: 5,000 mm, quill stroke: 300 mm, total length: 11,380 mm, total width: 2,200 mm, spindle speed (max.): 500 rpm, spindle speed (min.): 5 rpm, swing diameter over cross slide: 1,876 mm, metric thread diameter (min.): 1 mm, metric thread diameter (max.): 120 mm, overall weight: 17,730 kg, quill mount: MK 5, faceplate diameter: 1,000 mm, Heavy duty lathe is in a very nice condition, under power. It is equipped with lunette and steady rest. Carriage is overhauled, shaft bronze bushings are new. Bdsdpexwd D Eefx Ad Ajb

Year of construction: 1983, condition: good (used), Machine number: 316204/22 Type / Model: FSS 315/E Travel x-y-z: 850 - 280 - 355 mm table: 1.200 x 370 mm clamping surface: 1.060 x 260 mm Speed range: 28 to 1,400 rpm spindle mount: SK 50 quill stroke: 80 mm Feed rates x and y axis 16 to 800 mm/min feed z-axis: 5 to 250 mm/min Bdjdpfx Asfli Afsd Asb Connection: 8 kW Accessories/equipment: Swivel head; condition: good Weight: 4 t Dimensions: 2.000 x 2.000 x 2.400 mm

Condition: good (used), Year of construction: 1993, machine/vehicle number: 9340020, Offer 26035 Technical Data - Three powered rollers, each roller hydraulically adjustable - Suitable for prebending and cone rolling, side arms can be swung out - Operation from a swiveling control panel with digital actual value displays - Max. working width: 3050 mm - Max. plate thickness at 400 N/mm² yield strength without prebending: 20 mm - Prebending at minimum bending diameter 5 x top roller diameter: 16 mm - Top roller diameter: 340 mm - Side roller diameter: 250 mm Bdodpfeyq E S Eox Ad Asb - Bottom roller diameter: 300 mm - Drive: 400 V / 9.5 kW - Working speed adjustable - Space requirement: approx. W 6200 x H 1650 x D 1650 mm - Machine weight: approx. 16,000 kg - Total weight (machine + support column + support arm): 19,500 kg - Includes: extended roller ends for mounting profile rollers, - conical bending device - lateral support arm hydraulically adjustable - upper support column hydraulically adjustable

Condition: good (used), Year of construction: 1979, functionality: fully functional, machine/vehicle number: 332046, travel distance X-axis: 8,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 2,200 mm, spindle speed (max.): 850 rpm, spindle speed (min.): 6 rpm, feed rate X-axis: 8 m/min, feed rate Y-axis: 6 m/min, feed rate Z-axis: 1 m/min, total width: 10,000 mm, total length: 14,000 mm, total height: 4,500 mm, spindle diameter: 160 mm, table load: 40,000 kg, table length: 3,000 mm, table width: 3,000 mm, workpiece weight (max.): 40,000 kg, overall weight: 71,000 kg, drill spindle length: 1,200 mm, year of last overhaul: 2002, power: 60 kW (81.58 HP), The machine is on stock and being reassembled for continious use. A combination with 3x3 m TDV5 rotation table enables most demanding machining operations. Machine will be available for inspection under power. Bodpfx Asuplptsd Asdb

Condition: refurbished (used), Year of construction: 2026, Conventional Lathe type TR 135B2 x 6m after general overhaul, equipped with a heavy tailstock and compound with T-slots. Technical data: Swing over bed: 1350 mm Swing over carriage: 1000 mm Distance between centers 6000mm Maximum workpiece weight between centers: 9,000 kg Maximum workpiece weight between centers with one steady: 10,500 kg Maximum workpiece weight between centers with two steadies 12,000 kg Special equipment included in the price of the lathe: - 4-jaws independent chuck dia. 1000mm Bodpfx Aok Itipjd Aedb - roller steady rest dia. 40-400mm - roller steady rest dia. 400-600mm - automatic lubrication for the carrriage, - lighting lamp, - cooling system.. 12 months material warranty.

Condition: excellent (used), Year of construction: 1972, functionality: fully functional, We are selling this lathe. It is connected and can be tested under power. The machine comes with accessories. Turning diameter: 2,000 mm. Turning length: 10,000 mm. Maximum workpiece weight: 60,000 kg. Machining diameter: 2,000 mm. A video of the machine can be sent via WhatsApp. Bdsdjxwmbmspfx Ad Aeb

Condition: ready for operation (used), Year of construction: 2017, turning length 4000 mm turning diameter 850 mm turning dia. in gap 1150 mm turning diameter over slide 520 mm turning speeds 5.0 - 630 U/min quill: 6 MK quill travel 250 mm spindle bore 100 mm Bdodpfx Ajxabh Tod Aob workpiece weight max. 4000 kg bed width 600 mm travel -x axis 500 mm travel -z axis 3700 mm rapid traverse X 1800 mm/min rapid traverse Z 3640 mm/min feeds X : 0.04 - 4.8 mm/min feeds Z : 0.08 - 9.6 mm/min feeds Z1 : 0.02 - 2.4 mm/min engine output 20.0 kW weight of the machine ca. 6800 kg. dimensions 6150 x 1500 x 1500 mm good / well-maintained condition (!!) original price at the time approx. 65.000 euros special price on request Description: - particularly heavy, heavily ribbed and wide machine bed - in a rigid one-piece monoblock design - induction-hardened and ground guide prisms - guarantee long-term accuracy and minimal wear - solid headstock - with high-precision, tapered roller bearing main spindle . and 100 mm spindle bore - excellent smooth running at maximum spindle speed - joystick switch for X and Z feed directly on the support - manually switched 4-stage countershaft gear, - powerful main spindle motor enables exact adjustment of the speed . and high torque for heavy machining - rapid traverse for X and Z axes enables quick positioning of the support . and reduces idle times - adjustable overload clutch in the lock case protects the feed mechanism . against damage and failures - central, handy control for feeds and thread pitches - the feed gear offers a wide range of . diametric, inch, module and metric threads - support and top slide are designed for large cutting forces - higher working precision - user-friendly functions Scope of delivery: - SINO position indicator - TOS 3x jaw chuck .. Ø 400 mm - 4-jaw faceplate chuck Ø 800 mm - 4-way tool holder - Fixed steady rest 40-350 mm - Follow-on steady rest 30-120 mm - Fixed centering point - Reducing sleeves - Chuck protection - Coolant device - Machine leveling feet - Work light - Operating tools - Operating instructions

Condition: excellent (used), Year of construction: 2009, Technical data: Working width: 2600 mm Bending capacity: 16.0 mm Pre-bending: 12.0 mm Bdedpfx Aoyg Eulsd Aeb NC control Upper roller diameter: 330 mm Middle roller diameter: 290 mm Side roller diameter: 270 mm Conical bending device via inclined positioning of the side rollers Mobile control panel with digital display Motor power: 11 kW CE mark Dimensions (length x width x height): approx. 5100 x 2100 x 1800 mm Weight: approx. 12 tons The seller is not liable for typographical or data transmission errors. The machine's condition, both visually and technically, as well as wear, is in accordance with its age; used machines are sold without any warranty.
