Tool and Cutter Grinder

Döbeli FSM 150

Condition: used, Year of construction: 2012, grinding diameter max. 320 mm grinding length 1.500 mm centre height 160 mm Control Touch Jones & Shipman between centers max. 100 kg table: Traverse Z-Axis 1.645 mm traversing speed 0,0001 - 12 m/min swivable +5 / -5 ° x-axis: Traverse X-Axis 260 mm traversing speed 0,0001 - 6 m/min grinding head: grinding wheel motor 7,5 kW Fedotqmrpspfx Aa Njgi cutting speed 45 m/s Grinding wheel Ø x width x bore 450 x 50 x 203,2 mm Tailstock: Swivel range -15 / +90 ° turning speed range 0 - 660 U/min Torque 27 Nm tool adaptor MK 3 total power requirement kW weight of the machine ca. 8,5 t dimensions of the machine ca. 5,5 x 2,5 x 2,0 m Cylindrical Grinding Machine JONES & SHIPMAN - Suprema Easy 1500 E - Replacement grinding wheel flange - Multi-grain diamond (for circumferential and lateral dressing, 10mm, 1 carat) - Tailstock with micro adjustment (max. adjustment range +-0.05mm) - Pneumatic quill retraction - Two-jaw bezel (range 8-75 mm)

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, TECHNICAL DESCRIPTION EWAG 6-axes CNC Tool Grinding Machine Ewamatic Line. Make : EWAG Type: Ewamatic Line ERS - SK2000 Year: 2002 Control type: CNC Control: NUM 1050 Origin: Switzerland Weight of the machine approx. 4 t Dimensions of the machine approx. 2365 x 2920 x 2810 mm Travels: Cross axis X 360 mm Height adjustment Y 150 mm Infeed axis Z 230 mm Swiveling axis B +/-120 deg. Tilt axis A: -15...+25 deg. Dividing attachment with cylindrical grinding mode HSK63 clamping variant (C-axis1000 rpm) 6-station turret grinding head tiltable: Grinding spindle Ø 80 mm, number 6, arranged in a star shape Grinding wheels Ø max. 250 mm Grinding spindle drive 7.5 kW, speed 12000 rpm. RENISHAW 3D Measuring station Dressing device for automatic stone dressing of diamond and CBN grinding wheels Coolant equipment Fsdpev Tbfpjfx Aa Nsgi With oil-mist extractor Donaldson

Condition: ready for operation (used), The machine is in very good condition and can be tested on site. Technical Data – Grinding Machine Machining area (mm) Height x Length x Depth: 80 x 110 x 55 Motor power (kW): 0.5 Speed (min-1): 5000 Feed rate (hod/min): 150 Table load (kg): 20 Control: BOSCH Accuracy: 0.005 mm, reading via CNC, template grinding 1:10, 1:20, or 1:50, suitable for rough grinding. Fgjdpfx Aajwvgide Noi If you have further questions, I am at your disposal.

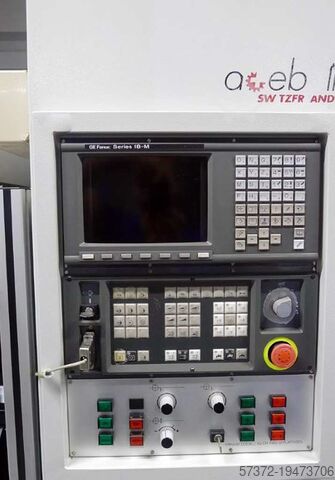

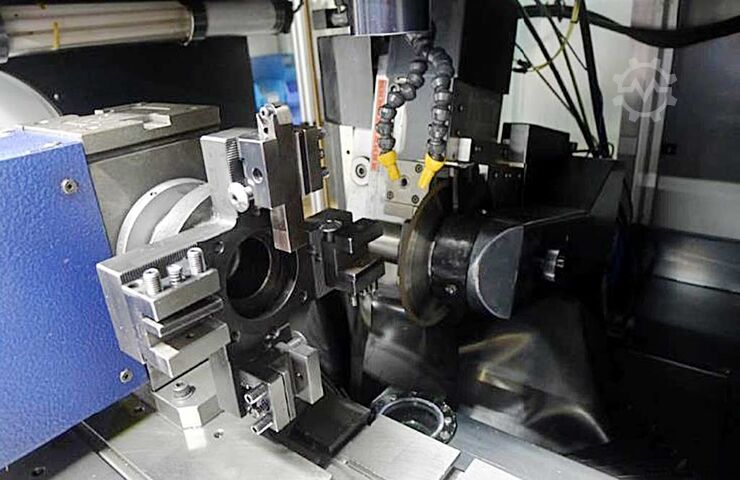

Year of construction: 1997, condition: ready for operation (used), A Doebeli CNC profile sanding machine including Lehman dividing head, 6x basic holders, TGXE 40 collet chuck, ER25 collet chuck holder and various sanding wheels is available. Profile width: 120mm, profile depth: 30mm, grinding stroke length: 0mm-80mm, machine dimensions X/Y/Z: approx. 1800mm/1700mm/1900mm, weight: approx. 2500kg, control: GE Fanuc Series 18-M, operating hours: 43575h. Documentation available. On-site inspection is possible. Fsdpfx Aswwllmoa Nogi
