Hydrocarbon cleaning system

Dürr Compact 80C

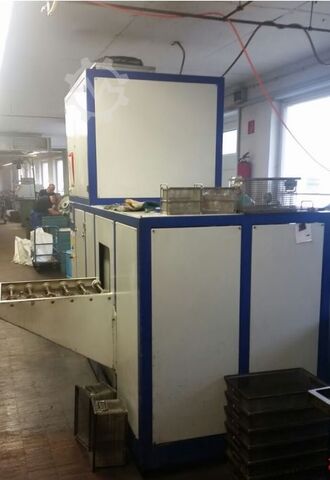

Dürr Ecoclean Compact 80C cleaning system
Complete documentation incl. program and RI diagram
Many new parts have been installed, e.g. new refrigeration compressor and double-walled tank.
New spare parts are included with the system.
Free of charge - 400 liter cleaner

Cleaning system - Dürr Ecoclean Compact 80C
Basic data
Date of purchase: RE from 04.12.2017
Year of construction: 04/1998
Factory No. :13265
Filling capacity: 400l
Cooling capacity: 5Kw
Permitted cleaning medium: Hydrocarbon VbF A3
Lowest flash point: 55°C
Heating capacity: 3 KW
Electrical connected load: 29 KW / 3x400V / 55A / 50 Hz
Operating hours: 59642.88 h

Technical data: Product
- Product: Petroleum solvent type A3 (hydrocarbon)
- Cooling: Air
- Washing chamber:

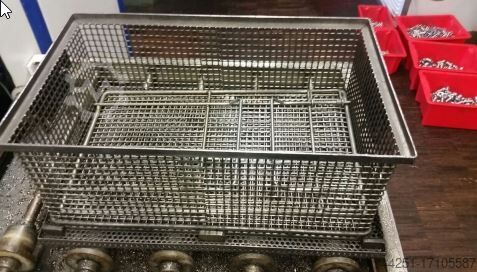

* Max. Max. load Dimensions: 530 x 370 x 200 [mm] Basket size
* Max. Max. load of batch / weight: 70 [kg]

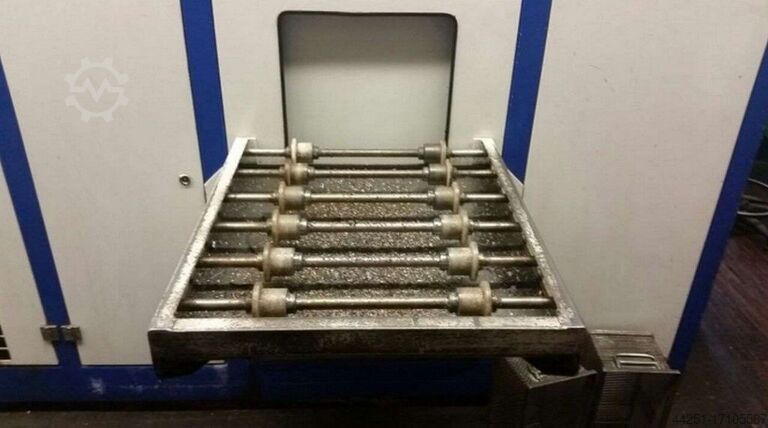

- Charging height: 935mm / manually via roller conveyor
*Roller conveyor length: 0.75m
- Cycle time: 8 to 15 [min] adjustable
- Stepless distillation: 50 [L/h]
- Electrical supply: 3x400 V, 50 [Hz]
- Compressed air consumption: 100L/h

Dimensions:
Width: 3m
Depth: 1.2m
Height: 2.58m

Dedjumazxjpfx Aghjku
The system has an optional distillation unit to recover the solvents.
solvents. This ensures particularly efficient and environmentally friendly operation of the system.
operation of the system.
Closed working chamber for the cleaning and drying process
Circulation filtration
● High-performance injection flood washing
● Emulsion separation
● Continuous treatment of solvents by vacuum distillation
● Continuous separation of low-boilers in water
● Minimization of energy consumption through heat recovery
