Lathes - CNC

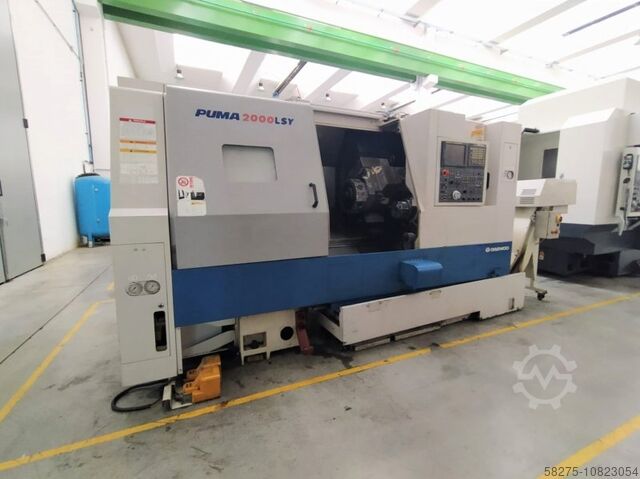

DAEWOO PUMA 2000 LSY

Condition: ready for operation (used), Year of construction: 2006, Functionality: fully functional, Machine/vehicle number: P2000Y0745, Turning length: 510 mm, Turning diameter: 330 mm, Spindle speed (max.): 4,000 rpm, Swing diameter over bed slide: 330 mm, TECHNICAL DETAILS Control: Fanuc 18i -TB Turning diameter: max. 330 mm Turning length: max. 510 mm Diameter over bed: max. 330 mm Main spindle Spindle power: 11 kW Spindle speed: 4,000 rpm Tool turret Number of turrets: 1 Number of tools: 12 Driven tools: available Driven tools Speed range: 45 - 4,500 rpm Brkyqtqzhl8 Spindle power: 5.5 kW MACHINE DETAILS Machine weight: 4,750 kg Connected load: 38.50 kVA

Year of construction: 2005, Condition: good (used), Functionality: fully functional, CNC lathe with many accessories and two turrets TECHNICAL DETAILS turning diameter over bed: 600 mm turning diameter over bed slide: 390 mm spindle speeds: 45 - 5000 rpm turning length: 860 mm Y-axis: 120 (+/- 60) mm (one turret) C-axis: 360 x 0.001° (both turrets) Control: 18 i Fanuc spindle bore: 75 mm feeds: 0 - 20/25 m/min rapid traverse in X and Z direction: 20/25 m/min cross slide travel: 250 mm longitudinal travel: 580/860 mm tool speeds: 0 - 5000 rpm tool drive power: 5,5 kW tool holder: 2 x 12-fold turret MACHINE DETAILS space requirement: approx. 3,2 x 2 x 2,3 m main drive motor: 22/25 kW operating voltage: 400 V Connected load: 30 kVA Machine weight: 6.5 t Baexdfko90 EQUIPMENT Counter spindle Power chuck Coolant device chip conveyor many accessories

Condition: used, Year of construction: 2000, turning diameter 290 mm turning length 492 mm control Fanuc Uqld2E09Lj total power requirement kW weight of the machine ca. t dimensions of the machine ca. m

Condition: good (used), Year of construction: 2001, DAEWOO PUMA 350 LB CNC LATHE MAKE DAEWOO, MADE IN KOREA MODEL PUMA 350 LB YEAR 2001 CONTROL FANUC 18T SWING OVER BED 700.0 mm SWING OVER SADDLE 480.0 mm BETWEEN CENTRES 2100.0 mm CHUCK SIZE 400.0 mm MAX TURNING DIA. 600.0 mm TRAVEL X AXIS: 362.0 mm Z AXIS: 1105.0 mm SPINDLE RANGE 20 – 2,000 RPM SPINDLE BORE 102.0 mm TURRET 12 STATIONS TAILSTOCK YES PLUS HYDRAULIC STEADY TOOL SETTING PROBE SWARF CONVEYOR TRANSFORMER MACHINE MANUALS Bukamlk9Gs TOOLING

Condition: used, Year of construction: 2004, turning diameter over bed: 550 mm turning dia. over face-slide: 390 mm turning length: 513 mm max. turning diameter: 300 mm z-axis: 580 längs mm x-axis: 205 plan mm control: Fanuc 21i-TB spindle head: A2-6 workpiece spindle bore: max. Ø 65 mm spindle passage: Ø 76 mm revolution per minute: max. 4.500 U/min rapid power traverse in X-and Z direction: 24 / 30 mm/min tool turret - number of stations: 12 spindle hours: 20742 h operating hours - idle run: 63097 h tailstock taper ISO: Konus MT#4 tailstock quill stroke: 80 mm current type: 3~, 200/220V / 50/60 Hz total power requirement: ca. 23 (28,95 kVA) kW Weight approx.: 4,15 t dimension machine xH: Tiefe: 4,0 x 1,8 x 1,8 m dimensions L x W x H: Stangenlader: 2,0 x 0,9 x 1,3 m Further technical information: Tool turret with 12 positions, including 3 positions for driven tools (max. speed 5,000 rpm), largest tool Ø 40 mm Tailstock operation via foot switch Bar loader LNZ Quick Load Servo 65, with 600mm pull-off device, material Ø min./max.: 6.0/65mm; bar length min./max.: 350 / 1300mm Dpnqhx movable hinged belt chip conveyor LNS Turbo, with coolant tank and pump hydraulic unit Equipment: -controlled parts catcher for workpieces -machine lighting

Condition: used, DAEWOO PUMA 300 LB (Doosan) 2-axis CNC lathe CNC Fanuc 18T Hydraulic tailstock Cglihrcagw Condition: very good. This machine can be inspected in our warehouse, under power. Mimu machine tools Italy

Condition: excellent (used), Year of construction: 1993, Ref: AMD20002 . 1993 Daewoo Puma 12L CNC Lathe High-capacity CNC lathe designed for medium to large-scale machining tasks. Excellent condition! Only been primarily used for machining plastic composites, ensuring minimal wear and tear. Features: Known for its durability and precision, the machine offers excellent performance for various industrial applications. 305 mm chuck and a powerful 22 kW spindle, making it ideal for turning larger workpieces. Robust build and Fanuc control ensure precise and efficient operations. Specifications: Swing Over Bed: 580 mm Swing Over Cross-Slide: 350 mm Distance Between Centers: 1020 mm Ujhlkfsf7V Max Longitudinal Travel (Z-axis): 1050 mm Max Cross Travel (X-axis): 260 mm Spindle Bore Diameter: 77 mm Spindle Power: 22 kW Spindle Speed Range: Up to 2500 RPM Spindle Cone: ASA A2#8 Chuck Size: 305 mm Tool Changer Capacity: 10 tools Machine Weight: 6.3 tons Dimensions (L x W x H): 4860 mm x 2080 mm x 2000 mm Control System: Fanuc 15T

Condition: good (used), Year of construction: 2003, Make: DAEWOO, type: Puma 300MSC, year of manufacture: 2003, serial no. 30MS1391, control, Fanuc, type Series 18i-TB X/Z/C/B axis, consisting of: Main spindle, max. speed 4,500 rpm, max. bar capacity 62 mm, counter spindle, max. speed 4,500 rpm, max. bar capacity 53 mm, max. turning Ø 355 mm, max. turning length 595 mm, 12-station tool turret, attached tool stations, finished part removal system, conveyor belt, chip conveyor, Daewoo, type Turbo 62878776E, year 2006, Ser.No. 203430, coolant unit, type Powercool, bar loader, make LNS, type Quickload Servo 3, roller table, telescopic drawer cabinet 7 pull-outs, contents: holders of various sizes DM, pneumatic changeover gripper Czbhget9Rk

Condition: used, Year of construction: 1997, turning diameter 350 mm turning length 400 mm control Fanuc total power requirement kW weight of the machine ca. t Bei0Gq3 dimensions of the machine ca. m

Condition: used, Year of construction: 2003, Functionality: fully functional, The used Daewoo Puma 160 CNC Lathe manufactured in 2003, currently located in Slovenia. This versatile lathe boasts a turning diameter of 160 mm, making it ideal for handling a variety of metalworking projects with ease. Equipped with the reliable Fanuc 0i-T control unit, the lathe offers user-friendly programming and adjustable settings for operators. With an impressive operating speed of 6000 rpm and a motor power of 11.1 kW, this lathe delivers exceptional performance and consistency for a wide range of lathe operations. Technical specifications: Control unit: Fanuc 0i-T Turning diameter: 160 mm Turning length: 250 mm Swing: 546 mm Spindle bore: 45 mm Chuck size: 152 mm Spindle speed: 6000 rpm Motor power: 11.1 kW Included with the Machine: -Full set of inserts and knives. ____ *Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACHT advises verifying specifications or else. Cu8Xeq8Jyc

Condition: good (used), Year of construction: 2002, DAEWOO PUMA 230 M LATHE Rotating diam. on the bench 550 mm. Rotating diam. on the carriage 390 mm. Turning diam. on the bench 290 mm. Turning length 490 mm. FANUC CONTROL 18i -T SPINDLE NOSE ASA 8 SPINDLE REVOLUTIONS : 3,500 RPM. DIAM. AUTOCENTRATING : 220 mm BAR PASSAGE : 76 mm Dps7Y2 SPINDLE MOTOR POWER : 11 / 18.5 KW C AXIS TURRET 12 POSITIONS ALL MOTORIZED NO. 01 AXIAL MOTORIZED TOOL NO. 01 RADIAL MOTORIZED TOOL MACHINE WEIGHT : KG. 4.500 ACCESSORIES : CHIP EVACUATOR TOOL PRESETTER READY FOR DELIVERY YEAR FIRST INSTALLATION : 2002

Condition: used, Year of construction: 2005, turning diameter over bed 0520 mm turning length 770 mm control 18 i Fanuc turning diameter over bed slide 230 mm spindle turning speed - stepless 45- 5000 U/min- rpm spindle bore 65 mm feeds 0-30 m/min rapid power traverse in X-and Z direction 30 m/min voltage 400 V connected load 30 KVA face slide travel 190 mm longitudinal travel 720 mm Dpkfo2 dimensions of the machine ca. 3,2 x 2 x 2,3 m toolpiece turning speed range 0- 5000 U/min work piece power 5,5 kW main drive motor 15/22 kW weight of the machine ca. 5,6 t y-axis 100 (+/- 50) mm c-axis 360 x 0,001 ° Has two 12 position turret heads with live tooling (C- axe), one with Y axe, sub spindle, power chuck, cooling arrangement and chip conveyor. Control: Fanuc 18 i. With many accessories.

Condition: ready for operation (used), Year of construction: 2006, Doosan Puma TT 1800 SY Dpjhj2

Condition: good (used), Year of construction: 2005, Make: DAEWOO, type: Puma 300MSC, year of manufacture: 2005, serial no. 30MS1948, control, Fanuc, type Series 18i-TB X/Z/C/B axis, consisting of: Main spindle, max. speed 4,500 rpm, max. bar capacity 62 mm, counter spindle, max. speed 4,500 rpm, max. bar capacity 53 mm, max. turning Ø 355 mm, max. turning length 595 mm, 12-station tool turret, attached tool stations, finished part removal system, conveyor belt, chip conveyor, Daewoo, type Turbo 62878776E, year 2006, Ser.No. 203430, coolant unit, type Powercool, bar loader, make LNS, type Quickload Servo 3, ser. no. 155437-2004, accessories, roller table, telescopic drawer cabinet 7 pull-outs, contents: holders, various sizes DM, trolley 7 pull-outs Contents: Torque wrench 20Nm-100Nm 1/2 inch, Dacklife multimeter, collets, tools, interchangeable pliers Cza8Z7Ry8Q

Year of construction: 2002, Condition: ready for operation (used), Control Unit Brand FANUC Model Series 18i-T Fogojba2P Main Drive Spindle speed range 3000 Spindle motor power 22/26 kW Movement Z-Axis Movement 2200 MM Turret Number of tool slots 12 positions Additional Equipment Automatic turret (12 positions) Automatic Rest Presetting Conveyor Tailstock This DAEWOO PUMA 400 LA was manufactured in 2002. A lathe equipped with a FANUC Series 18i-T CNC, featuring a bar capacity of 90 mm and a Z-axis travel of 2200 mm. It includes a 12-position automatic turret, tailstock, and a conveyor. Suitable for diverse turning applications. Reach out for more information about this lathe. Application Types Turning

Condition: good (used), Year of construction: 2005, Functionality: fully functional, With Sub-spindle, live tools and Y axis,part catcher, parts conveyor, chip conveyor, optional with bar loader Producer: DOOSAN Made in: 2005 Characteristic: Control system: FANUC 18i-TB Beglqiq Maximum-turning length: 510 mm swing over bed (max): 600 mm Y axis : +-50mm Turning diameter over cross slide (max): 330 mm Maximum power of the main spindle: 15 kW Diameter of the spindle bore: 65 mm Maximum spindle speed: 4500 1/min Weight: 4850 kg price without bar loader is 37000 EUR

Condition: good (used), Year of construction: 2000, Equipment: Documentation/Manual, DAEWOO PUMA 10 S LATHE CONTROL: FANUC 0 - T MAX ROTATING DIAMETER ON THE BENCH: 570 MM MAX ROTARY DIAMETER ON THE CARRIAGE: 375 MM R0Hpn0Upg2 MAX TURNING LENGTH: 770 MM MAX TURNING DIAMETER FROM BAR: 65 MM SPEED: 15 - 3,150 RPM. SELF CENTERING KITAGAWA DIAM. 250 MM TOOL MAGAZINE : 12 POSITIONS CHIP EVACUATOR COMPLETE WITH TOOL HOLDER AND TOOLS AS IN PHOTO

Year of construction: 2005, Operating hours: 9,136 h, Condition: good (used), Functionality: fully functional, Machine/vehicle number: PT18SY0030, CNC lathe with many accessories and two turrets TECHNICAL DETAILS turning diameter over bed: 520 mm turning diameter over bed slide: 230 mm spindle speeds: 45 - 5000 rpm turning length: 770 mm Y-axis: 100 (+/- 50) mm (one turret) C-axis: 360 x 0.001° (both turrets) Control: 18 i Fanuc spindle bore: 65 mm feeds: 0 - 30 m/min rapid traverse in X and Z direction: 30 m/min cross slide travel: 190 mm longitudinal travel: 720 mm tool speeds: 0 - 5000 rpm tool drive power: 5,5 kW tool holder: 2 x 12-fold turret MACHINE DETAILS Bf8Pr9Has8K space requirement: approx. 3,2 x 2 x 2,3 m Main drive motor: 15/22 kW operating voltage: 400 V Connected load: 30 KVA Machine weight: 5.6 t Switch-on time: 63220 h Operating hours: 5576 h Cutting time: 9136 h Status: 30-05-2023 EQUIPMENT Counter spindle Power chuck Coolant device chip conveyor many accessories

Condition: good (used), Year of construction: 2004, Make: DAEWOO, Type: Puma 2000SY, Year of manufacture: 2004, Ser.No. P200SY0281, control system, Fanug, type Series 18i-TB, 5 axes X/Z/C/B/Y, main spindle, max. speed 4,500 rpm, spindle clearance 76 mm, counter spindle, max. speed 6,000 rpm, spindle clearance 45 mm, max. turning Ø 330 mm, turning length max. 510 mm, 12-tool turret, attached tool stations, parts removal system, conveyor belt, chip conveyor, Daewoo, type 54758543E, year 2004, Ser.No. 201989, incl. coolant unit, bar loading system, make LNS, type Quickload Servo 3, bar length max. 1,500 mm, Ser. No. 155871-2005, year 2005, 1 roller table Switch and control cabinets, accessories, telescopic drawer cabinet 7 pull-outs Contents: holders of various types DM, interchangeable pliers Dpr7Fd

Condition: ready for operation (used), Year of construction: 1998, Control Unit Brand FANUC Model 18-TB Main Drive Number of spindles 1 Bn7Xlhohxlj Spindle speed range 3500 rpm Spindle motor power 22 kW Tool taper ASA 8 Number of axis 3 Movement X-Axis Movement 282 mm Z-Axis Movement 680 mm Workpiece Workpiece drm 355 mm Turret Number of turrets 1 Number of tool slots 12 Rotating tools Yes Additional Equipment Tailstock Conveyor Bar loader (LNS QUICK LOAD) This DAEWOO PUMA 250 M was manufactured in 1998. A lathe equipped with a FANUC 18-TB CNC, featuring a turning diameter of 355 mm and a length of 655 mm. It includes a 12-position automatic turret with driven tools, tailstock, and a bar loader LNS QUICK LOAD. Suitable for efficient and precise turning operations. Reach out for more information about this lathe. Application Types Turning

Condition: good (used), Daewoo Puma 240MA Year 2004 with driven tools, C-axis, with magazine barfeeder Max turning lenght 600 mm Max turning diameter 513 mm Max bar diameter 65 mm spindle bore 76 mm Spindle speeds 4500 rpm; 11-15 kW; ASA A2-6 X-axis travel 205 mm Z-axis travel 580 mm Turret positions 12 / all driven FANUC 21i-TB CONTROL Bobg0Jki3Ag Weight 4040 kg Overall machine dimensions 3000 x 1600 x 1740 mm Accessories/options: chip conveyor tool presetter driven tool holders static tool holders tailstock Top magazine bar feeder

Condition: good (used), Year of construction: 2003, 6 inches Lathe with C and Y axis Year Model 2003 Fanuc 18iT Control Unit 15kw spindle main motor 550mm 600mm 350mm Y 100mm Feeder 45 Dppast Spindle Power 6000rpm 12 Station Turret Probe for tooling

Condition: used, Year of construction: 2003, turning diameter 330 mm turning length 510 mm control FANUC 18i - T turning diameter over bed 600 mm turning diameter over slide 550 mm x-travel 250 mm z - travel 580 mm y-travel 100 (±50) mm b-axis 0.001 mm rapid travel x/y/z 20/7,5/24/ m/min rapid taverse B- Achse 20 m/min c-axis 4.500/ 6.000 ° spindle passage 76/ 45 mm spindle nose A2#6 spindle turning speed range 4.500/ 6.00 U/min Blbvfrjtaa8 spindle drive 15/ 7,5 kW Turret 12- fach Stationen Chip coveyor Inkl. chuck Hauptspindel 210 mm chuck Subspindel 160 mm total power requirement 50,7 kVA weight of the machine ca. 4,9 t dimensions of the machine ca. 3.118 x 1.705 x 2.076 mm Main and sub spindle: - 12 - compartment turret with powered tools. - 2 Axial tool holders - Radial tool age - High pressure pump 7 bar

Condition: good (used), Year of construction: 2008, Turning diameter over cross slide: 550 mm, Turning diameter: 210 mm, Doosan PUMA 2000 SY Turning Centre Year 2008, Fanuc 18i-TB Control, Sub spindle, Y axis, Driven tools, tool eye, parts conveyor, swarf conveyor Iemca Bar feed, Filter Mist extraction. D7Vyd0K

Condition: excellent (used), Year of construction: 2013, General specifications: Dpqtxf Working range/capacity Swing diameter over bed 780 mm Swing diameter over door 680 780 mm Swing diameter cross slide 630 mm Max. Turning Ø 406 mm Recommended turning range/chuck Ø 210 kg Max. Turning length 760 mm Max. Workpiece weight: Incl. clamping device / chuck part 120 kg Incl. clamping device / shaft part 330 kg Bar capacity 65 mm Travel distance X-axis travel 260 mm Z-axis travel 830 mm Y-axis travel 105 (±52.5) mm B-axis travel 830 mm Travel distance C-axis 360 (in 0.001) mm Machine dimensions Machine length 3530 mm Machine width 1863 mm Machine height 2163 mm Net machine weight 6400 kg Spindle height above floor 1110 mm Main spindle Chuck Ø 210 (8") mm Spindle nose A2-6 ASA Hole diameter spindle 76 mm Spindle speed 4500 rpm Counter spindle Drive mechanism Built-In Chuck diameter 175 (6") mm Spindle nose A2-5 ASA Ø spindle bearing front 90 mm Hole diameter spindle 62 mm Drawtube bore 50 (H8) mm Motor type BiL160S/1300i Drive power (30min./cont.) 15/11 kW Spindle speed 6000 rpm Full power range (low voltage) 2500~6000 rpm. Full power range (high voltage) 1060~1600 rpm. Gear ratio 1.1 Max. Spindle torque 134 Nm Braking torque C-axis 1215 Nm Minimum indexing C-axis 0.001 degree Turret Tool holder BMT55P Number of tool positions 12 (24) ea Turning tool speed 5000 rpm Coolant tank 563~2254 rpm. Tank capacity 220 l/min. Coolant pump for option pump 4 (10 bar) Pump motor power 2.2 kW Filter (tank screen filter) 20 Max. delivery pressure (60/50Hz) 10/7 bar Max. Delivery rate 30 l/min.
