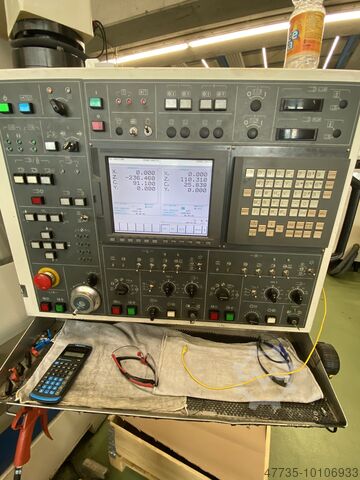

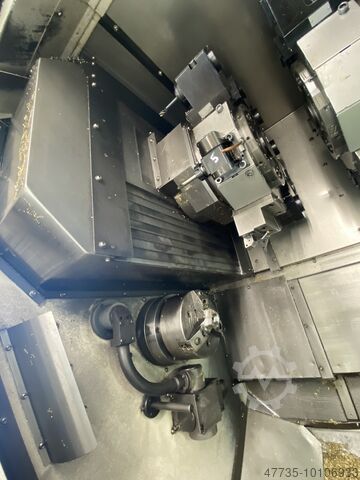

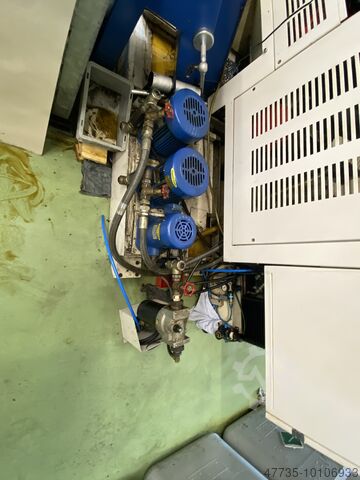

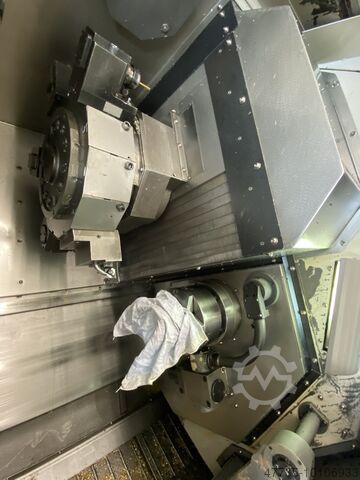

CNC lathe with Y axis

DAEWOO PUMA TX 200 YY

Year of construction: 2001, condition: used, Cazeneuve Maxica 590 With collet Hnodpfx Ajh Aylvogyek Control: SOMAB NUM SP + S 5

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse (X / Y / Z): 5 m/min Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) Hjdpfx Aovt D D Uegyenk - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition

Condition: ready for operation (used), Rotation diameter over bed/slide: 560mm/300mm, max. workpiece weight between centers: 2500kg, max. workpiece weight in chuck: 800kg, center width: 1000mm, machining length: 980mm, feed: 8m/min, bed width: 433mm, tool positions: 8, tool holder: VDI40. Machine dimensions X/Y/Z: approx. 3000mm/2300mm/1800mm, weight: approx. 3700kg, control: Siemens 810D Manual Turn. Documentation available. On-site inspection is possible. Hnedpewynvtefx Agyjk

Year of construction: 2010, condition: new, Spare part for CNC BAZ Fabr.DMG MORITyp:DMF 220 LineaTeile sind Neu Ball screw for Y and Z axisGuide rails Packet for complete X axis with brake . Hnsdpfx Agsd S A Uneyek

Condition: ready for operation (used), Year of construction: 2000, operating hours: 27,218 h, spindle speed (max.): 3,600 rpm, travel distance X-axis: 210 mm, travel distance Z-axis: 930 mm, overall weight: 2,300 kg, controller manufacturer: HEIDENHAIN, controller model: TNC 410/426, positioning accuracy: 0.003 mm, swivel angle C-axis (max.): 360 °, number of axes: 3, This 3-axis SPINNER MT 500/1000 AT was manufactured in 2000. It features an X-axis travel of 210 mm, and Z-axis travel of 930 mm. The machine includes a robust table size of 520 x 900 mm with a load capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MT 500/1000 AT machine we have for sale. Contact us for further details. • Machine/Mechanic MT500-1000 • Travel X-axis: 210 mm • Travel Z-axis (Multifix holder + manual chuck): 930 mm • Travel Z-axis (Multifix holder + hydr. chuck): 930 mm • Travel Z-axis (Turret + manual chuck): 930 mm • Travel Z-axis (Turret + hydr. chuck): 930 mm • Travel C-axis: 360 degrees • Spindle clearance 45 mm with hydraulic chuck: 3600 rpm Hodpfx Aoyxrndogyenk • Spindle clearance 57 mm with manual chuck: 3600 rpm • Tool system Haase quick-change holder: 1 tool unit • Tool system Turret VDI 30: 12 tool units • Ball screw pitch in X: 5 mm • Ball screw pitch in Z: 10 mm • Rapid traverse X: 15000 mm/min • Rapid traverse Z: 20000 mm/min • Feed rate X + Z: 0-4000 mm/min • Feed force X-axis: 1382 daN • Feed force Z-axis: 609 daN • Tensile force hollow clamping cylinder: 145 daN/bar • Manual chuck Ø 200mm: 3 jaws • Hydraulic chuck Ø 210mm: 3 jaws • Coolant tank volume: 75 l • Coolant pump flow rate: 30 l/min • Coolant pump pressure: 1.4 bar • Max. positioning scatter: 3 µm • Max. backlash: 2 µm • Positioning uncertainty: 2 µm • Max. circularity error on workpiece:

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, turning length: 450 mm, turning diameter: 246 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 6,000 rpm, spindle bore: 68 mm, travel distance X-axis: 140 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 450 mm, Siemens 840 D control with Shop-Turn Travel paths X- 140 mm, Z- 450 mm, Y+- 40 mm Max turning diameter 246 mm Centre height 365 mm New main spindle with 6000 rpm Counter spindle with 6000 rpm Sauter star turret with 12 driven stations Part catcher, chip conveyor Reinforced coolant and lubricant pump Hnedsvta Amjpfx Agyok C-axis, Y-axis Partial hollow clamping device Package bar machining Interface for bar loader magazine Finished parts container Tool measurement in the work area

Condition: excellent (used), functionality: fully functional, We are offering this very well-maintained MAHO MH-C 900 milling machine. Factory number: 90167 If you have any questions or require further information, please feel free to send us a message or give us a call. Hsdpfx Ageyryudsysnk

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, Specifications Manufacturer MONFORTS Model RNC4 Year 1993 Description WE OFFER AN VERY NICE CONDITION MONFORTS CNC LATHE INCLUDING COMPLETE TOOLINGS DRAWERS FOR TOOLS MACHINE HAS LIVE TOOLS , DRIVEN TOOLS MACHINE IS CONECTED ON POWER TECHNICAL INFO: Diameter 420 mm Distance between centers 600 mm Hsdpfx Agevk E A Toyonk CNC system Control System F Tools 12 positions Cross travel 250 mm Longitudinal travel 620 mm Hole through spindle 65 mm Spindle speed 70 - 4000 RPM Motor power 18,5 HP Weight 7500 Kg
