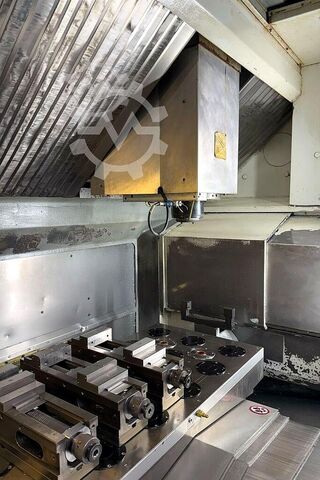

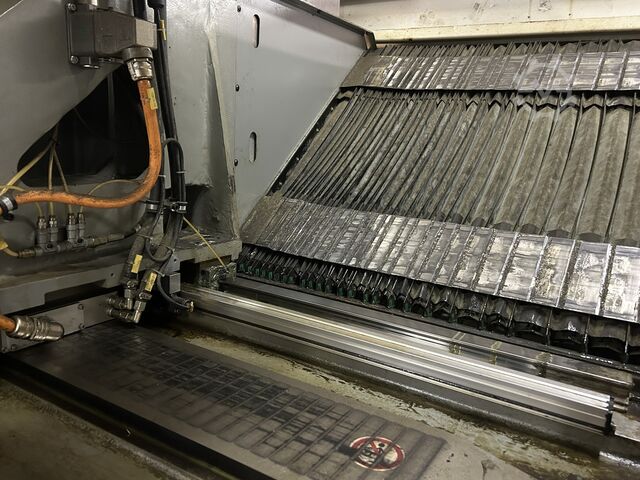

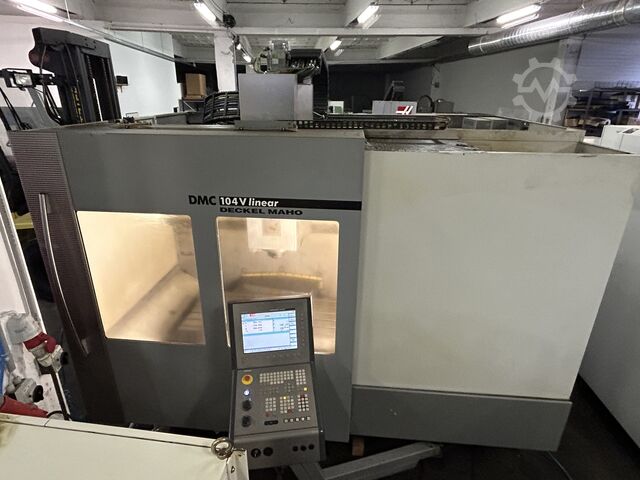

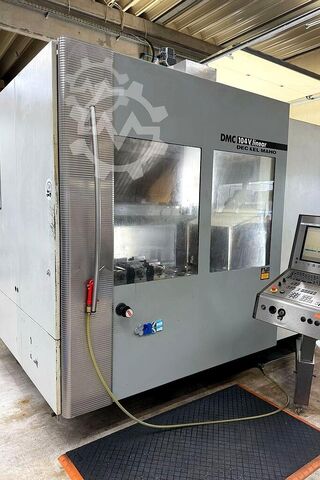

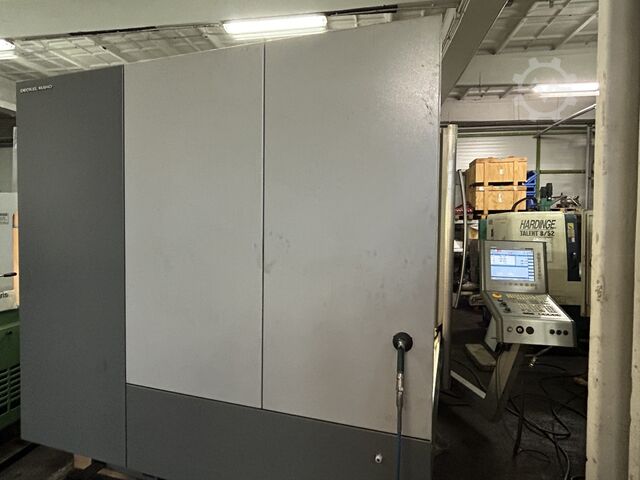

Vertical machining center

Deckel Maho DMC 104 V Linear

Condition: good (used), Year of construction: 2005, functionality: fully functional, Technical details x-travel 1040 mm y-travel 600 mm z-travel 500 mm Control Heidenhain iTNC 530 table surface area 1250 x 600 mm table load 600 kg tool taper SK 40 spindle turning speed range 1 - 8000 U/min max. torque on the spindle (S1/S6) 140/200 Nm feed range 40000 mm/min rapid power traverse in X-and Z direction 70 m/min rapid motion - y-axis 40 m/min spindle drive (100/40 % ED) 13/19 kW total power requirement 39 kVA weight of the machine ca. 8,9 t Additional information Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR Production package 2 Internal coolant supply through the spindle 20 bar Coolant system with paper belt filter Kdodpfxjxwuu Ij Aayjw Cooling device blown air through the spindle center selectable via M function Chip conveyor Bed flushing Linear drive in the X-axis Operating mode 4 Program check with extended manual intervention Machine documentation Transport dimensions: 4100 x 2500 x 3000 mm

Condition: ready for operation (used), Year of construction: 2002, operating hours: 38,040 h, functionality: fully functional, travel distance X-axis: 1,040 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, rotational speed (max.): 12,000 rpm, number of slots in tool magazine: 30, TECHNICAL DETAILS CNC Control: Heidenhain iTNC530 X-axis: 1,040 mm Y-axis: 600 mm Z-axis: 500 mm Linear drive: On the X-axis Worktable Dimensions: 1,250 mm x 600 mm Max. workpiece weight: 800 kg Spindle Spindle operating hours: 38,040 h Spindle speed: 12,000 rpm Tool System Kjdpjxal Rxofx Aayodw Taper type: SK-40 Tool magazine capacity: 30 Tool diameter: 100 mm Max. tool diameter with empty neighboring pockets: 140 mm Max. tool length: 300 mm Max. tool weight: 7 kg MACHINE DETAILS Length: 3,750 mm Width: 2,340 mm Height: 3,164 mm Weight: 8,900 kg EQUIPMENT - Direct measurement system - Blum tool laser measurement for tool length and diameter - Chip conveyor - Bed flushing - Electronic handwheel

Condition: used, Deckel Maho DMC 104V linear Ksdpfx Aasw Rtd Noysdw

Condition: ready for operation (used), Year of construction: 2006, operating hours: 9,442 h, functionality: fully functional, machine/vehicle number: 29110004034, travel distance X-axis: 1,040 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 30, TECHNICAL DETAILS Control: Siemens 810D Powerline Table surface: 1,250 x 600 mm X-axis travel: 1,040 mm Y-axis travel: 600 mm Z-axis travel: 500 mm Kodpewa Tmwsfx Aayjdw Spindle & tool holder Tool holder: SK 40 Spindle speeds: 1 - 12,000 rpm Spindle drive: 13 kW / 19 kW (100% / 40% ED) Tool changer: 30 positions MACHINE DETAILS Spindle hours: 9,442 h On-time: 32,189 h EQUIPMENT - Linear drive in the X-axis for more precise movements - Bed flushing to clean the work area - Spiral chip conveyor for efficient chip disposal - Direct position measuring system for precise Position determination - Temperature compensation of the Z-axis via temperature sensor with active cooling unit - Blown air from outside via two pipes for chip removal
