Machining Center - Universal

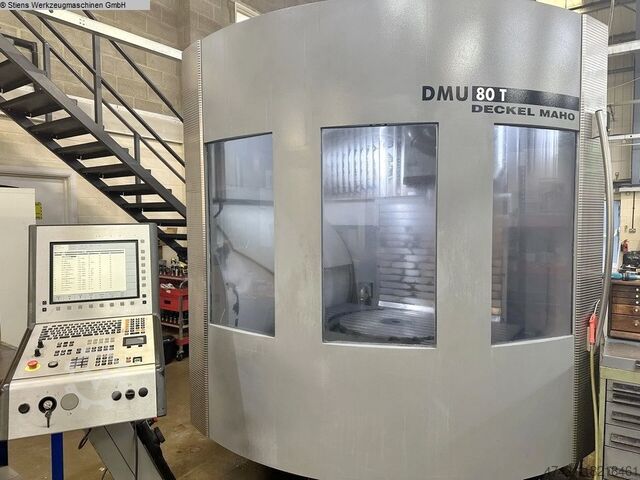

DECKEL MAHO DMU 80 T

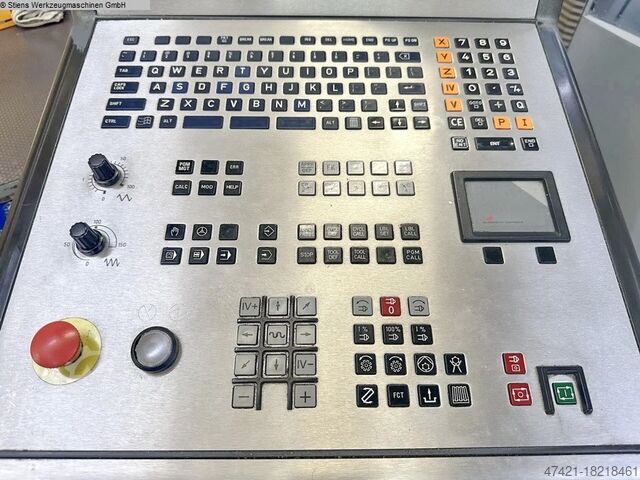

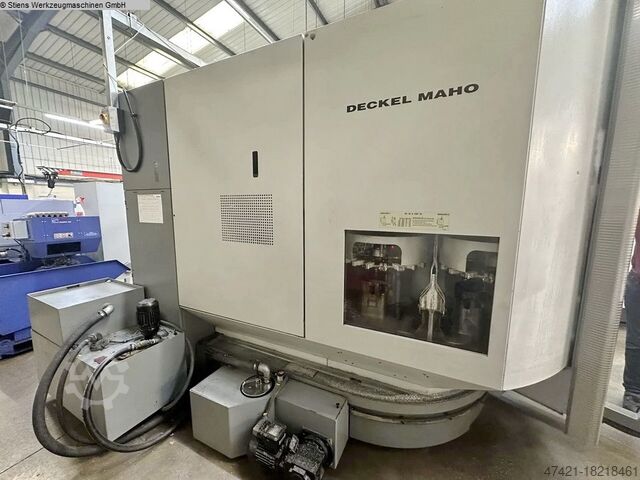

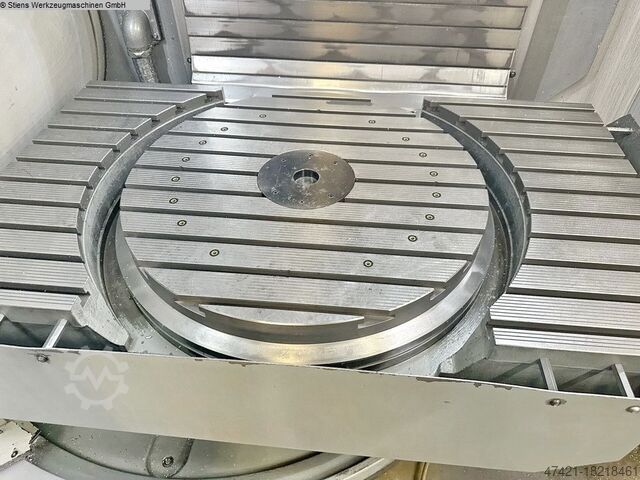

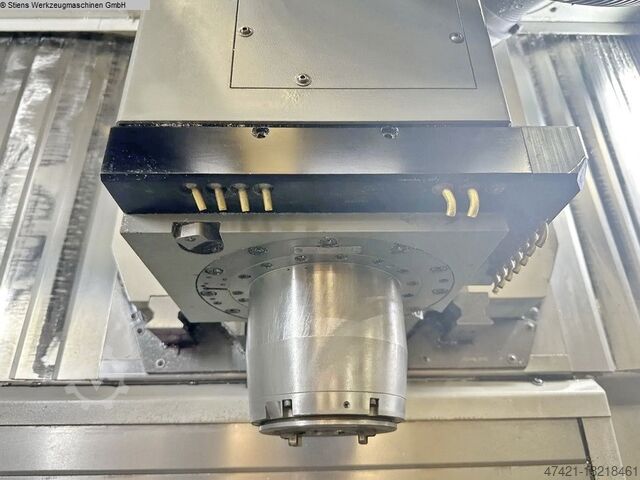

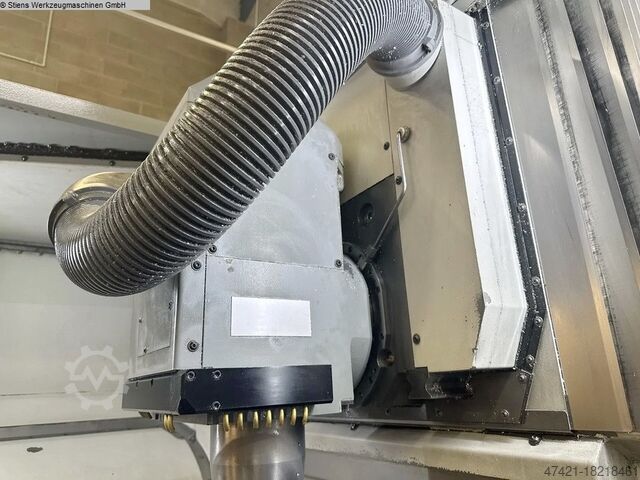

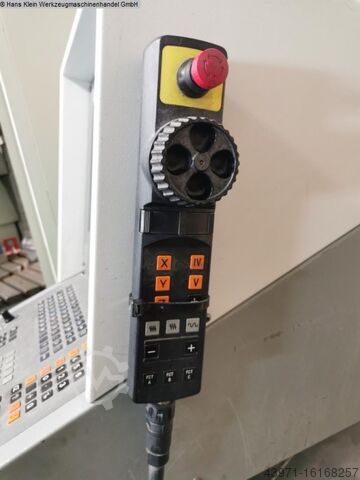

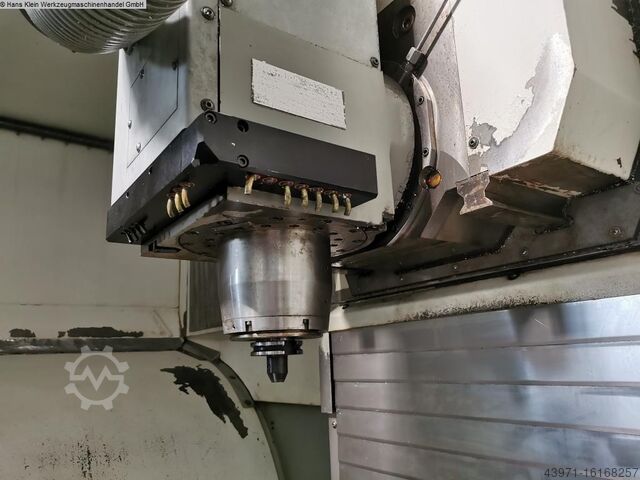

Condition: used, Year of construction: 2002, x-travel 880 mm y-travel 630 mm z-travel 630 mm table surface area 1250 x 700 mm NC-rotary table integriert, 700 mmø spindle taper SK 40 spindle taper DIN 69871 spindle turning speed - stepless 20 - 12.000 U/min control HEIDENHAIN control TNC 430 feeds x/y/z -stepless 20 - 15.000 mm/min rapid traverse 30 m/min ATC 32 (2 x 16) Pos tool diameter 80 / 130 mm workpiece length 315 mm weight of tools max. 8 kg NC-rotary table - speed - max. 15 U/min table load 600 / 500 kg milling head -swivable +/- 12 / 90 ° total power requirement 60 kW weight of the machine ca. 9,6 t dimensions of machine L x W x H 4,53 x 2,60 x 2,50 m = 5-axis machining center, table clamping surface 1250 x 700 mm with integrated NC-rotary table (=4th axis), movement of milling head via control (=5th axis) Lredpotqqmbefx Akuol Accessories: electron. handwheel, chip conveyor (snailconveyor), coolant

Year of construction: 2014, condition: used, PROLOGIC window construction software FenOffice 14 Conturex Lodpsrci S Sofx Akuerl

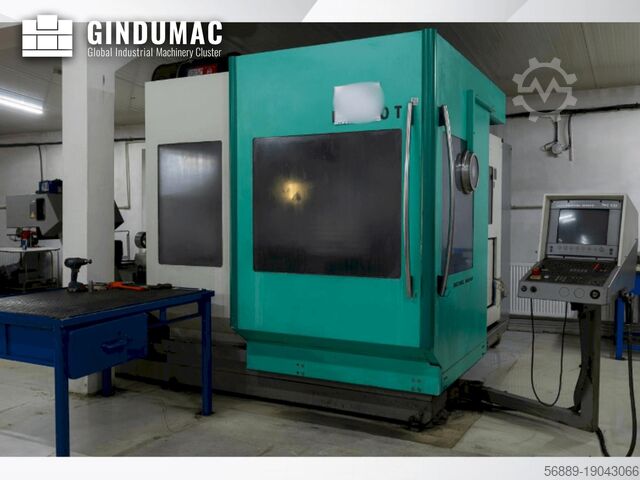

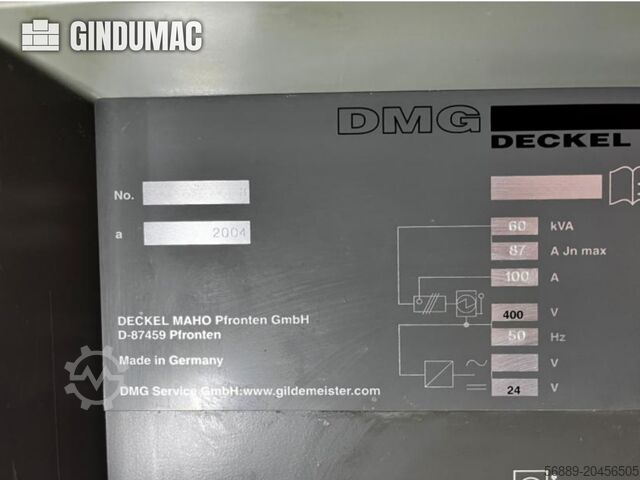

Condition: ready for operation (used), Year of construction: 2004, operating hours: 40,000 h, travel distance X-axis: 880 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, controller manufacturer: HEIDENHAIN, controller model: Mill Plus, spindle speed (max.): 18,000 rpm, number of axes: 3, This 3-axis DMG DECKEL MAHO DMU 80T was manufactured in 2004. It features a high-speed spindle at 18,000 RPM, internal coolant supply with 40 Bar pressure, and a 32-station tool changer. The machine includes SK 40 tool holders and a Rotoclear viewing window. Ideal for demanding machining tasks, consider the opportunity to buy this DMG DECKEL MAHO DMU 80T vertical machining centre. Contact us for more information about this machine. • Spindle cooling: Active cooling • Cooling: Air or coolant • Internal coolant supply: 40 bar (through-spindle) • Tool changer: 32 stations • Operating mode: Mode 4 (working with open door) Additional equipment • Belt filter system: Interlit SPD 3-600-HD Lodpfx Aex D Iunokusrl • Mist collector • Rotoclear viewing window • Control cabinet cooling unit

Condition: ready for operation (used), Year of construction: 1997, CNC milling machine Deckel Maho DMU 80 T Lrsdpfx Aksx Tapfeujl Control: Heidenhain TNC426 Spindle speed: 20-6300 rpm Feed rate X, Y, Z: 20-10000 mm/min Rapid traverse X, Y, Z: 15000 mm/min Work envelope: X: 800 mm, Y: 650 mm, Z: 550 mm Tool holder: SK40 DIN 2079 Draw bolt DIN 69 872 Tool changer: 25 positions Max tool diameter: 160 mm Max tool extension from spindle nose: 315 mm Work table: Dimensions: 1100x600 mm T-slots: 9 x M14 Permissible workpiece weight: 500 kg Transport data: Weight: 5800 kg Dimensions (L x W x H): 3.05 x 2.40 x 2.45 m

Condition: excellent (used), travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 750 mm, table width: 1,500 mm, table length: 850 mm, rotational speed (max.): 2,500 rpm, quill stroke: 120 mm, SHW UF 5 Travels - X-axis (rotary table): 1,500 mm - Y-axis (vertical headstock): 1,000 mm - Z-axis (horizontal headstock): 750 mm Control system - CNC control: Heidenhain TNC 355 Automatic swivel head (change between horizontal and vertical machining) Quill 120mm Milling spindle holder SK 50 Speed 2500 rpm Partial overhaul 2014 - Year of construction 1990 - Inspection/repair 2025 Table assembly - Travel distance: X = 1,500 mm - Clamping surface: 1,500 x 800 mm Chip conveyor Splash guard cabin We have ALL spare parts for this series (SHW UF 5) in stock! About us: Ljdpfx Akjvfm I Tjusrl MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is in the field of tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control modernization _____ Used machine - used milling machine - used bed type milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - milling machine used - milling machine used - CNC milling machine used - drilling milling machine used - milling machine metal used - metal milling machine used - metal milling machine used metal milling machine used - used cnc milling machine - cnc milling machines - cnc milling machines - milling machine - large part machining - large part machining - large part machining - cnc large part machining - milling - shw - uf5 - uf 5 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 5 - UFZ 5 - UFZ5L - UFZ 5 L - MBM Milling Machine - MBM Machine

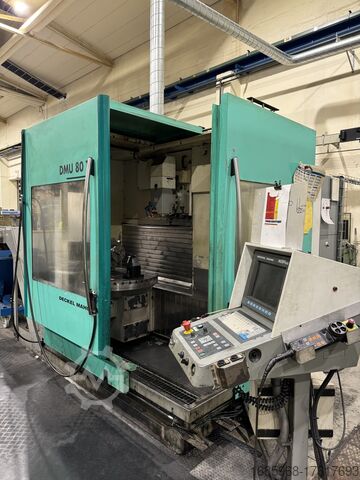

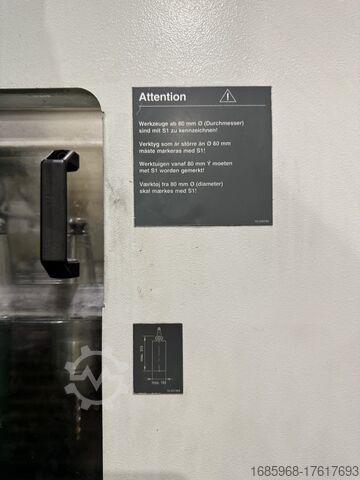

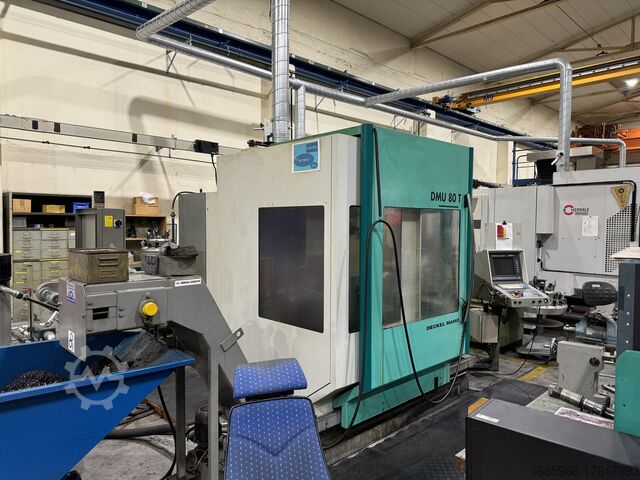

Condition: good (used), Year of construction: 1997, Equipment: documentation/manual, Deckel DMU 80T Mill Plus Ljdpsu Hy E Sofx Akuerl

Condition: used, Year of construction: 2001, x-travel 880 mm y-travel 630 mm z-travel 630 mm Control Heidemhain type 426/430 spindle speed: 18000 spindle taper HSK 63 surface area 1250x700 mm Rotary table 700 mm Table load 1000 kg b-axis Schwenkopf 0,001 ° c-axis 0-360° Rundtisch 0 B-axis C-axis Air blow through the spindle Ljdpfxjyqukdj Akuerl HSK 63 Electronic handwheel The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

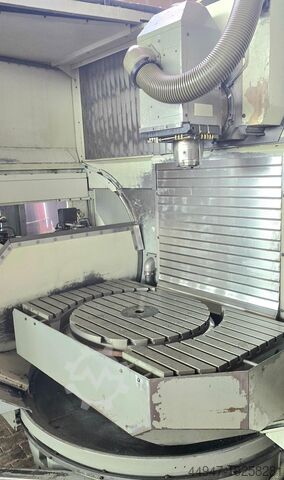

Condition: used, Year of construction: 2006, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK Lredpfxsyackds Akusl - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)

Condition: ready for operation (used), Year of construction: 2004, operating hours: 17,500 h, functionality: fully functional, travel distance X-axis: 830 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, controller model: Heidenhain 530 (MC422), rotational speed (max.): 12,000 rpm, The machine is in very good condition, runs quietly, and operates with precision. TECHNICAL DETAILS Travel X-axis: 830 mm Travel Y-axis: 630 mm Travel Z-axis: 630 mm Feed rates: 15,000 mm/min Rapid traverse: 30,000 m/min Motor spindle: 12,000 rpm Lrjdpfx Akeymn Sajuol Number of tool stations: 32 MACHINE DETAILS Control: Heidenhain 530 (MC422) Tool holder: SK 40 Weight: approx. 9,000 kg Spindle hours: approx. 17,500 EQUIPMENT Internal coolant supply (IKZ) Chip conveyor Electronic handwheel Blum laser Flushing unit Filtration system Note: The probing system is not included in the scope of delivery.

Condition: excellent (used), Year of construction: 2002, CNC Machining Center DECKEL MAHO DMU 80 T Year of manufacture: 2002 Control: Heidenhain iTNC 530 Spindle: replaced on 14.11.2018, approx. 17,000 hours Ledpfx Akjylk Syeuerl Technical data: Travel paths: X: 880 mm Y: 630 mm Z: 630 mm Controlled B-axis in milling head: -15° to 90° Spindle speed: 12,000 rpm Tool changer capacity: 32 positions Tool holder: SK 40 Coolant system: available

Condition: used, Year of construction: 2007, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t Lrsdpfeyaci Tex Akujl dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)

Condition: ready for operation (used), Year of construction: 1998, A universal machining center is offered with control: Heidenhain TNC 426. Operating hours: approx. 45380h, spindle hours: approx. 14384h. Viewing possible by appointment. Lrsdpex Ivi Dofx Akuol

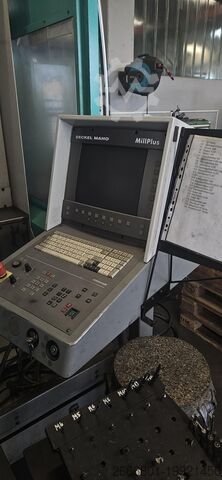

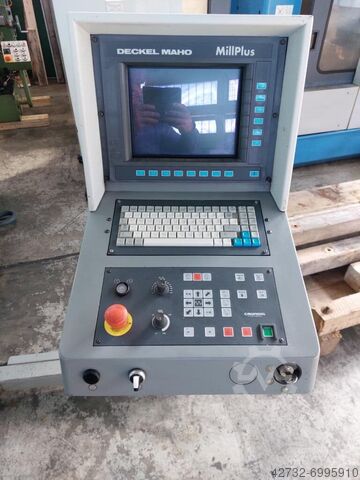

Condition: ready for operation (used), Number of tool slots: 25, max. rotational speed: 6300/min, tool cone: SK40 with DIN 7388 tightening pin, connected load: 35kVA, controls: Deckel Maho MillPlus, operational/ spindle hours: 56,344/ 14,965h, with chip conveyor and 600l coolant tank, without tools and clamping devices. Lrodpfolbmtnjx Akujl

Condition: good (used), total length: 6,000 mm, total width: 1,650 mm, plate height: 300 mm, Manufacturer: STOLLE Type: CAST IRON... Year of construction: 2004 Specifications Metric US Standard Length 6000 mm Width 1650 mm Height Lrodpfx Akewpva Esuol 300 mm Number of T-slots 6 Distance between T-slots / spacing 250 mm T-slot size 27 mm Weight per plate approx. 7200 ton Number of matching pieces 4 Dimensions (estimated) Length 6000 mm Width 1650 mm Height 300 mm Weight 7200 kg Please note: The information on this page has been obtained to the best of our knowledge and, where possible, from the manufacturer. The information is provided in good faith, but the accuracy cannot be guaranteed. Accordingly, you will not be given any representation or contract terms. We recommend that you verify all important details.

Condition: excellent (used), Year of construction: 2006, 5-axis CNC machining center 2006 Control: Heidenhain iTNC 530 Technical data: x-axis travel 880 mm y-axis travel 630 mm z-axis travel 630 mm Max. torque 130 Nm tool holder SK 40 (ISO 7388IIB) swiveling B: 103° Work table: Clamping surface 1,250 x 700 mm Rotary table diameter 700 mm Ledpfxswn A Sls Akuorl rotatable C: 360 ° Max. table load approx. 500 kg T-slots 11x 14mm x 63mm Tool magazine: Number of tool places 32 (2x 16) pos. tool holder SK 40 (ISO 7388IIB) Max. tool diameter 80 / 130 mm Max. tool diameter with free neighbor box 160 mm Max. tool length 315 mm Max. tool weight 8.0 kg
