Machining Center - Universal

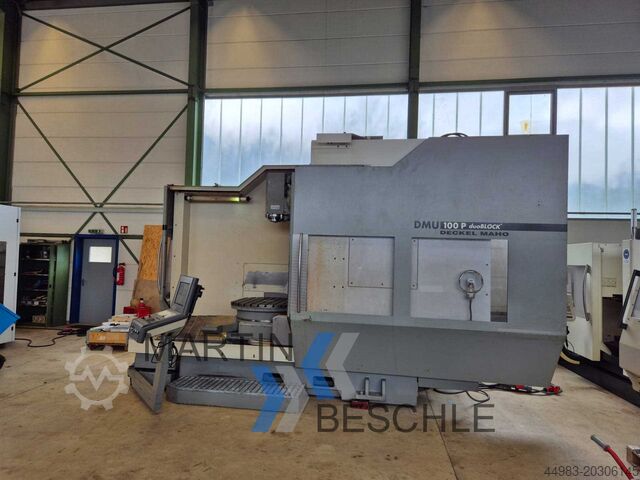

DECKEL- MAHO DMU100P duoBLOCK

Condition: excellent (used), Year of construction: 2007, operating hours: 13,500 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, overall weight: 15,800 kg, operating hours of spindle: 13,500 h, coolant supply: 40 bar, We offer in good condition Deckel Maho DMU100P Duoblock from 2007 with only 13.500 spindle hours. Heidenhain iTNC530 control X-Axis travel: 1000 mm Y-Axis travel: 1000 mm Lodpfxjzlyd Ds Amtead Z-Axis travel: 1000 mm Internal coolant 40 bar SK40 12.000 RPM Spindle Table Ø1100 x 900 Machine will be in stock in the next 2 weeks.

Condition: refurbished (used), Year of construction: 2019, functionality: fully functional, GF Machining Solutions FORM X600 Year of manufacture 2019 - Factory revision 2022 Lasdpfswh Sigsx Amtod C-shaped design, fixed table with lowerable container Travel paths (X/Y/Z): 600 x 400 x 500 mm Distance between table and quill: 200-700 mm Max. workpiece size: L x W x H = 1200 x 800 x 350 mm Max. workpiece weight: 2000 kg Integrated C-axis for rotation, indexing, and erosion (rpm = 0-100 rpm) Pneumatic chuck of your choice (Erowa/3R Systems) 80 amp ISPG generator Best achievable surface finish Ra 0.08 µm AC FORM HMI user interface 15" LCD color screen, mouse or touchscreen, keyboard, and hand control Incl. 3R-Systems Workpartner WPT1+ - 150 electrode positions - 10 pallet positions Net weight of the system: 5504 kg Machine dimensions: 1790 x 2860 x 3100 mm We will clean, service, and test the machine upon receipt of the order. Optional: - Commissioning and instruction - Transport and installation - Cooling unit - Dielectric

Condition: excellent (used), travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 750 mm, table width: 1,500 mm, table length: 850 mm, rotational speed (max.): 2,500 rpm, quill stroke: 120 mm, SHW UF 5 Lasdpjvfm I Tjfx Amtsd Travels - X-axis (rotary table): 1,500 mm - Y-axis (vertical headstock): 1,000 mm - Z-axis (horizontal headstock): 750 mm Control system - CNC control: Heidenhain TNC 355 Automatic swivel head (change between horizontal and vertical machining) Quill 120mm Milling spindle holder SK 50 Speed 2500 rpm Partial overhaul 2014 - Year of construction 1990 - Inspection/repair 2025 Table assembly - Travel distance: X = 1,500 mm - Clamping surface: 1,500 x 800 mm Chip conveyor Splash guard cabin We have ALL spare parts for this series (SHW UF 5) in stock! About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is in the field of tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control modernization _____ Used machine - used milling machine - used bed type milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - milling machine used - milling machine used - CNC milling machine used - drilling milling machine used - milling machine metal used - metal milling machine used - metal milling machine used metal milling machine used - used cnc milling machine - cnc milling machines - cnc milling machines - milling machine - large part machining - large part machining - large part machining - cnc large part machining - milling - shw - uf5 - uf 5 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 5 - UFZ 5 - UFZ5L - UFZ 5 L - MBM Milling Machine - MBM Machine

Condition: used, Year of construction: 2010, x-travel 800 mm y-travel 1.050 mm z-travel 800 mm control 840D solutionline Siemens Speed Mainspindle max. 10.000 min/-1 power capacity - main spindel 44 kW max. Torque 288 Nm tool taper HSK-A 100 DIN 69893 Swivel range -10° / +180 ° table surface area dia. 900 x 700 mm max. table load 1.500 kg distance spindlenose - table horizontal 50 - 850 mm distance spindlenose - table vertical 150 - 950 mm table speed 35 min/-1 rotatable C: 360 ° number of toolpositions 120 pos. tool taper HSK-A 100 max. tool diameter 110 mm max. tool-dia with free toolbox 230 mm max. tool length 550 mm max. tool weight 30 kg tool changing time 5,4 sec Laodpfx Aozc Rqwemted rapid traverse ( X / Y / Z ) 60 m/min Rapid B-Axis 23 min/-1 Accelaration 7 / 6,5 / 6,5 m/s² Feed force ( X / Y / Z ) 13 / 13 / 9 kN weight of the machine ca. 13,0 t dimensions of the machine ca. 6,0 x 5,5 x 3,7 m total power requirement 80 kVA 5 Axis Machining Center - Universal DMG DECKEL MAHO - DMU 80 P duoBLOCK - Spindle replacement: May 2025 - controled Swivel-Milling-Head / Gear-Spindle (B-Axis) - NC-Rotary Table (C-Axis) - Tool identification - 3D machining, 3D tool compensation - TRANSMIT cylindrical surface transformation (milling of cylindrical paths) - CompCad compressor function for high-speed machining - WITHOUT tools

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 1,250 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 620, table load: 1,500 kg, spindle speed (max.): 20,000 rpm, number of axes: 4, This 4-axis +GF+ Mikron Mill E 1200 was manufactured in 2021. It features a spindle speed of 20,000 rpm, HSK A63 tool magazine, and rapid traverses up to 40 m/min. The work table measures 1450 x 600 mm with a maximum load of 1500 kg. Additional features include a Lehmann 4-axis rotary table and a liftable chip conveyor. Consider the opportunity to buy this +GF+ Mikron Mill E 1200 vertical machining centre. Contact us for more information. • Tool magazine: DT30, HSK-A63 Lajdpoyb Sifjfx Amtsd • Rapid traverse: X/Y 40 m/min; Z 35 m/min • Table size: 1450 x 600 mm • T-slots: 5 • Spindle cooling system – 20 kHz • Linear scales: MILL E 1200 linear scales • Machine status light Additional equipment • Liftable chip conveyor • Chip trolley • Washdown system • Oil separator • Remote electronic handwheel • TS35.10 tool presetter (TNC 620) • IRP40.02 HSK63A measuring system • Lehmann 4-axis rotary table Technical Specification Taper Size HSK 63

Condition: ready for operation (used), Year of construction: 2017, operating hours: 6,417 h, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, overall weight: 4,400 kg, number of axes: 4, This 4-axis AgieCharmilles FORM 30 was manufactured in 2017. It features a stroke of 600mm x 400mm x 400mm, with axis speeds up to 6 m/min. The machine can handle workpiece weights up to 1000kg and dimensions of 1000 x 700 x 400 mm. It includes a dielectric unit with a 750l capacity and a robust weight of 4400kg. Consider the opportunity to buy this AgieCharmilles FORM 30 die-sinking EDM machine. Contact us for more information about this machine. • Axis speed (X/Y/Z): 4 / 4 / 6 m/min • Position reading accuracy (X/Y/Z): 0.1 µm • C-axis (standard) rotation speed: 0–100 rpm • Work tank size: 1200 x 800 x 500 mm • Worktable size: 800 x 600 mm • Max electrode weight: 100 kg • Max workpiece weight: 1000 kg • Workpiece dimensions: 1000 x 700 x 400 mm Laedpfx Asx Nr N Njmtsd • Dielectric unit capacity: 750 l • Generator type: ISPG • User interface: AC FORM HMI • Power supply: 3 x 380 V, 3-phase, 50 Hz

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, 5-AXIS MACHINING CENTER MIKRON HPM 1350U TRIPALET, MANUFACTURED IN 2011 EQUIPPED WITH HEIDENHAIN TNC 530 ELECTRONIC HANDWHEEL TRAVEL: Z 1350 AND 1150, Z 895, A +16°/-120°, C ±360° SPINDLE: 24,000 RPM, 38 KW, HSK-A63 (NEW) TABLE: DIAMETER 1100, MAXIMUM LOAD 1600 KG 46-TOOL CHANGER 3-PALLET CHANGER, 1000 x 840 MM RENISHAW OMP60 PART PROBE LASER TOOL MEASUREMENT APS - Advanced Process System APS Extended Laedpfjy Tv Nbjx Amted ITS - Intelligent Thermal Control CINEMATIC OPTIONS CHIP CONVEYOR WITH TSC MACHINE WEIGHT: 19,000 KG

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, total height: 2,780 mm, total width: 2,265 mm, total length: 2,110 mm, quill stroke: 450 mm, workpiece length (max.): 1,220 mm, workpiece width (max.): 870 mm, workpiece height (max.): 470 mm, GF AgieCharmilles FORM 300 Year of manufacture: 2014 Die-sinking EDM machine in C-frame design (fixed table) with automatic lowering tank Travel paths (X/Y/Z): 600 x 400 x 450 mm Maximum workpiece size: 1220 x 870 x 470 mm Table dimensions: 750 x 600 mm Laodpjx Sv E Hsfx Amtsd Maximum workpiece weight: 1,600 kg Maximum electrode weight: 50 kg Innovative ISPG Generator (Intelligent Speed Power Generator) for maximum efficiency Maximum working current: 80 amps Surface finish up to Ra 0.08 µm AC FORM HMI with intuitive user interface & touchscreen Intelligent workpiece measurement & 3D correction Reduced electrode wear thanks to iQ technology Adaptive control (ACC & ACO) for optimized spark erosion and reduced electrode wear Pneumatic chuck of your choice (Erowa or 3R Systems) Includes 6-position electrode changer LTC Machine dimensions: 2265 x 2110 x 2780 mm Total weight: 4,500 kg The machine will be cleaned, overhauled and extensively tested prior to sale to ensure the highest quality and reliability. We are also happy to offer you additional services: - Transport - Commissioning - Training - Accessories such as clamping devices

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 15 m/min, controller model: HEIDENHAIN TNC 530, workpiece weight (max.): 4,000 kg, overall weight: 35,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 12,000 rpm, spindle nose: SK 40 (DIN 69871), number of slots in tool magazine: 60, CNC Machining centre DECKEL MAHO DMU 160 P Lsdpfszggmbex Amtoad TECHNICAL CHARACTERISTICS: Year of manufacturing: 2008 CNC control: HEIDENHAIN TNC 530 Number of simultaneous axes: 5 Stroke X axis: 1600 [mm] Stroke Y axis: 1250 [mm] Stroke Z axis: 1000 [mm] Feed rate on X, Y and Z axes: 15000 [mm/min] Traversing feeds X, Y and Z axes: 60000 [mm/min] Table dimensions: Ø1500 x 1250 [mm] Max. load on table: 4000 [Kg] Spindle type: SK 40 (DIN 69871) Min. spindle speed: 20 [rpm] Max. spindle speed 12000: [rpm] Tool changer magazin number of stations: 60 Machine weight: 35000 [Kg] INCLUDED EQUIPMENT: 1 × HEIDENHAIN part probe 1 × laser measuring system for tool setting and tool monitoring 3 × HEIDENHAIN linear glas scales on the X, Y and Z axes 1 × through-spindle coolant system 1 × chip conveyor 1 × paper-band filtration unit (paper filter system) More information upon request.

Condition: used, Year of construction: 2008, x-travel 1000 mm Laodsxcp R Uopfx Amted y-travel 1000 mm z-travel 1000 mm Control Siemens 840D powerline spindle tunring speed 8.000 U/min drive capacity - main spindle 100/40% ED 32/44 kW tool taper HSK-A 100 number of tool places 354 Pos. rapid traverse ( x / y / z ) 60 m/min size of pallet 800 x 800 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Technical Features: - NC rotary table with pallet carrier - Rotary pallet changer - 40 bar internal coolant supply - Rotating viewing window - Wall-mounted magazine with 300 magazine positions - Rotating wall tool lock, 30 positions (inactive) and 54 positions (active) - Infrared measuring probe - SK 50 mechanical tool breakage detector - Tool identification - 4-color signal lamp Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!
