Universal Milling Machine

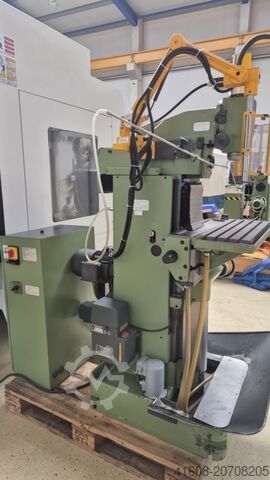

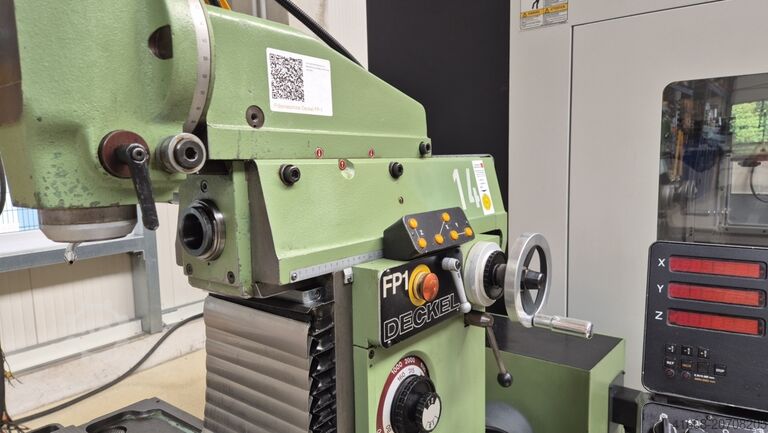

DECKEL FP 1

Condition: good (used), Year of construction: 1988, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 210 x 600 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 730 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: Safety cover and LED lamp retrofitted in 2016 3-axis active digital readout made by Heidenhain Fixed angle table Coolant equipment Godpfx Ahsx D T Nqo Isca

Condition: new, WMD30LV - 230V / 1F Drilling capacity steel ----- 32 mm Milling capacity steel ----- 20 mm Flute cutters ----- 76 mm Motor ----- brushless 1.5 KW Spindle speed stepless 50 - 3000 rpm Spindle stroke ----- 70 mm Spindle mounting ----- ISO 30 Worktable ----- 840 x 210 mm Cross travel ----- 220 mm Longitudinal displacement ----- 565 mm T-slots ----- 3x14 mm Unloading ----- 240 mm Distance spindle - table ----- 470 mm Weight ----- 230 KG Gjdpfx Asga T Agjh Ieca STANDARD ACCESSORIES * Drill head incl. drill chuck * Digital depth stop * Digital spindle display * Fine adjustment * Left / Right switch * Milling head left / right 90 degrees rotatable * Toolbox OPTIONS * 3-axis digital readout * Base cabinet * Automatic longitudinal feed * Milling clamp * ISO30 Collet holder & 12 collets in case * Milling set

Condition: reconditioned (used), Year of construction: 1989, Dear Sir or Madam, For sale is a partially overhauled Deckel FP1 milling machine equipped with a 3-axis Heidenhain TNC113 active control, notable for its ease of operation. This modern version, built in 1989, features central lubrication, an electric coolant pump, and a machine lamp, among other benefits. The machine has undergone extensive partial refurbishment in our workshop and is therefore in excellent condition. You are welcome to inspect the machine on-site at any time. Delivery time: on request Machine no.: 2102-xxxx Table: Rigid angled table or rotary-tilt-swivel table Travel (X/Y/Z): X 300 mm / Y 160 mm / Z 340 mm Quill travel: 60 mm Connected load: 1.9 kW Number of spindle speeds: 16 Speed range: 40–2000 rpm Gsdpfspy Eldsx Ah Isca Tool taper: SK40 Feed: Infinitely variable 5–500 mm/min Rapid traverse: 1200 mm/min Equipment and accessories: 3-axis Heidenhain TNC113 digital readout with active control, infinitely variable feed regulation on all 3 axes, coolant unit, central lubrication, technical documentation, leveling feet, safety equipment (optional) Our service promise to you: - We are a certified master workshop specializing in mechanical engineering - All machines undergo thorough inspection - All lubricants and any worn parts are replaced in advance - Upon request, we can fully or partially overhaul your selected machine - If required, you can order additional accessories such as tools, etc., directly - We can also install further equipment such as safety devices upon request - We are happy to handle shipping and/or installation

Year of construction: 1990, condition: good (used), Various collets and holders Approx.300 pieces. For DECKEL milling machines FP1 -FP2-FP3-FP4 Gsdpfx Aehvz Iioh Isca Single sale demand inquiries.

Condition: used, Technical details: travel -y axis: Schlitten auf Balken: 200 mm spindle taper ISO: SK 40 spindle head swivable left - right: je 90° ° quill stroke: 80 mm turning speed range: 90 - 900 / 5 step U/min distance table - lower edge spindle: min./max.: 50 / 400 mm table surface area: Anbaufläche:760 x 200 mm table surface area: Spannfläche: 630 x 200 mm max. table load: 100 kg Gcsdpfsu Ndb Ajx Ah Isa x-travel: Tisch längs: 320 mm z-travel: Tisch vertical 350 mm table swivelabel +/-: re/li je 30° distance table - lower edge spindle: min./max.: 50 / 400 mm feed:: Tisch: stufenlos 14 - 71 mm/min total power requirement: 4,0 kW weight approx.: 1.200 kg dimension machine xH: 1,3 x 1,5 x 1,8 m Equipped with Heidenhain DRO for X and Y travel Swiveling work spindle The feed works via variator gear. The table is swivelable. Spindle speeds operate in 3 levels via gears and in 2 levels electrically. Cooling device diverse tool holders SK40 Der Fräsbalken ist um ca. 350mm ausfahrbar. The machine vise is not included in the delivery scope (see picture), but can be purchased additional! *

Condition: reconditioned (used), Year of construction: 1976, Universal tool milling machine Make: DECKEL Model: FP 1 Year of construction: 1976 - workshop tested Machine no.: 53426/08 geometric acceptance with test report Accessories: - 3-axis digital display Heidenhain ND 750 - Fixed table 600 x 210 mm (T-slot 12 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 Gcodeflc N Aspfx Ah Isa - Coolant system - Counterholder with counter bearing - Operating instructions - used, as seen, but without guarantee -

Condition: excellent (used), Year of construction: 1986, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 290 mm, Year of manufacture: 1986 Travel paths: X = 300 mm Y = 160 mm Z = 290 mm Equipment: Standard accessories Vertical milling head, SK 40/20x2 Fixed angle table 210 x 600 mm, NEW! Retrofitted safety device for milling spindle, electrically protected, NEW! Active digital display (TNC113), 3 axes Coolant system Machine light Machine feet Documentation Condition: Good, mechanics and control system workshop-tested Gjdpfx Ajwgafysh Ijca

Condition: ready for operation (used), machine/vehicle number: 1124, table mounting size: 300 x 1300 mm table movement x: 950 mm table movement y: 220 mm table movement z: 400 mm spindle taper horizontal: MK 4 spindle turning speed range: 25 - 1250 rpm carriages longitudinal and cross: 7,5 - 635 mm/min carriages vertical: 3 - 250 mm/min electrical connection: 380 V, 4 kW Gjdpfx Ahsd H Ilrj Ijca space needed: 1670 x 1500 x 1580 mm weight: 2600 kg

Condition: used, Year of construction: 1982, x-travel 300 mm y-travel 160 mm z-travel 340 mm feeds -stepless- 5-500 mm/min rapid traverse 1200 mm/min spindle turning speed range 40 - 2000 U/min tool taper Normkegel 40 table length 600 mm table width 120 mm Gcodjvvnfuopfx Ah Iea voltage 380 V frequency 50 Hz rated current 13 A weight of the machine ca. 0,750 t dimensions of the machine ca. 1,8 x 1,5 x 1,8 m DESCRIPTION Machine incl: active three-axis digital readout HEIDENHAIN documentation various tool holders Machine vice etc.

Condition: refurbished (used), Year of construction: 1978, Universal tool milling machine Make: DECKEL Model: FP 1 with stepless feed year of construction: ca. 1975 - partly overhauled, new painted, RAL7035 light grey / RAL7012 basalt grey / RAL5012 light blue with warranty geometric acceptance with test report accessories: - 3-axis digital display FAGOR Innova 30i-M, new - fixed table 600 x 250 (T-slot: 12 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 Gcedpodf E H Ajfx Ah Ioa - cooling device - operating instructions - used, as seen -

Condition: used, Hermle H 2 milling machine with accessories Gedpjugv Nwjfx Ah Ijca

Condition: reconditioned (used), Year of construction: 1984, Universal tool milling machine Make: DECKEL Model: FP 1 Active Year of manufacture: 1984 - overhauled, repainted, RAL7035 light gray / RAL7012 basalt gray Mach. no.: 2102-2520 Gcedjhtq Edepfx Ah Ija with guarantee geometric acceptance with test report Accessories: - 3-axis active digital display HEIDENHAIN TNC 113 with active function in X, Y and Z axes - Fixed table 600 x 210 (T-slot: 12 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 - Coolant system - Operating instructions - used as seen -

Condition: reconditioned (used), Year of construction: 1976, Universal tool milling machine Make: DECKEL Model: FP 1 Year of manufacture: 1976 - overhauled, repainted, RAL7035 light gray / RAL7012 basalt gray / RAL5008 gray-blue Mach. No.: 52860/08 Milling head number: 7296/80 Guarantee: 12 months single shift from delivery on the mechanics overhauled by us. The electrics and electronics are excluded from this, as they have only been subjected to a functional test. Gcjdpfx Ahomhfrre Ija For machines located outside of our northern Bavarian sales area, the travel costs must be borne by the customer. geometric acceptance with test report Accessories: - 3-axis digital display FAGOR Innova 30i-M, new - Fixed table 600 x 210 (T-slot: 12 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 - Coolant system - Operating instructions Used as seen The machine corresponds technically to the state of the year of manufacture.

Condition: used, Year of construction: 1976, x-travel 350 mm y-travel 150 mm z-travel 340 mm Gcjdpfx Ahewwwr Es Ija table surface area 600 x 210 mm spindle taper SK 40 spindle turning speed range 40 - 2000 U/min feeds 5 - 500 mm/min rapid traverse 1,2 m/min total power requirement 1,9 kW weight of the machine ca. 0,7 t - machine out of teaching shop - Accessories: solid table, vertical head with quill retraction, DRO on 3 axis HEIDENHAIN, various tool fixtures, various collets, original DECKEL tool cabinet

Condition: reconditioned (used), Year of construction: 1987, Universal tool milling machine Make: DECKEL Model: FP 1 Active Year of manufacture: 1987 - overhauled, repainted, RAL7035 light gray / RAL7012 basalt gray Mach. no.: 2102-3429 with guarantee geometric acceptance with test report Gcjdshtrd Iopfx Ah Isa Accessories: - 3-axis active digital display HEIDENHAIN TNC 113 with active function in X, Y and Z axes - Fixed table 600 x 210 (T-slot: 12 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 - Coolant system - Central lubrication, electric - Operating instructions - Used as seen -
