Tool Room Milling Machine - Universal

DECKEL FP4 MA

Condition: used, Year of construction: 1985, Technical details: x-travel: 485 mm y-travel: 385 mm z-travel: 380 mm control: Contour 1 Bahnsteuerung spindle taper ISO: SK 40 spindle head swivable left - right: 90° ° quill travel: 80 mm milling head vertical adjustable: 150 ( y-Achse) mm range of revolution per miute: Spindel vertical: 50 - 2.500 / 18 step U/min feed:: X/Y/Z: 2 - 1000 steples mm/min rapid traverse : X/Y/Z: 2000 mm/min revolution per minute: horizontal: bis 1.000 U/min Table dimensions: 460 x 800 mm table load: 0,4 t total power requirement: 9,5 kVA machine weight approx.: 1900 kg dimension machine xH: 2,35 x 2,2 x 2,0 m -Equipment: - Operation via control panel Grundig elektronic with boom - Cooling with pump - machine lighting - Linear interpolation, circular polarization in XY and XZ planes - quick chuck - manual control unit Djdpfeu Ndcmex Agdscp *

Year of construction: 1989, condition: used, machine/vehicle number: 2204-1736, table mounting size: 460 x 800 mm movement x: 485 mm movement y: 385 mm movement z: 380 mm Dsdpfx Aoclli Usgdecp tailstock stroke: von Hand ca. 70 mm spindle turning speed range: 50 - 3150 rpm carriages continuously adjustable: 2 - 1000 mm/min rapid move: 2 m/min electrical connection: 3,7/4,4 kW space needed: 2100 x 1650 x 1730 mm weight: 1850 kg

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, feed length X-axis: 485 mm, feed length Y-axis: 385 mm, feed length Z-axis: 380 mm, spindle speed (max.): 3,150 rpm, Table size 795 x 460 mm Longitudinal travel 485 mm Transverse travel 385 mm Vertical travel 380 mm Spindle travel 80 mm Spindle speed 0 - 3,150 rpm Spindle taper horizontal ISO 40 Spindle taper vertical ISO 40 Control CONTOUR 2 Dcsdpfewffzkjx Agdjp

Year of construction: 1990, condition: ready for operation (used), Travel X/Y/Z: 500mm/400mm/400mm, table dimensions X/Y: 800mm/460mm, speed: 2500rpm, spindle mount: SK40/M16, feed: 630mm/min, rapid traverse: 1300mm/min. Dimensions X/Y/Z: approx. 2000mm/2000mm/2000mm, weight: approx. 1500kg, control: Grundig Contour 2, documentation available. On-site inspection is possible. Dcedpfxet Daqns Agdep

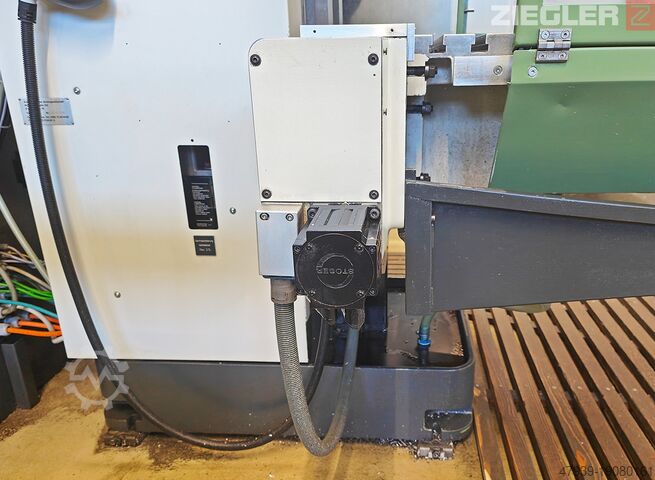

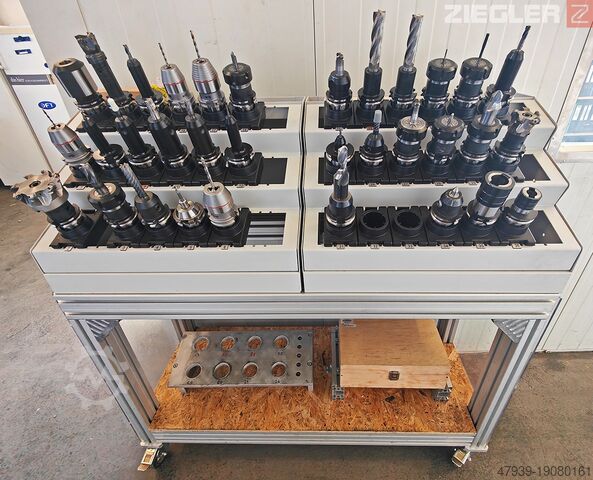

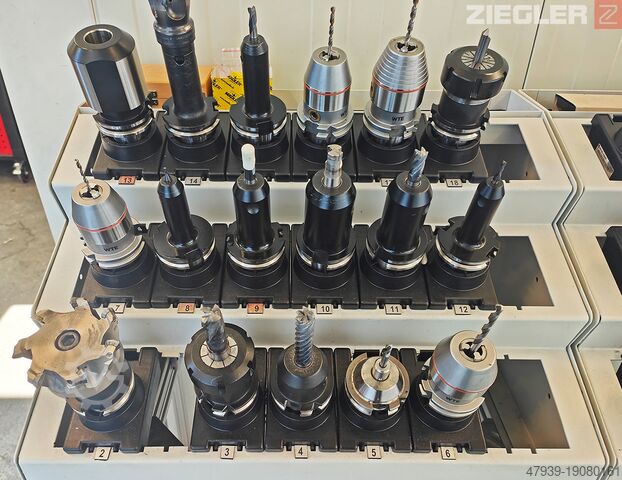

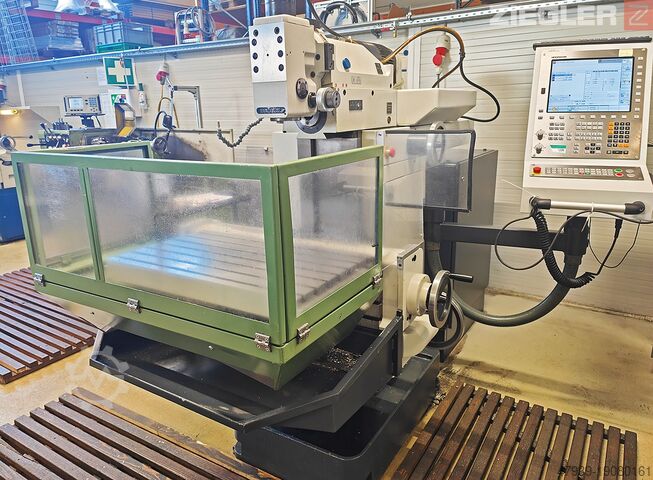

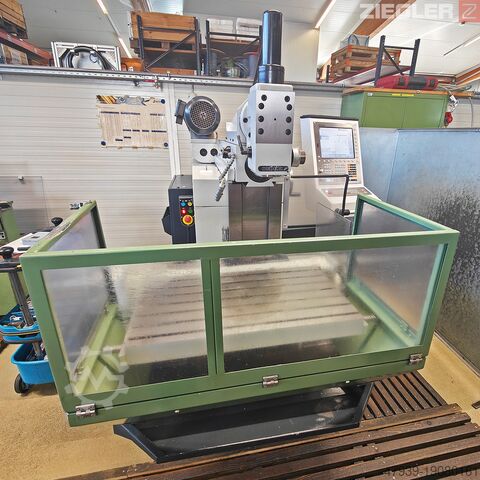

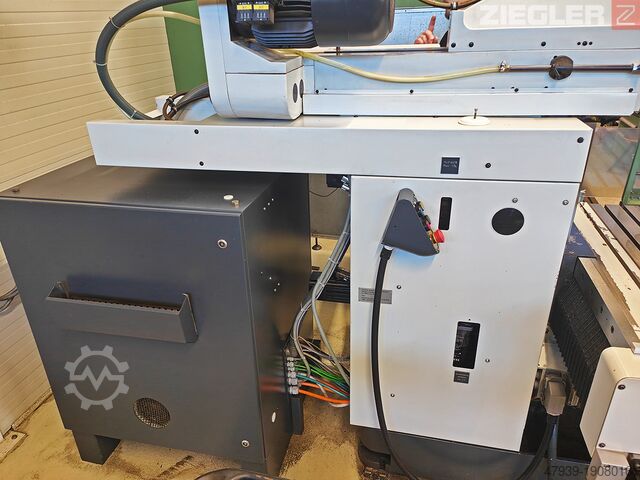

Condition: refurbished (used), Year of construction: 1988, - Refurbished in 2022 - Heidenhain TNC320 CNC control - CNC or manual control possible - Movable vertical milling head with extendable spindle - Counter bearing for long milling arbors - Hydraulic tool clamping - Automatic gearshift - Automatic clamping in the X, Y, and Z axes - Automatic central lubrication - Coolant system - Direct position measurement - Collision protection coupling in the Y and Z axes - Built in 1988 - Including tool holders, drilling/milling tools, and tool carriage Specifications Working area: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke (vertical): 80 mm - Vertical milling head manually movable on spindle block: 150 mm Main drive: - Pole-changing Three-phase brake motor: Manual gearbox with forward/reverse rotation - Power: 3.7 / 4.4 kW - Work spindle speeds: 63 - 3150 rpm (18 steps) - Step increment: 1.25 - Tool holder: SK40 (M16) - Tool clamping: Disc spring package - Tool release: Hydraulic Feed drive: Dcjdpfx Agowhk Ubedep - X-axis: 1 DC motor - Y & Z-axis: 1 DC motor - Ball screws: all axes - Feed rate: 2 - 3000 mm/min (programmable) - Rapid traverse X/Y/Z-axis: 3000 mm/min Table slide: - Number of T-slots: 4 - T-slot width: 14H7 mm - T-slot spacing: 63 mm - Permissible load: approx. 600 kg Installation: - Space requirement (including safety area): approx. 2300 x 2500 mm - Machine weight including vertical milling head and angle table: approx. 1830 kg - Operating voltage: 400 V - Total connected load: 12.5 kVA - Floor load: 3000 kg/m²
