Milling machine / Hermle UWF 902-S

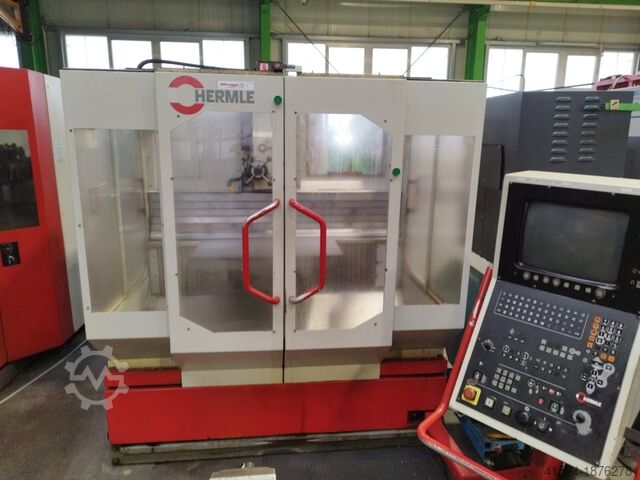

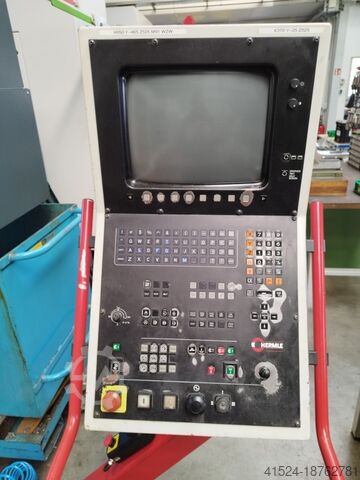

HERMLE UWF 902-S

Condition: used, Year of construction: 1995, CNC Universal Milling Machine Manufacturer: HERMLE Model: UWF 902 S Year of manufacture: 1995 Operating hours: 65,071 Control system: HEIDENHAIN TNC 426 Working range X/Y/Z: 600 x 450 x 500 mm Spindle speed range: 20 – 6,300 rpm Tool holder: SK 40 M & H 3D probe (for part touch-off) Vertical-horizontal milling attachment Boring quill Coolant system Lasdpfxsv Rxa Se Ac Hek Angle table: 900 x 458 mm Weight: 4,000 kg Machine dimensions (LxWxH) approx.: 3,900 x 2,000 x 2,000 mm

Condition: used, x-travel 500 mm y-travel 400 mm z-travel 450 mm turning speeds 31,5 - 1600 U/min Laodpfx Acovlakue Hok tool taper SK 40 quill stroke vertical 80 mm diameter of quill 80 mm table: 1000 x 850 mm total power requirement 4,0 kW weight of the machine ca. 2,6 t dimensions 2,1 x 1,7 x 1,7 m Universal tool milling machines - Digital display - Angle table - Coolant system - Machine feet

Condition: excellent (used), Year of construction: 1986, x-travel 500 mm y-travel 430 mm z-travel 400 mm table surface area 800 x 390 mm spindle taper SK 40 spindle turning speed range 40 - 2000 U/min spindle drive 3 kW quill stroke 80 mm feed - longitudinal/cross 4 - 1600 mm/min feeds vertical 4 - 1000 mm/min rapid motion -longitudinal/cross/vertical 1,6 / 1,6 / 1,0 m/min control HEIDENHAIN, TNC 135 total power requirement 5 kW weight of the machine ca. 1,4 t dimensions of machine L x W x H 2,3 x 2,3 x 1,7 m Laodpfx Aowi Ugdsc Hjk Accessories: vertical head with hydr. tool clamping and quill retraction, solid table, coolant

Condition: ready for operation (used), x-travel 510 mm y-travel 450 mm z-travel 410 mm taper in main spindle MAS BT 45° (SK40) table surface area 800 x 395 mm T-slots 6 Stk. turning speeds 50 - 2500 U/min feed stepless 4-1600/4-1000 mm/min voltage 400 V total power requirement 5.0 kW weight of the machine ca. 1400 kg range L-W-H 2300 x 2300 x 1800 mm from a training workshop maintained condition (!!) - in checked conditions - machinevideo - ?v=iSTVEdv2fO8 Furnishing : - robust universal milling machine - swiveling control panel, right front - rotatable universal milling head (re/li = 90°) * with hydraulic tool clamping - manual milling spindle feed, with locking - swiveling milling spindle protection Ljdpfx Acoxaam Ue Hjak - Stable T-slot clamping/angle table - Axis feeds with rapid traverse - Central lubrication unit - Control cabinet, installed on the left * Digital display - without function

Condition: used, Year of construction: 2015, Maho MH-C 800 milling machine. Lasdpfjxuq Nvox Ac Hjk The machine underwent a retrofit in 2015. The machine is connected to the power supply and can be inspected.
