Sorting belt Sorting conveyor belt

DIMTER

Condition: used, Year of construction: 2007, Lamination press Manufacturer: Dimter Type: PROFIPRESS L2500 Year of manufacture: 2007 Technical data Wood dimensions to be processed Wood width, panels: 30 - 150 mm Wood thickness: 11 - 60 mm Wood inlet length: 800 - 2500 mm Panel widths, variable: max. 1300 mm Specific pressing pressure for cross-sections of 2500 x 60 mm: up to 1.6 N/mm2 The pressing surface per press cycle must not be smaller than 100 cm2 Filling width of the press per cycle: min. 650 mm / max. 1300 mm Max. filling area of the press per cycle: 3.25 m2 (The max. usable press width depends on the widths of the individual lamellas.) Wood type Knjdpfxszuzwqo Andsa Softwood/hardwood Press without options Electrical connection, press: 7 kW Electrical connection, 40 kW generator: 56 kW Operating voltage: approx. 400 Volt / 50 Hz (C/s) Collection table extended to 3700 x 1300 mm, with stainless steel wood support Motor-driven multi-function slider Lamination press Profipress L 2500 Press bed area approx. 2500 x 1300 mm Sturdy base frame with lower press table made of stainless steel as a grounding electrode Quick-change stop guide sets for panel thicknesses of 19 - 40 mm, which can be hydraulically adjusted to the current filling width Hydraulic special pressure elements ensure uniform pressure distribution over the entire joint length and compensate for tolerances In multi-lane operation, filling widths may vary by a maximum of 15 mm Upper pressure plate with hydraulic drive generates high vertical pressing pressure for minimal displacement Integrated hydraulic unit for generating pressing force and driving the hydraulic motors Control cabinet and control panel Protective cladding Additional individual pressure elements from above Automatic gluing station with precision gluing head Infeed for different widths Camera Washing and rinsing device for gluing head Modem incl. software for online connection Note: The technical data and descriptions are copies of the order confirmation from that time. The information is provided for informational purposes only and is non-binding.

Condition: ready for operation (used), Year of construction: 2018, Optimizing Cross-Cut Saw manufactured in 2018. This WEINIG DIMTER Opticut S90 features a saw blade diameter of 500 mm and a maximum cutting height of 120 mm. It accommodates input lengths from 400 to 6,300 mm and widths from 20 to 300 mm. If you are looking to get high-quality cutting capabilities, consider the WEINIG DIMTER Opticut S90 machine we have for sale. Contact us for further details. • Saw blade • Diameter: 500 mm • Bore: 30 mm • Adjustable saw blade speed: 40–100% via frequency converter • Workpiece capacity • Input length (min/max): 400–6,300 mm • Width (min/max): 20–300 mm • Thickness (min/max): 10–120 mm • Maximum cutting height: 120 mm • Minimum cross-section: 20 x 10 mm • Maximum cross-section 1: 215 x 120 mm • Maximum cross-section 2: 300 x 40 mm • Permissible timber curvature: max 2 mm/m or 8 mm over entire length • Table inclination: 10° • Motion and accuracy • Positioning speed (reverse stroke): max approx. 180 m/min • Positioning speed (forward stroke): max approx. 60 m/min • Positioning accuracy: +/- 0.1 mm • Motors and power • Pusher motor power: 5.1 kW • Saw motor power: 7.5 kW • Total electrical load: approx. 15 kW • Control and interface • Control unit: OptiCom Pro with 18.5" touch screen • Screen resolution: 1366 x 768 pixels • Protection class (front): IP65 • Interface: USB port and Ethernet network connection • Data format: CSV (ASCII) for import/export Knsdpfx Anjzuhdwedsa • Utilities and environment • Voltage: 400 V / 50 Hz • Operating pressure: 6–8 bar (min.) • Air consumption: approx. 250 NL/min • Extraction connection: diameter 125 mm • Required extraction performance: speed approx. 30 m/s; volume approx. 1,300 m³/h • Noise level (idling): ≤ 85 dBA

Condition: ready for operation (used), Year of construction: 1997, travel distance X-axis: 3,000 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 142 mm, controller manufacturer: SIEMENS, controller model: WS 400-20, CNC processing center manufactured in 1997. This WEINIG / DIMTER Unicontrol 10 features a maximum workpiece length of 3,600 mm and a maximum workpiece height of 100 mm. It includes a powerful cross-cut saw with a spindle speed of up to 3,000 rpm and a tenoning spindle motor power of 15 kW. If you are looking to get high-quality CNC processing capabilities, consider the WEINIG / DIMTER Unicontrol 10 machine we have for sale. Contact us for further details. • Max. workpiece height: 100 mm • Min. workpiece height: 40 mm • Min. workpiece width: 40 mm • Max. workpiece width: 140 mm • Max. workpiece length with CNC stop: 3,500–3,600 mm • X-axis stroke: 3,000–3,500 mm (version dependent) • Cross-cut saw motor power: 3.7 kW • Cross-cut saw spindle speed: 2,800–3,000 rpm • Cross-cut saw max. tool diameter: 400 mm • Cross-cut saw spindle diameter: 40 mm • Tenoning/slotting spindle quantity: 2 pcs • Tenoning spindle diameter: 50 mm • Tenoning spindle clamping length: 400–640 mm • Tenoning spindle max. tool diameter: 400 mm • Tenoning spindle motor power 1: 11 kW • Tenoning spindle motor power 2: 15 kW • Tenoning spindle speed: 2,900–3,250 rpm • Profiling spindle quantity (vertical): 2–3 pcs • Profiling spindle diameter: 50 mm • Profiling spindle clamping length: 320–400 mm Ksdpfx Aszug Nrsndjna • Profiling spindle max. tool diameter (flight circle): 232 mm • Profiling spindle motor power: 11 kW (each) • Profiling spindle speed: 6,000 rpm • Horizontal profiling unit (top) motor power: 3 kW • Horizontal profiling unit spindle diameter: 40 mm • Horizontal profiling unit max. tool diameter: 130 mm • Horizontal profiling unit speed: 5,850 rpm

Condition: used, Weinig OptiCut C700 under-table cross-cut saw for the safe and precise cutting of solid timber, particularly hard and heavy timbers with large cross-sections. The machine features a pneumatically guided saw unit, two-hand control and a hold-down device, and is ideally suited for sawmills, timber construction and industrial solid timber processing. Ksdpfx Aozrywdendjna Technical data: - Saw blade diameter: 550 mm - Cutting width: 750 mm - Cutting depth: 175 mm - Motor: 5.5 kW

Condition: used, Dimter OptiCut 700 automatic optimising cross-cut saw (sliding saw) for cutting very wide timber to size according to defects (marked with fluorescent chalk) and length. Technical data: - Cutting height: max. 120 mm - Feed length: max. 5,500 mm - Cutting width: max. 700 mm Knjdpfezryvaex Andja - Saw blade diameter: max. 700 mm

Condition: excellent (used), Year of construction: 2005, Weinig Dimter OptiCut S 90 optimizer with 2 ejectors – after technical review – German production – year of manufacture 2005 TECHNICAL PARAMETERS: max. length of cut material 4500 mm max. width 360mm max. height 160mm automatic length measurement optimization in 4 quality classes total power 13 kW blade motor power 7. 5 kW pneumatic side and top pressure disc diameter max. 500mm OptiCom Assist control receiving conveyor 5600 mm two ejectors total length 13 m Knedpfx Aei Apgmjndsa component marking printer cutting accuracy +/- 0.5 mm transport dimensions (length / width / height) 600 / 240 / 190 cm weight ~ 1800 kg

Condition: excellent (used), Year of construction: 2004, DIMTER CIRCULAR SAW OPTICUT C700, 2004 Knodpfx Anoznxiqjdea

Condition: used, Year of construction: 2007, No. 3177 Automatic optimizing cross-cut saw WEINIG Dimter OptiCut 200 - 1 Used, year of construction 2007, machine already dismantled For cutting timber to fixed lengths Timber dimensions to be processed: Minimum / maximum input length: 3000 - 5000 mm Minimum / maximum input width: 80 - 200 mm Minimum / maximum input thickness: 38 - 80 mm Maximum timber cross-section: 200 x 50 mm Minimum / maximum finished timber length: 700 - 1000 mm Average number of cuts per board: 5 Types of wood: softwood or hardwood System performance: Maximum feed speed: 180 m/min, continuously adjustable Time per cutting cycle, including braking: 0.7 - 1.2 seconds Overview of components: Item 1: Infeed conveyor belt upstream of the saw Length: 1.5 m, coupled to the saw’s feed motor Item 2: Automatic cross-cut saw OptiCut 200 - 1, left-hand version With integrated length-measuring wheel and integrated blow-out device for waste pieces Graphics-capable operator terminal with 1/4 VGA display, numerical keypad and function keys, including the OptiCom software package for system control The machine is fed from the left-hand side Item 3: Outfeed conveyor belt / sorting station With drive unit, without ejectors Conveyor length: approx. 1.5 m The infeed table was not used by the previous owner. Two feed rollers were installed for feeding the material. The conveyor table is included, only the rubber conveyor belt is missing. Sale on behalf of customer, ex location near 39100 Bolzano (Italy), without dismantling, without transport and assembly Dismantling, loading, and transport by us optionally available Subject to errors in the description and price To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to the manufacturer’s brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Ksdpfou Atmuex Andjna Photos and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or shipping Terms of delivery: Ex location

Year of construction: 2004, condition: excellent (used), Dimter optimization crosscut saw 350 with elevation AH 1400 mm crosscut see picture crosscut saw control cabinet Scanner interface sorting 6500 mm long 3 pushers Kjdpjncc Icefx Andjna Waste flap Machine is already dismantled and immediately available Machine ran without problems until dismantling Transport can be organized

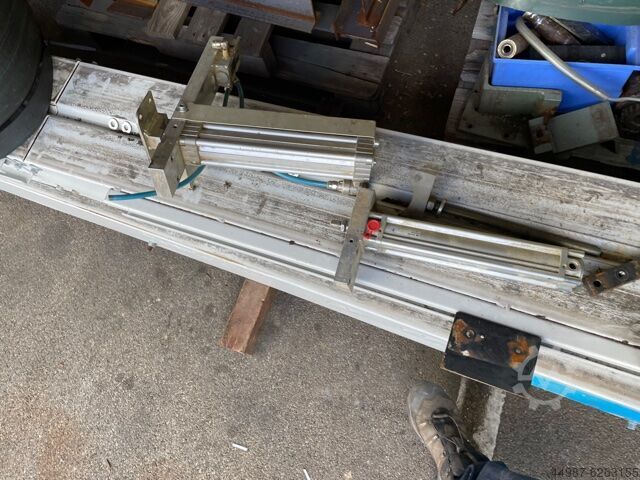

Condition: good (used), Paddle ejector for sorting belt Length: approx. 600 mm Ksdpfxjqmizde Andjna Working height: 850 mm Drive: Rexroth servo more available also other length
